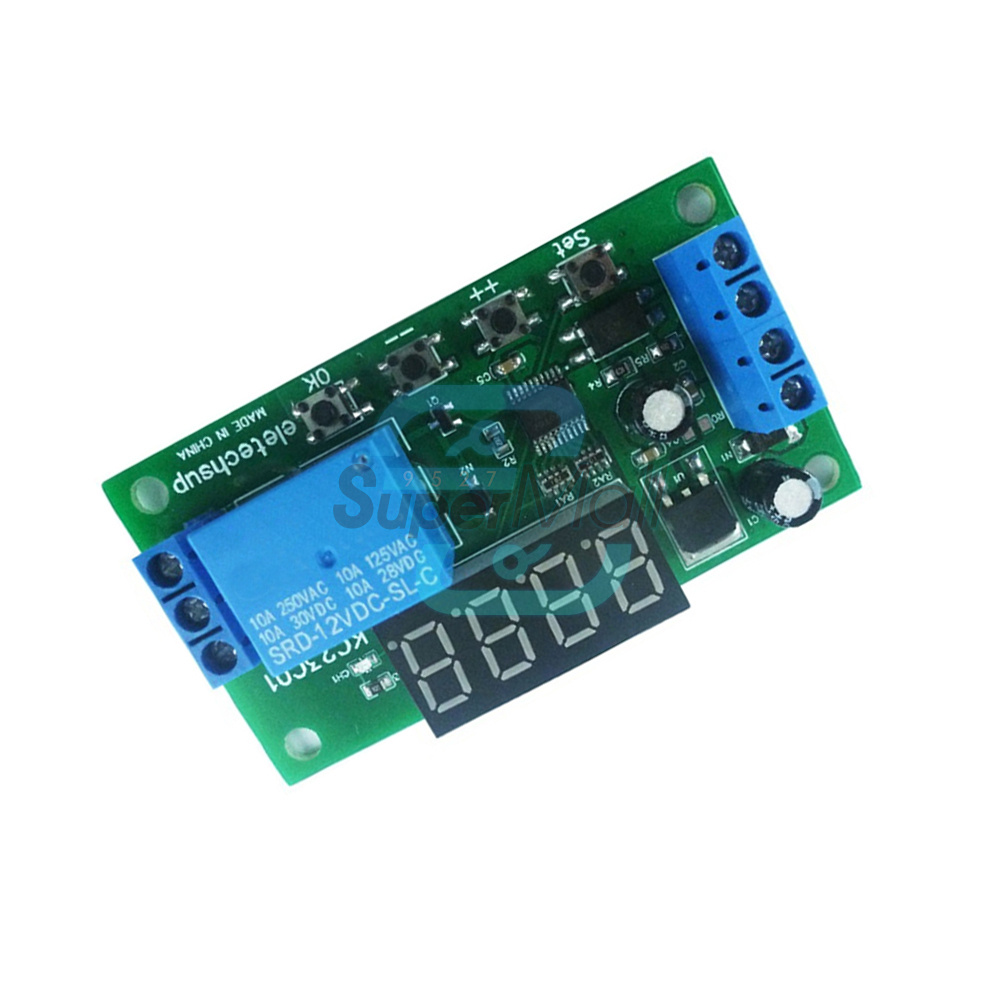

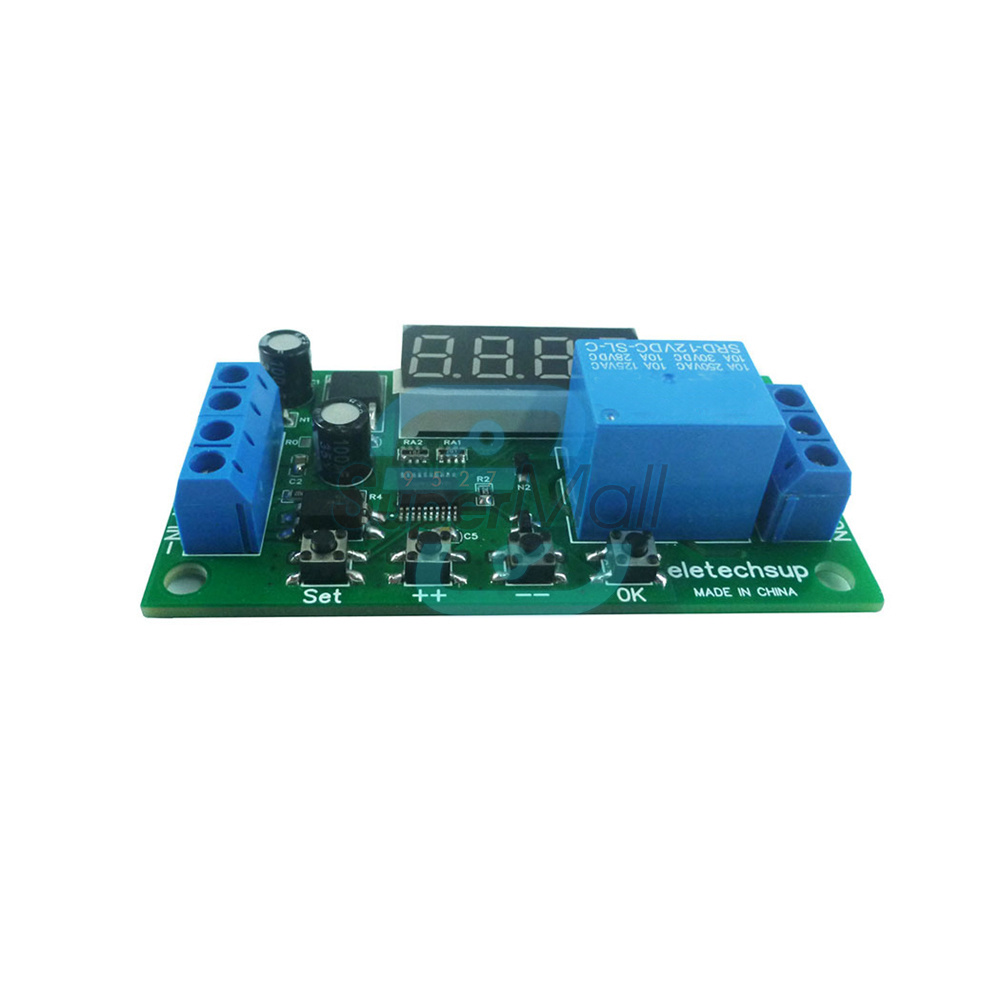

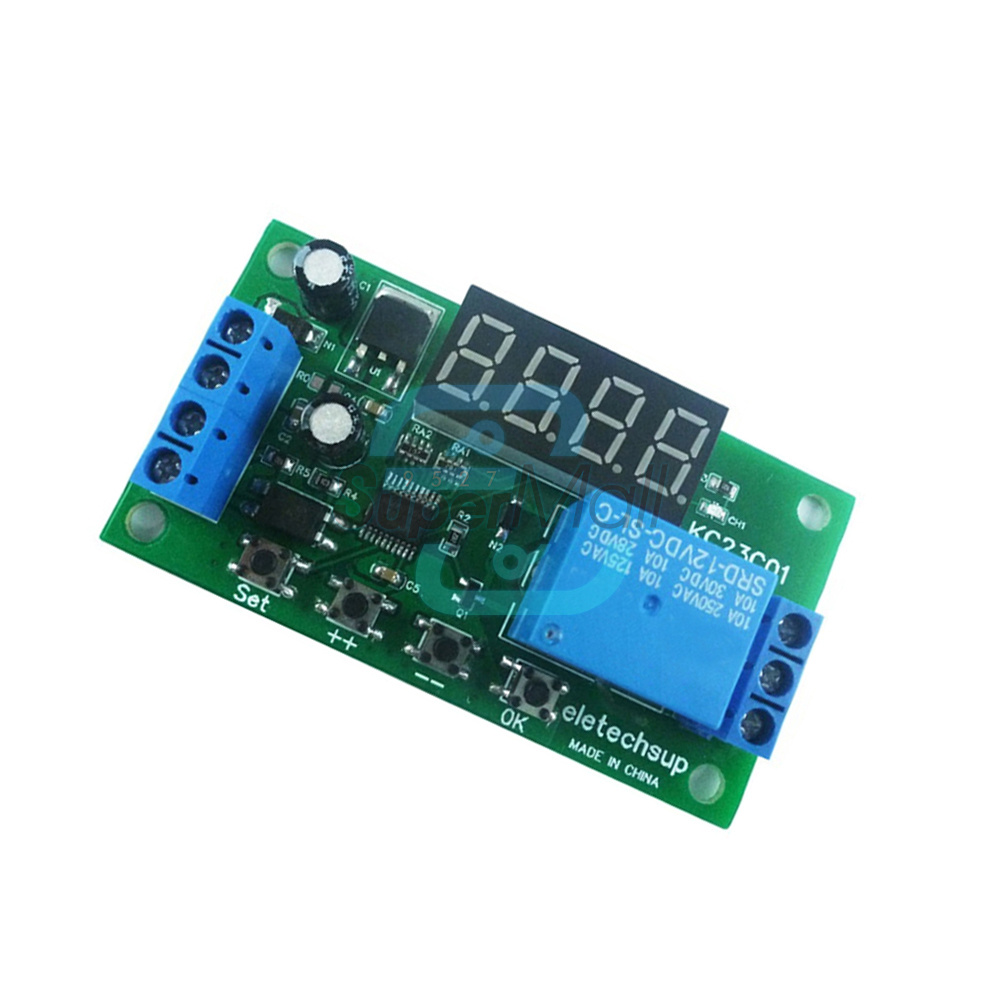

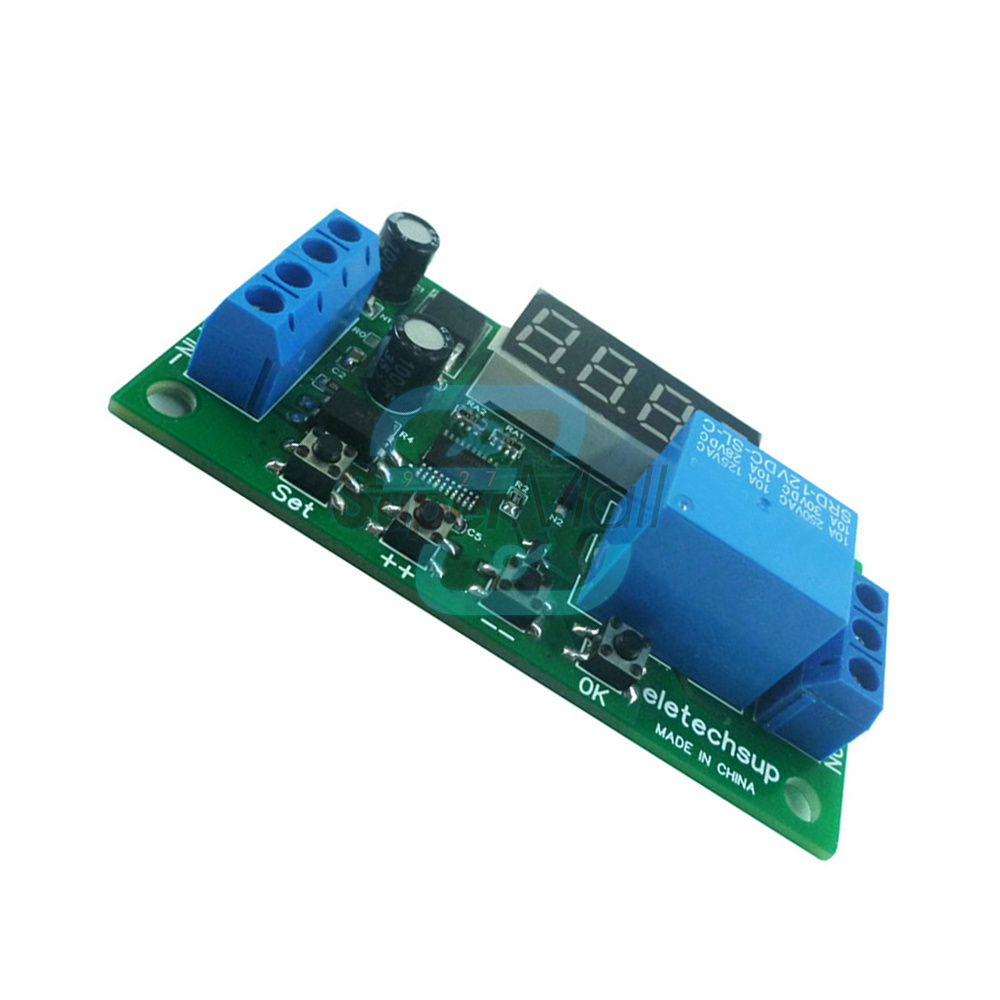

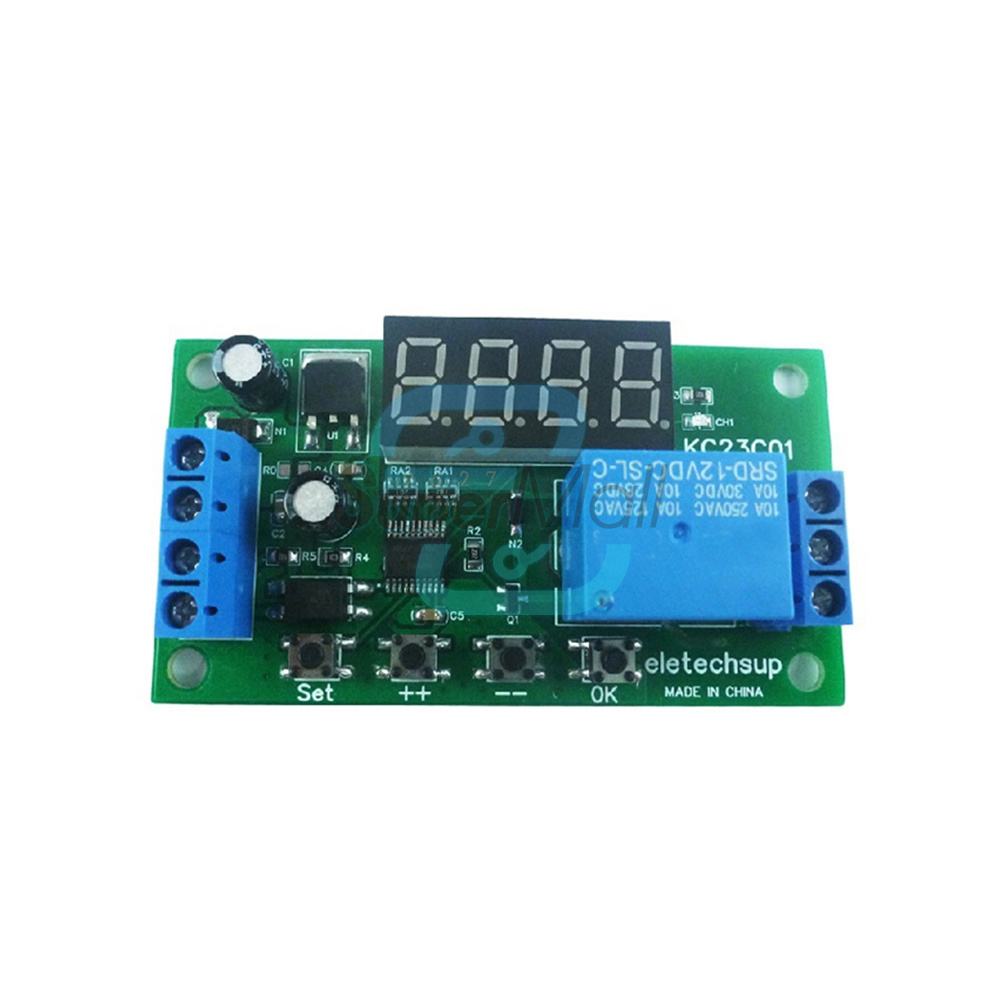

Description:

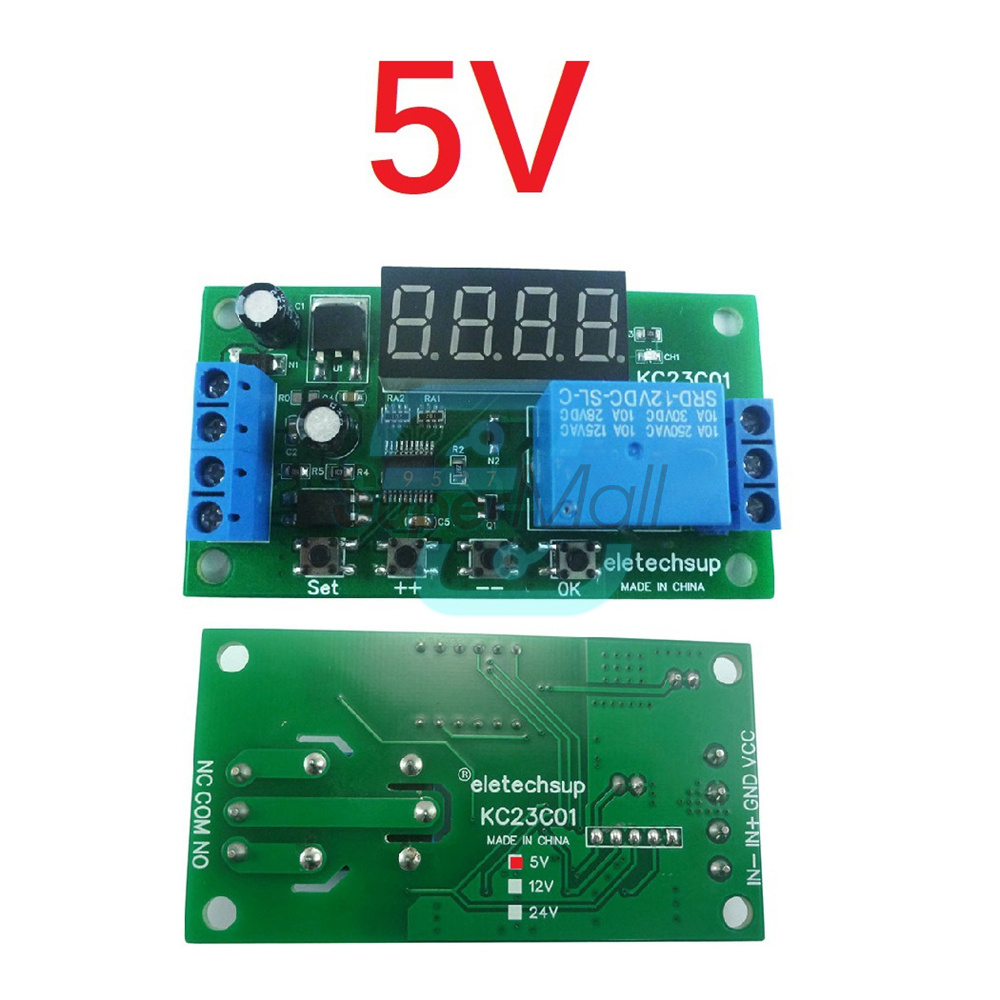

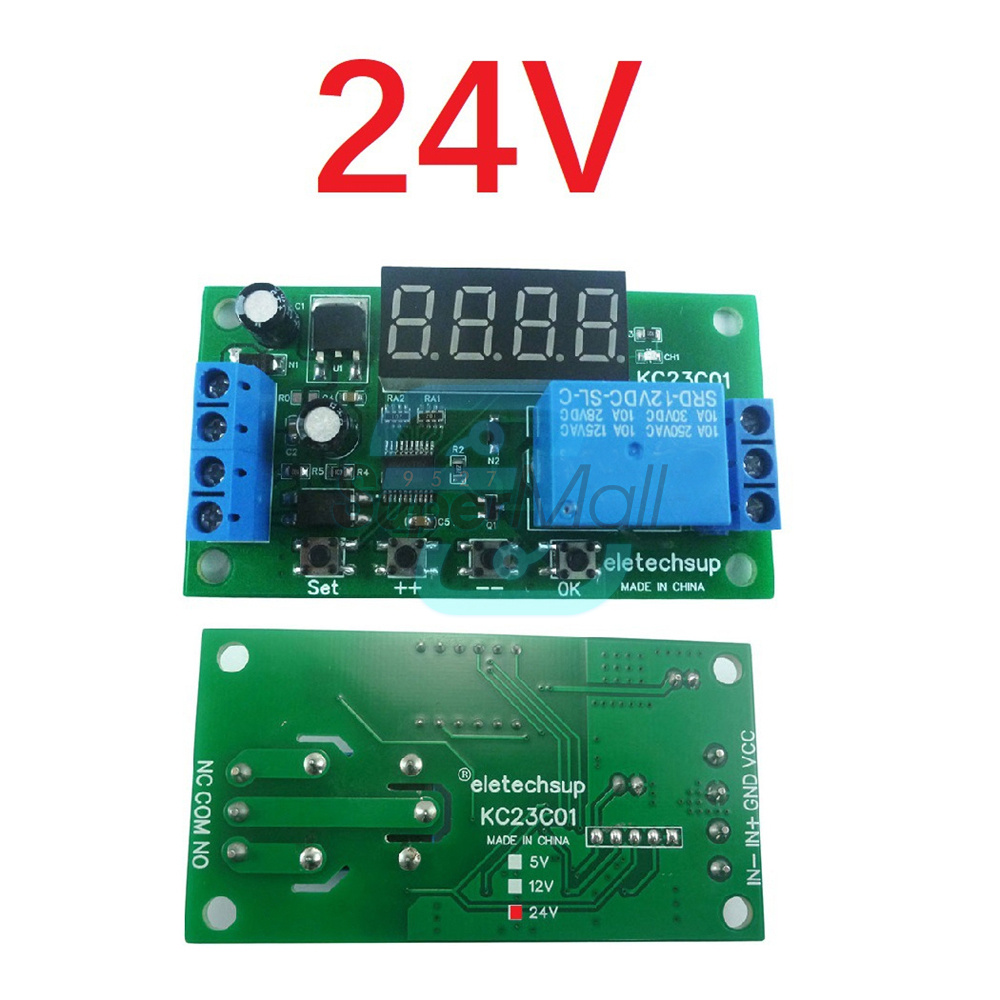

Working voltage: DC 12V (DC 5V/DC24V optional)
Working current: digital tube OFF (power saving state): relay OFF 6MA, relay ON 35MA
Digital tube ON (working state): relay OFF 29MA, relay ON 56MA
Three states: working state, power saving state, setting state

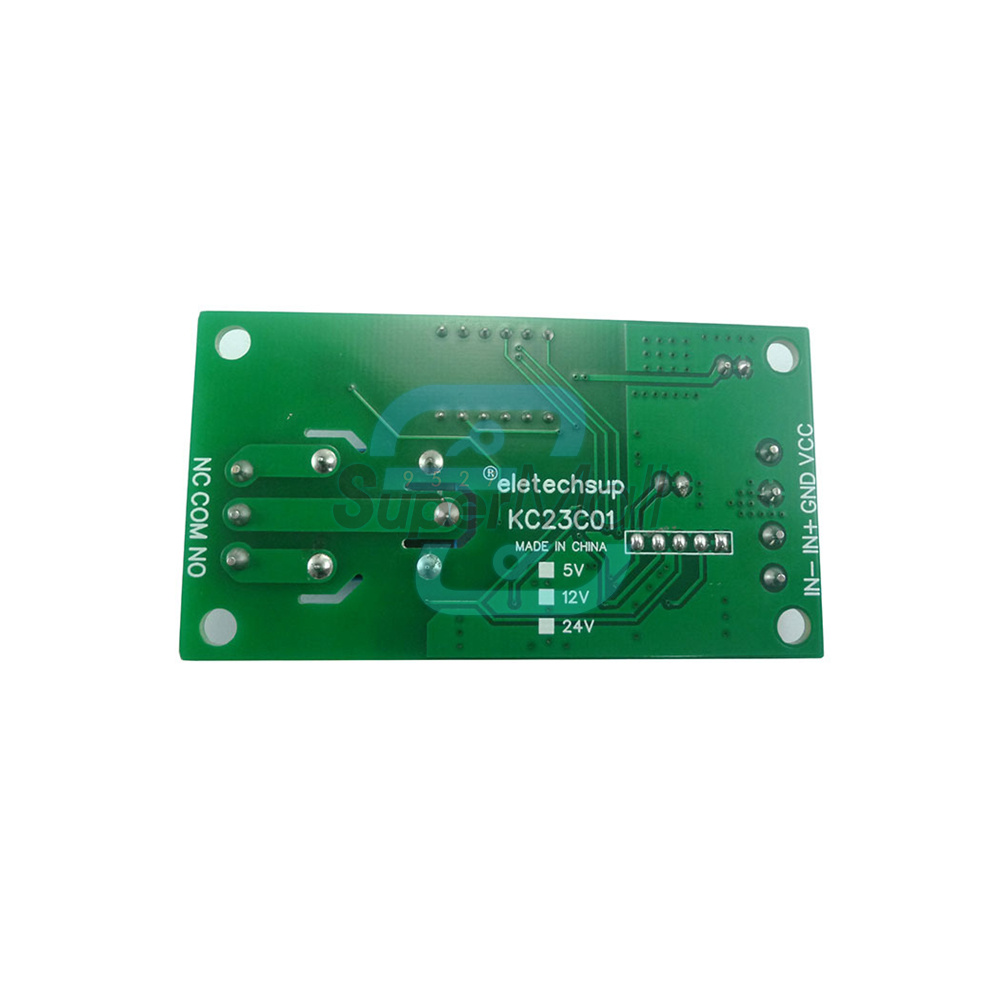

Input port: optocoupler isolation input, compatible with NPN/PNP input (5-24V switch signal)
Output port: 10A relay NO COM NC three ports
Working mode: F00-F05 single-shot pulse control mode, which is a general delay relay mode
F10-F15 pulse counting control mode, input port counting control relay
Working voltage: DC 12V (DC 5V/DC24V optional)
Working current: digital tube OFF (power saving state): relay OFF 6MA, relay ON 35MA
Digital tube ON (working state): relay OFF 29MA, relay ON 56MA
Three states: working state, power saving state, setting state
Input port: optocoupler isolation input, compatible with NPN/PNP input (5-24V switch signal)
Output port: 10A relay NO COM NC three ports
Working mode: F00-F05 single-shot pulse control mode, which is a general delay relay mode
F10-F15 pulse counting control mode, input port counting control relay
Size: 74.4*40.5*19.6MM
Weight: 29g
Relay load: 10A/250VAC; 10A/30VDC
Features:

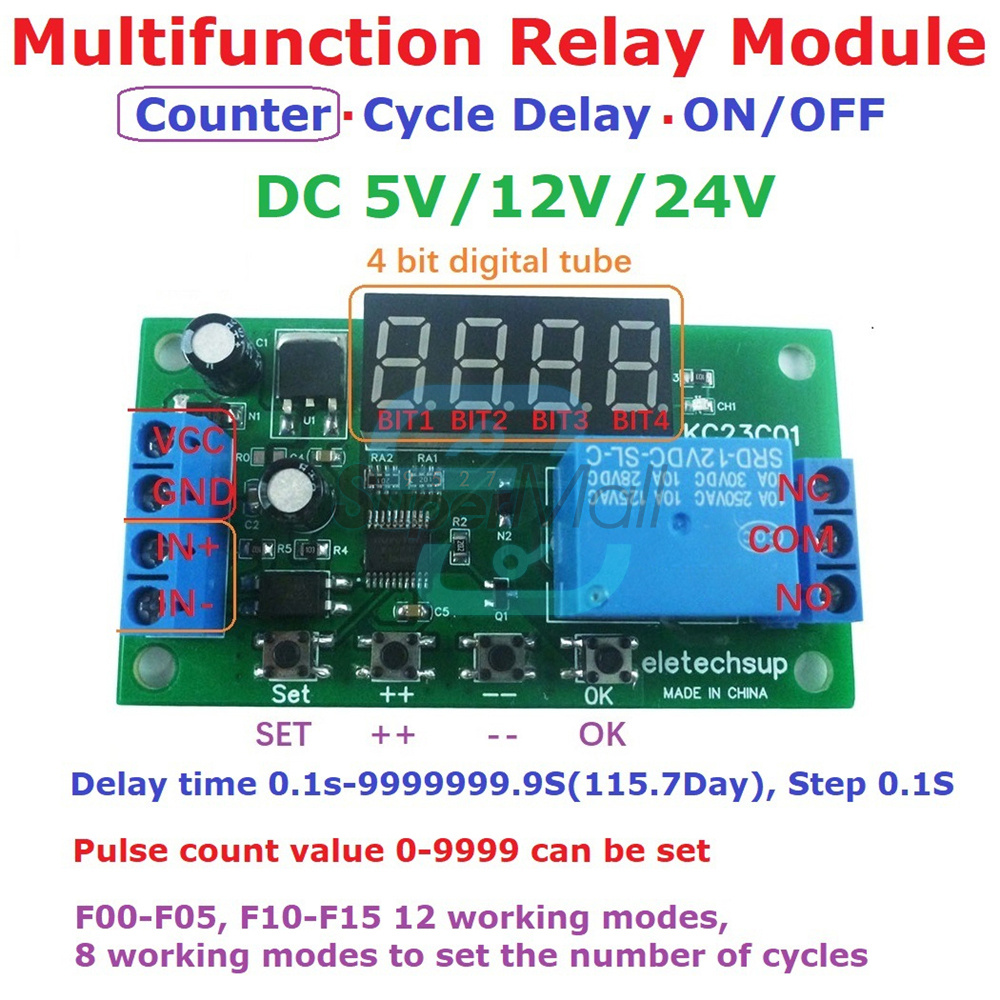

Delay time 0.1s-9999999.9S (115.7Day), step size 0.1S, precision 0.01S
Pulse count value 0-9999 can be set
F00-F05, F10-F15 12 working modes, there are 8 working modes to set the number of cycles
Weight: 29g
Relay load: 10A/250VAC; 10A/30VDC
Features:
Delay time 0.1s-9999999.9S (115.7Day), step size 0.1S, precision 0.01S
Pulse count value 0-9999 can be set
F00-F05, F10-F15 12 working modes, there are 8 working modes to set the number of cycles

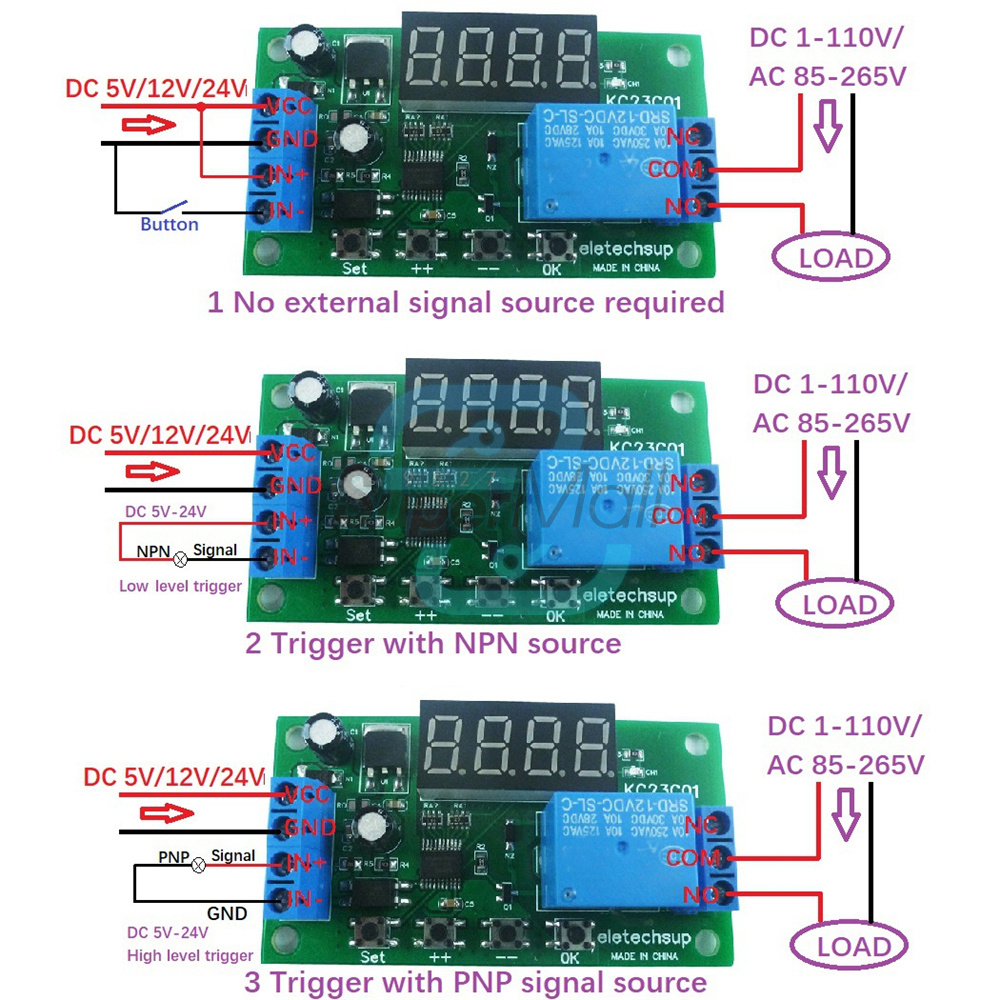

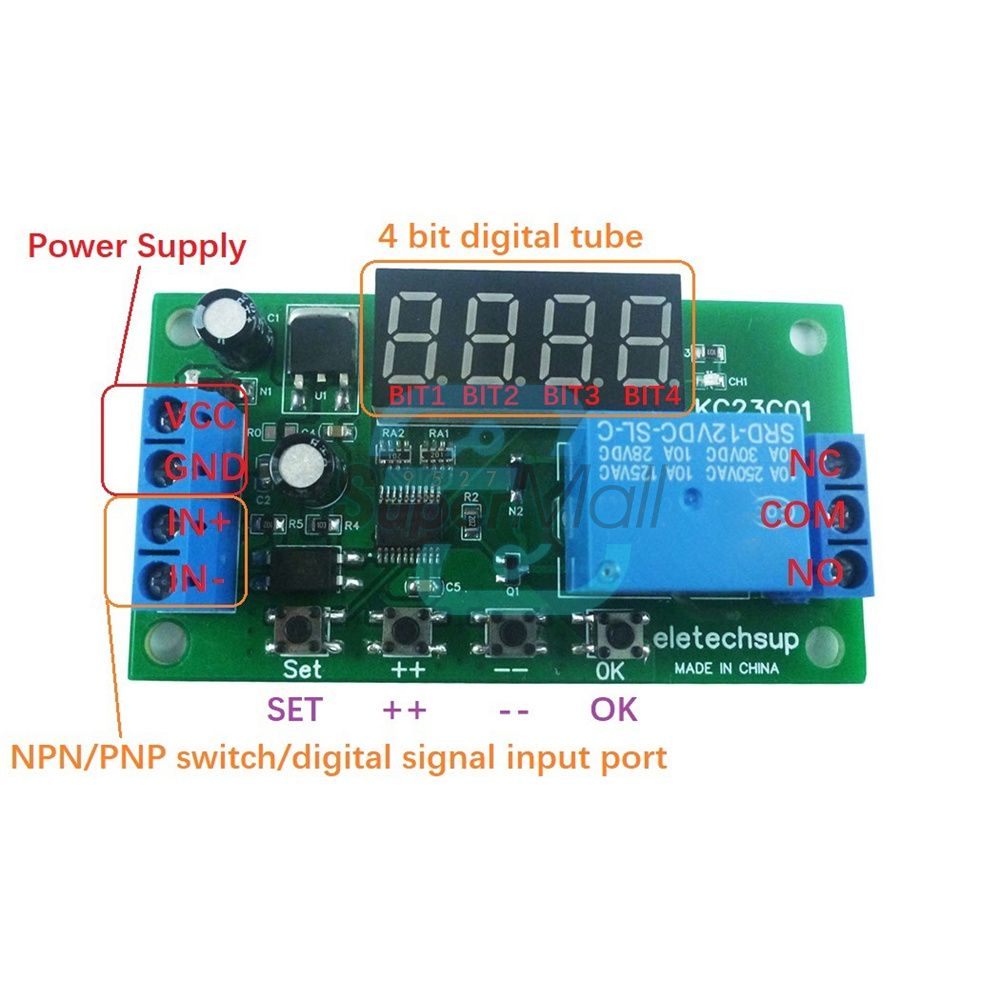

There are three wiring methods for the trigger signal input terminal:
1 No external signal source required
2 with NPN source
Trigger 3 Trigger with PNP source
1 No external signal source required
2 with NPN source
Trigger 3 Trigger with PNP source
Setup Instructions:
Short press: the key time is less than 2 seconds;
Long press: button for more than 2 seconds;
Status: working status, power saving status, setting status
Short press: the key time is less than 2 seconds;
Long press: button for more than 2 seconds;
Status: working status, power saving status, setting status
Working status: power-on working status, F00-F05 mode displays the remaining time, F10-F15 mode displays the remaining time and pulse count value.
Note: When the remaining time is greater than four digits, short press the "OK" key to scroll and display the remaining time once.
Note: When the remaining time is greater than four digits, short press the "OK" key to scroll and display the remaining time once.
Setting status: short press ''SET'' key to enter setting status, then short press ''SET'' to switch parameters, short press ''++''/''--'' to modify parameters. Short press the "OK" key to save the parameters and exit the setting state.
Note: After setting the parameters, it must be powered on again.
Query status: without modifying the parameter setting status, short press the "SET" button to enter the query status, then press "SET" to switch parameters, and short press the "OK" button to exit the query status
Note: After setting the parameters, it must be powered on again.
Query status: without modifying the parameter setting status, short press the "SET" button to enter the query status, then press "SET" to switch parameters, and short press the "OK" button to exit the query status
Power-saving state: The working state of the digital tube is off. In this state, the digital tube does not display, and other functions work normally. Press and hold the "OK" button for 5 seconds to enter the power saving state, and long press the "OK" button for 5 seconds to exit the power saving state.
Notice:
1 In the power-saving state, you can still enter the setting and query state, and automatically enter the power-saving state after 20 seconds of no key operation.
2 After turning it on again, the digital tube displays for 20 seconds, how to turn off the digital tube.
Notice:
1 In the power-saving state, you can still enter the setting and query state, and automatically enter the power-saving state after 20 seconds of no key operation.
2 After turning it on again, the digital tube displays for 20 seconds, how to turn off the digital tube.
Factory setting: Press and hold the "++" and "--" keys at the same time for 3 seconds to restore the factory settings and turn off the display of the digital tube. Run with default parameters after reboot.
Note: After setting the parameters, it must be powered on again.
Note: After setting the parameters, it must be powered on again.
Exception handling:
1 If you encounter inexplicable problems, please power on again (this is because there is no restart after setting parameters)
2 If the problem still cannot be solved after powering on again, please long press the ''++'' and "--" keys at the same time for 3 seconds to restore the factory settings. then reboot
1 If you encounter inexplicable problems, please power on again (this is because there is no restart after setting parameters)
2 If the problem still cannot be solved after powering on again, please long press the ''++'' and "--" keys at the same time for 3 seconds to restore the factory settings. then reboot
Package Include:
1*Multifunctional pulse counter relay module
1*Multifunctional pulse counter relay module
