Autophix 7610 is an for VW+OBDII/EOBD Auto Diagnostic Tool

Professional Scanner for Full System of Volkswagen, Audi, Skoda, Seat . 7610 can test full system of VW, AUDI, SKODA, SEAT.

Features:

1. support 10 interface language: English, French, German, Spanish, Russian, Portuguese, Swedish, Finnish, Norwegian, Danish

2. Cover Systems include but not limit such as engine, ABS, SRS airbags,  transmission, radio, climate control, instruments, immobilizer etc.

3. Protocols cover UDS, TP20, TP16, KWP2000, KWP1281.

4. Lifelong free software upgrade online

5. Vehicle Testing Coverage : Volkswagen, Audi, Skoda, SEAT;  Volkswagen Commercial Vehicle,  Volkswagen Truck;  Bentley, Lamborghini,  Bugatti.

6. Two display skins (Gem blue & sky gray )  which provide clear dispaly at various testing environment.

7. One-click operation of five most commonly used functions on homescree

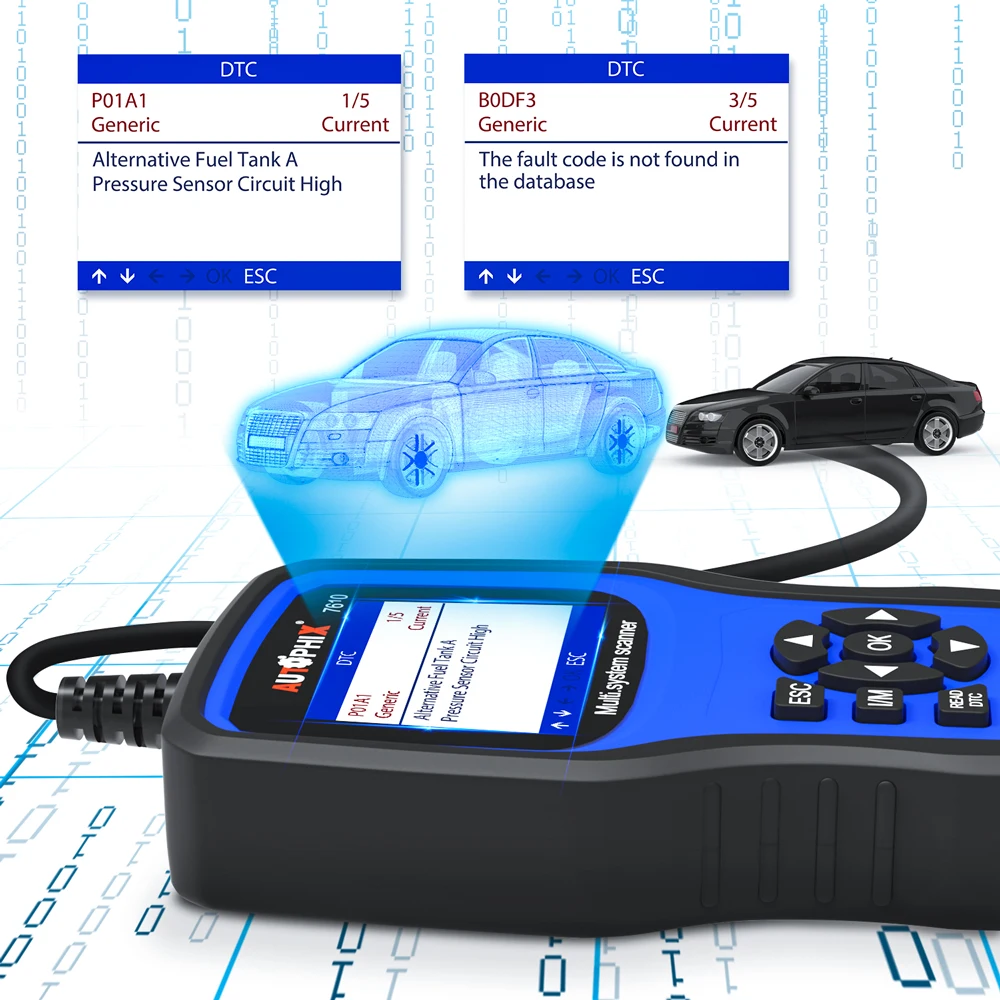

8. Vehicle Scan automatically with problematic system showed in red letters with DTC qty.

7610 full system scanner basic function

ECU version information,

read fault codes,

erase fault codes,

data stream

Basic setting,

Adaptation,

access authorization

(Usually,KWP1281/KWP2000/TP16/TP20 support all these basic function. but the lastest VW's UDS protocal should depends on the vehicle )

Coverage function

TP16, KWP2000 and KWP1281 Protocols:

Version Information, Read Code, Clear Code, Read Data Stream, Basic Settings, Adjust Matching and Safe Logon. Throttle Matching, Maintenance Reset

TP20: Version information, code reading, code clearing and data streaming, basic settings, adjustment matching and secure login. Throttle matching, maintenance settings and reset, brake pads change, steering angle learning, nozzle coding, battery registration

UDS: Version information, code reading, code clearing and data stream (data stream supports 8 main systems). Throttle matching, maintenance setting and reset, brake pad replacement, steering angle learning, nozzle coding, battery registration, DPF adjustment and DPF regeneration.

LT3 (Crafter) Model: Version Information, Code Reading, Code Clearing and Data stream

General special features:

Maintenance reset, throttle matching, brake pad replacement, steering angle learning, tire pressure reset, injector code (UDS), battery registration,

Special functions of Diesel engine:

DPF adjustment , DPF regeneration, support UDS protocol only !

Support Vehicles :

Support all OBD interface 16PIN voltage 12V vehicles

·  Volkswagen car series :(before 2019)

·  Audi car series :(before 2019)

·  Skoda car series :(before 2019)

·  SEAT car series (before 2019) :

Volkswagen Commercial Vehicle, Truck Series:

Caddy-2018

Caddy Pickup-2002

Crafter 2006-2017

Crafter NF 2017-2018,

Transporter 2003-2018,

Amarok 2010-2018,

Multivan 2003-2009,

TGE 2017-2018

BENTLEY:

Continental 2004-2019

New Continental GT 2012-2018

Continental Supersports 2012-2018

Continental Supersports Convertible 2012-2018

Continental Flying Spur 2012-2019

Continental Flying Spur Speed 2012-2019

Bentayga 2016-2019

Mulsanne 2011-2019

Brooklands 2009-2010

Azure 2000-2010

LAMBORGHINI :

URUS 2018-2019

Gallardo 2008-2014

Gallardo NF/Huracan 2014-2018

Aventador 2012-2018

BUGATTI :

Veyron 2001-2016

Chiron 2017-2022

Product specification

2.8’LCD,320 X 240 pixels color screen

Operating Voltage: 8V-18V

Operating Temperature: 0°C-60°C(32-140°F)

Storage Temperature: -20°C-70°C(4-158°F)
