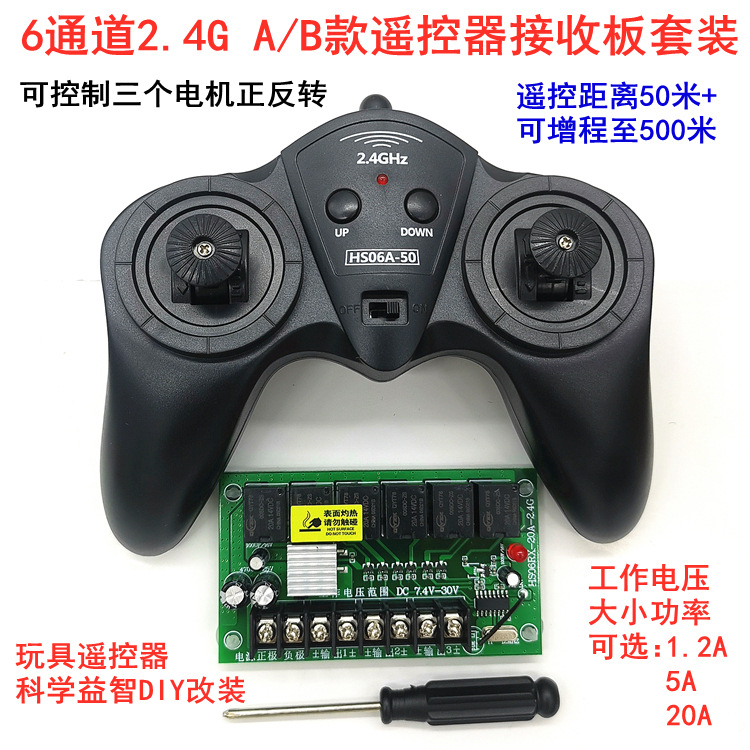

Reminder: Please read the description and details carefully before shooting. The remote control receiver only provides paper instructions without technical support. Beginners should be careful to shoot. The remote control and receiving board will be carefully checked and debugged before delivery.

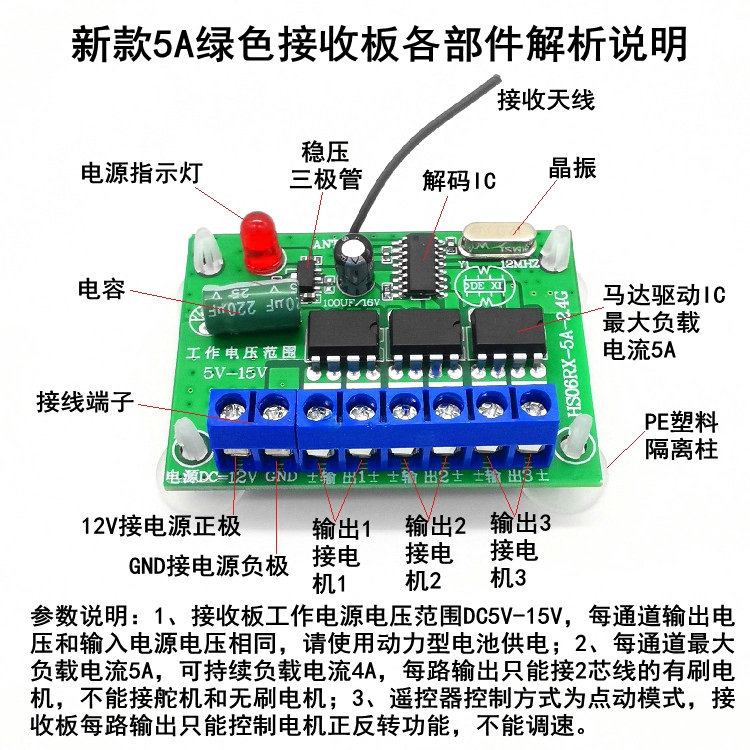

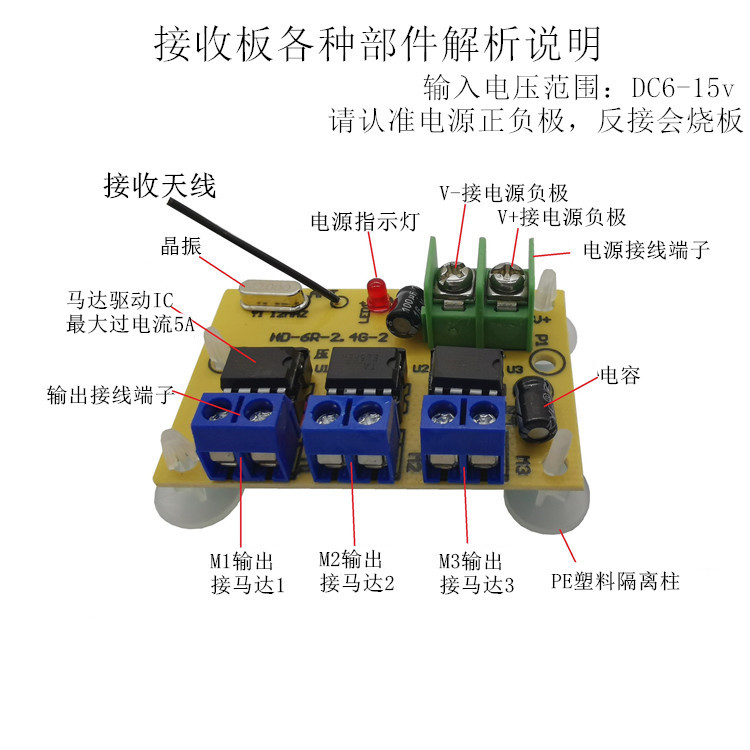

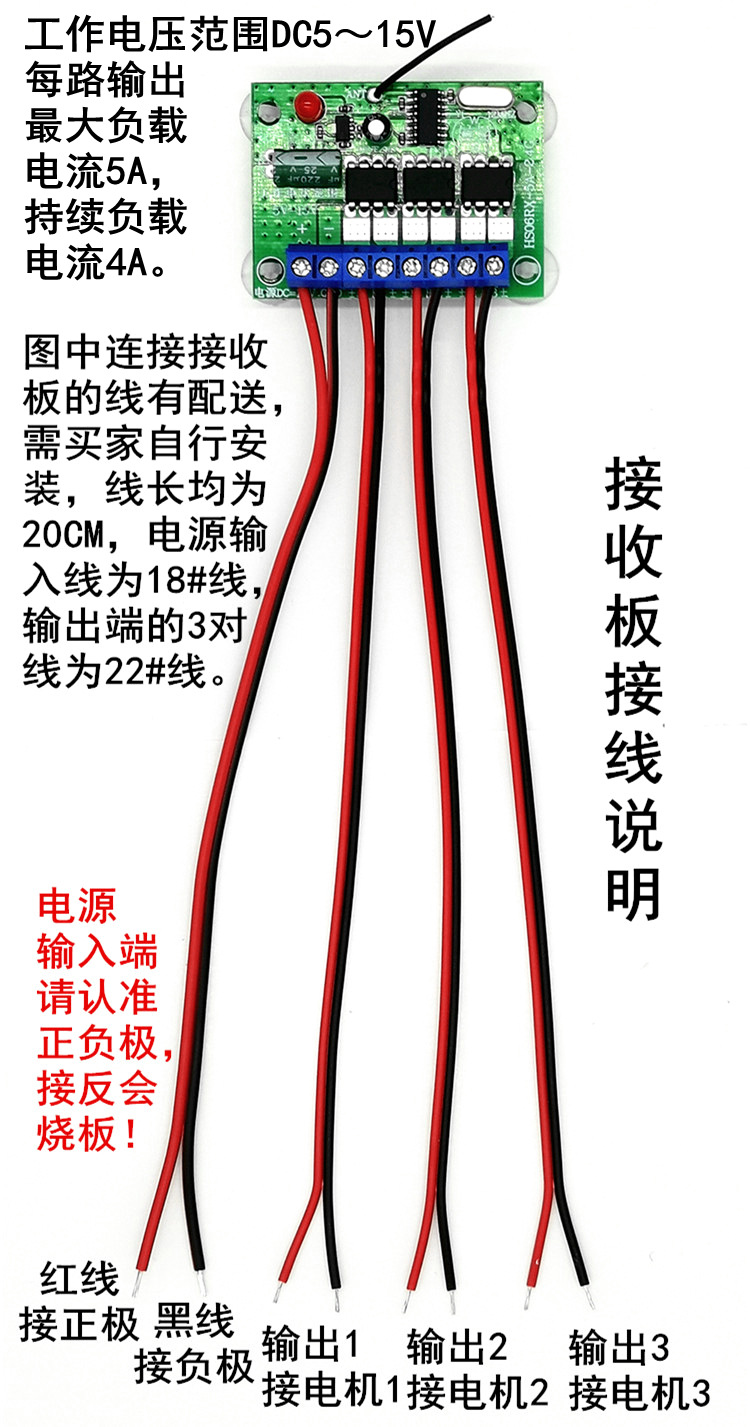

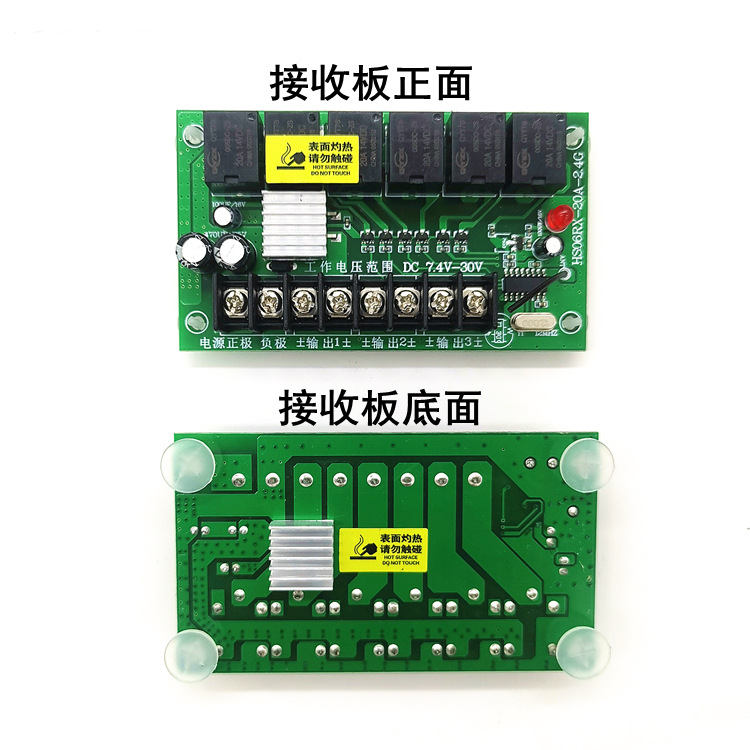

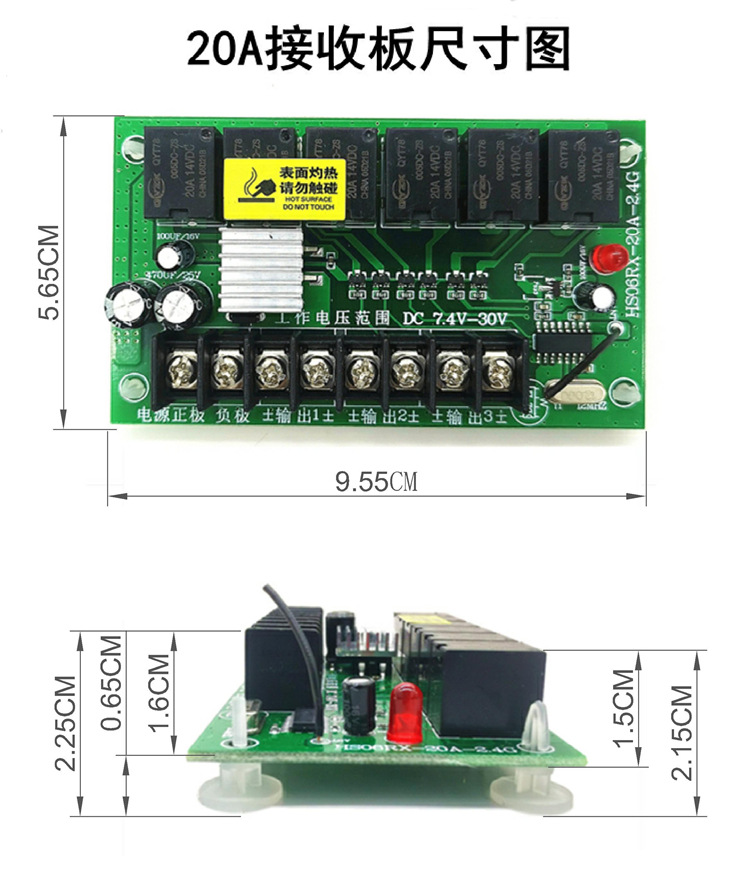

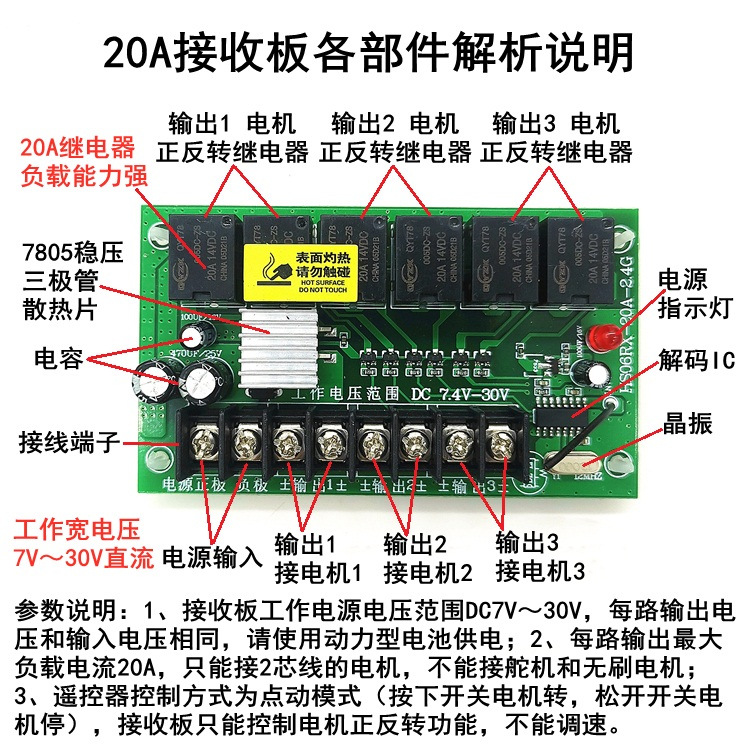

Frequency pairing operation instructions 1. For frequency pairing method, first turn on the remote control switch, the indicator light of the remote control starts to flash slowly, and enters the automatic frequency pairing state, then turn on the power of the receiving board, the indicator light of the remote control flashes 2 times and then goes out , it means that the frequency pairing is completed (generally, the frequency pairing is completed automatically within 10 seconds); it can be used, and the remote control presses the buttons of each function to control the output voltage of the corresponding circuit of the receiving motherboard.
This remote control and any A/B remote control of the receiving board can be connected to each other with any large or small power receiving board; when multiple sets of path-controlled receiving modules are used at the same time, the groups can be powered on one by one in order to match the frequency; remote control The receiver and the receiving board do not have the function of latching the frequency code. Each time you use it, you need to operate according to the above instructions.
-- -_- -
- -_- -
This 2.4G signal booster is used at the end of the transmitter. It is only suitable for transmitters in the 2404-2483MHZ working frequency band. It amplifies the power of the high-frequency signal to meet the transmission power requirements and transmit the signal to a longer distance. effect.
Working voltage: DC2.8-4.2V
Charging voltage: DC4.6V
Working current: 80-120MAH
Working frequency: 2.4GHZ
Transmission frequency: 14DBM
Working temperature: -40-+65 degrees Celsius
Size: 160MM*36mm*18mm
Measured distance: about 500-800 meters (sunny. The actual test distance on a 60-meter-wide urban road)
Communication interface: SMA-JE
Antenna type: External SMA inner needle can be bent high gain (3.0dbi) antenna
Charging time: about 1 hour
Fully charged working time: about 1.5 hours (turn off the signal booster switch without controlling the remote control. When you need to control the remote control time, turn on the remote control to increase the battery life. If you need to work uninterrupted, you can also use a mobile power supply or other DC5V power supply Connect the USB charging cable to charge and use at the same time.
Matters needing attention: 1. The signal booster can only be charged with the original USB charging cable. It is strictly forbidden to charge the signal booster with other unknown types of power chargers, so as to avoid damage due to voltage mismatch. 2. Before the signal booster is turned on, be sure to connect the transmitter and receiver to the frequency first, and then turn it on, so as not to fail the frequency connection due to the signal being too strong. 3,. If the 2.4G remote control with signal booster is installed, if there is no signal latch function, when the remote control is used at a distance, it is strictly forbidden to turn off the remote control switch, or replace the battery in the middle, otherwise the frequency will be cut off and the connection will be lost. The remote control device returns, so be sure to charge the battery before using it for a long time. Predictable battery life!
4. Please use a charger with an output voltage of DC5V and an output current of less than 2000MAH (2A) to charge the USB charging cable. It is strictly forbidden to use a charger above 2A to connect the USB charging cable to charge. So as not to damage the USB charging cable. 5. During the use of the USB charging cable, Win regularly check whether its wires, plugs, shells and other parts are damaged, and stop using it when they are found damaged. Even repaired perfectly in use.
