| Model | TH671 |
| Enviromental Notice |
Lamp in this product contains mercury. To dispose of the product or used lamps, consult your local environment authorities for regulations. |
| Projection System | DLP |
| Native Resolution | 1080p (1920 x 1080) |
| Brightness* (ANSI Lumens) | 3000 ANSI Lumens |
| Contrast Ratio | 10,000:1 |
| Display Color | 1.07 Billion Colors |
| Picture Mode | Bright/ Vivid TV/ Cinema/ Sport/ Game/ User 1/ User 2/ 3d |
| Rec. 709 Coverage | 92% (Color Wheel: RGBYCM, Color Wheel Speed: 2x (50Hz, 60Hz) |
| Speaker | 5W x 1 |
| Lens | F=2.6-2.78, f=10.2-12.24mm |
| Native Aspect Ratio | 16:9 |
| Throw Ratio | 0.69 - .83 (100" @ 5 ft.) |
|
Image Size: Clear Image Size (Diagonal): |
30" ~ 300" 60" ~ 120" |
| Zoom Ratio | 1.2x |
| Lamp Type | 240W |
| Lamp Mode (Normal/ Economic/ SmartEco/ LampSave/)* | 4000/ 10000/ 10000/ 15000 hours |
| Keystone Adjustment | 1D, Vertical ± 40 degrees |
| Projection Offset | 102.5% ± 2.5% |
| Resolution Support | VGA(640 x 480) to WUXGA_RB (1920 x 1200) *RB = Reduced Blanking |
| Horizontal Frequency | 15 - 102KHz |
| Vertical Scan Rate | 23K-120Hz |

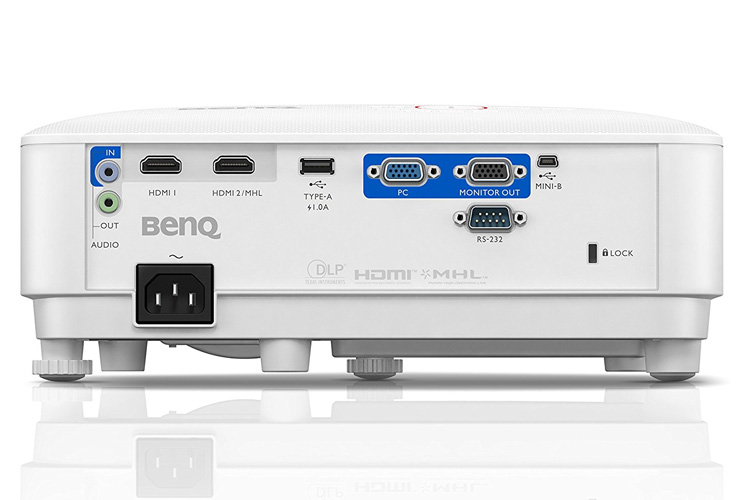

| Interface | PC (D-Sub) x 1 Monitor Out (D-Sub) x 1 HDMI-1 (1.4a) x 1 HDMI-2 (1.4a/ MHL/ HDCP 1.4) x 1 USB Type A x 1 USB Type mini B x 1 Audio in (3.5mm Mini Jack) x 1 Audio out (3.5mm Mini Jack) x 1 RS232 (DB-9pin) x 1 IR Reciever x 2 (Front & Top) Security Bar x 1 |
| Dimensions (W x H x D mm) | 296 x 120 x 224 mm |
| HDTV Compatibility | 480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Weight | 2.7 kg (5.95 lbs) |
| Audible Noise (Normal/ Economic Mode) | 33 / 29 dBA |
| Power Supply | AC100 to 240V, 50/60 Hz |
| Power Consumption | Normal 320W, Standby <0.5W |
| On-Screen Display Languages |
Arabic /Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Accessories (Optional) | Spare Lamp Kit Ceilling Mount Wireless FHD Kit DLP 3D Glasses |
|
|
  |
