CARME-28M64
Sound Town Line Array Column PA/DJ Speaker System with One 2 x 8-inch Powered Subwoofer w/DSP,TWS Bluetooth and Speaker Output, One 6 x 3-inch Line Array Column Speakers, Black |
|
   |
   |
   |
|
The Sound Town CARME-28M64 combo set includes:
(1) CARPO-M64 aluminum extruded passive column speaker
(1) CARME-28SPW1.1 powered subwoofer
(1) STCL-POLESET subwoofer/column extender pole set
The Sound Town combo set includes one CARPO-M64B aluminum extruded passive column speaker, one CARME-28SPW1.1 powered subwoofer, and one STCL-POLESET subwoofer/column extender pole set. The CARPO-M64B column speaker comes with 6 x 3“ LF + 4 x 1.2” dome tweeter which handles 200W RMS, 400W program power output. The CARME-28SPW1.1 is a dual 8“ powered subwoofer with speaker output and built-in DSP. It generates 500W continuous power and serves up solid and mighty bass reinforcement. Even better, with the speaker output, it can power the passive column speaker and deliver additional up to 500W power. Additionally, TWS Bluetooth allows seamless connections with wireless devices for added convenience. The STCL-POLESET is adjustable from 35”~54“ long and it allows you to mount the column speaker on top of the subwoofer.

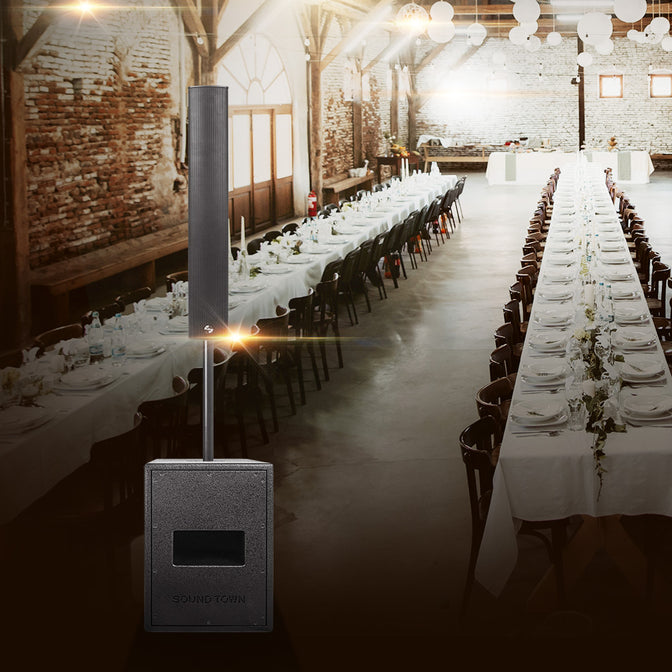

The combo system is ideal for meeting rooms, courtyards, churches, restaurants, stages, weddings and any other small to medium venues. |
|
Features
- ALL-IN-ONE SYSTEM: The Sound Town Line Array Column System includes 1 x CARPO-M64B column speaker, 1 x STCL-POLESET subwoofer/column extender pole and 1 x CARME-28SPW1.1 powered subwoofer with DSP, TWS Bluetooth and Speaker output.
- VERSATILE APPLICATIONS: The system is ideal for meeting rooms, courtyards, churches, restaurants, stages, weddings and any other small to medium venues. The powered subwoofer has speaker output to the column speaker which makes the setup a breeze.
- OUTSTANDING SOUND QUALITY: The CARPO-M64B column speaker has 6 x 3“ drivers and 4 x 1.2” dome tweeters which provides balanced and clean array audio. The CARME-28SPW1.1 powered subwoofer comes with 2 x 8“ high efficient LF that serves up solid and punchy bass reinforcement.
- SOPHISTICATED DSP: The powered subwoofer features a built-in Digital Signal Processor (DSP). The DSP not only comes with factory presets but also provides various setting options such as EQ, CROSSOVER, LIMITER, etc. This allows you to optimize the sound for the entire system, ensuring accurate audio across the entire sound field. Additionally, TWS Bluetooth enables seamless connections with wireless devices for added convenience.
- STURDY CONSTRUCTION: The column speaker features an aluminum extruded housing, while the subwoofer cabinet is constructed from 5/8” high-quality birch plywood with a textured coating finish. Both are equipped with heavy-duty metal grilles, ensuring durability suitable for touring applications.
|
|
Specifications
| Model |
CARPO-M64B |
CARME-28SPW1.1 |
| Active / Passive |
Passive |
Active |
| Frequency Response |
100 Hz - 20 kHz |
48 Hz - 300 Hz |
| Sensitivity |
95 dB, 1W @ 1m |
97 dB |
| SPL Max |
123 dB (Peak) |
119 dB |
| Dispersion |
140º x 25º (H x V) |
-- |
| Configuration |
Passive column array speaker system |
Dual 8" active high power 1.1 channel class-D subwoofer with DSP |
| Transducer |
LF: 6 x 3", HF: 4 x 1.2" dome |
LF: 2 x 8", HF: -- |
| Voice Coil |
-- |
2" |
| Magnet |
-- |
50 oz |
| Impedance |
8Ω |
4Ω |
| Power Handling |
200W RMS / 400W Peak |
500W + 1 x 500W RMS / 1000W + 1 x 1000W Peak |
| Enclosure Material |
High-grade 100% birch plywood |
High-grade 100% birch plywood |
| Mounting Hardware |
Wall-mount bracket or pole-mount adapter |
M20 mounting socket on the top |
| Finish |
Black paint |
Texture coating |
| Grill & Rigging Component |
Powder-coated marine-grade metal |
Steel with anti-corrosion coat |
| Amplifier |
-- |
Class-D, 1.1 channel |
| Input |
Speakon & 2-pole euroblock |
2 x 1/4"-XLR combo |
| Output |
-- |
1 x XLR (mixed signal out); 1 x speakon (power out) |
| Signal Processing |
-- |
DSP: presetting, EQ, crossover, limit, etc. |
| Control |
-- |
Volume, DSP |
| Indicator |
-- |
Clip 1, Clip 2 |
| Voltage |
-- |
100V-240V (50-60 Hz) |
Dimensions & Weight
| Model |
CARPO-M64B |
CARME-28SPW1.1 |
| Product Width (in.) |
4.37" |
13.0" |
| Product Height (in.) |
30.3" |
17.7" |
| Product Depth (in.) |
3.86" |
18.9" |
| Product Weight (lb.) |
15.0 lbs |
55.1 lbs |
| Package Width (in.) |
7.4" |
21.9" |
| Package Height (in.) |
35.7" |
21.1" |
| Package Depth (in.) |
6.8" |
15.9" |
| Package Weight (lb.) |
15.6 lbs |
57.3 lbs |
Warranty/Certifications
| Manufacturer Warranty |
1 Year |
|
|
