American standard taper pipe straight groove tap & die
  1/16"-2" NPT
*100% brand new and high quality
*Made of high quality material, durable and practical to use
*Material: High Speed Steels (HSS).
*Type: 1/8 NPT
*Direction: right hand
*Quantity:1PC tap + 1PC die

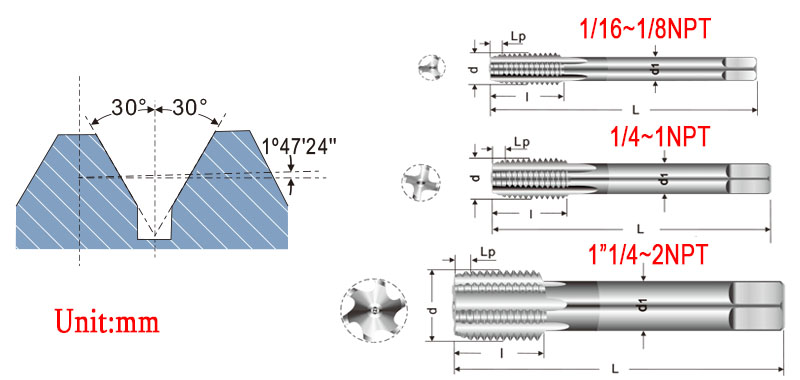

Specifications pitch
(mm)		 accuracy Lp d
(mm)		 d1
(mm)		 I
(mm)		 L
(mm)		 □
(mm)
1/16 NPT 0.941 Standard level 3P 7.9 5.6 16 52 4.5
1/8 NPT 0.941 Standard level 3P 10.27 8 18 59 6.3
1/4 NPT 1.411 Standard level 3P 13.62 10 24 67 8
3/8 NPT 1.411 Standard level 3P 17.06 12.5 26 75 10
1/2 NPT 1.814 Standard level 3P 21.22 16 32 87 12.5
3/4 NPT 1.814 Standard level 3P 26.57 20 32 96 16
1 NPT 2.209 Standard level 3P 33.23 25 40 109 20
1 1/4 NPT 2.209 Standard level 3P 41.99 31.5 42 119 25
1 1/2 NPT 2.209 Standard level 3P 48.05 35.5 42 125 28
2 NPT 2.209 Standard level 3P 60.09 40 45 140 31.5

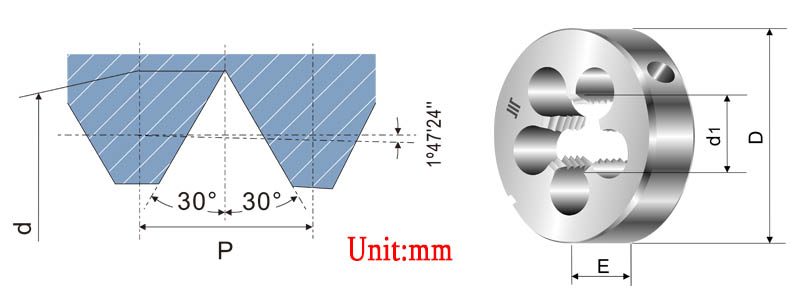

Specifications pitch
(mm)		 accuracy D
(mm)		 E
(mm)		 Specifications pitch
  (mm)		 accuracy D
  (mm)		 E
  (mm)
1/16 NPT 0.941 Standard level 7.9 5.6 3/4 NPT 1.814 Standard level 26.57 20
1/8in NPT 0.941 Standard level 10.27 8 1 NPT 2.209 Standard level 33.23 25
1/4 NPT 1.411 Standard level 13.62 10 1 1/4 NPT 2.209 Standard level 41.99 31.5
3/8 NPT 1.411 Standard level 17.06 12.5 1 1/2 NPT 2.209 Standard level 48.05 35.5
1/2 NPT 1.814 Standard level 21.22 16 2 NPT 2.209 Standard level 60.09 40
