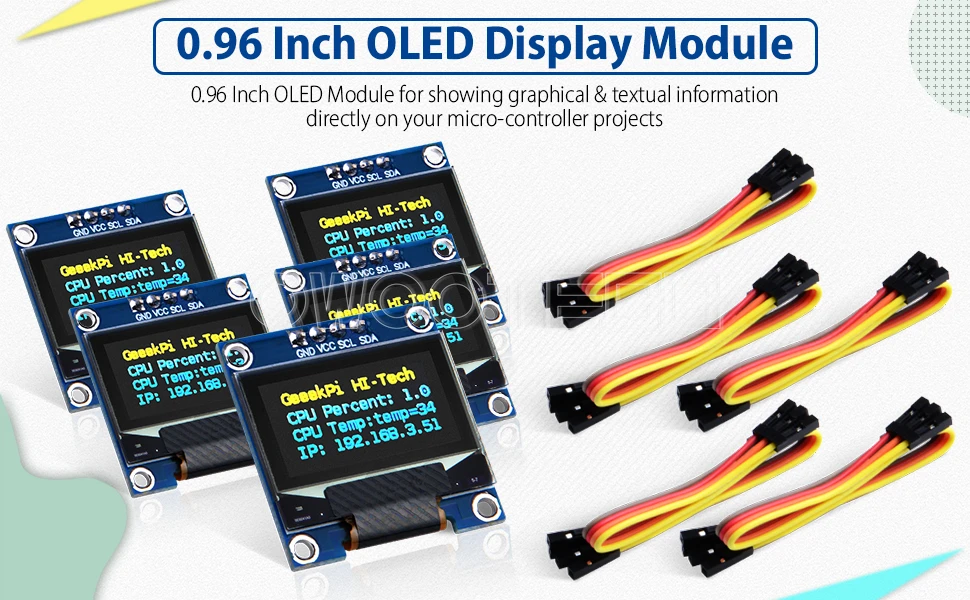

0.96 Inch OLED Display Module

Description

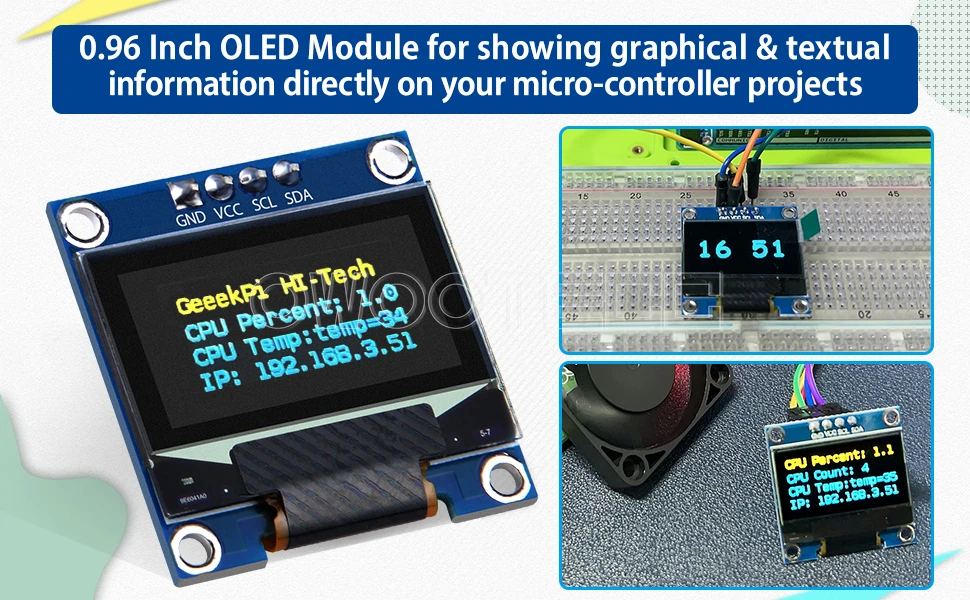

This OLED display module is small, only 0.96" diagonal, it is made of 128x64 individual yellow and blue OLED pixels, each one is turn on or off by the controller chip.

It works without backlight, that is, in a dark environment OLED display is higher compared to that of LCD display you will like the miniature for its crispness.

The Driver chip of this OLED is SSD1306, which is compatible with IIC communication. So this module can be controlled by I2C.

That is, except the VCC and GND, 2 wires would be needed when using 4-wires I2C mode.

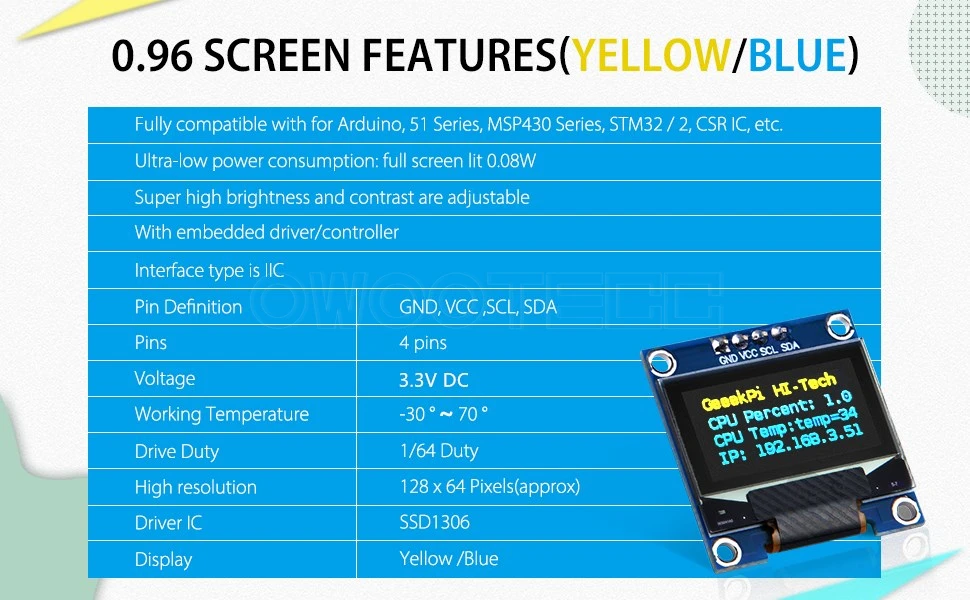

Features

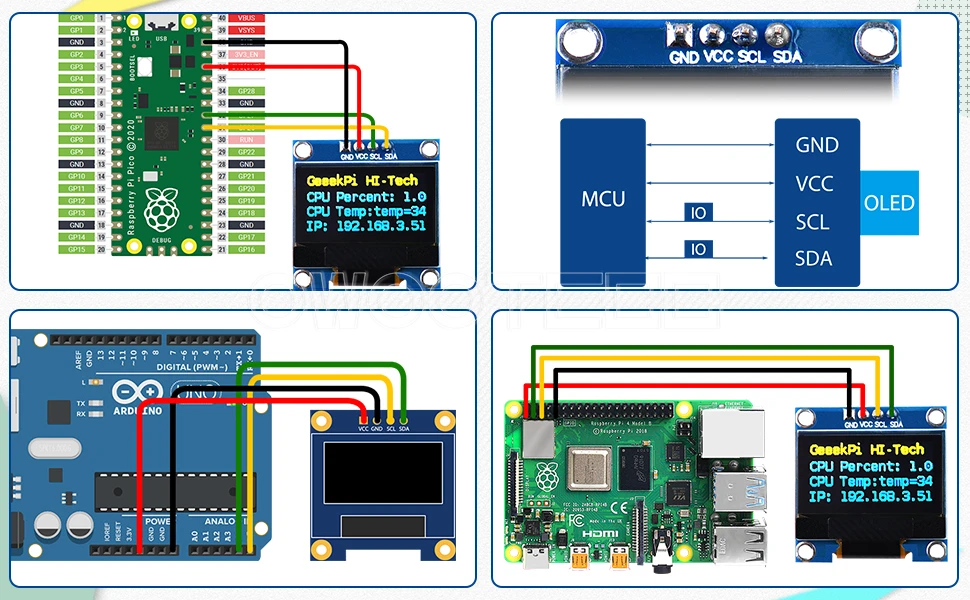

  • Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.

  • Ultra-low power consumption: full screen lit 0.08W

  • Super high brightness and contrast are adjustable

  • With embedded driver/controller

  • Interface type is IIC

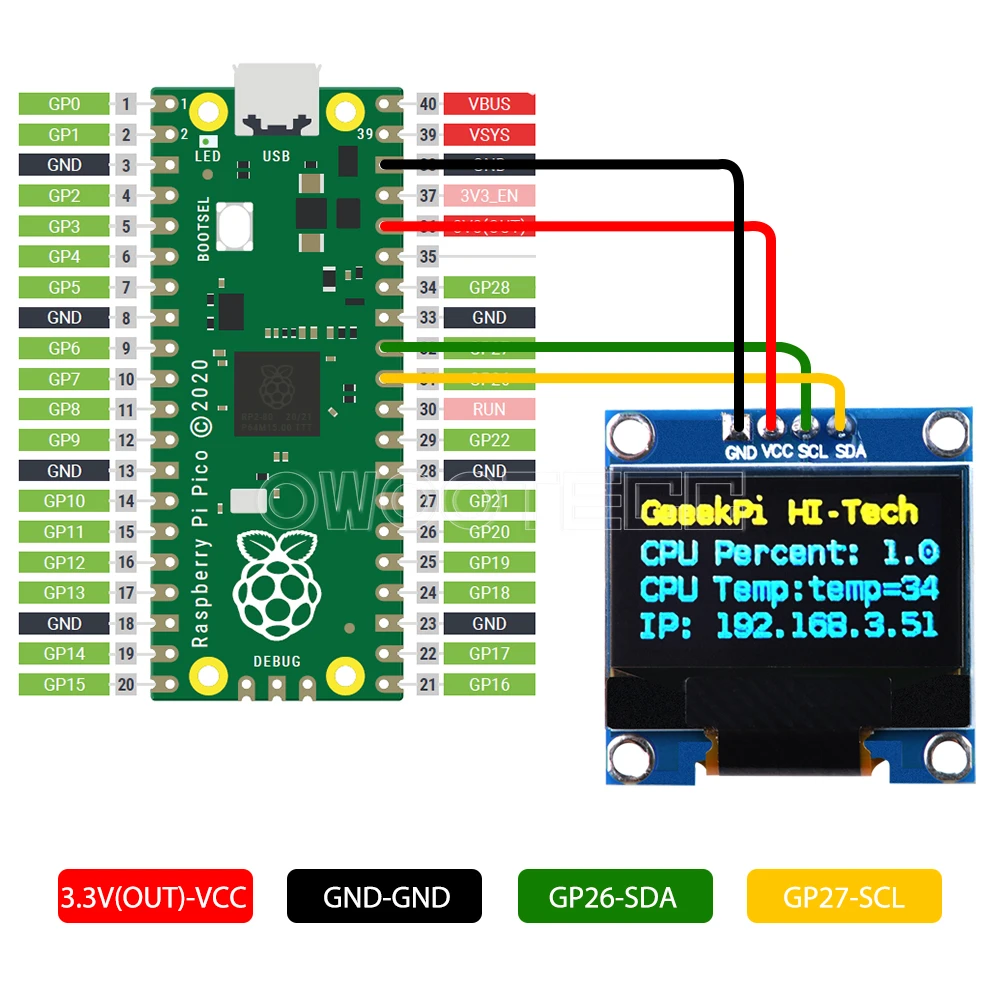

  • Pin Definition: GND, VCC ,SCL, SDA

  • Pins: 4 pins

  • Voltage: 3.3V DC

  • Working Temperature: -30 ° ~ 70 °

  • Drive Duty: 1/64 Duty

  • High resolution: 128 * 64inch(approx)

  • Driver IC: SSD1306

  • Display：Yellow /Blue

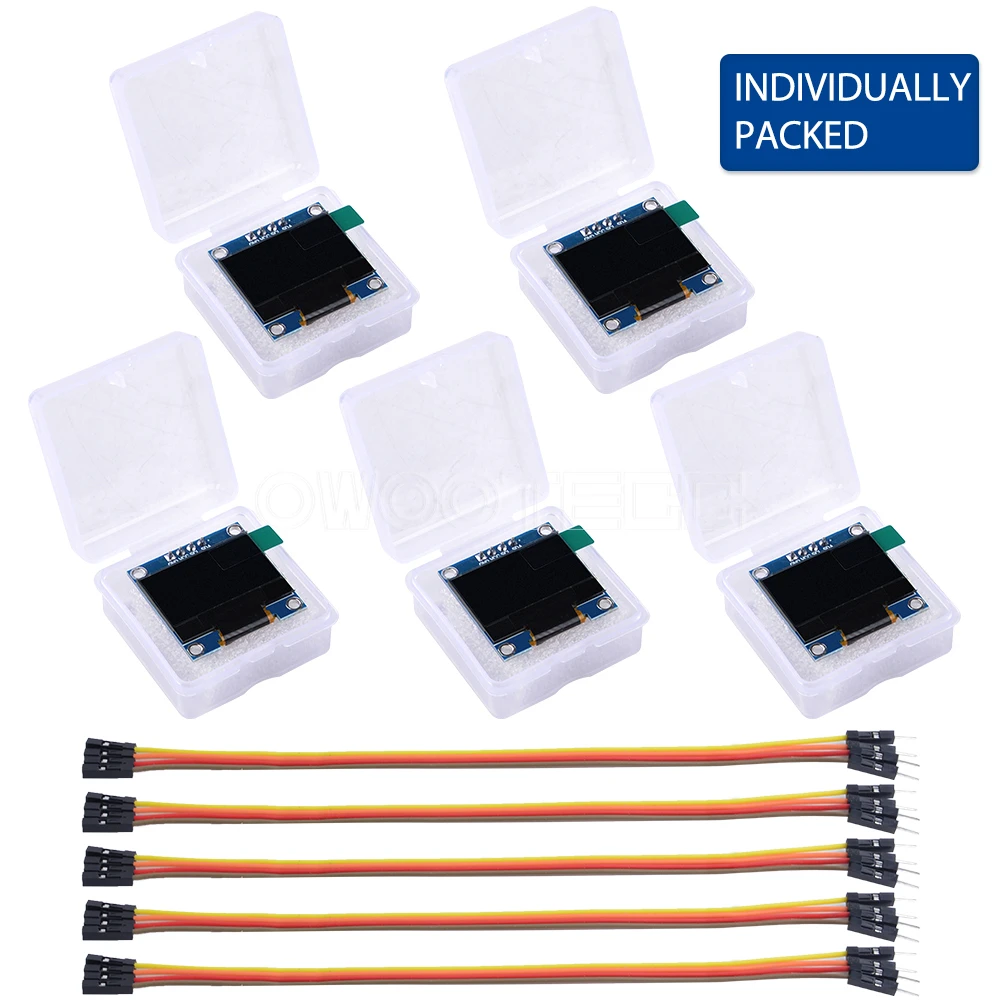

Package Includes

Package 1：
​1 x 0.96 inch OLED Display kit
Package 2：
​2 x 0.96 inch OLED Display kit
Package 3：
​3 x 0.96 inch OLED Display kit
Package 4：
​5 x 0.96 inch OLED Display kit

Product Support

https://wiki.52pi.com/index.php?title=S-0018

Gallery
