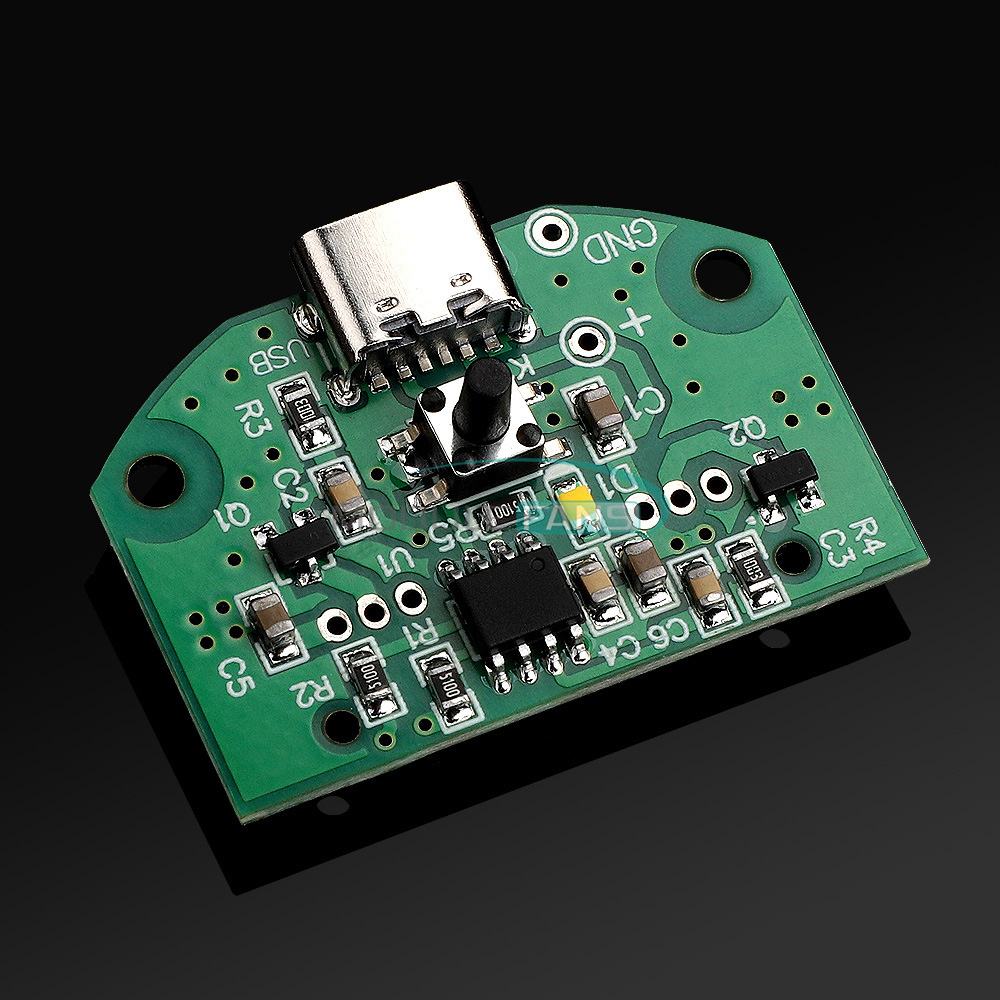

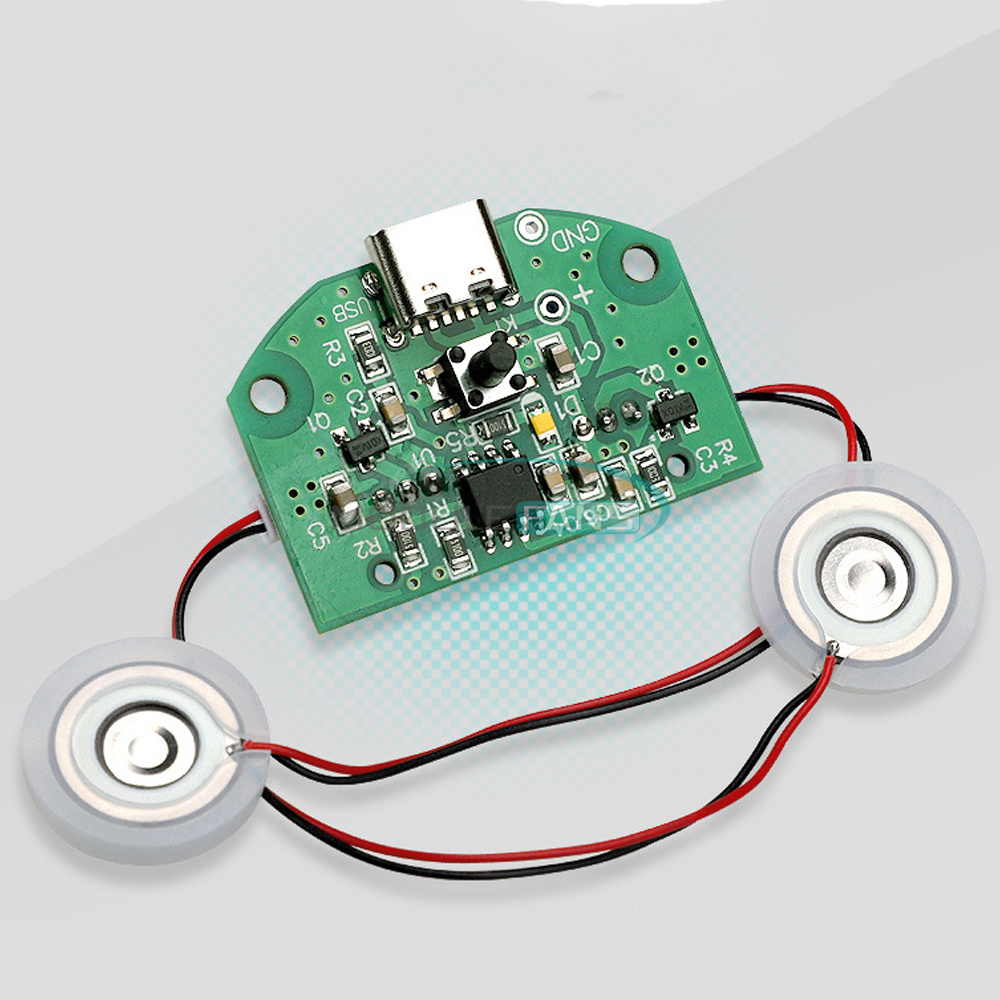

USB-C Dual Spray Module
Features:
Wide range of applications: DIY self-made spray, plant humidification, landscaping atomization
Large fog volume, fine fog particles, high fog spray
A variety of spray modes, switch at will, suitable for different functional needs
Reasonable circuit board design, original electronic components, stable performance
Double spray head design, large fog volume and wide coverage
Wide range of applications: DIY self-made spray, plant humidification, landscaping atomization
Large fog volume, fine fog particles, high fog spray
A variety of spray modes, switch at will, suitable for different functional needs
Reasonable circuit board design, original electronic components, stable performance
Double spray head design, large fog volume and wide coverage
Product parameters:
Name: Atomization drive circuit board
Rated voltage: DC 5V
Rated current: 300mA
Power: 2-3W
Resonant frequency: 108-110KHz
Name: Atomization drive circuit board
Rated voltage: DC 5V
Rated current: 300mA
Power: 2-3W
Resonant frequency: 108-110KHz
Precautions:
Do not modify the circuit board without permission
Do not overload input power
The circuit board should not be exposed to water and damp
Must be used together with the same frequency atomizing tablet
Do not modify the circuit board without permission
Do not overload input power
The circuit board should not be exposed to water and damp
Must be used together with the same frequency atomizing tablet
Shipping list:
Driver board * 1
Atomizer tablet* 2
Cotton swab* 2
Driver board * 1
Atomizer tablet* 2
Cotton swab* 2

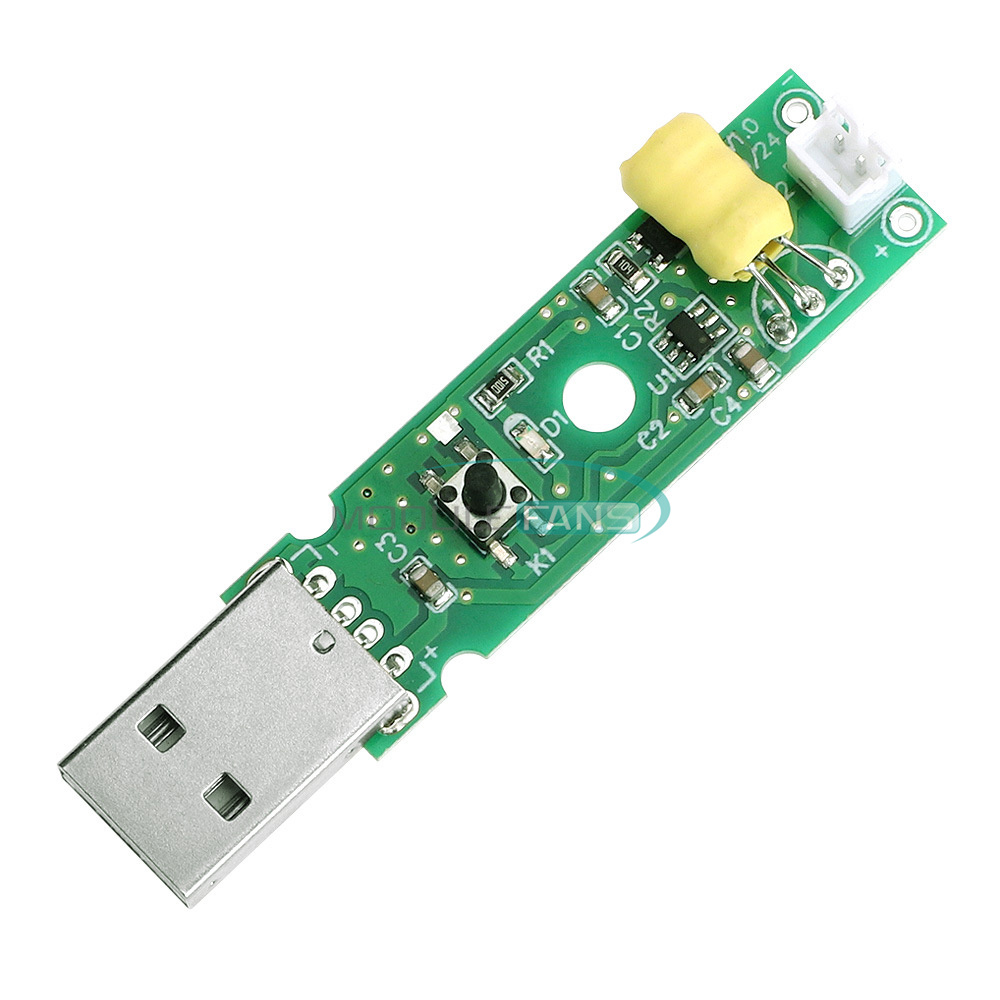

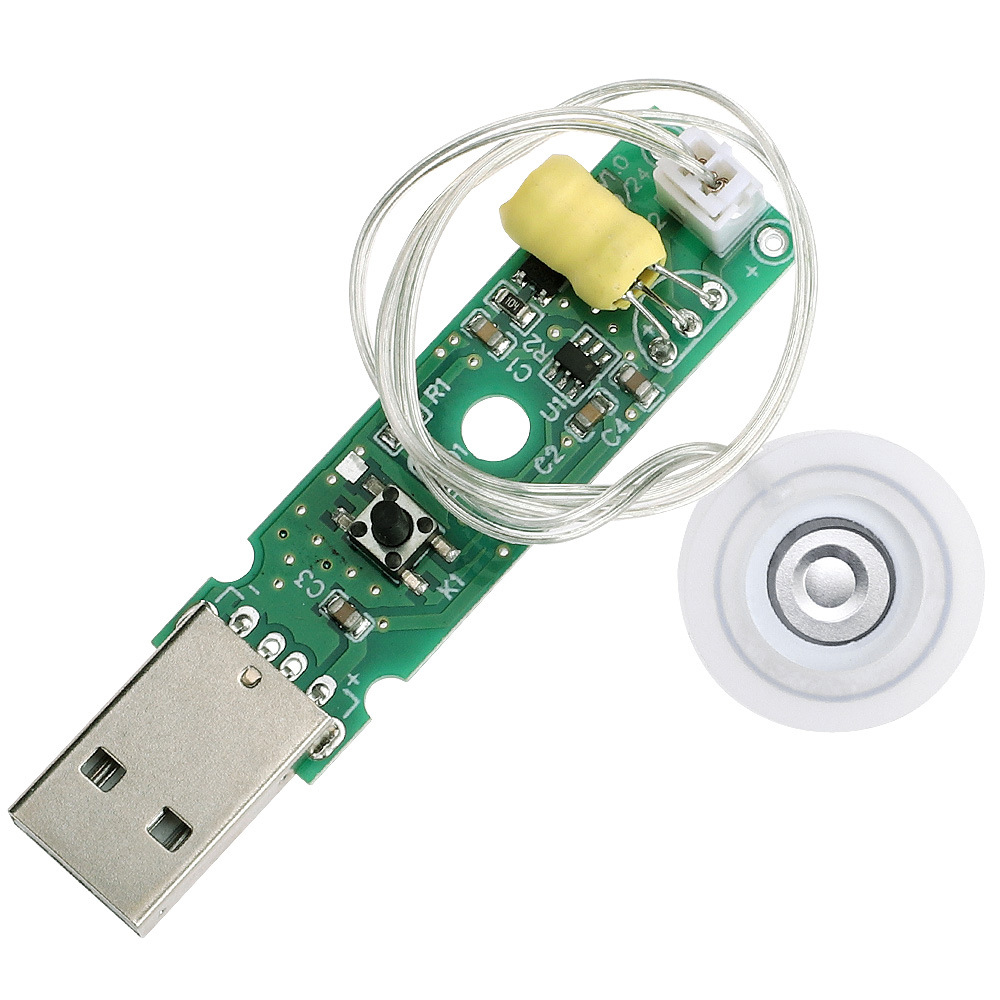

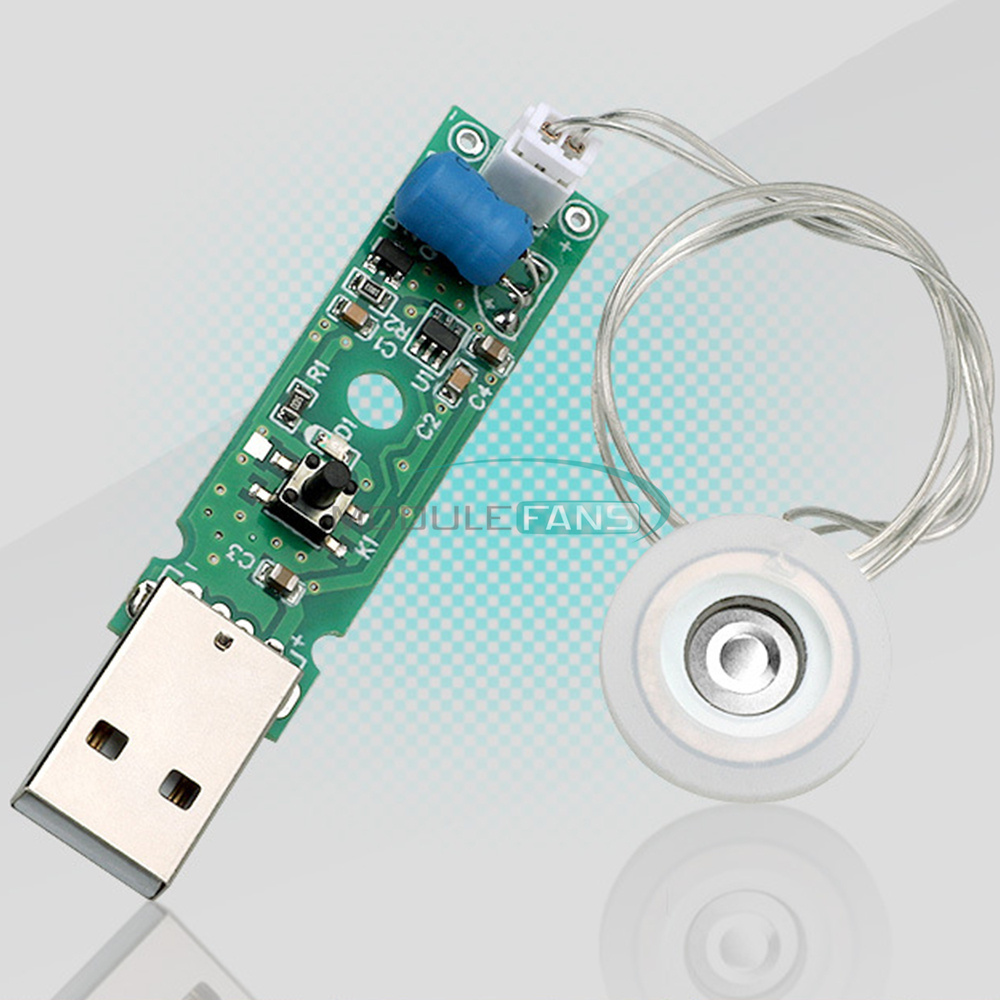

USB-A Spray Module
Features:
Wide range of applications: DIY self-made spray, plant humidification, landscaping atomization
Large fog volume, fine fog particles, high fog spray
A variety of spray modes, switch at will, suitable for different functional needs
Reasonable circuit board design, original electronic components, stable performance
The technology of atomizing tablet is mature and the spray is uniform
Wide range of applications: DIY self-made spray, plant humidification, landscaping atomization
Large fog volume, fine fog particles, high fog spray
A variety of spray modes, switch at will, suitable for different functional needs
Reasonable circuit board design, original electronic components, stable performance
The technology of atomizing tablet is mature and the spray is uniform

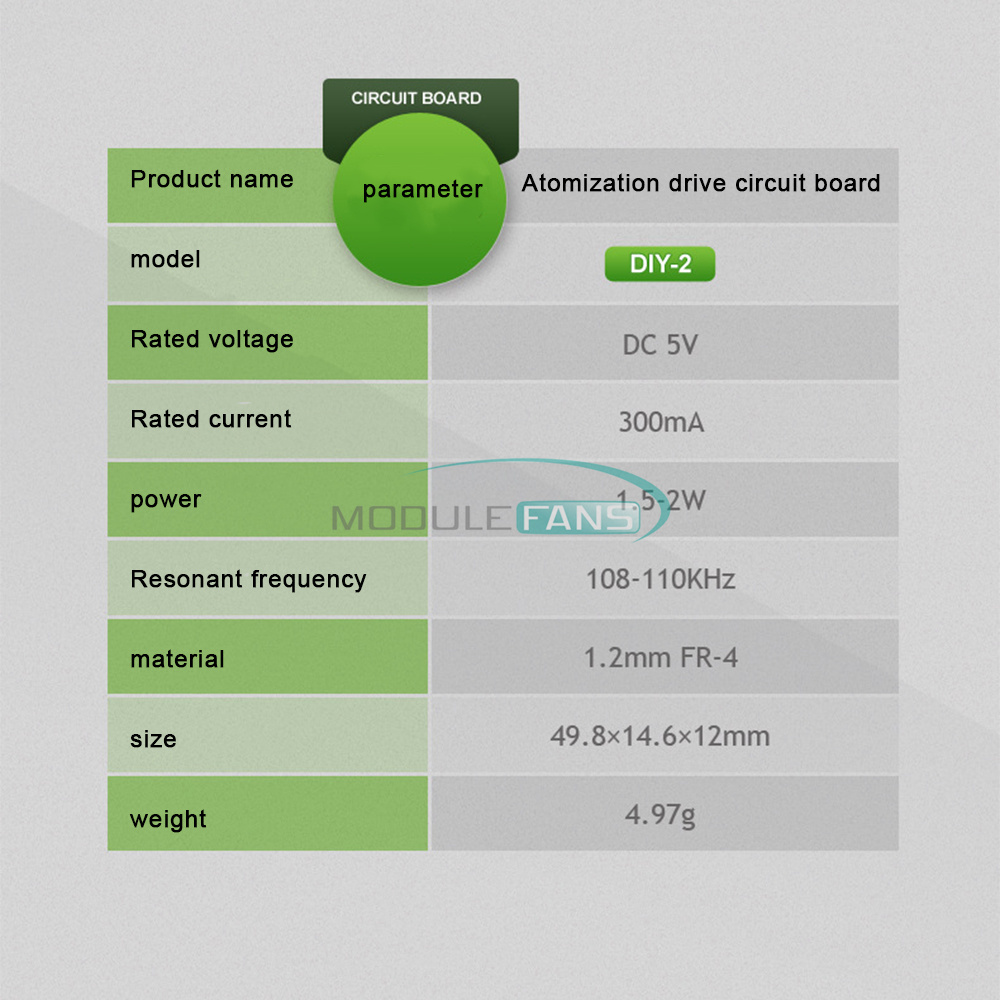

Product parameters:
Name: Atomization drive circuit board
Rated voltage: DC 5V
Rated current: 300mA
Power: 1.5-2W
Resonant frequency: 108-110KHz
Name: Atomization drive circuit board
Rated voltage: DC 5V
Rated current: 300mA
Power: 1.5-2W
Resonant frequency: 108-110KHz
Precautions:
Do not modify the circuit board without permission
Do not overload input power
The circuit board should not be exposed to water and damp
Must be used together with the same frequency atomizing tablet
Do not modify the circuit board without permission
Do not overload input power
The circuit board should not be exposed to water and damp
Must be used together with the same frequency atomizing tablet

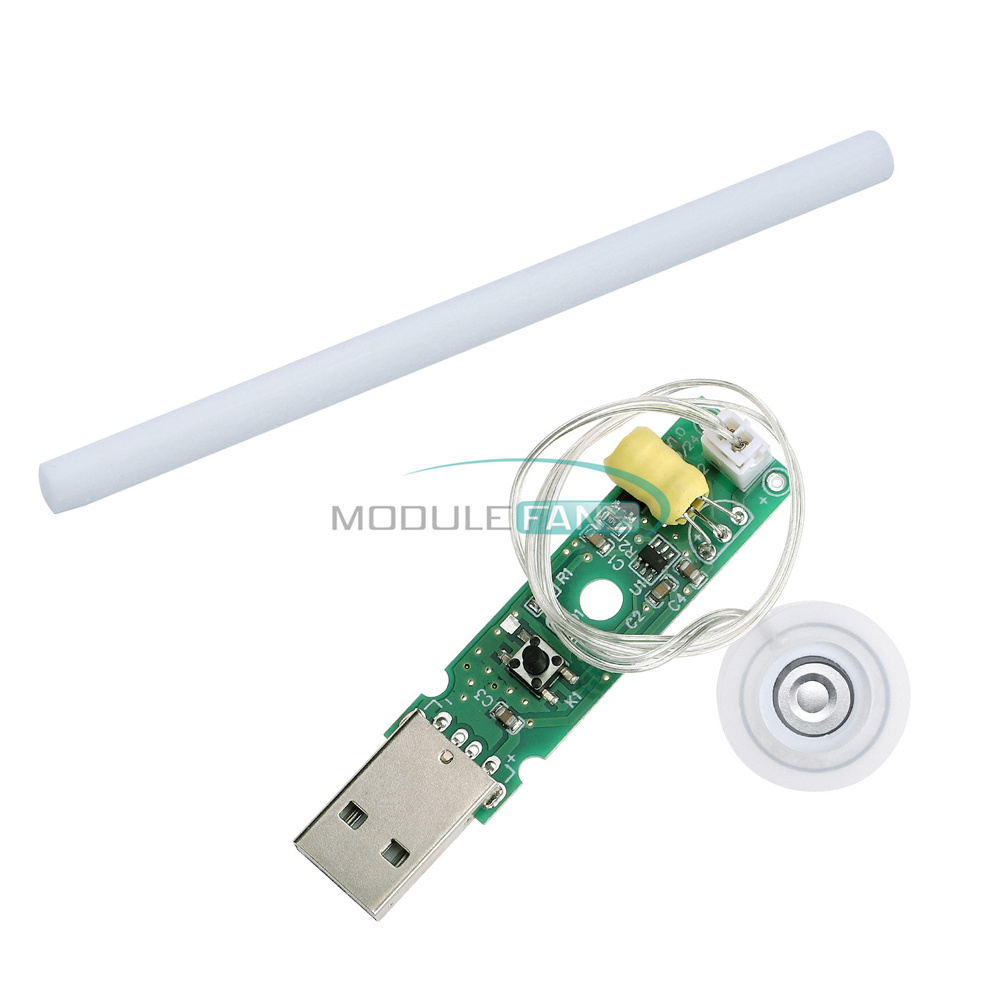

Shipping list:
Driver board* 1
Atomizing tablet* 1
Cotton swab* 1
Driver board* 1
Atomizing tablet* 1
Cotton swab* 1

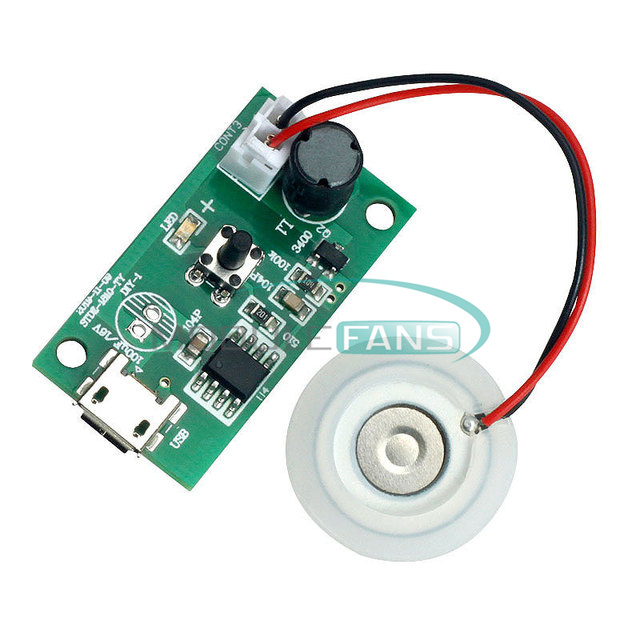

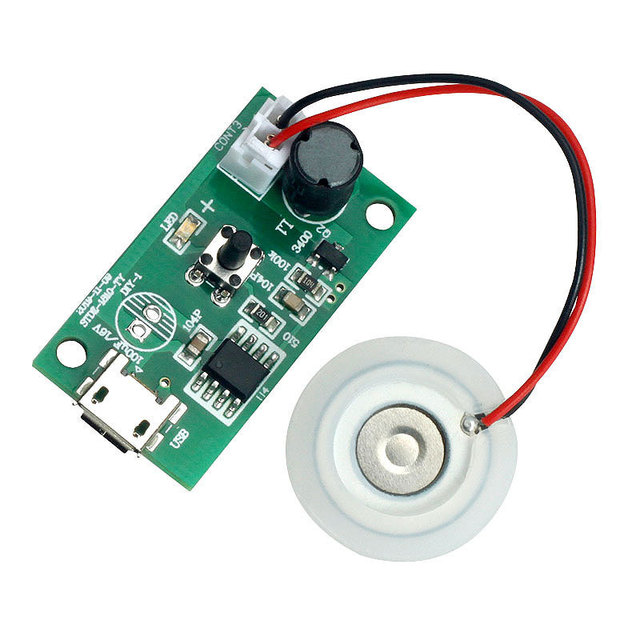

Micro-USB Spray Module
Product Introduction:
1.Diameter:20mm
2.Operating Voltage:3.7-12V
3.Frequency:113+/-3KHz
4.Quiescent Capacitor:3000+/-15%PF
5.Rated Voltage:70V (max)
6.Rated Power:2.5W (normal use 1.5W)
7.Applications:for medical micro atomization,USB humidifier perfume atomizer etc
Package Included:
1PC * Ultrasonic Mist Maker Atomizing Fogger Ceramic Humidifier with PCB
1PC * Ultrasonic Mist Maker Atomizing Fogger Ceramic Humidifier with PCB
Humidifier Ultrasonic Sheet
Product Feature:
1. Using high-quality materials, the quality is guaranteed
2. Piezoelectric ceramics drive the metal sheet to oscillate at high frequency, and ultrasonic waves atomize the liquid
3. The water is atomized into fine micron water molecules through micropores, and floats in the air
4. The spray is uniform and the amount of atomization is large
5. The appearance of the product is small and exquisite
1. Using high-quality materials, the quality is guaranteed
2. Piezoelectric ceramics drive the metal sheet to oscillate at high frequency, and ultrasonic waves atomize the liquid
3. The water is atomized into fine micron water molecules through micropores, and floats in the air
4. The spray is uniform and the amount of atomization is large
5. The appearance of the product is small and exquisite
Parameter:

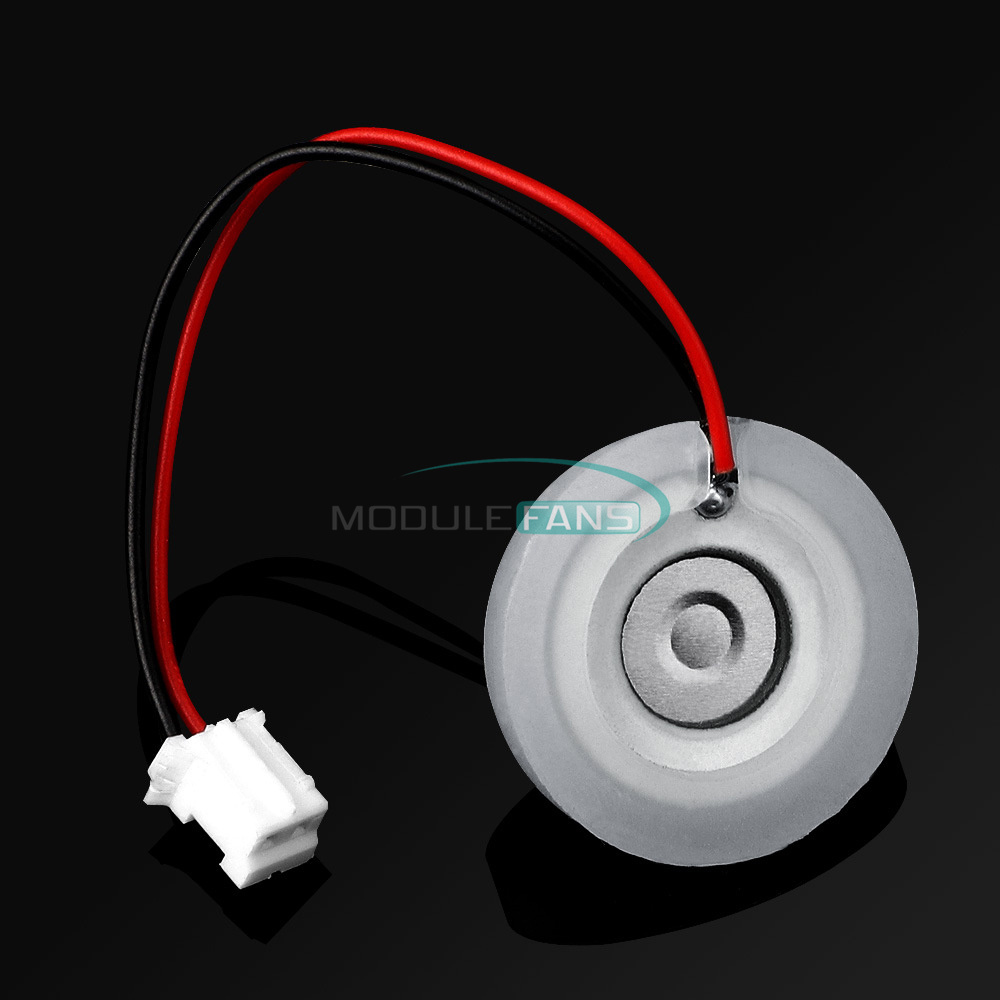

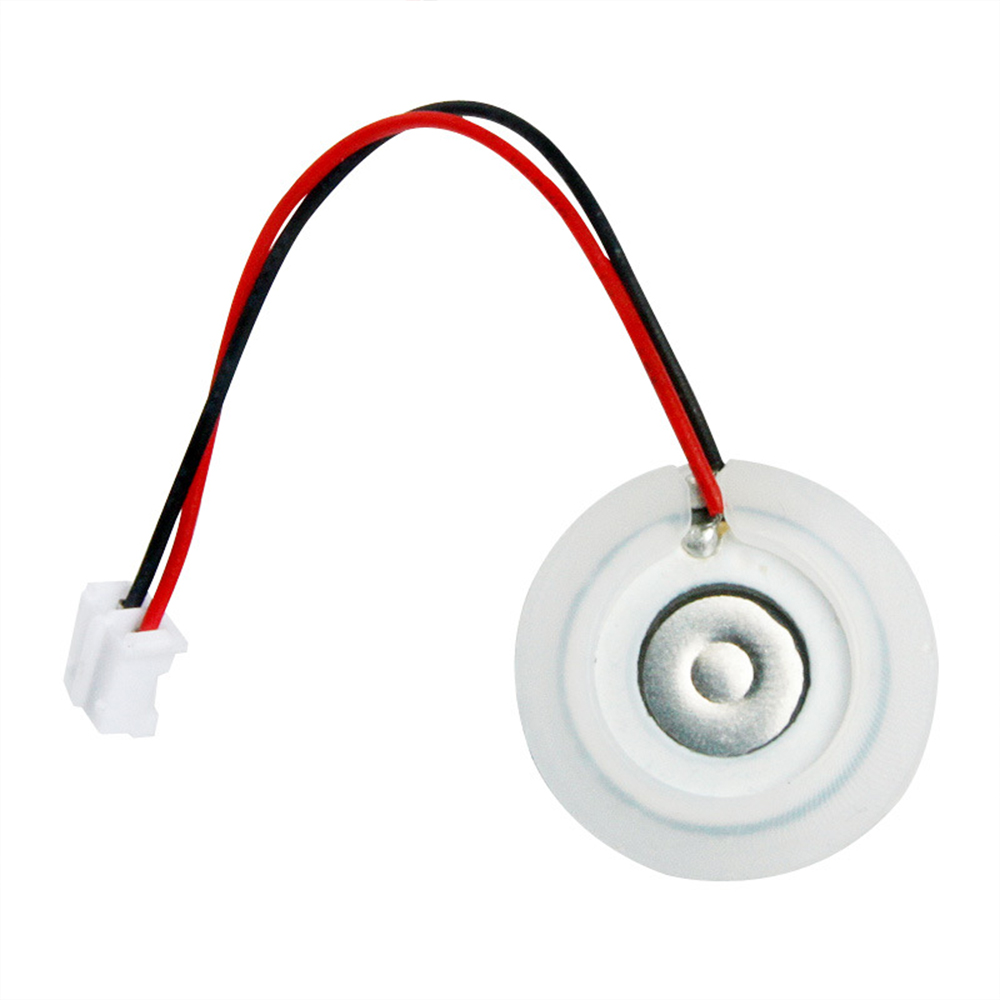

Product name: Microporous atomizing tablet
Size: Steel sheet 16mm
Rubber ring: rubber ring 20mm, thickness 3.5mm
Wire length: 100mm
Resonant frequency: 108-110KHz
Aperture: 4-5um
Number of punched holes: 1100 holes
Material: Piezoelectric ceramic ring + 304 stainless steel sheet
Terminal head: PH2.0
Product name: Microporous atomizing tablet
Size: Steel sheet 16mm
Rubber ring: rubber ring 20mm, thickness 3.5mm
Wire length: 100mm
Resonant frequency: 108-110KHz
Aperture: 4-5um
Number of punched holes: 1100 holes
Material: Piezoelectric ceramic ring + 304 stainless steel sheet
Terminal head: PH2.0
Notice:
The white piezoelectric ceramic torus is the front spray surface and is installed upwards.
The metal steel sheet surface is the back water absorbing surface, which is installed downward.
The white piezoelectric ceramic torus is the front spray surface and is installed upwards.
The metal steel sheet surface is the back water absorbing surface, which is installed downward.
The microporous atomizing sheet is composed of a piezoelectric ceramic ring and a metal steel sheet. By driving the circuit board to output PWM pulse width modulation, the piezoelectric ceramic generates hundreds of thousands of high-frequency resonances per second, which drives the metal sheet to vibrate. Water is sprayed from thousands of micro-holes in the metal steel sheet to form 4.6 micron water molecules, and the liquid water molecular structure is dispersed to generate water mist.
Package list:
Humidifier Ultrasonic Sheet* 1
Humidifier Ultrasonic Sheet* 1
