Audi Q7 (4LB) valve block air suspension 7L0698014C

UK SHIPPING & IMPORT TAXES

This part is shipped directly from our Germany warehouse to you. Because of that, all parts are subject to an Import Tax. This Import Tax can vary depending on the part type and declared value, and the percentage depends on the part type. Please be advised that the Import Tax is not included in the purchase price of this part, and the Buyer is responsible for this cost once they received the part.

Description

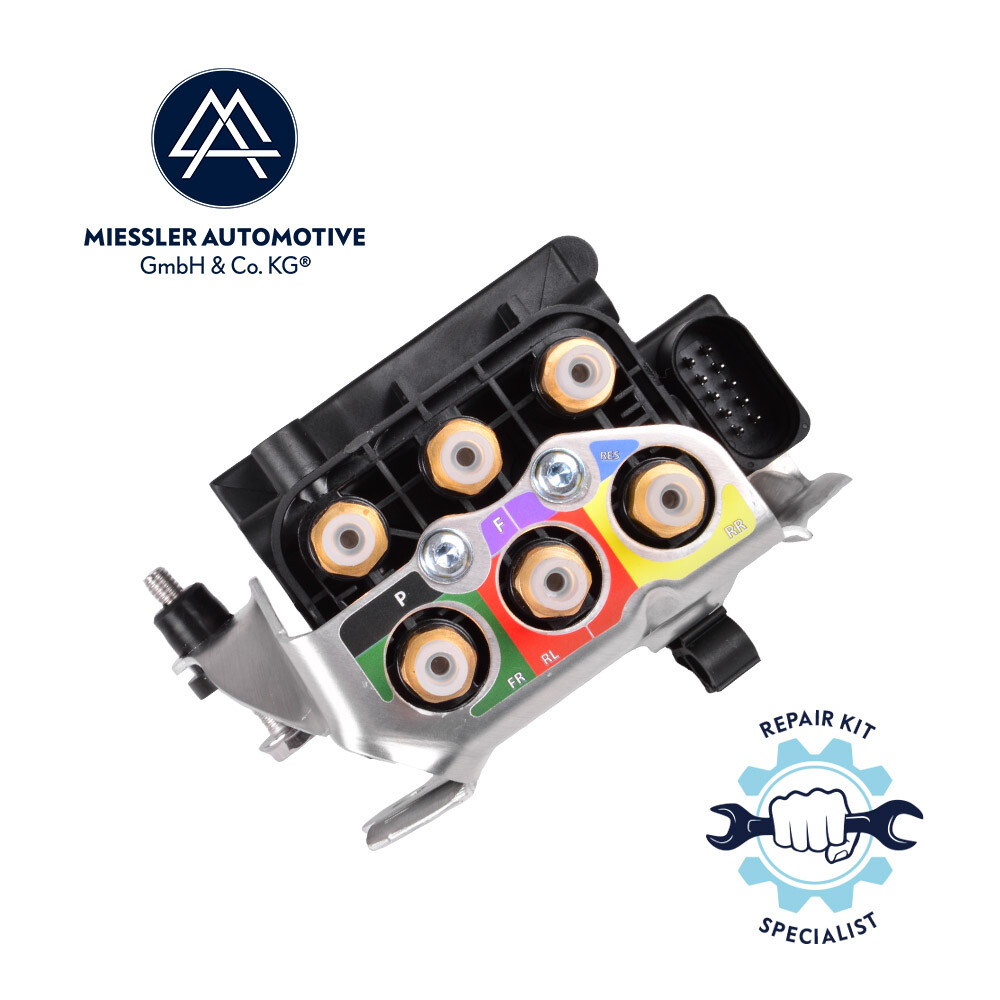

This complete control unit (valve) 7L0698014 for the air suspension of the Audi Q7 (4LB) is available including bracket and fastening elements.
If you do not want to compromise on quality and reliability, then Miessler Automotive Germany is the only aftermarket source for high quality and reliable air suspension valves.
Info:
DRIVING SAFETY, DAMPING FORCE, FUEL CONSUMPTION
Pneumatic and hydraulic valves are used at important points on the chassis to ensure smooth operations.
Therefore, the integration of mechatronic systems such as air suspension, controlled damping, roll stabilization and other active chassis systems is becoming increasingly important in development.

We would be happy to make you an offer for diagnosis and installation (repair) in our own car workshop.
Please contact us by clicking on the button: "Question about the product".

Can be installed in the following vehicles:
Audi Q7 (4LB) 2006-2016

Replaces the valve with the following spare part numbers:
7L0698014, 7L0698014C
Continental OES:
15-1524-0033.2, 15152400332
15.1524-0027.2, 15152400272
15.1524-0030.2, 15152400302
15-1524-0008.2, 15152400082
15-1524-0009.2, 15152400092
15.1000-5011.2, 15100050112

Scope of delivery:
Complete control unit (Quality management in the automotive industry IATF-16949)
Parts list:
- Valve
- Holder, not a spare part at Audi
- Set of mounting parts for valve unit 7L0698349
- 3 x hexagon collar screw (6x40) N10655401
- 6 x connectors (VOSS plug system 203, M10x1) 7L0616758
- 2 x hexagon screw (6x16) N90511801
- 1 x cable holder 06B971845

Important NOTE:
Before using your old pressure hose, cut off 5mm with the hose cutter provided.
Only use the new connector that is already on the replacement part.
Insert the pressure hose firmly until it stops.
This is the only way to ensure perfect tightness.

Your advantage:
- Documented quality assurance (Quality management in the automotive industry IATF-16949)
- Much more cost-effective than an authorized workshop
- Personal advice
- As a German provider, we have the European right of withdrawal
- 2 years warranty
- Worldwide express shipping is standard for us
- We have the longest experience in Europe with air suspension for automobiles in the aftermarket

---
