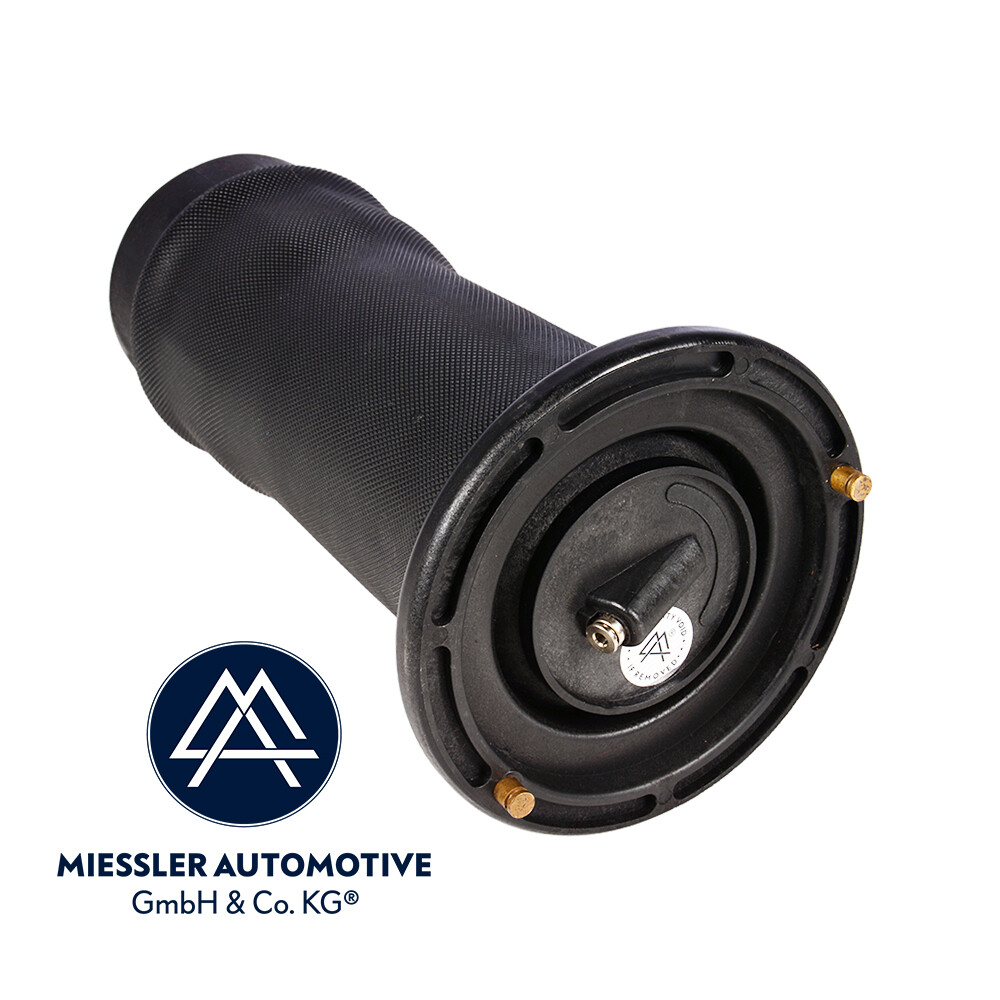

Mercedes GL X164 air spring air suspension orig. Version, rear

UK SHIPPING & IMPORT TAXES

This part is shipped directly from our Germany warehouse to you. Because of that, all parts are subject to an Import Tax. This Import Tax can vary depending on the part type and declared value, and the percentage depends on the part type. Please be advised that the Import Tax is not included in the purchase price of this part, and the Buyer is responsible for this cost once they received the part.

Description

With this offer you will receive the original version of the air spring for your GL-Class X164.
This air spring, with the original spare part number 1643200725, has not been offered by Mercedes for a long time, but was installed when your vehicle was delivered.
If you want the same driving comfort as on day 1, you've come to the right place.

The difference is in the rotating upper part of the air spring, which eliminates torsional stress (especially when driving OFF-ROAD) and thus enables a longer service life.

Since one or both air springs in your vehicle have probably already been replaced with the successor model and Mercedes also recommends replacing both air springs at the same time, you can carry out this reset with this offer.

We would be happy to make you an offer for diagnosis and installation (repair) in our own vehicle workshop.
Please contact us by clicking on the button: “Question about the product”.

Can be installed in the following vehicles:
Mercedes-Benz GL-Class X164 2006-2012
GL 320 CDI 4MATIC / GL 350 CDI 4MATIC > Chassis: C164822
GL 320 CDI / GL 350 BlueTEC 4MATIC > Chassis: C164825
GL 420 CDI 4MATIC / GL 450 CDI 4MATIC > Chassis: C164828
GL 450 4MATIC > Chassis: C164871
GL 500 4MATIC / GL 550 4MATIC USA/JAPAN > Chassis: C164886

Replaces the air spring with the original spare part numbers:
A 164 320 07 25 ; 1643200725
Subsequent spare part numbers:
A 166 320 03 25; 1663200325
A 164 320 10 25; 1643201025
Reference: A-2596

Scope of delivery:
Rear air spring
locking clip A2113200058; 2113200058
rubber plate

Your advantages:
- OEM quality
- Quality assurance by us as a German company
- Much cheaper than an authorized workshop
- Personal advice
- As a German provider, we have the European right of withdrawal
- Worldwide express shipping
- We have the longest experience in Europe with air suspension for automobiles in the aftermarket.

Danger:
-Never set down the vehicle with unfilled air springs!
-Check the air suspension system for leaks.
-Leave the vehicle completely from the lift.

After the repair, make sure that the system is absolutely tight.
Park the vehicle and wait for the system to automatically readjust (if your vehicle has this function).
Measure all air-supported heights (floor to lower edge of fender) exactly and note the distances.
Compare the distances with the values the next day. Even a small deviation in the distances leads to long-term damage to the compressor and the valves.

---
