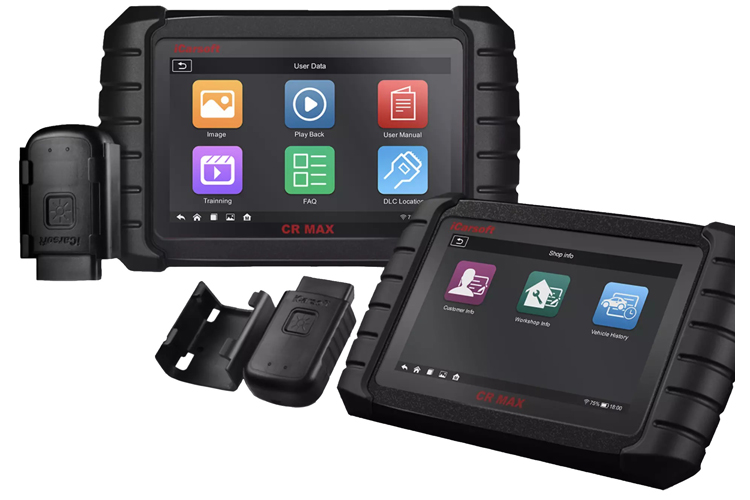

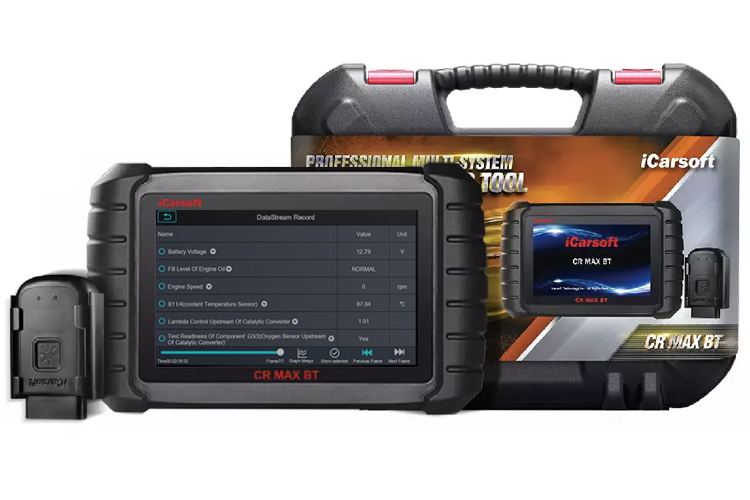

iCarsoft CR-MAX-BT


CR Max BT Professional OBD2 Multi-Brand/System Car Diagnostic Scan Tool

  • Features Android 8.1.0 Operating System
  • Wireless Connector for Cable-Free Diagnostics
  • Quad-Core 1.3GHz CPU Processor
  • 16GB On-Board Storage
  • 5000mAh Lithium Polymer Battery
  • Approximately 4-5 Hours Battery Life
  • Reads & Clears DTC Error Codes
  • Compatible With Many Euro, Asian, American & Australian Vehicles
  • Display Live Data in Text, Graph & Analog
  • SAS, EPB, DPF, BMS, ETC For Compatible Vehicles
  • System Calibration & Adjustments

Please note. This scanner works with a range of vehicle models manufactured after Jan 2006 that feature the OBD2 protocol, and very limited models manufactured between 1996-2006 that are OBD2-compliant. OBD2 compliance is dependent on the year of manufacture for any of the listed models.

Please contact us to confirm compatibility with your particular year/make/model vehicle prior to purchase, as returns cannot be accepted due to incompatibility.

product info
Specifications
  • OPERATING SYSTEM：ANDROID 8.1.0
  • PROCESSOR：Quad-core 1.3 GHZ
  • MEMORY：16GB
  • DISPLAY：7-INCH LCD CAPACITIVE TOUCHSCREEN WITH 1024X600 RESOLUTION

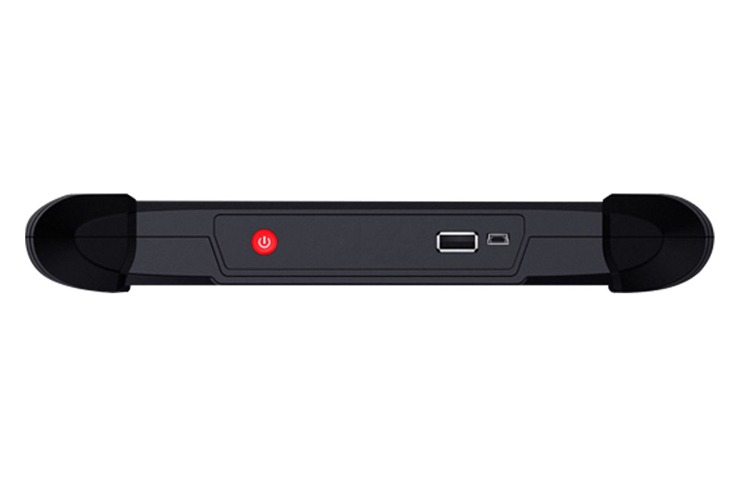

  • CONNECTIVITY：MINI USB 2.0/ USB2.0/ WI-FI / BLUETOOTH/OBD II
  • BODY COLOR：BLACK
  • AUDIO INPUT/OUTPU: OUTPUT: BUZZER & SPEAKER
  • INPUT: N/A
  • POWER AND BATTERY: 3.7 V/5000MAH LITHIUM-POLYMER BATTERY
  • CHARGES VIA 5 VDC POWER SUPPLY: 0BD DLC VOLTAGE RANGE:9-18V
  • TESTED BATTERY LIFE: AROUND 5 HOURS OF CONTINUOUS USE
  • BATTERY CHARGER:5V/2A
  • POWER CONSUMPTION:500MA(LCD ON WITH DEFAULT BRIGHTNESS,WI-FI ON)@3.7 V
  • OPERATING TEMP:O TO 40° C (32 TO 104°F)
  • STORAGE TEMP:-20 TO 70° C(-4 TO 158°F)
  • OPERATING HUMIDITY: 5%-95% NON-CONDENSING
  • DIMENSIONS(W*H*D): 40.0MM*150.0MM*35.0MM
  • NET WEIGHT:750G
Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.

* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
video-img

Note: This video is strictly for reference and illustration purposes only. Actual product design and/or inclusions may vary. Please refer to product description for full details, or contact us if you have any questions or specific requirements.
  • Comprehensive OBD relearn coverage.
  • On-screen relearn procedure.
  • Read & Clear codes for all available systems.
  • Display live data in text, graph & analog for easy data review.
  • Auto VIN technology can automatically identify model and year information in no time.
  • Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
  • Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
  • Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals. 9. Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
  • Diesel Particulate Filter (DPF): Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
  • Battery Management System (BMS): Registers new battery to the BMS while battery replacement.
  • Electronic Throttle Control system (ETC): Relearns the throttle valve control value while clear or replaces the throttle value.
  • ABS Bleeding: Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
  • Injector coding: Relearn the injector control parameter while the injector renewed or replaced.
  • Support TPMS programming service: It allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
  • AFS Head Lamp reset means that the adaptive front lighting system can be rotated to either side, pressing the button means they stay pointing straight forward, and don’t turn anymore when turning the steering wheel.
  • Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
  • Gearbox Reset: Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
  • Air conditioning service: Calibration of air-conditioning related control units, such as additional calibration of air mass flow, etc.
  • Air Filter Self-learning process after replacing the air filter.
  • Fuel Pump activation function, activate it when replace a new one.
  • DTC library to look up when user is operating this tool.
  • Support Freeze Frame of Fault Code functions.
  • Automatic software upgrade.
  • Provides convenient instruction with customer in interface.

*Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
*This scan tool covers 20 years models, so some functions may not be available on all years/models.
* Please contact us PRIOR to purchase in order to verify vehicle compatibility.
