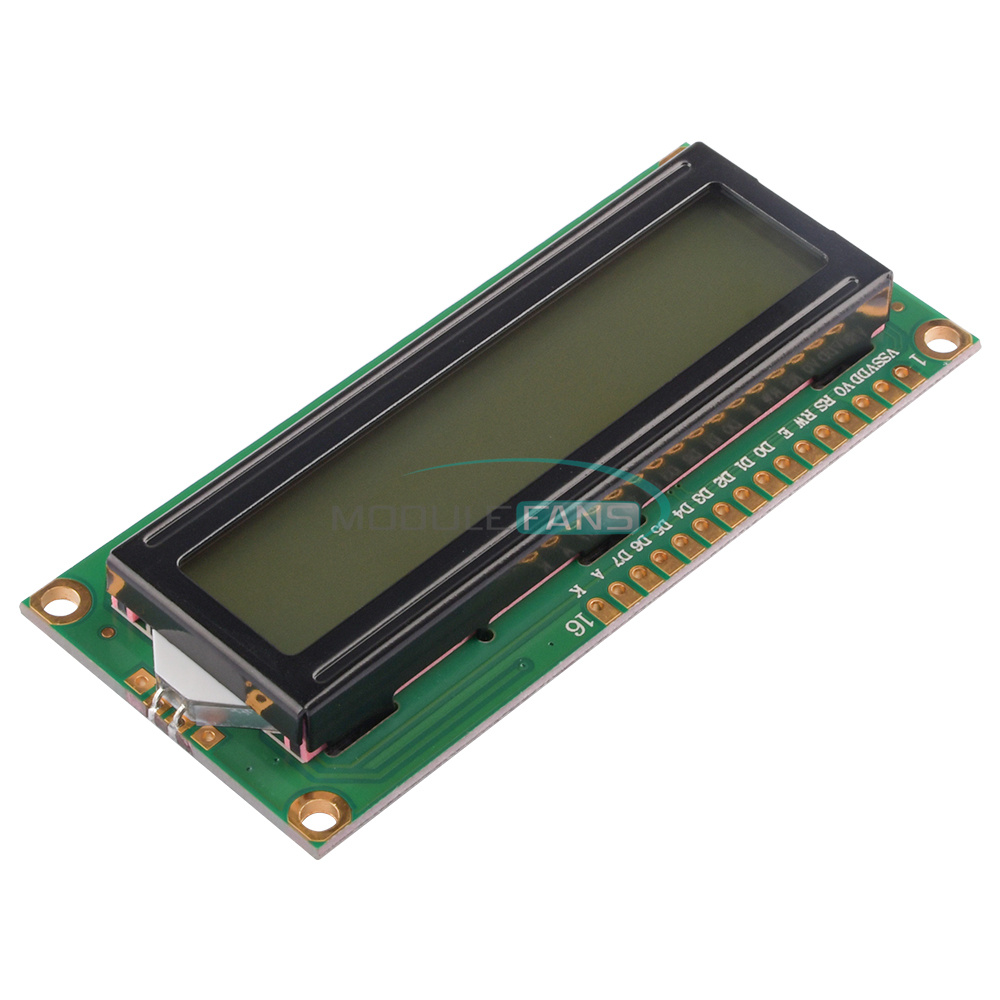

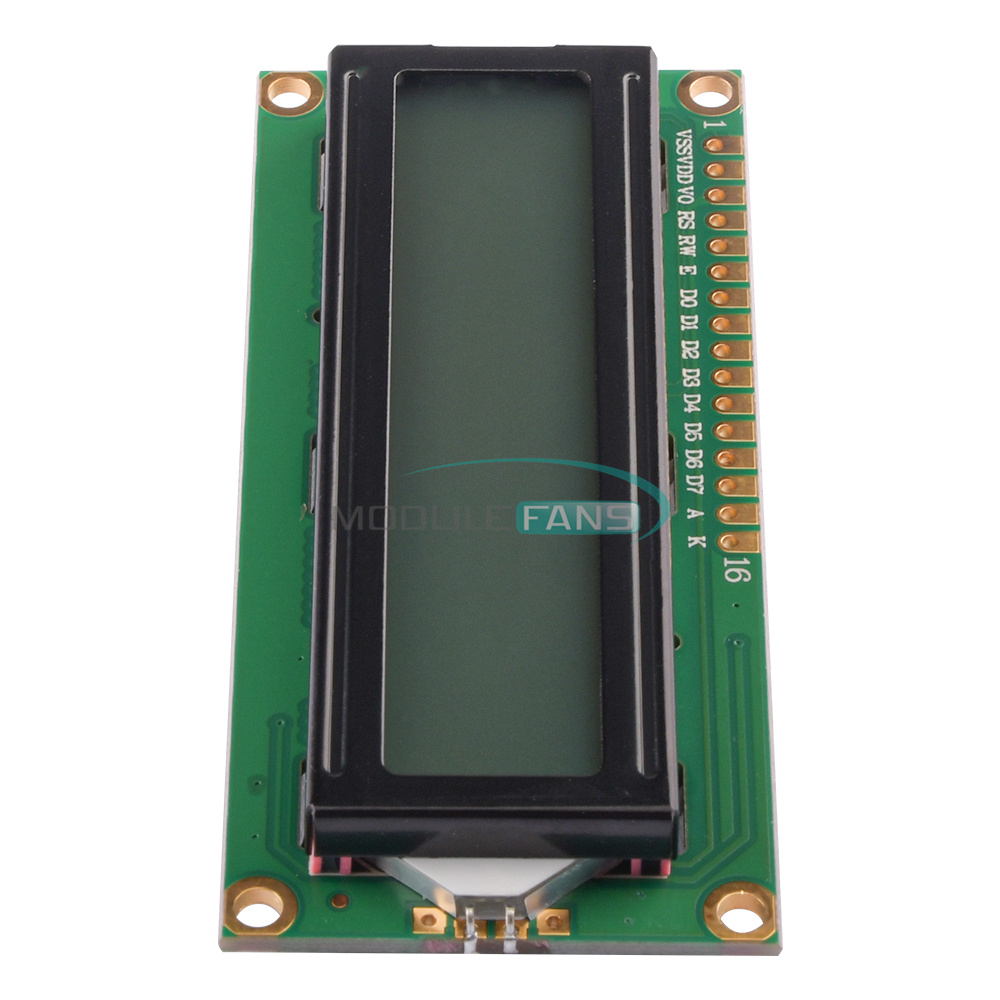

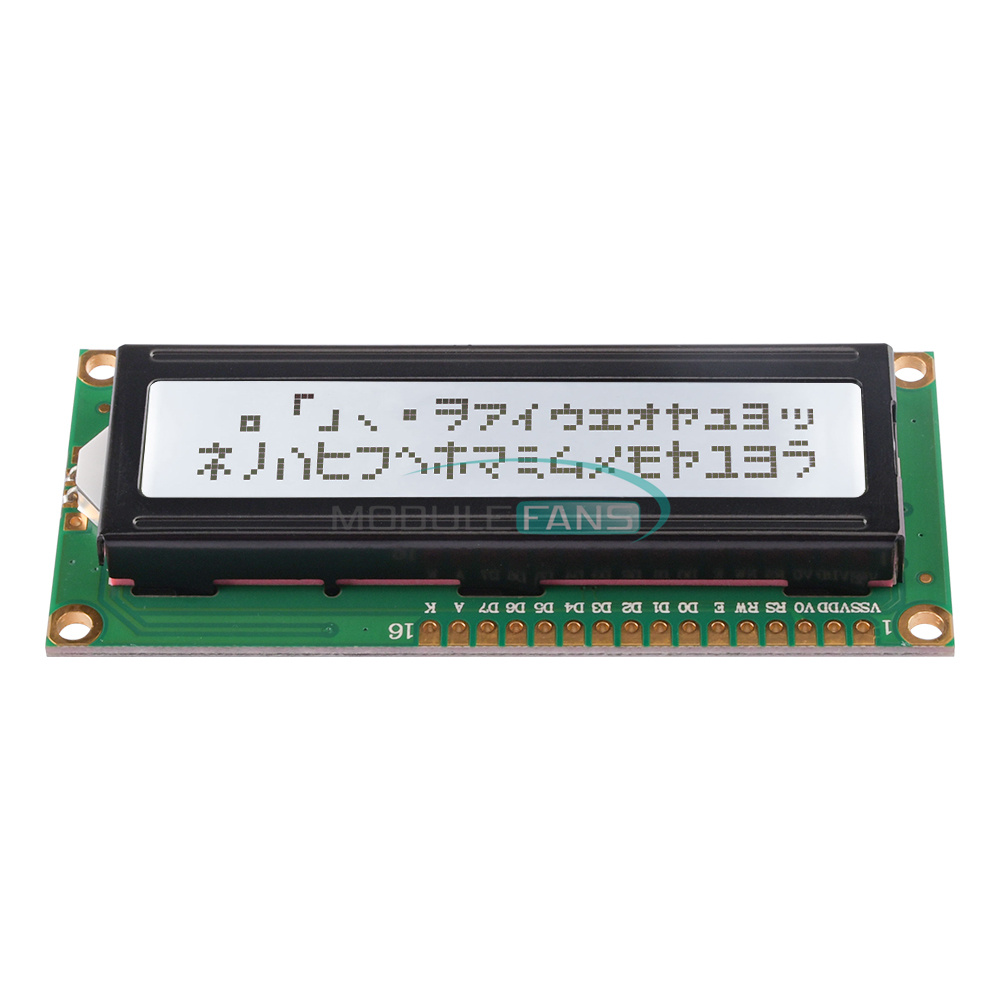

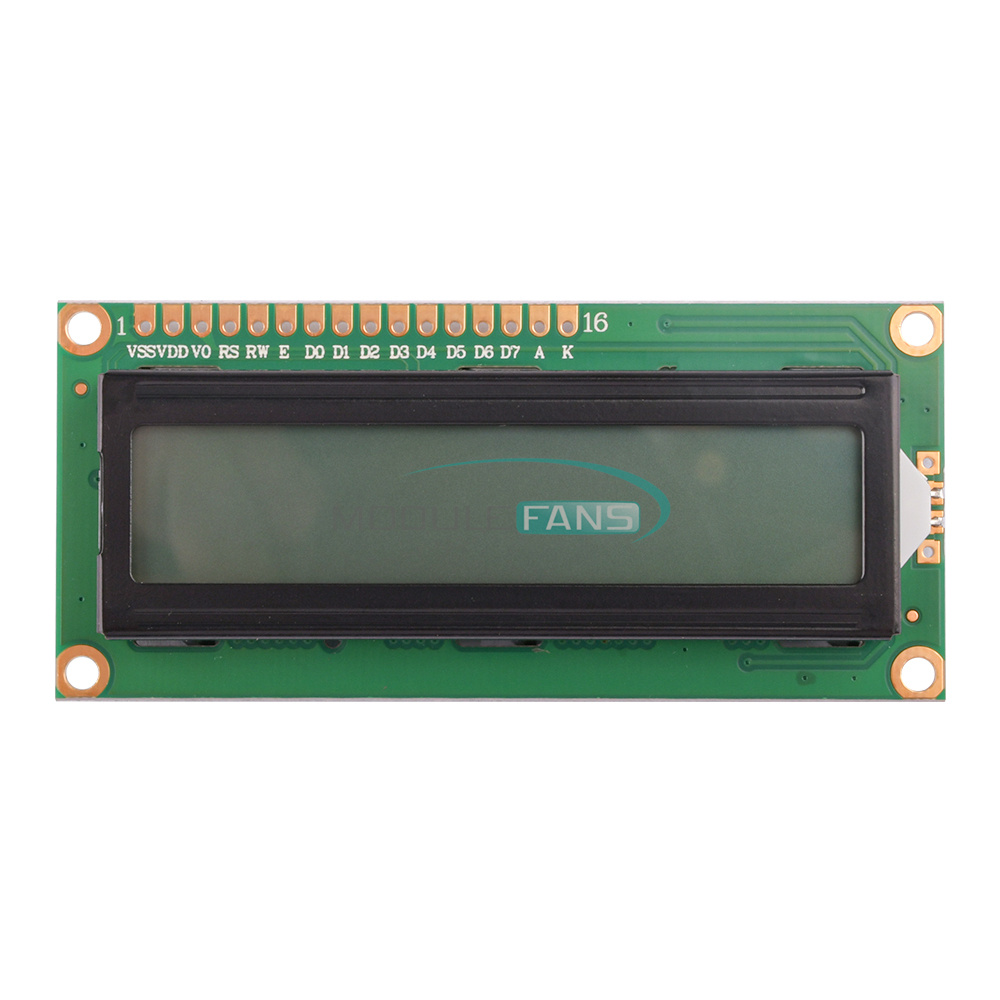

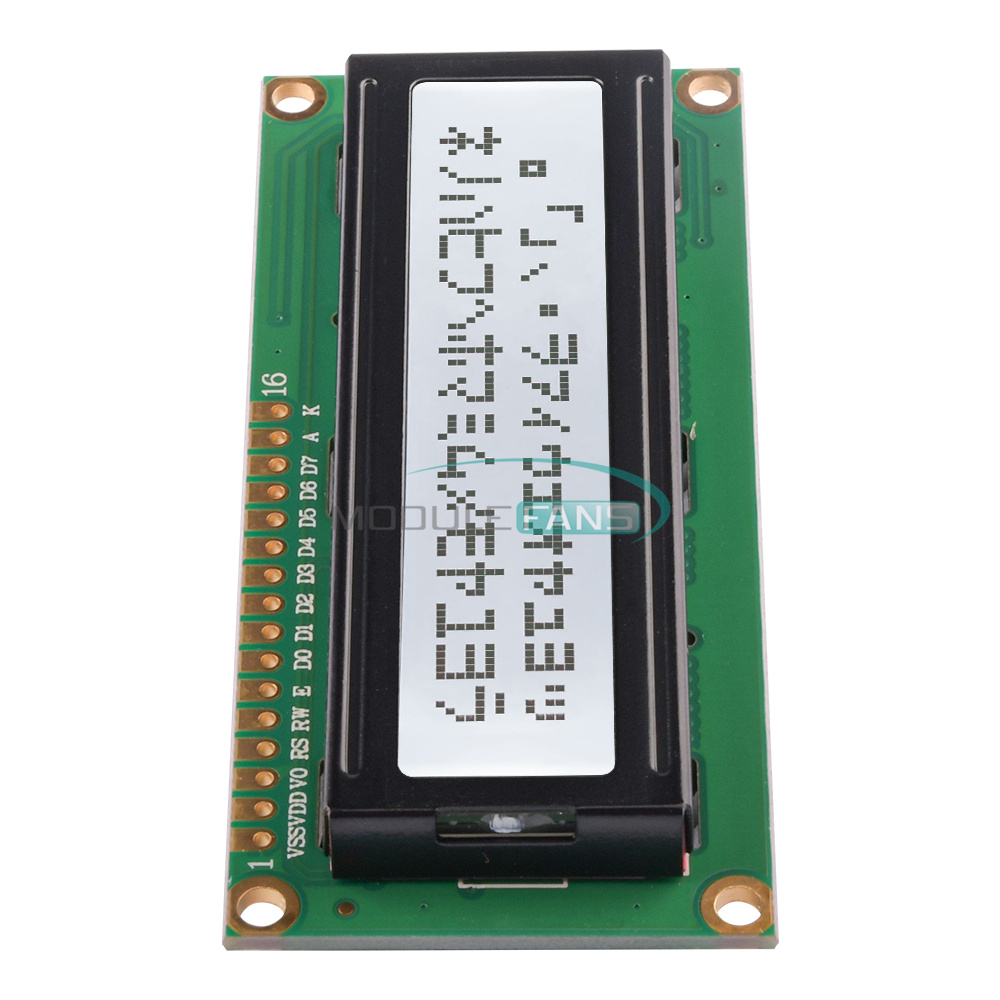

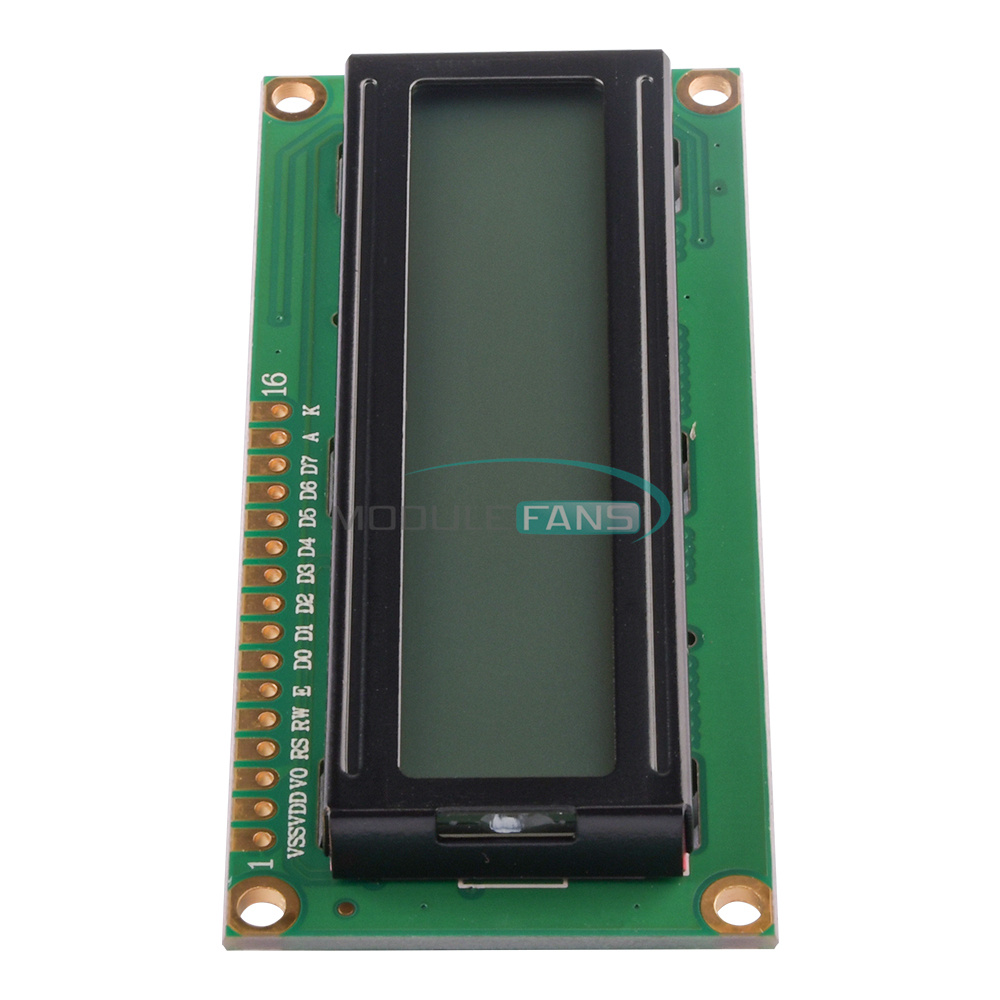

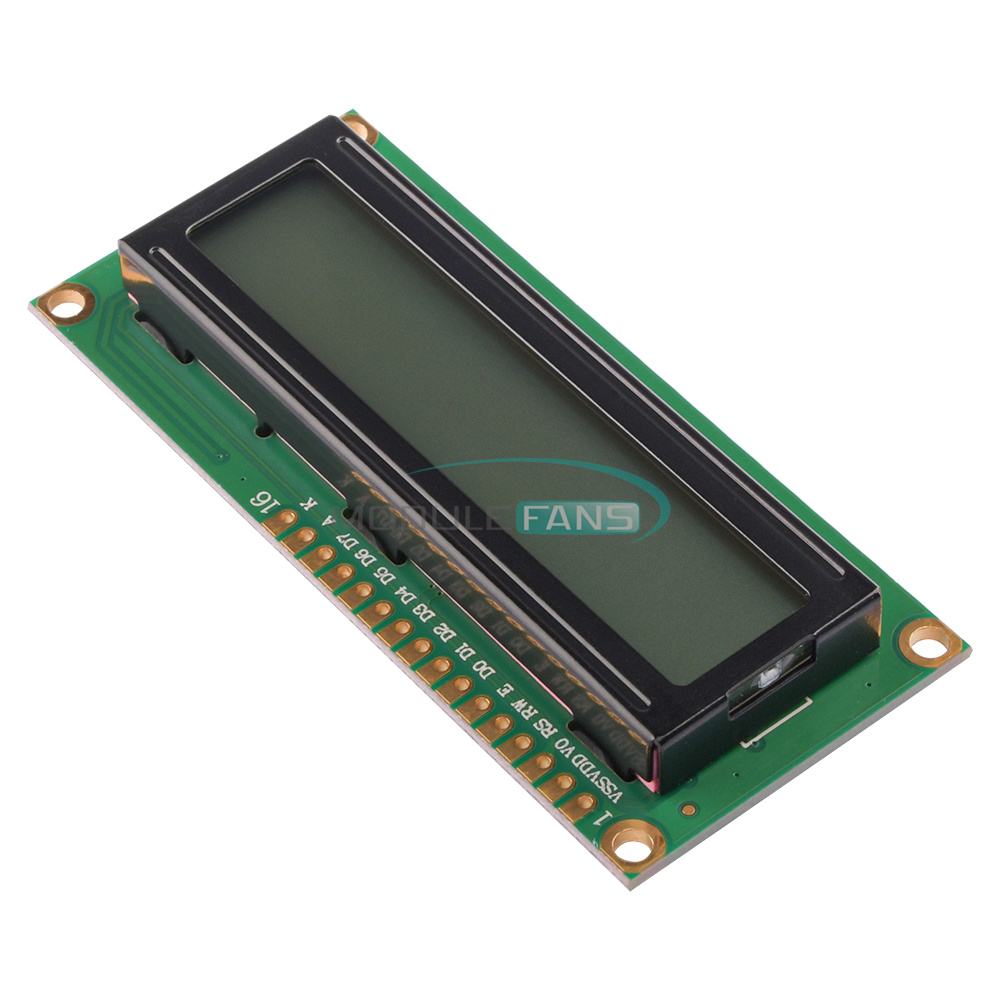

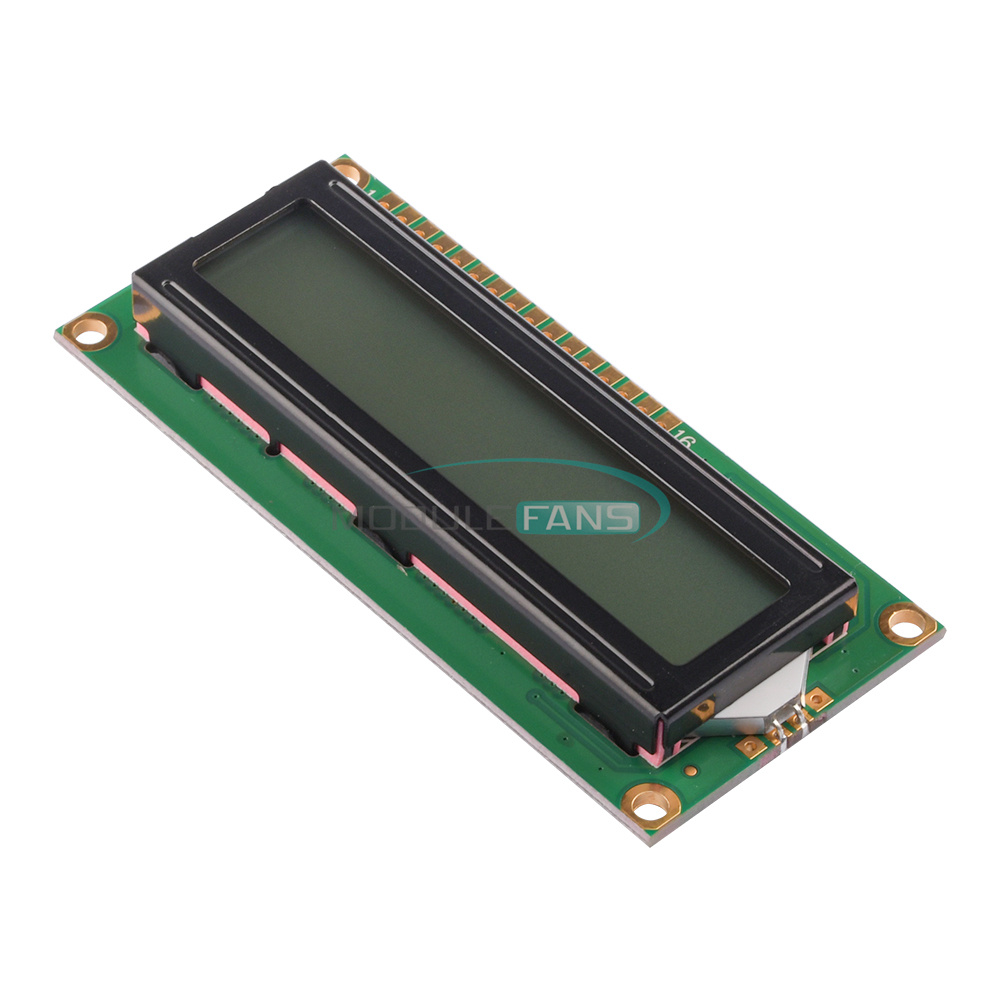

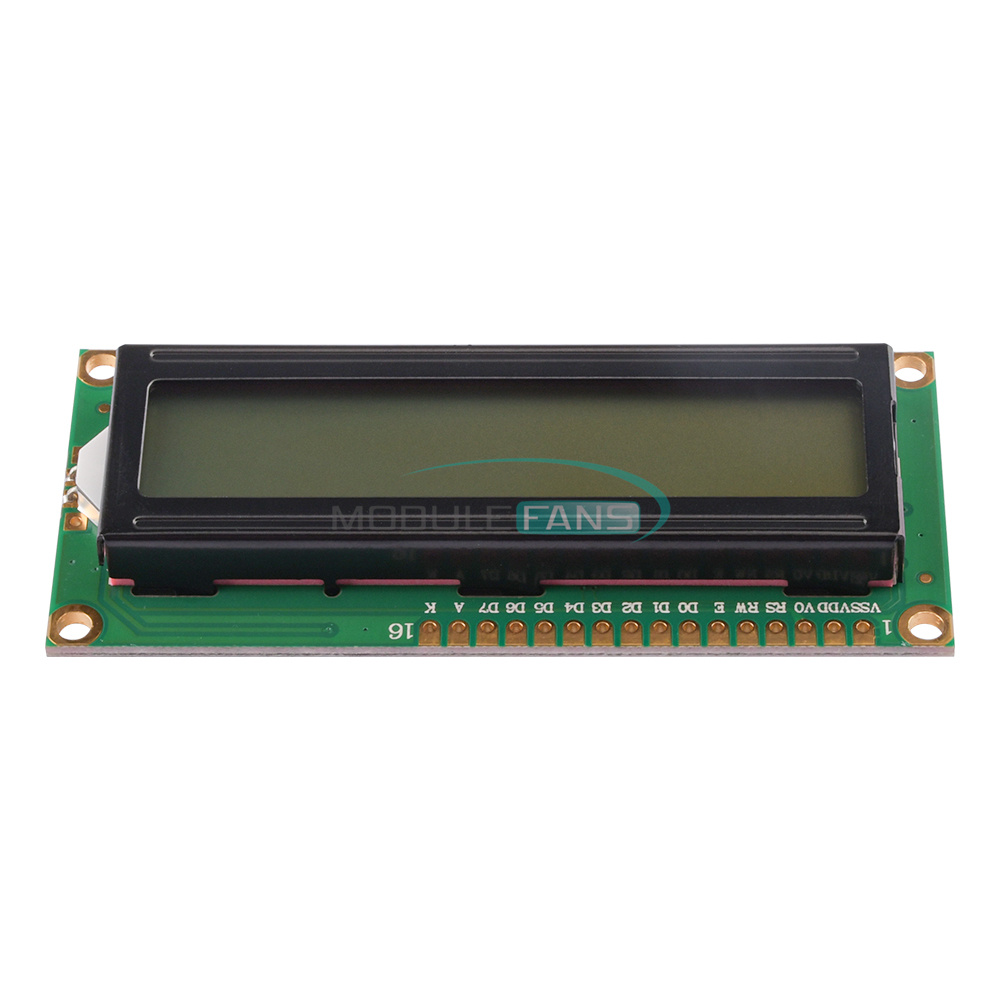

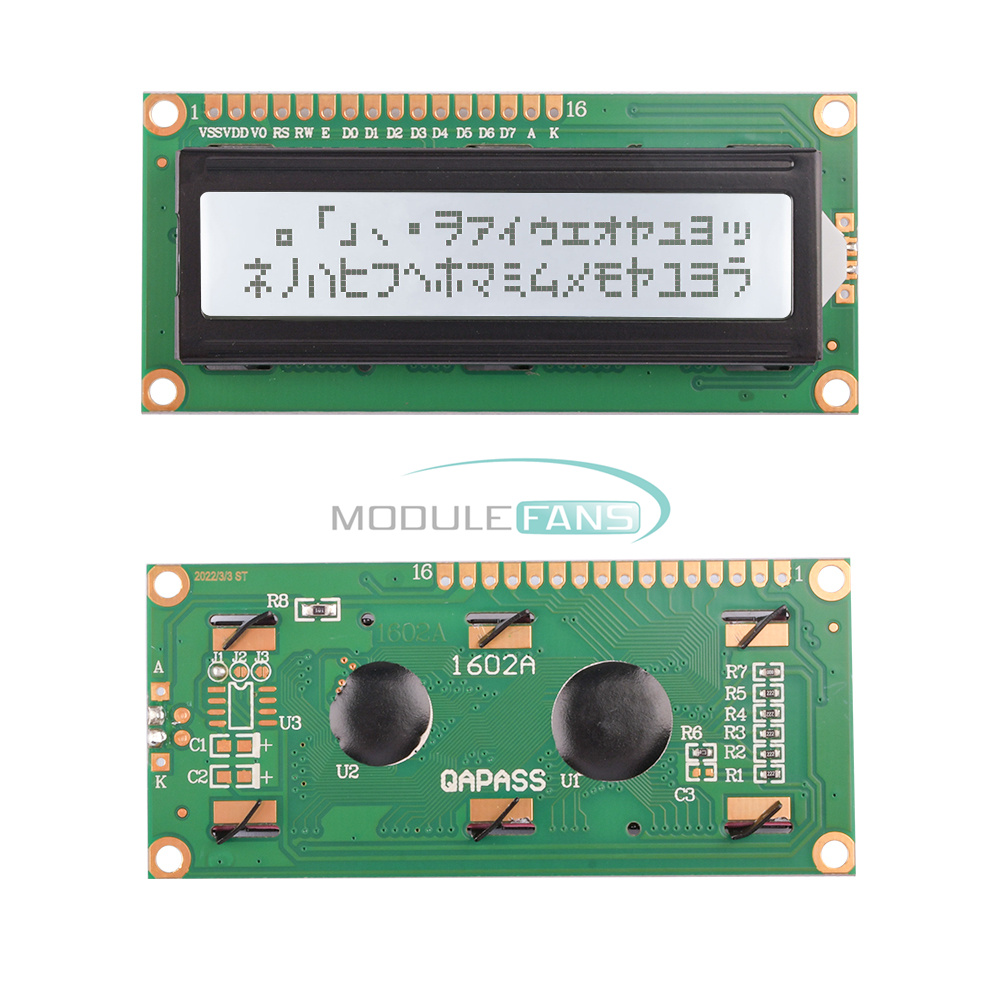

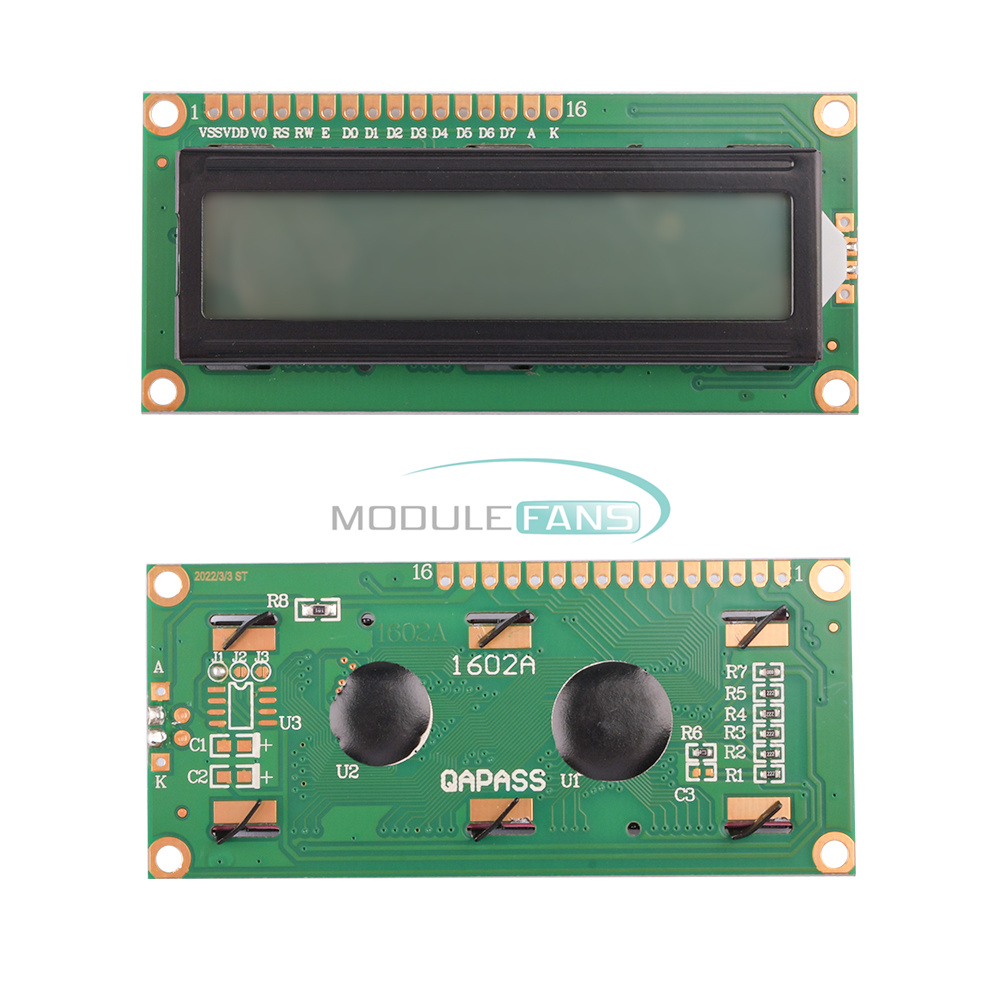

LCD1602A 5V Gray Screen White Backlight 16x2 Character LCD Display Module


Features:
1. Made of high quality material, durable and practical.
2. Wide temperature glass for clearer display.
3. Fully automatic electroplating line, environmentally friendly materials, uniform electroplating, good corrosion resistance.

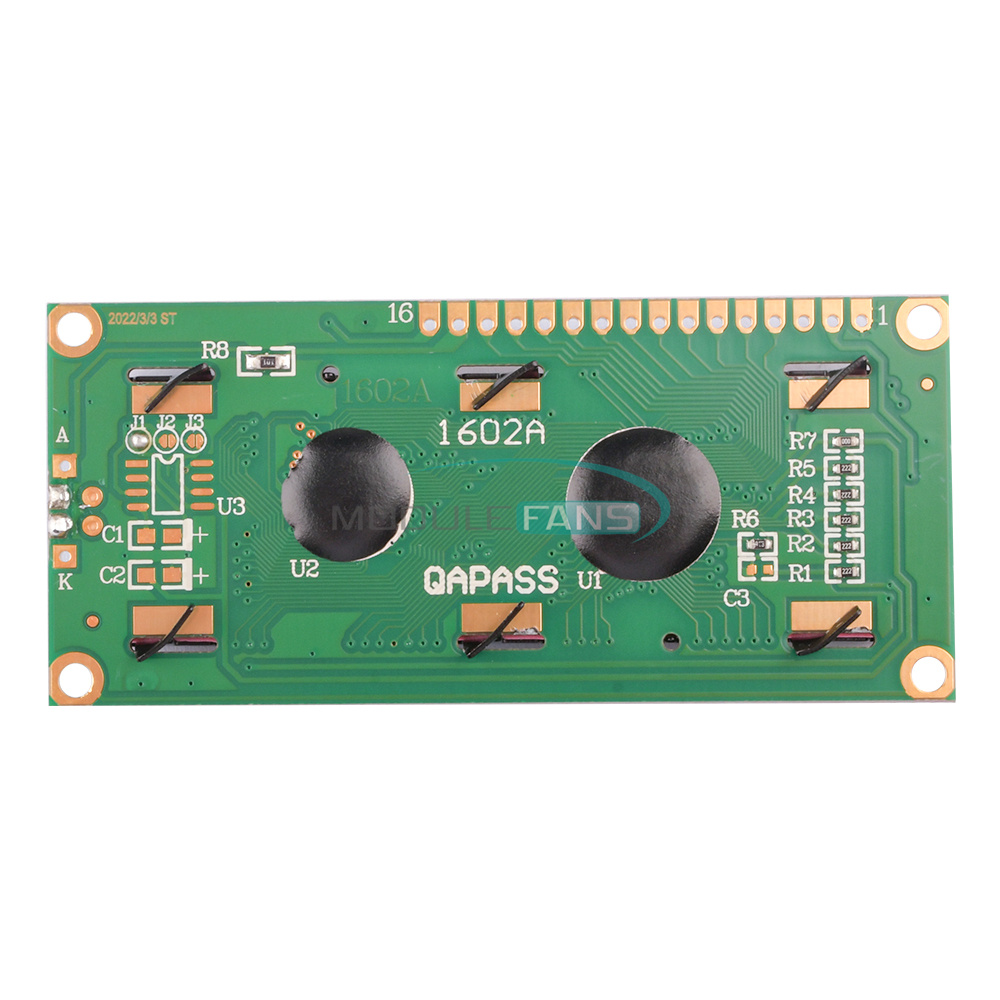

4. AIP31066 or SPLC780D controller (COB process).
5. Standard 1x16 pin interface, widely used.

Parameter:
Product Model: LCM1602A
Dimensions: 80.0mmX36.0mm
Display content: 16 characters X2 lines
Interface mode: single row parallel port
Working voltage: 5V
Controller: SPLC780D
LCD operating temperature: -20℃~70℃
LCD storage function: -30℃~80℃
Wide temperature LCD: -30℃~80℃

Precautions:
Liquid crystal displays are made of glass, organic sealants, organic fluids, and polymer-based polarizers. When handling, pay attention to the following:
1. Keep the temperature within the range of use and storage. Excessive temperature and humidity can cause polarization degradation, polarizer peeling, or air bubbles.
2. Do not touch the exposed polarizer with anything harder than HB pencil lead. Remove the dust from the surface of the monitor, gently use cotton
To wipe, soak a deerskin towel or other soft material in cleaning oil.
3. Immediately wipe off saliva or water droplets. Excessive contact time of ITO with water will cause deformation or discoloration of the surface of the liquid crystal display.
4. Glass is easily broken due to rough handling. Especially in corners and edges.
5. Do not drive the LCD with DC voltage.

Welding:
1. Solder to I/O terminals only.
2. Only use a soldering iron that is properly grounded and has no leakage.
3. Soldering temperature: 280℃±10℃
4. Welding time: 3 to 4 seconds.
5. Low temperature solder filled with resin flux.
6. If flux is used, the LCD surface should be covered to avoid flux spattering. Flux residues should be removed after shielding.

Operate:
1. The viewing angle can be adjusted by changing the LCD driving voltage V0.
2. The driving voltage should be kept within the specified range. Excessive voltage will shorten the life of the display.
3. The response time increases with decreasing temperature.
4. At temperatures above its operating range, the display may turn black or dark blue; this (but do not press
domain) may cause some display segments to "break".
5. Mechanical damage during operation (such as pressing the display area) may cause the line segment to "break".

Package list:
1x LCM1602A LCD screen
