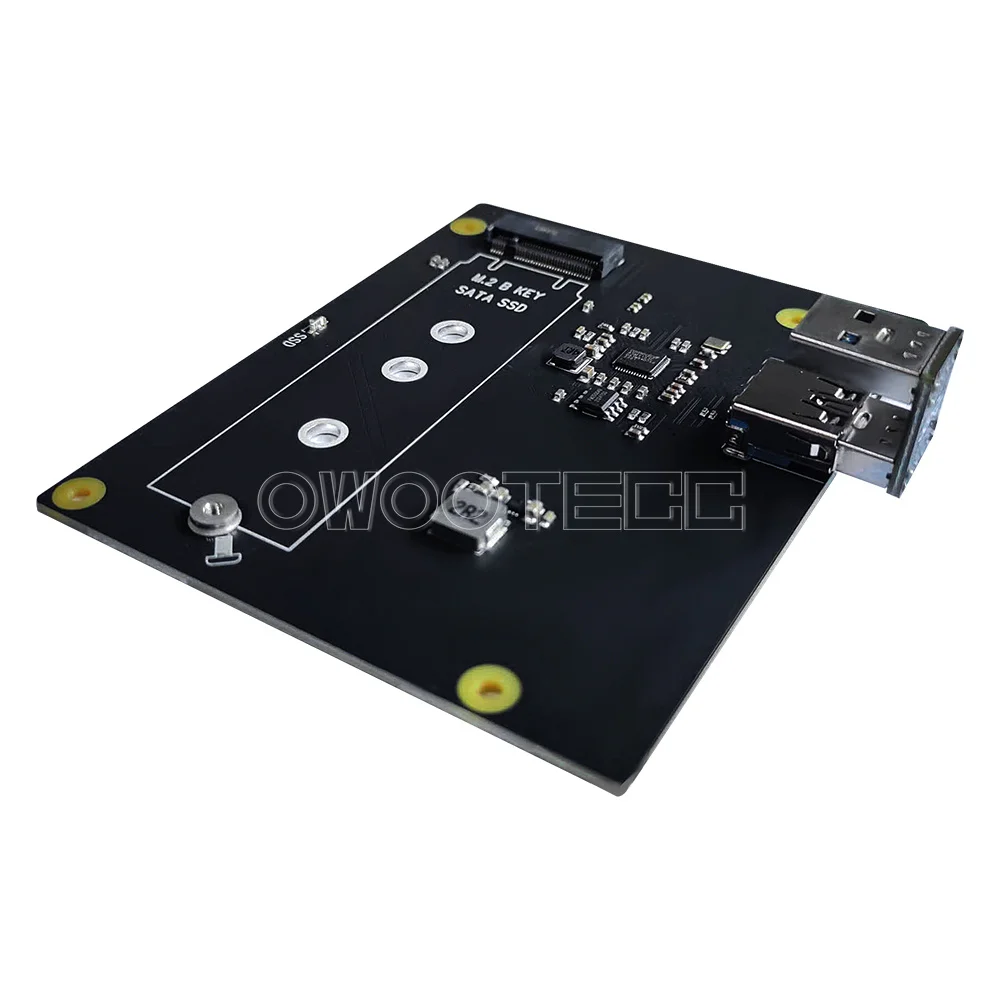

T150 M.2 NGFF SATA SSD Storage Expansion Board for Jetson Nano

Product Description

The T150 is a M.2 NGFF SATA SSD storage expansion board specially designed for NVIDIA Jetson nano developer kit, it supports up to 2TB M.2 NGFF SSD solid-state drive (SSD), allowing you to expand your storage with high-speed SSD drives on Jetson Nano.

Not include Jetson Nano!

Product Features

  • Ideal storage solution for Jetson Nano - M.2 NGFF SATA SSD Shield

  • Supports up to 2TB m.2 NGFF 2280 solid-state drive

  • Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

  • Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD

  • USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Jetson Nano

  • Supports USB Attached SCSI Protocol (UASP)

  • LED blue indicator indicates drive status

  • Specially-made USB3.1 jumper to connect with Jetson Nano - no cable needed

  • USB bus-powered- No PSU needed

Package Includes

  • 1x T150 M2 SATA SSD Expansion Board

  • 4x M2.5x11mm F/F Spacers

  • 8x M2.5x6mm Screws

  • 1x M2x4mm Screw (fix SSD)

  • 1x Screw Driver
