Laserworld CS-12.000RGB FX Laser MK2

Product Description

The Laserworld CS-12.000RGB FX has two grating effects built in in addition to the graphics capable scanners: line grating and burst grating .
Together with the ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings stored on the laser, these effects offer a variety of combinations for impressive illumination of medium-sized to large locations. The grating effects make the projected patterns appear as if they were displayed by many projectors at the same time. The resulting extensiveness allows for effects that could not be achieved in any other way.
But that's not everything the Laserworld CS-12.000RGB FX has to offer:

The Laserworld CS-12.000RGB FX is a pure diode, analog modulated, full-color RGB laser system with a total output power of up to 12'000 mW and a guaranteed output power of 11'000 mW. The red laser source has an output power of 2'600 mW / 638 nm, the green of 2'900 mW / 520 nm and the royal-blue laser source has an output power of 5'500 mW / 450 nm. The diode laser sources ensure powerful laser beams. The projector has good beam specifications with a beam diameter of 5 mm and beam divergence of 1.4 mrad. The galvo system has a scan speed of up to 28kpps @ 8° ILDA, galvo system, switchable effects grating wheel.

Pattern size can be set by two rotary buttons on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.

There is no airflow in the optical compartment, the temperature is regulated through the separate cooling fins compartment. This reduces maintenance and cleaning requirements to a minimum.

Through DMX, in the stand-alone mode as well as in the sound-to-light mode about ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings can be projected in different colors and in various speed. If the stand-alone mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.

Next to the modes mentioned above, this laser projector provides a master-slave mode. Show lasers of the same series (slave projectors), connected via DMX cable to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-12.000RGB FX is computer controllable through a professional ILDA interface. Thus own or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software (e.g. Showeditor or Showcontroller).

There are safety features like a key switch, an interlock and an on-off switch.

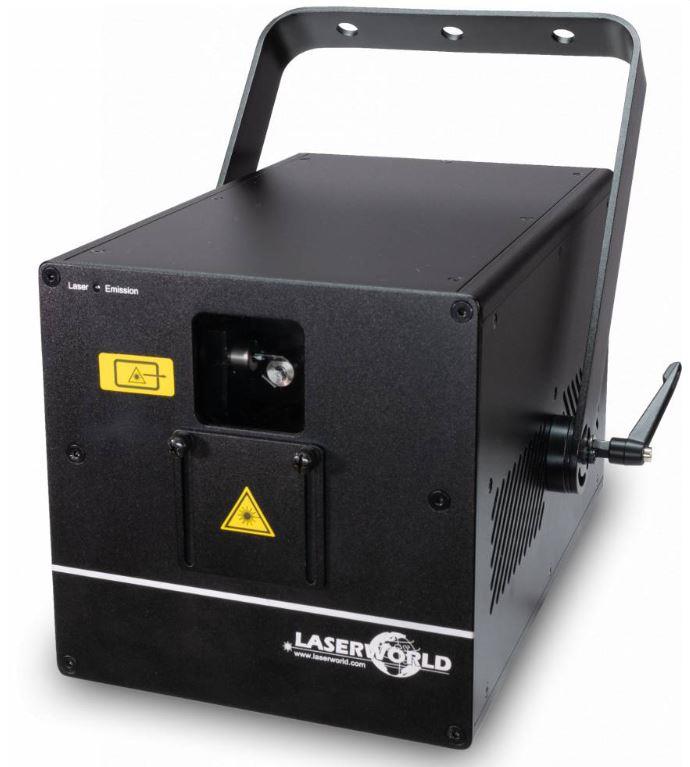

The Laserworld CS-12.000RGB FX show laser projector comes with a compact housing, which is light weight and has a stable bracket. The 360° mounting bracket allows for different mounting positions: a hanging, as well as a standing installation, is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The Laserworld CS-12.000RGB FX is ideal for semi-professional applications and is perfectly suitable in medium sized to large clubs and discos as well as for mobile DJs, private use and in any other party location.

Total Power: 12'000 mW
Guaranteed Power: 11'000 mW
Power Red: 2'600 mW / 638 nm
Power Green: 2'900 mW / 520 nm
Power Blue: 5'500 mW / 450 nm
Beam Specifications: ca. 5 mm / 1.4 mrad
Scanner: 28kpps @ 8° ILDA, galvo system, switchable effects grating wheel
Max. Scan Angle: 40°, up to 90° with effects gratings
Laser Source: Diode
Laser Class: 4
Operation Modes: stand-alone, sound-to-light, DMX, ILDA, master-slave
Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings
Accessories: power cable, manual, interlock, key
Power Supply: 85V - 250 V AC
Power Consumption: 200 W
Dimensions: 285 x 180 x 190 mm
Weight: 7.7 kg

Laserworld CS-12.000RGB FX Laser MK2
