ADAMAT Performance from Poland offers Twin disk clutch set for 1JZ/2JZ Toyota engines for assembly with BMW gearbox. Our solution is the result of 2 years of testing under various conditions carried out by our customers and tested personally in our experimental car. We are offer the best option for high performance 1JZ/2JZ engines. Our clutch is very quiet thanks to our springs anty vibration solution. There are no disturbing knocks or vibrations especially when pressing clutch pedal. In our solution we are use pressure spring system that removes the impact phenomenon that occurs when clutch kicking espacially in drifting. Solutions with a loose clutch spacer break out with such heavy loads.
TOYOTA 1JZ/2JZ twin disc PERFORMANCE CLUTCH KIT STAGE5 for BMW gearbox please see table configuration in description. Dedicated for transmission from option 3 and 4
STAGE5 Clutch up to 1700Nm of torque.
light 6.9kg high grade aircraft aluminum alloy AlZuMg+Ti flywhell!!!
This Kit include:
- 100% CNC machined parts by ADAMAT Performance on DMG MORI machines
- 7.2g weight hybrid flywhell made from special aircraft grade aluminum alloy with titanium AlZnMg+Ti. Flywhell made as light single mass flywhell with iner ductile iron friction disc. The best abrasion and temperature resistance from steel
- Complete flywhell with herdening 115 teeth starter ring for oryginal 1JZ/2JZ Toyota starter motor
- New two PERFORMANCE 240mm main clutch hardened spline discs - stainless steel base + sitering friction pads
- Sachs Racing Preassure plate 883082.001243

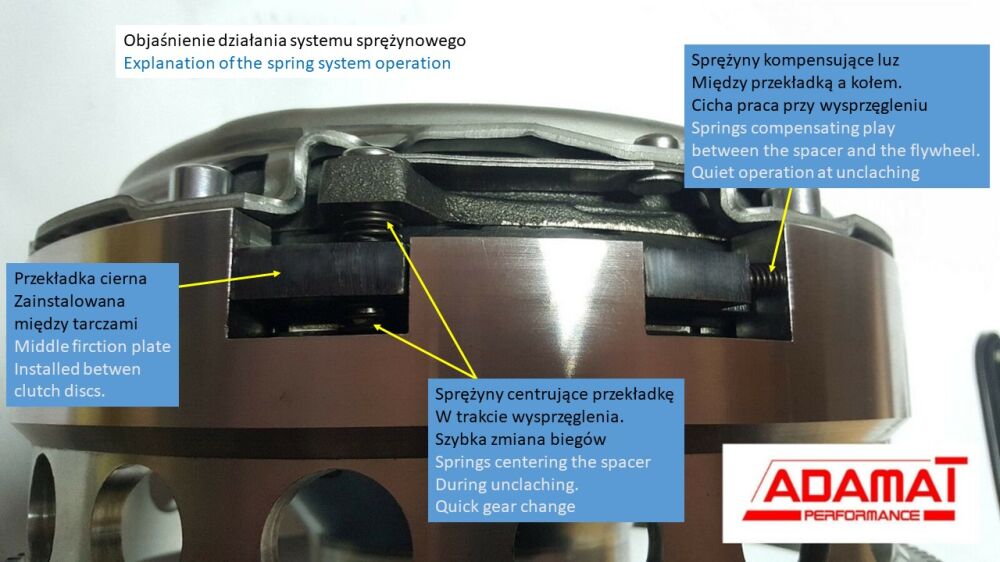

- clutch discs spacer from great-resistant structural steel with increased strength with our anti vibration spring system. This simple patented sytem eliminating knocking from twin disc clutches, very importnant also eliminating impact loads on the flywhell when we clutch kicking. Those situation is very dangerous and can very serious damage flywhell.
- Made from high grade aluminum FORTAL AW7075 17 mm thick conversion plate with double centering, 1St stage centering on oryginal two dowel pins in engine block, 2st stage on oryginal positioning holes in BMW gerabox. maximum tranmission centering mismatch 0,03mm
- 12.9 class Flywhell bolts
- Clutch relase bearing depends from tranmission include in kit
- adjusting pin from steel for clutch installation include in kit
- manual with installation process in pdf we sent on email.
Clutch set are fully dynamic ballanced.
After order please sent us info what basic gearbox you will use.
Setup is availabe for few BMW gearbox and different clutch discs options
| | Adapter configuration | ||||||
| BMW tranmission model | from BMW model | Engine Type | Spline shaft | Option 1 | Option 2 | Option 3 | Option 4 |
| 6-th gear GS6-53BZ and Xdrive | E82/E90-E93/E60-E64/ | N54 | 32.5x35-26N | Include | Include | | |
| 6-th gear GS6-53DZ HGA | E46 | M57N 3.0d | 32.5x35-26N | Include | Include | | |
| 6-th gear GS6-53DZ HGU/HGD/HGK/JGA | E82/E90-E93/E60-E64/ | M57N/M57N2 3.0d | 32.5x35-26N | Include | | | |
| 6-th gear GS6-53DZ JGG/JGL | E81/E82/E87/E88 (123d) and F10 E90 | N47/N47S and N57 | 32.5x35-26N | | Include | | |
| 6-th gear GS6-37BZ | E46/E39/E85/E86/E81/E87/E90/E91/E60/E61/ | N52/M54 | 23.13x29.13-22N | Include | Include | | |
| 6-th gear GS6-37DZ | E46/E39/E85/E86/E81/E87/E90/E91/E60/E61/ | M47/M47N/M47N2/N47/N47N2 | 23.13x29.13-22N | Include | Include | | |
| 6-th gear S6S-420G and SMG | E46 M3 | S54 | 28x35-10N | Include | Include | | Include |
| 5-th gear GS5-39DZ | E46/E39 | M57 3.0d | 28x35-10N | | | Include | Include |
| 5-th gear S5D-320Z, S5D-310Z, S5D-260Z | E30/E36/E36 M3/E34/E39/E38/E46 | M50/M52/S50/S52 | 23x29-10N | | | Include | |
Clutch characteristic
Why we are made flywhell from light special grade Alloy?
We have 14 years experience in motorsport with many materials and also 24 years of experience in aircarft enginering design process.
Those material have bether mechanical properties then standard mild steel and bether then ductlie iron used in engines from many years.
Light strong materials can give you more power and energy efficent with same strenght then standard havy steel or ductile iron materials.
We tested many solution from years to give you best options. Our solution are tested on streets in drifting cars and in off-road cars.
