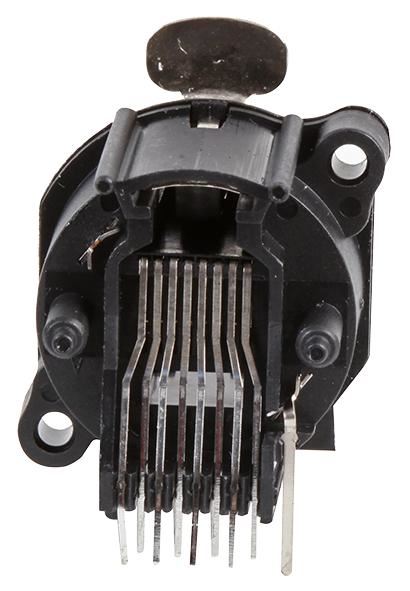

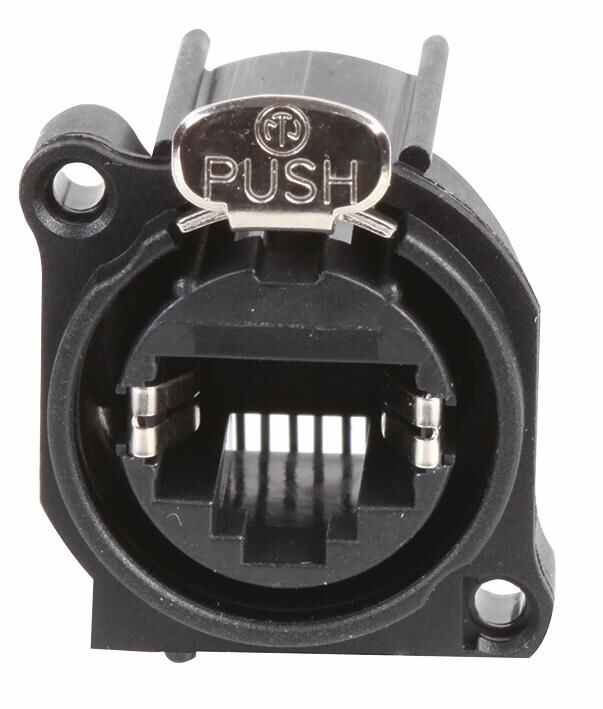

NEUTRIK - etherCON 8 Pin RJ45 Socket, Horizontal PCB Mount

The NEUTRIK NE8FAH is an 8-pole horizontal PCB mount RJ45 receptacle designed for robust and reliable connectivity. Featuring a latch locking device, A-Series cut-out, and gold over nickel plated bronze contacts, this connector ensures secure and efficient signal transmission.

Constructed with PBTP insert and PBTP shell, the NE8FAH is part of the ruggedized etherCON series, specifically shaped to fit standardized panels in the entertainment industry. Its all-plastic A-Series design offers a space-saving and cost-effective solution without compromising on durability.

Key Features

• Accommodates rugged etherCON NE8MC or any standard RJ45 plug
• Complies with Class D according to TIA/EIA 568B and ISO/IEC 11801 standards
• Isolated to panel ground for enhanced safety
• UL94V-0 flammability rating for fire resistance
• Solderability complies with IEC 68-2-20 standard for reliable connections
• <10mΩ Contact resistance for minimal signal loss

• 0.5GΩ Insulation resistance for superior performance

• 1.5A Current rating per contact for high-power applications
• <50V Voltage rating for safe operation
• Temperature range: -30 to +80°C for versatile use

Technical Specifications

• Modular Connector Type: RJ45 Jack
• Port Configuration: 1 x 1 (Port)
• No. of Positions / Loaded Contacts (per Port): 8P8C
• Connector Mounting: Through Hole Mount
• Connector Orientation: Right Angle
• Shielding: Unshielded
• Magnetics: Without Magnetics

Ideal for professional audio, video, and data applications, the NEUTRIK NE8FAH ensures reliable performance in demanding environments.
