427 Ford Turnkey
Drop In Ready 427 Small Block Ford Stroker Crate Engine - Hot Rod Series - 500 HP

Street Stroker Engine perfect for your Mustang Cobra, Fairlane, Galaxie or any classic Ford.

NOTE: Not ready to ship immediately. Engine is built to order.

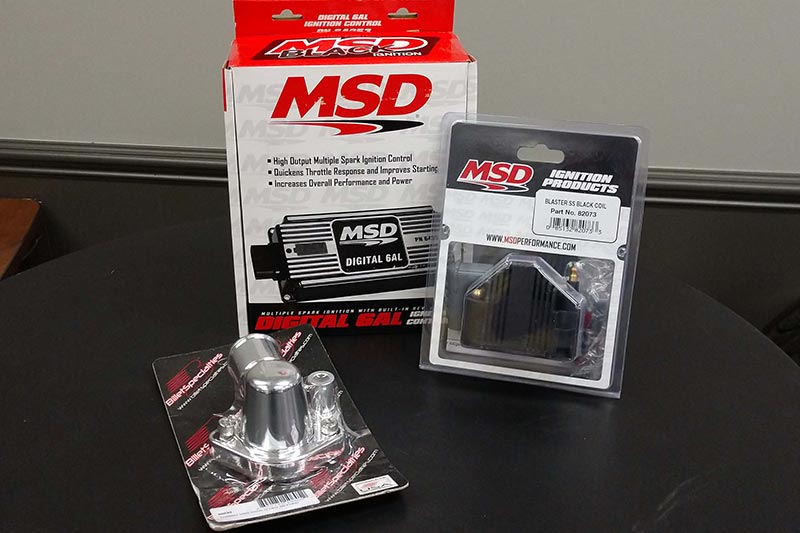

Additional Turn-Key Items Included

Billet Thermostat Housing with Thermostat, MSD 6-AL Ignition box, and MSD Blaster SS Ignition Coil INCLUDED!

SPECIFICATIONS
FORD 427 STROKER ENGINE SPECS

Here are the components that make up this engine.

ENGINE DETAILS

Displacement - 427ci

Power Output - 500HP

Compression - 10.5 -1

RPM - 6000

Port Configuration - STD
Bore - 4.030

Stroke – 4.170

Camshaft - Hydraulic Roller

Oil System - Wet Sump

Fuel Type - 91-93




LONG BLOCK SPECIFICATIONS

Block: OEM 351W
-4.030 Bore

Crankshaft: Forged Steel
-Eagle, Scat, Liberty, RPM

Rods: Forged H-Beam
- Eagle, Scat, Liberty

Pistons: 4032 Forged Aluminum
-DSS Racing, SRP, Mahle, Racetec

Rings: Stainless For high Temp Applications
-DSS Racing, Total Seal, JE

Bearings: King or Clevite Rod and Mains,
Dura bond Camshaft

Camshaft: Custom Hydraulic Roller
-Comp, Howards

Cylinder Heads: Aluminum As Cast
-Prestige, Liberty 185cc

Valves: Stainless Intake and Exhaust
-Liberty, REV, Manley

Valve Springs: Dual W/steel locks and retainers
-Pac, Isky

Timing Chain: Double Roller
- Comp, Liberty, Engine Tech

Lifters: Hydraulic roller Drop In or Tie Bar
-Gatorman, Johnson

Push Rods: 1 Piece Chromoly 5/16 x .080
-Liberty, Manley

Rocker Arms: Billet Aluminum Full Roller
-Prestige, Scorpion Racing, Comp

Head Bolts: ARP
Hex Head

Head Gaskets: Composition with fire ring
-Felpro

Oil Pump: Melling High Vol
standard Pressure

Timing Cover: Early Model
-Mech Fuel Pump provision – Refer to Pulley kit

Valve Covers: Ford Racing Blue
-Many options available

Oil Pan: Front OR Rear Sump Available
Moroso, Canton, Champ

Balancer: Universal 3-4 Bolt
-Pro street, PRW, Summit



FUEL & IGNITION

Intake Manifold: Dual Plane Air Gap
-Edelbrock

Carburetor: 4150 Double Pumper 750cfm
-Quick Fuel, Brawler

Fuel Log: Dual feed -6AN Braided
-Fragola, Redhorse

Tuning: Yes
-Complete Dyno tested with calibration

Distributor: Pro Billet
-MSD Custom Curved

Ignition: MSD 6AL W/Rev Limit
-Includes Blaster 2 coil

Wires: Custom Fit W/Loom kit
-Choice of Colors

Spark Plugs: Copper Core
Autolite, NGK


PULLEYS AND ACCESSORIES

Pulley Kit: March Performance Ultra
-Includes ALT and P/S – Uses 94 Timing Cover

Alternator: 150 Amp
-Power master, tuff stuff

Water Pump: 94-95 Mustang REV Rotation
-Edelbrock, Tuff Stuff, GMB

P/S Pump: GM Saginaw
-Chrome

A/C Compressor: N/A
-N/A

Water Neck: Billet Aluminum 90 Deg
-Includes 180 Deg thermostat

P/S Reservoir: Attached
-Chrome

P/S Line Kit: Universal
-Fragola, Earls,

DYNO TESTING

Here at Prestige Motorsports, our “Dyno Promise” means that we dyno test every engine we build to verify the quality of our work, the integrity of each component, and the reliability of every engine we construct. Then, we deliver the dyno results for your project directly to you, the customer.

Dyno Tested

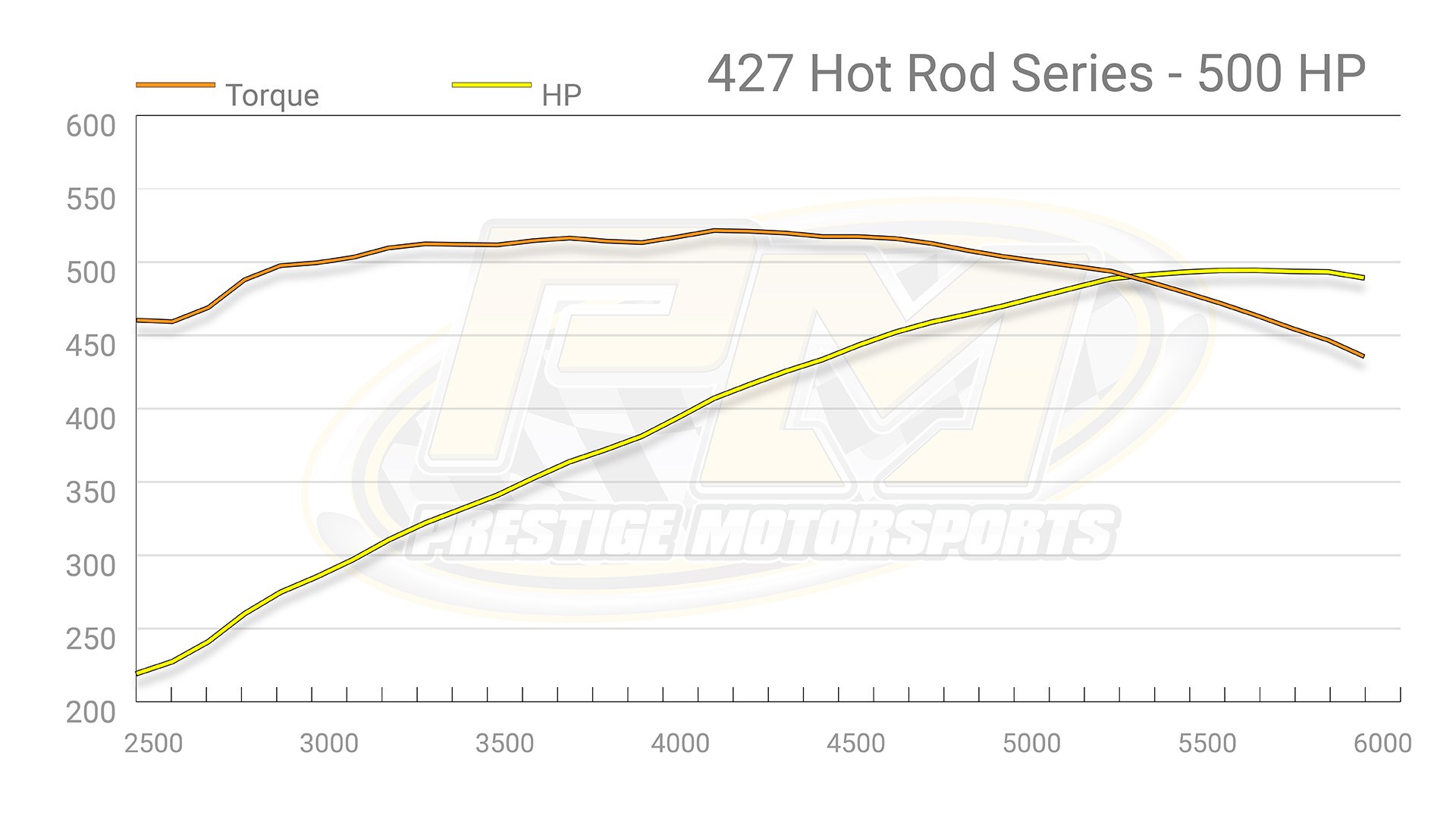

427 Small Block Ford Dyno Graph

WARRANTY

Would you make a major investment that is not backed by a warranty? Of course not! Prestige Motorsports believes in and stands behind our engines. That’s why we have offered a best in class warranty for over 10 years! When you purchase a Prestige Motorsports engine you can rest assured we’ll be here for the long haul.

Prestige Motorsports Warranty

ADD-ONS

Ultimate Turn-Key Package

Get the best of the best with our Ultimate Turn-Key Package. This comprehensive package delivers everything you need to bring the vehicle of your dreams to life. Message us to find out more!

The Ultimate Turn-Key Package
Engine + Transmission Package + Cooling System + Fuel Supply

other options available message for details
