90 Degree Right angle Planetary gearbox reducer for 80mm 750W AC servo motor

NOTE：

1^st: Please choose the ratio you need.

If you don't find the ratio you need, please inquiry.

2^nd:We will ship the planetary reducer as the standard dimension as follows:

Frame	Shaft diameter	Rabbet	diagonal Screw hole distance
90mm	19mm	70mm	90mm



3^rd: If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.

Here is the parameters of the planetary reducer:

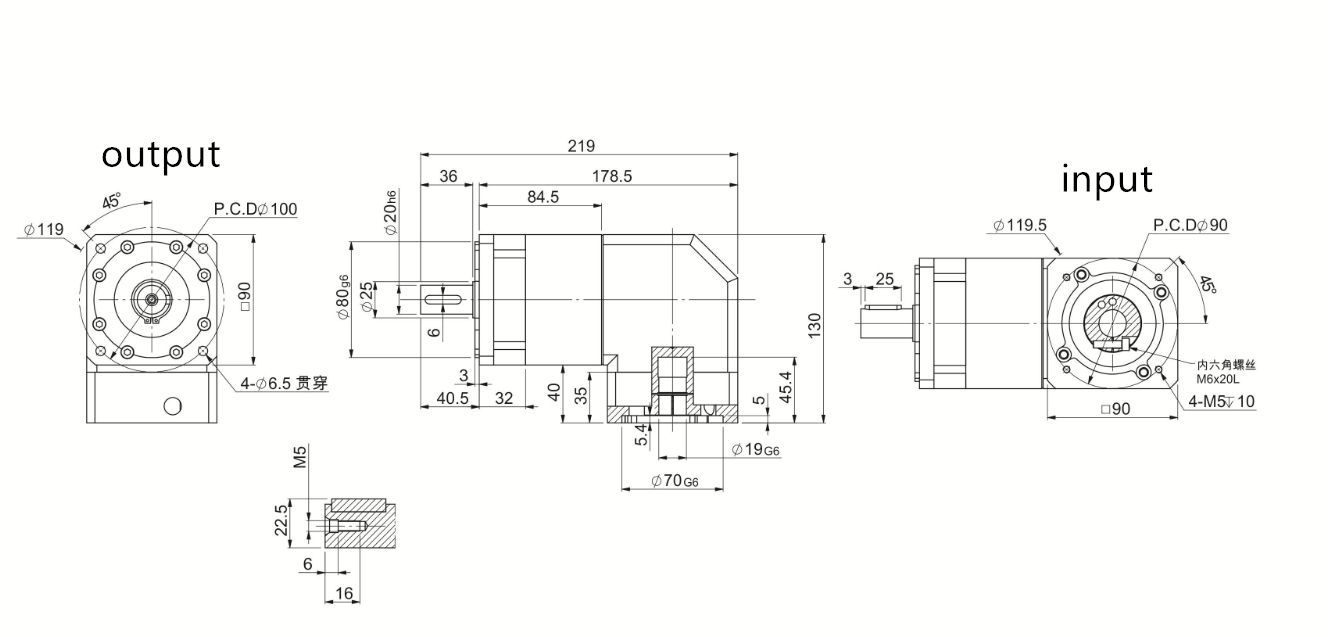

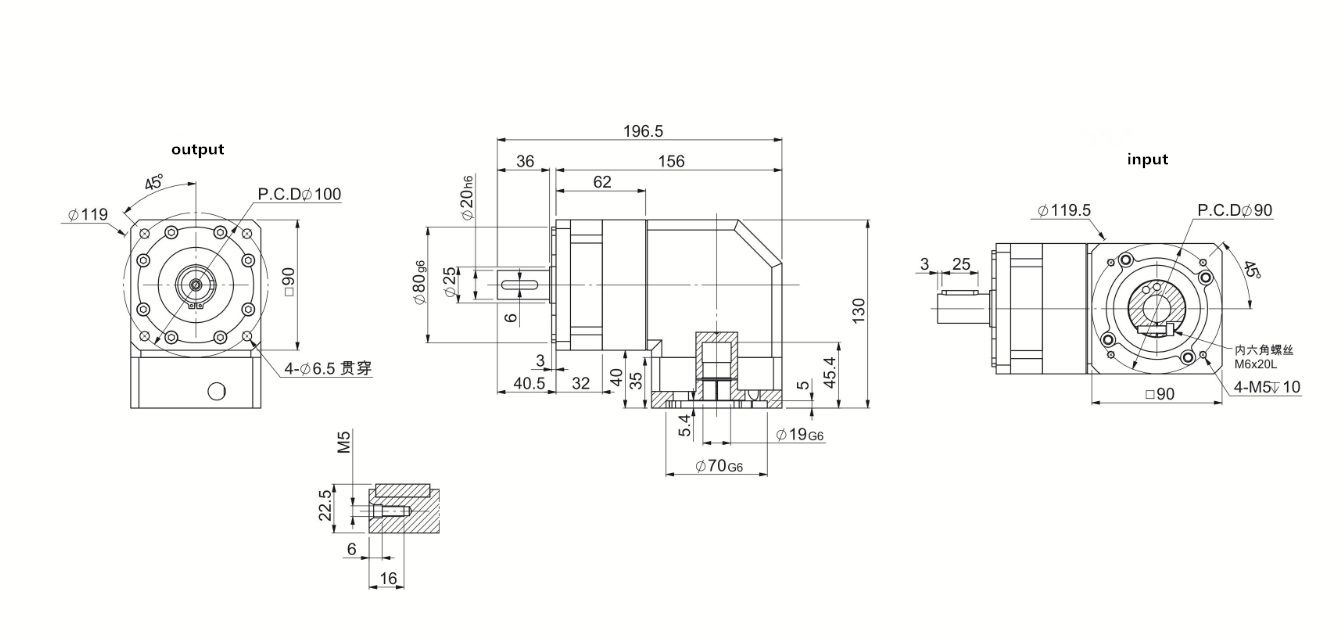

Here is the drawing of the gearbox :
