right angle 90 degree planetary gearbox reducer for 86MM frame NEMA34 Stepper motor

NOTE：

1st: Please choose the ratio you need.

If you don't find the ratio you need, please inquiry.


2nd:We will ship the planetary reducer as the standard dimension as follows:

Frame

Shaft diameter

Rabbet

diagonal Screw hole distance

90mm

14mm  or 12.7mm

73mm

98.4mm



3rd: If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.

Here is the parameters of the planetary reducer:


PVF_1 PVF_2

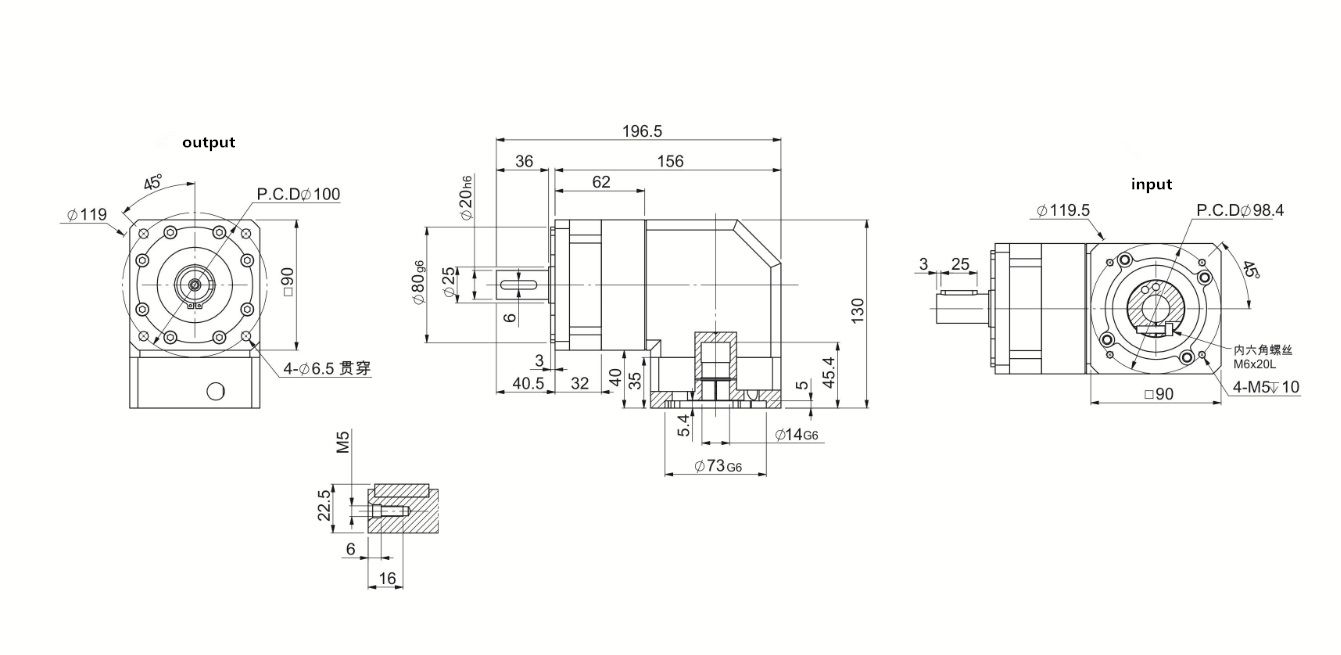

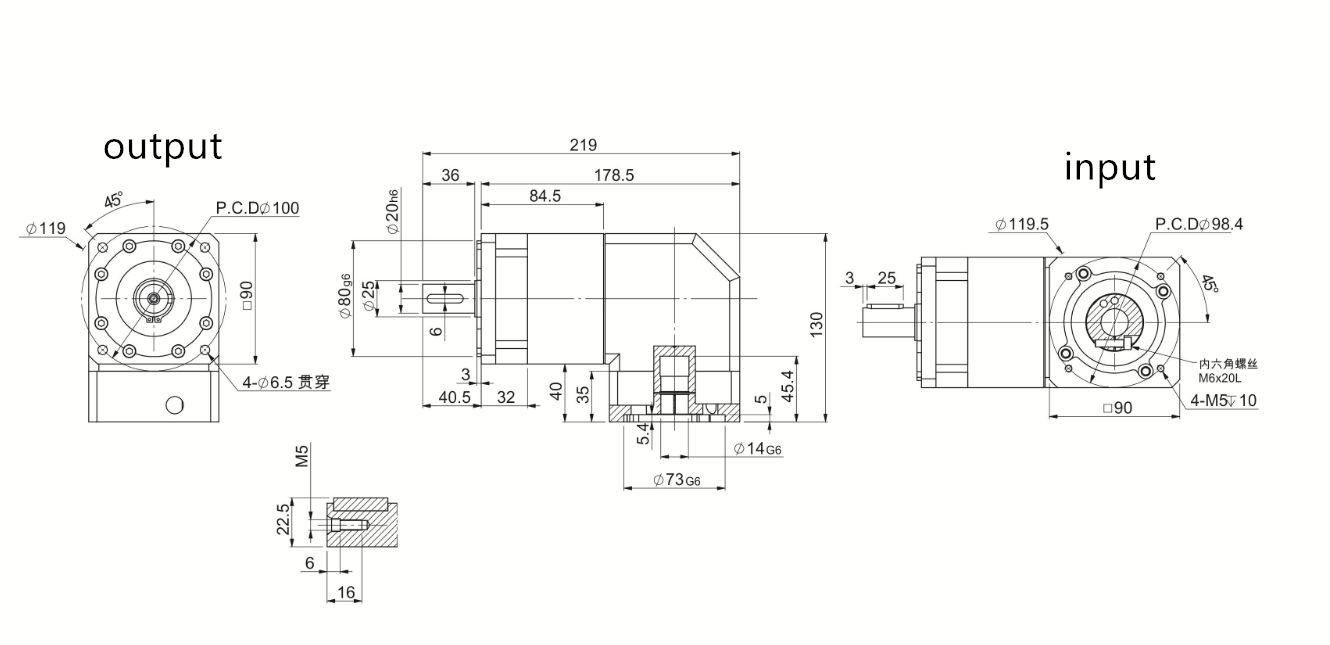

If the nema34 motor's shaft diameter is 14mm, the drawing of the gearbox like this:
PVF090-L2-14 PVF090-L1-14

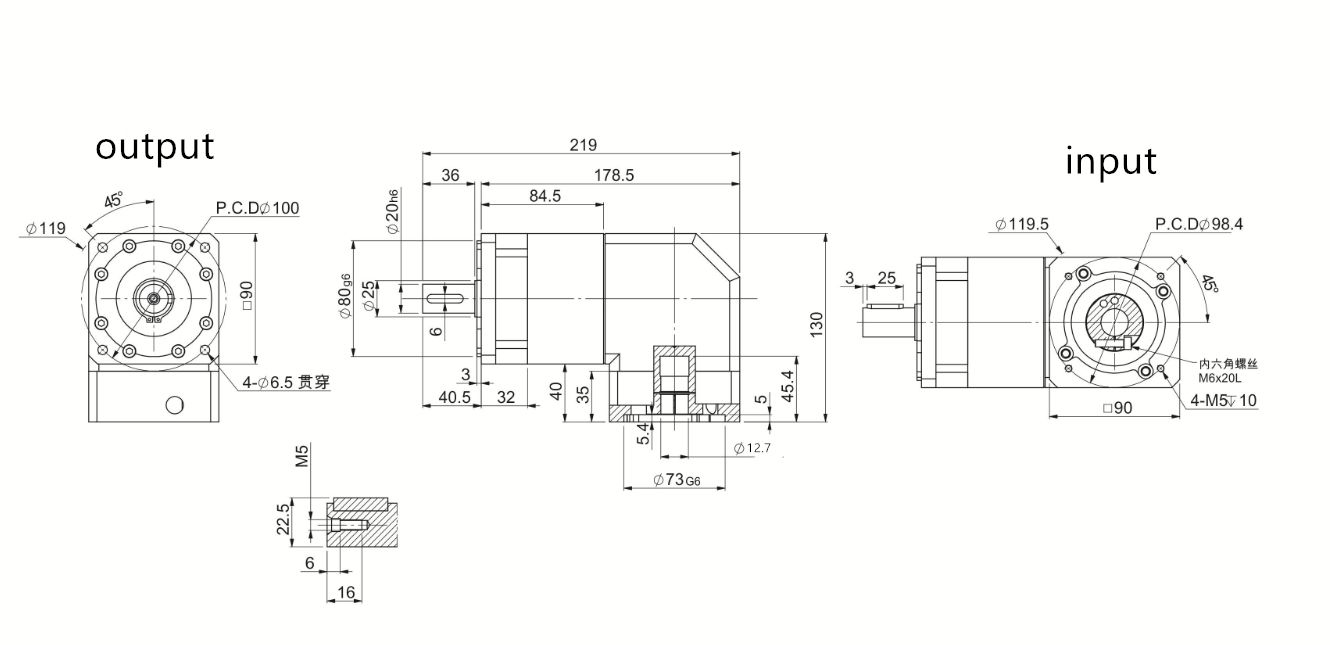

If the nema34 motor's shaft diameter is 1/2" 12.7mm, the drawing of the gearbox like this:
PVF090-L2-12.7 PVF090-L1-12.7
