right angle 90 degree planetary gear reducer 10 arcmin  for  60mm 400W AC servo motor input shaft 14mm

NOTE：

1st: Please choose the ratio you need.

If you don't find the ratio you need, please inquiry.


2nd:We will ship the planetary reducer as the standard dimension as follows:

Frame

Shaft diameter

Rabbet

diagonal Screw hole distance

60mm

14mm

50mm

70mm



3rd: If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.

Here is the parameters of the planetary reducer:


PVF_1 PVF_2
The dimensions as following:

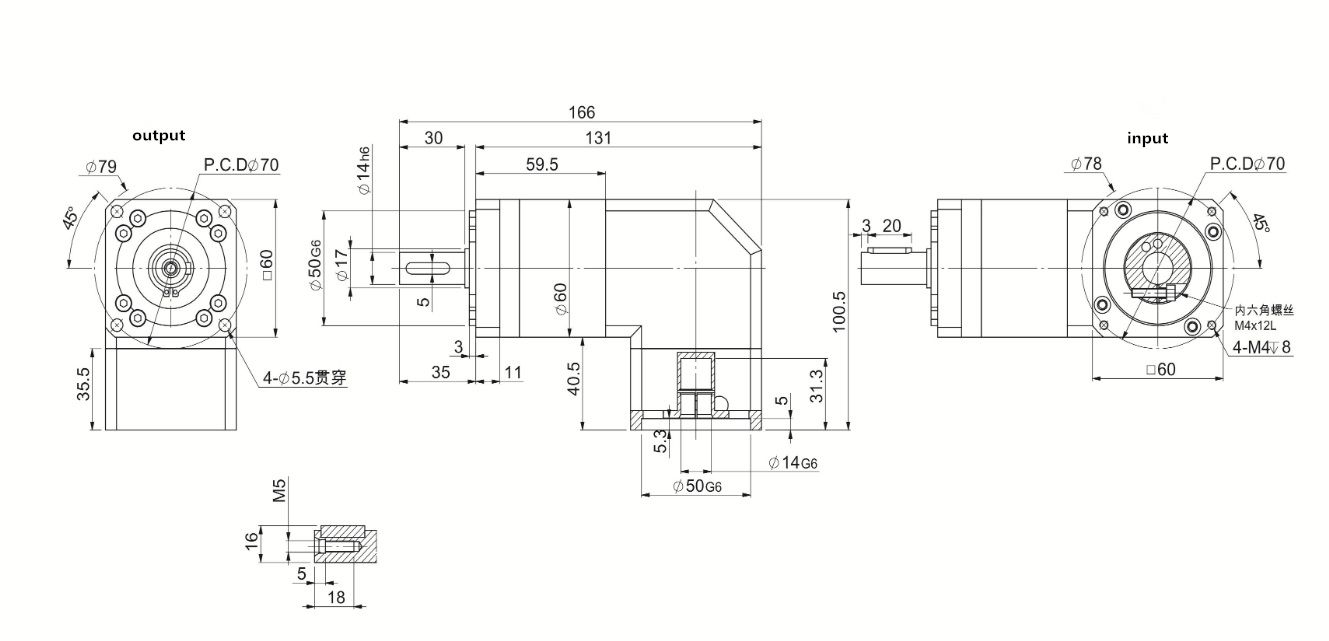

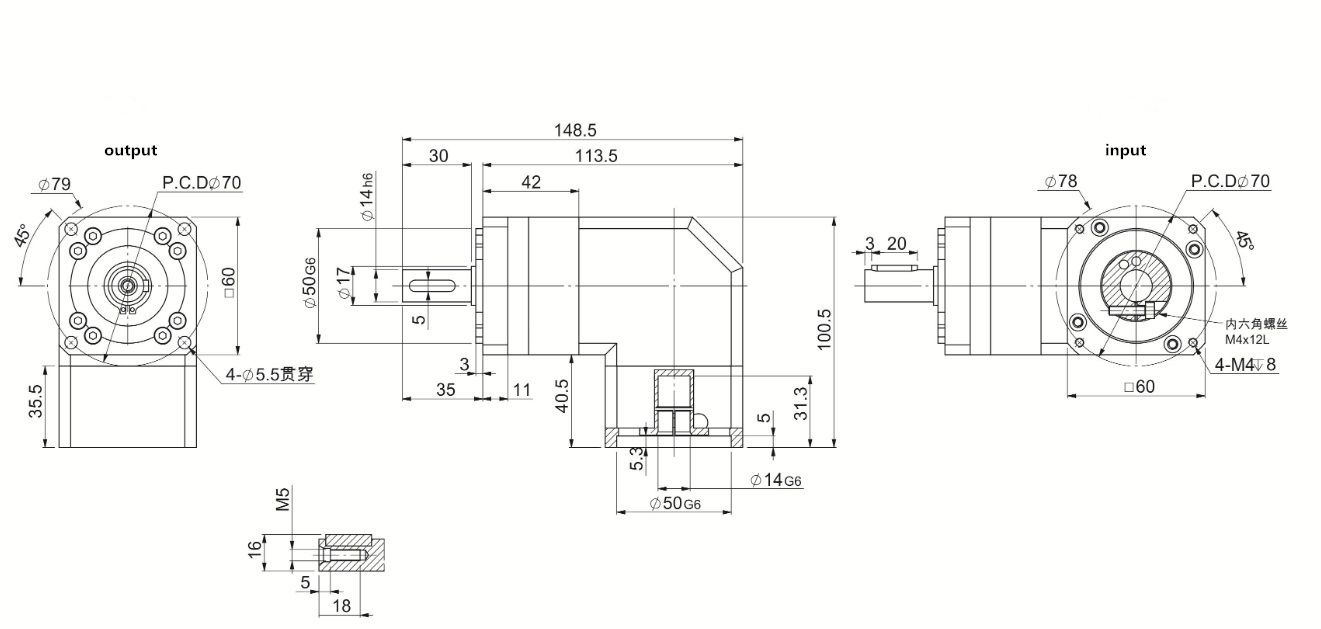

PVF060-L2-14 PVF060-L1-14
