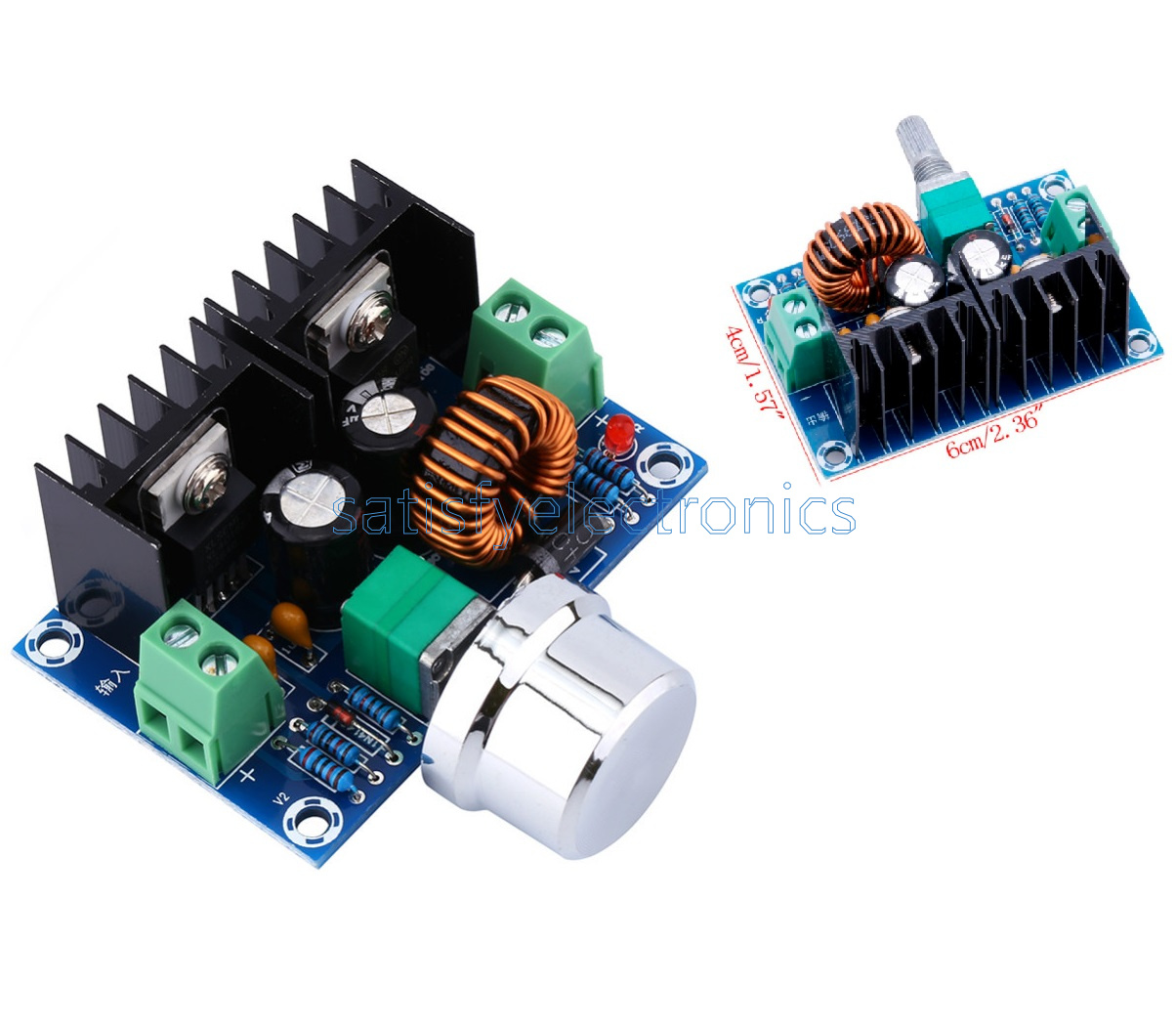

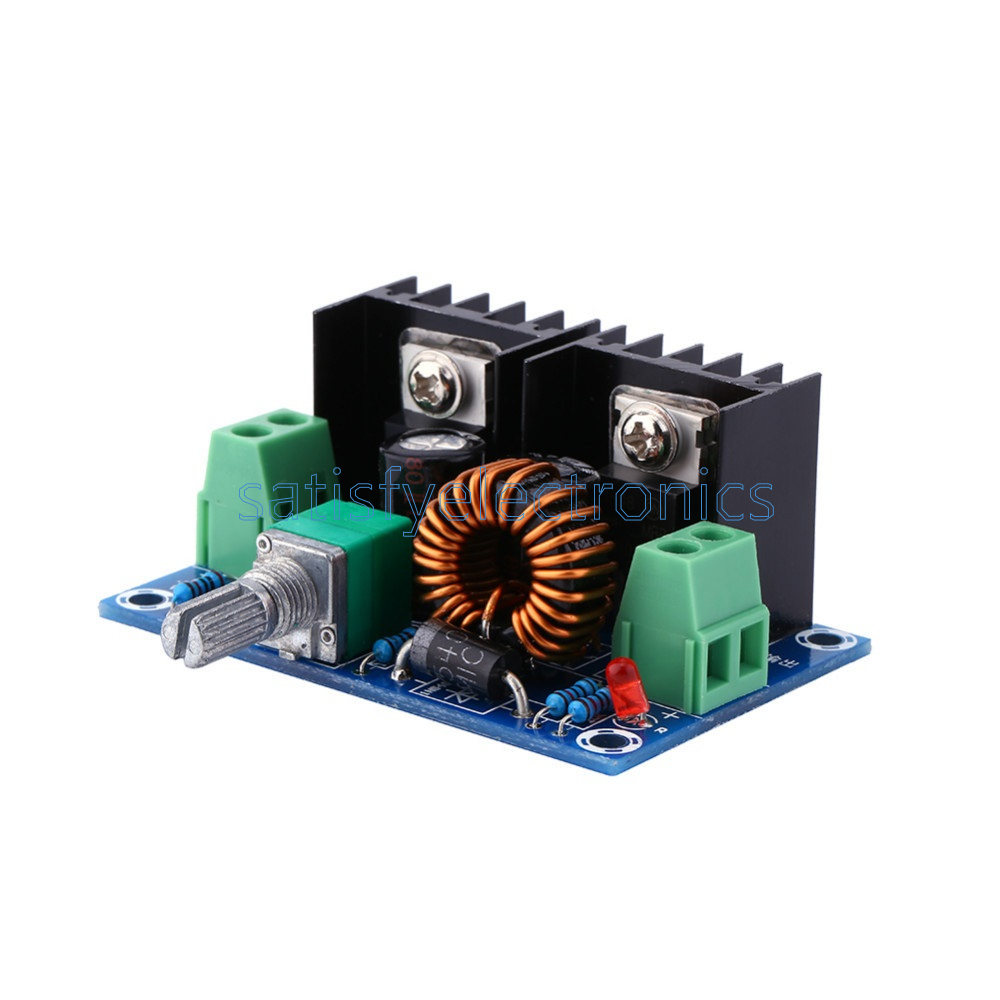

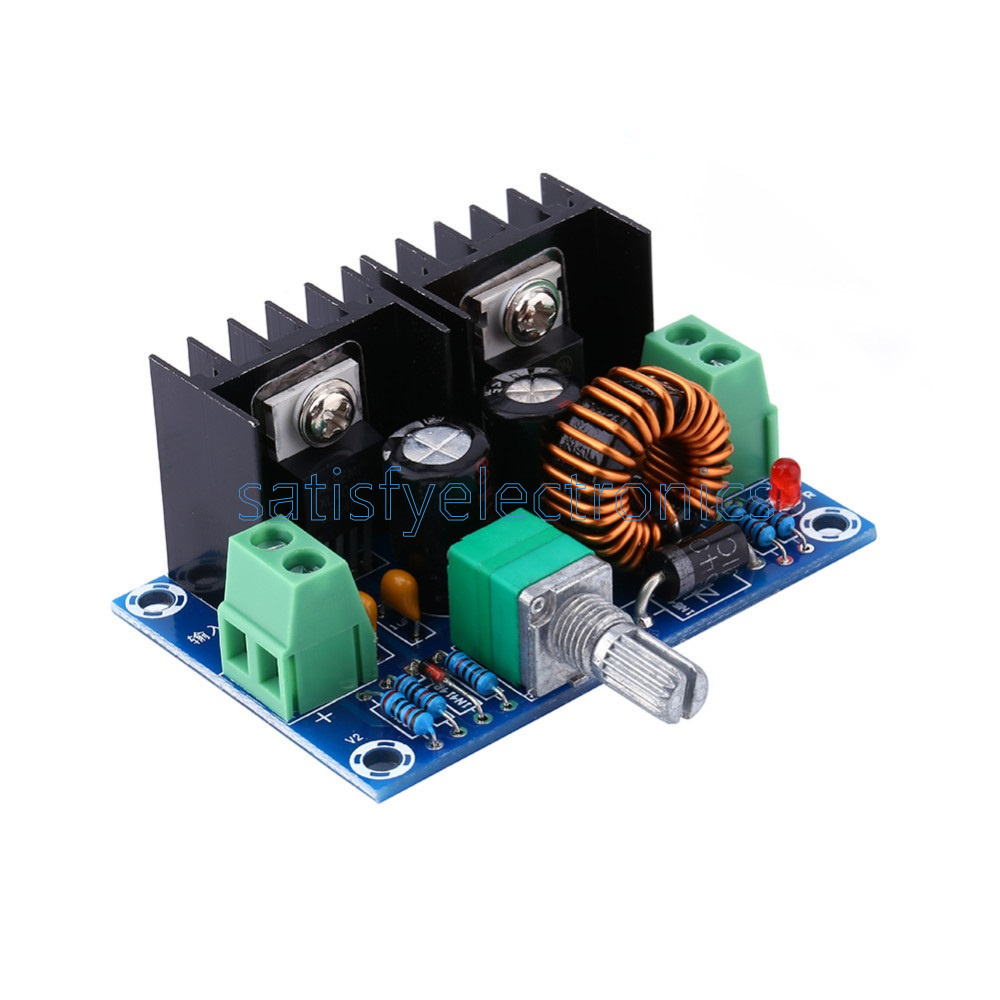

DC 5V-40V to 1.2-36V Buck Converter Adjust Step Down Power Module 200W 8A XL4016

Product name:


DC step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mm

Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection
When reach maximum output current 8A, need to add fan. Long term work recommended about 5A

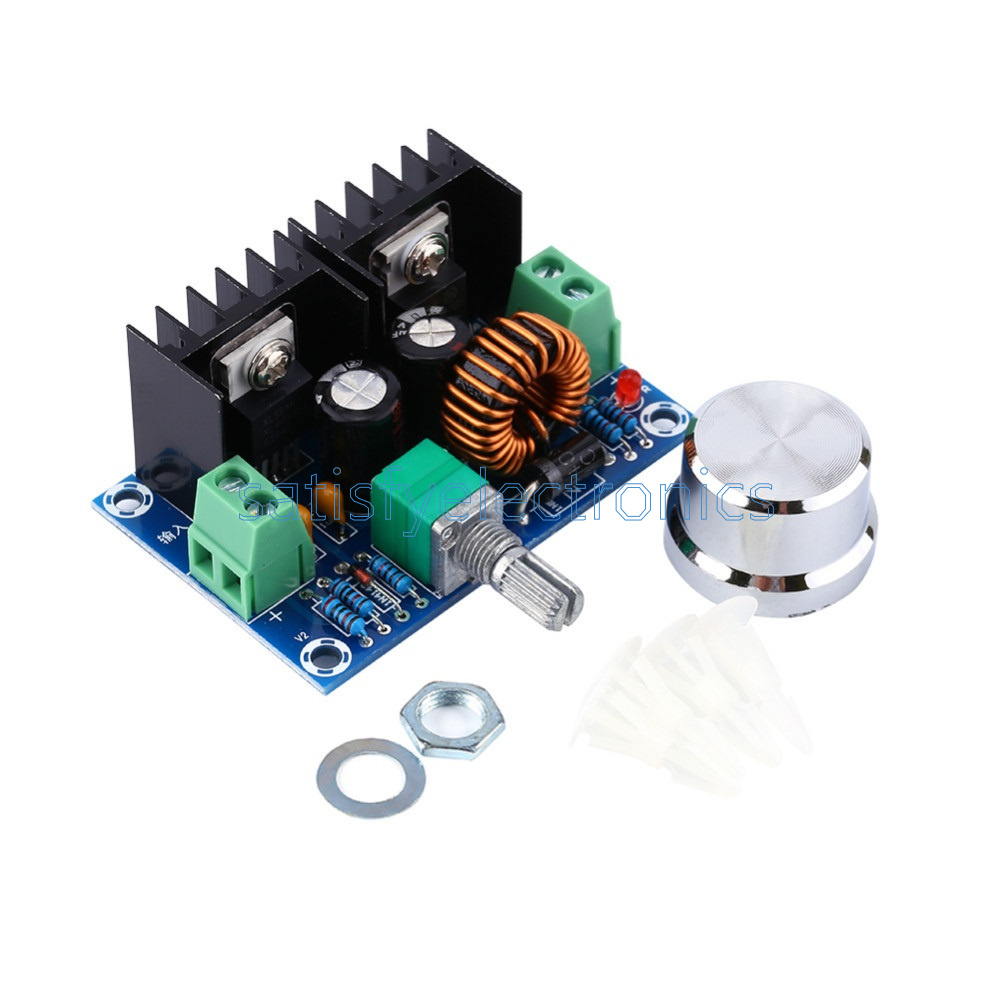

Panel Mounting:

1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob

Package Included:

1PCS  DC step down voltage power module NEW
