Achieve high-frequency fast frequent on-off circuit.
On-off process does not produce noise.
No spark.
No electromagnetic interference.
Long life than conventional electromagnetic relay life.
The use of opto-isolated input and output, enhanced anti-jamming capability power, ensure stability, industrial grade board, class PLC, after setting the parameters of power and can never remember, the signal terminal voltage signal can be maintained for a long time.
Delay of one second every time there is an adjustable 0-999 seconds 0-99.9 seconds, adjustable 0.1 seconds, 1 minute adjustable 0-999 minutes, customers can easily switch time range and size, power saving Delay time of the last set, without duplication.
Specifications:
Output capacity: DC 5-30V DC
Maximum current: 20A is greater than the need to add heat sink 5A
Quiescent Current: 20 mA
Working Current: 50mA
Operating Voltage: DC DC 5-30V (common universal operating voltage 9V 12V 24V)
Signal voltage: DC DC4V-27V (common power supply positive trigger, or button, PNP sensors, PLC signals, etc.)
Life: unlimited switch Operating temperature: -40-85C
Color: blue
Size: 65mm * 40mm * 14mm
Net weight: 20.4g

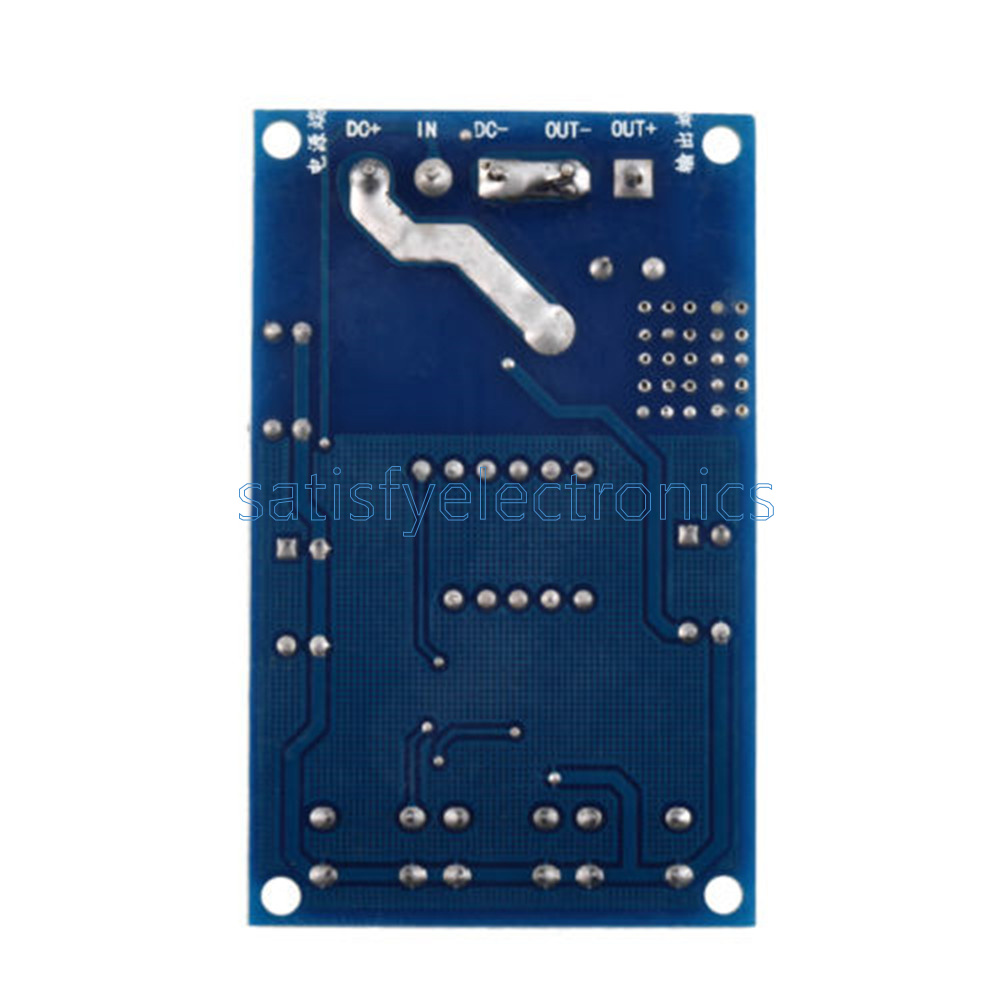

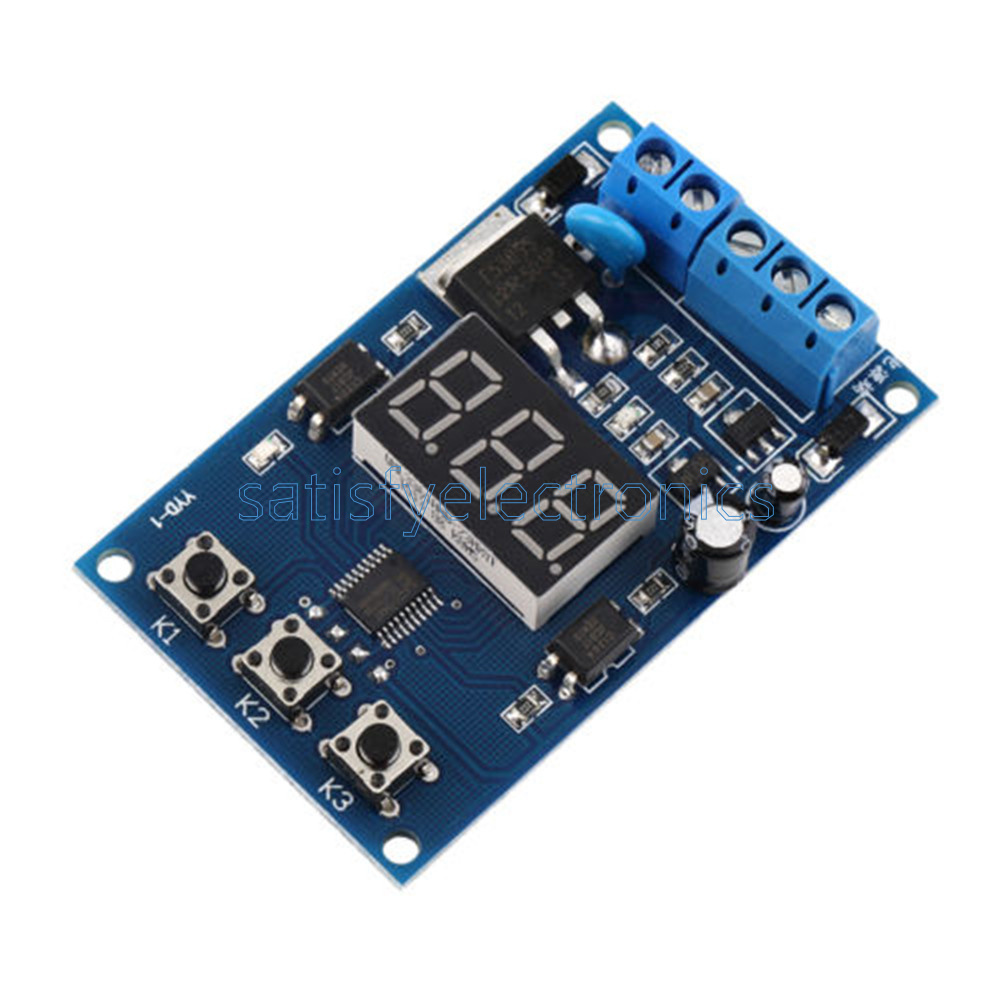

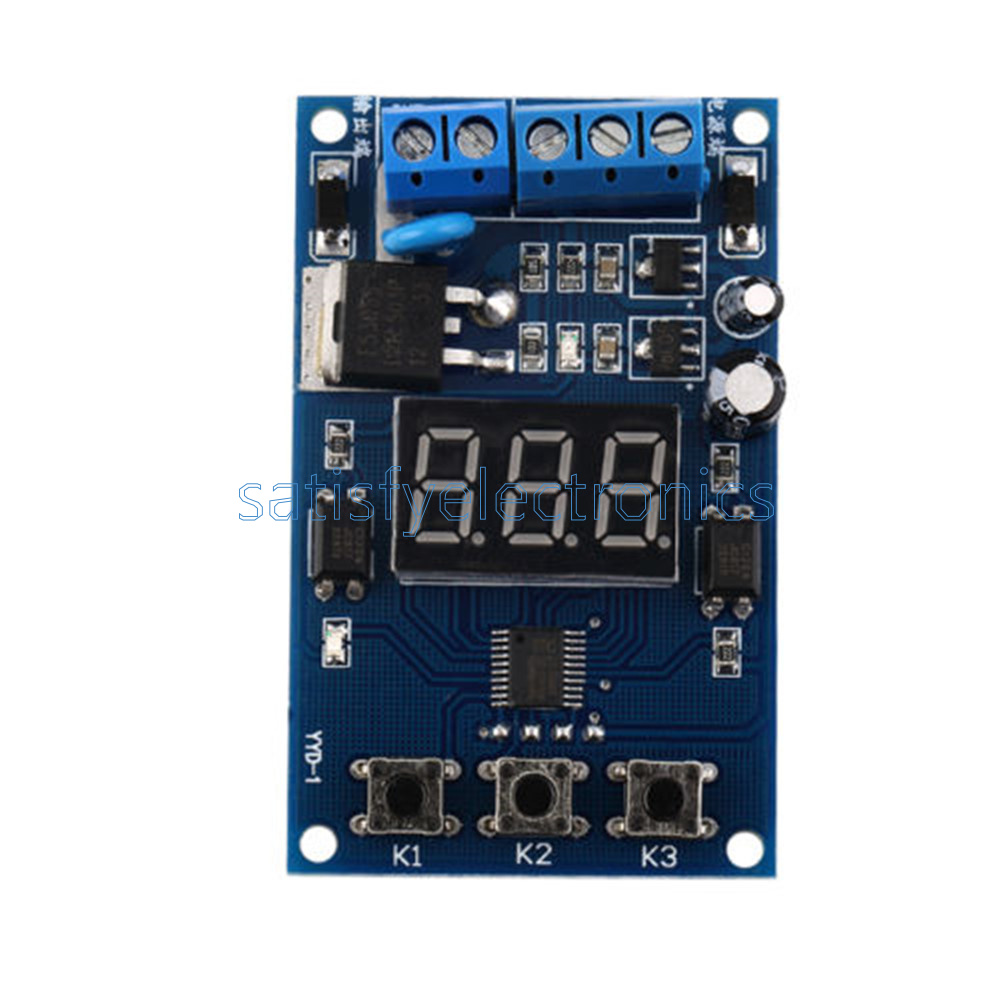

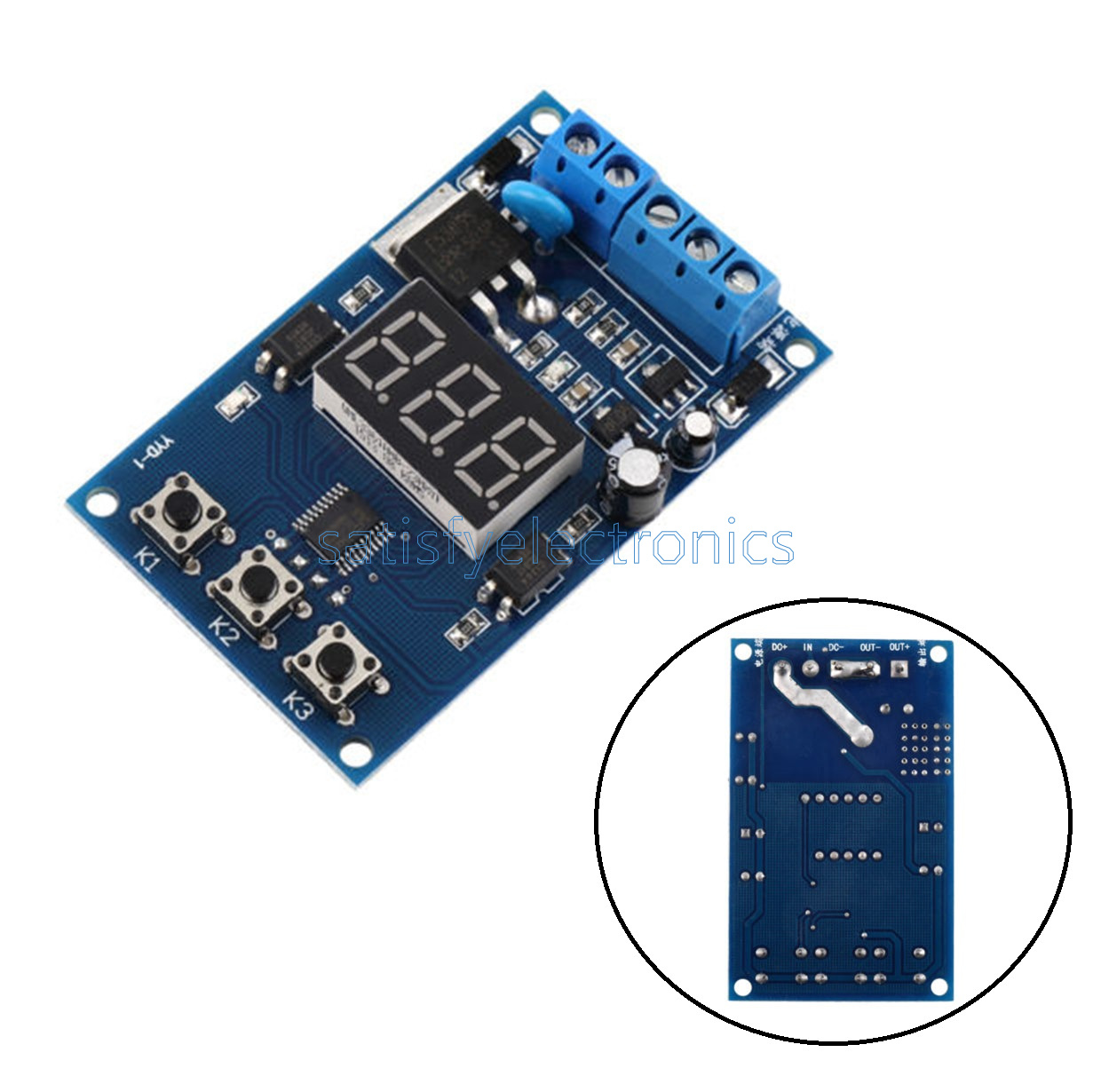

1PCS * Trigger Cycle Timer Delay Switch Circuit Control Board MOS FET Driver Module
