PAC180-6
Sound Town 180W 6-Zone 70V/100V Commercial Power Amplifier with Bluetooth, Aluminum, for Restaurants, Lounges, Bars, Pubs, Schools and Warehouses

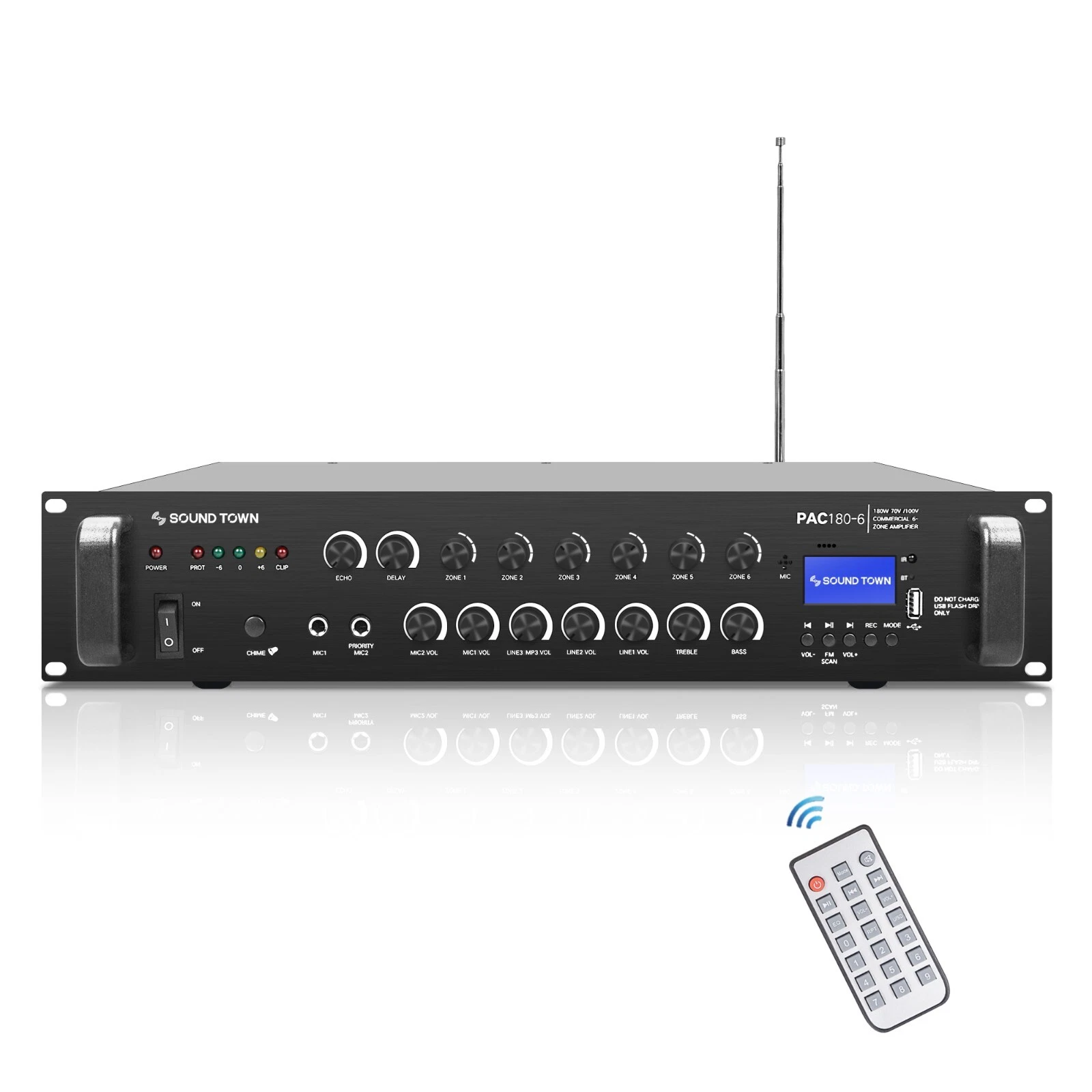

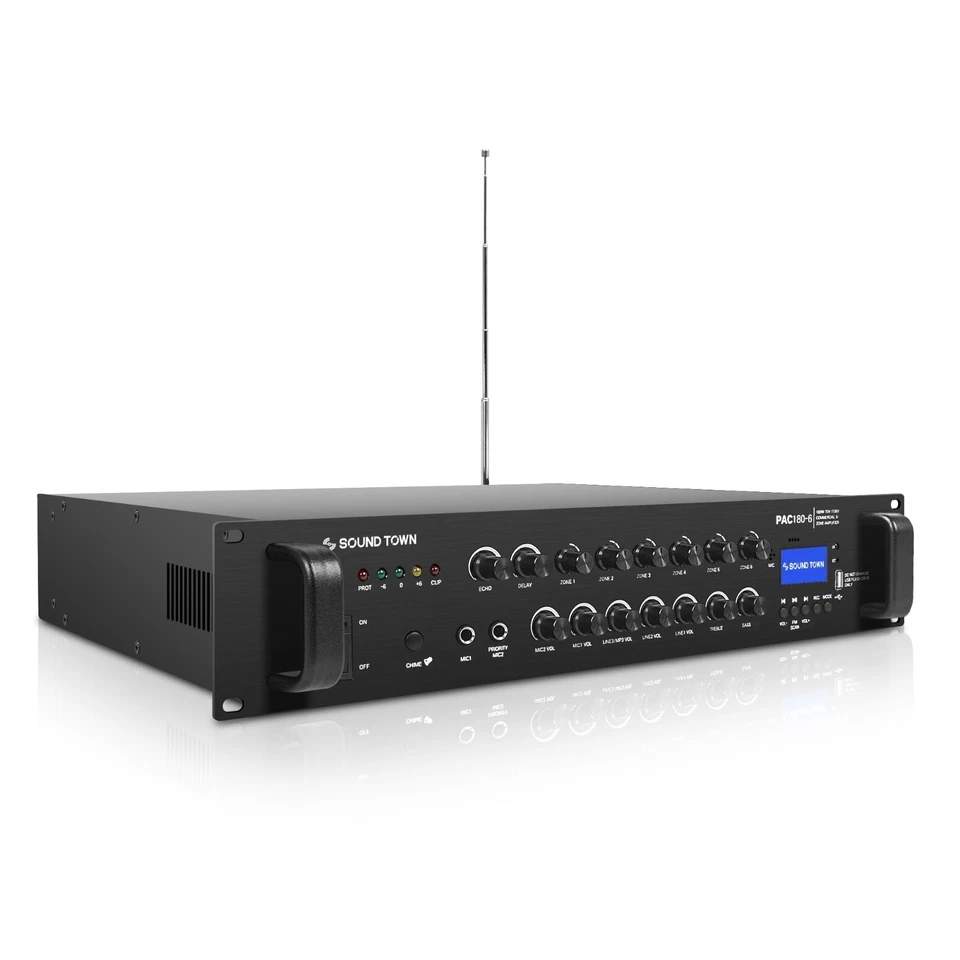

The Sound Town PAC180-6 is a 6-zone 19" rack mountable commercial power amplifier. It comes with 180W RMS output and can be split into 6 zones. Its integrated clipping limiter protects your speakers and amp from overheating. Better yet, it is capable of 70-volt, 100-volt, 8-ohm, and 4-ohm and is ideal for applications such as restaurants, bars, pubs, schools and warehouse.

With a built-in potentiometer, each zone can power up to 200W but the total for all zones must be less than 180W. You can also connect a 70V speaker to the 100V 6-zone function, but the power output would be lower. For example, when it's 60W at 100V per zone, the power will be around 42W at 70V. In addition, 70V/100V and 8-Ohm can't be used at the same time. A 6-zone cannot pick up 8-Ohm. If you want to connect 8-Ohm, you can only connect the 4-16 Ohms terminal of the main output and you can't connect any other 70V/100V terminals.

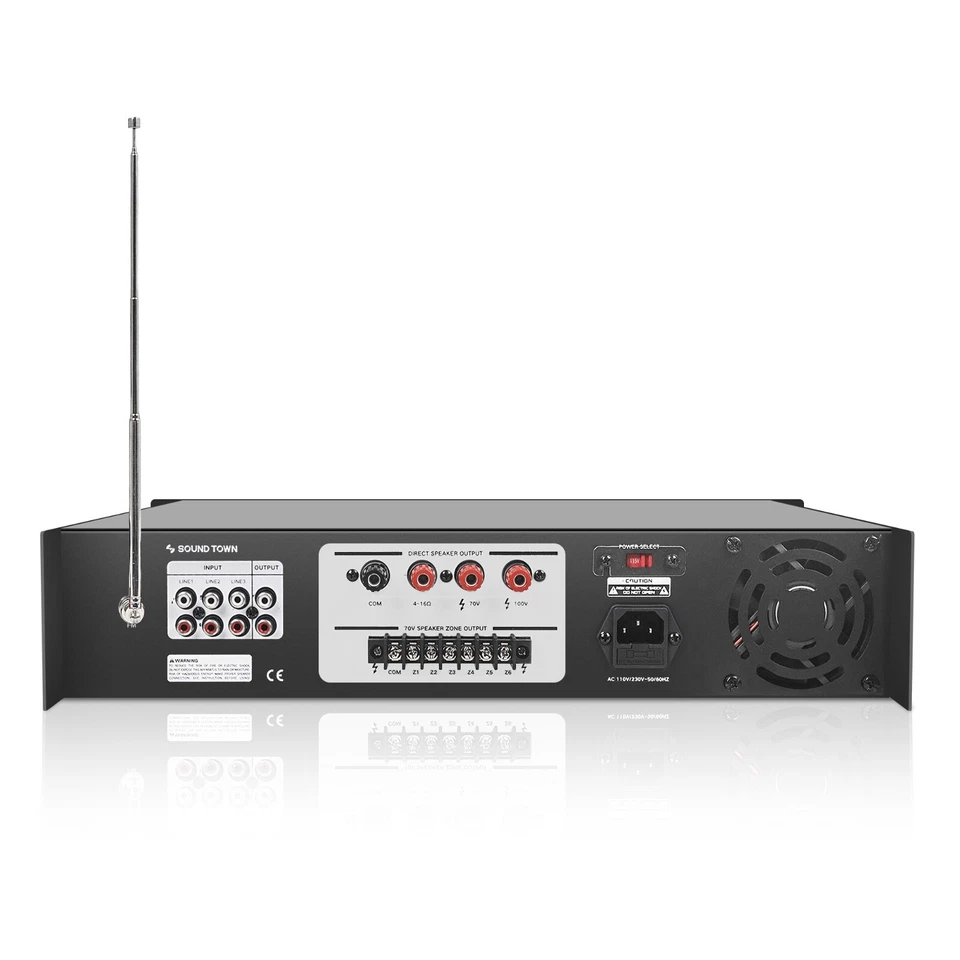

The multi-zone power amplifier comes with 3 sets of RCA inputs, 2 mic inputs, and Bluetooth, USB, FM radio,FM antenna and RCA line output, 70V / 100V / 4~16-ohm red positive speaker output terminals and shared negative speaker output terminal. Its versatile input and output options allows you to easily set this up in a variety of multi-room applications. Each of the 2 mics input has echo control all 6 zones have separate volume knobs for easy adjustment.

For a powerful and budget-friendly multi-zone commercial power amplifier, check out the Sound Town PAC180-6Z.

Features

  • The commercial (public address) power amplifier has a 6-zone speaker output with individual volume control; cast-aluminum panel and integrated handles for enhanced durability

  • Versatile inputs with 3 sets of RCA inputs, 2 mic inputs (including 1 priority mic), USB input, FM radio tuner, FM antenna and Bluetooth for easy connection to audio streaming devices; each of the 2 mics has speed and echo control

  • Built-in clipping limiter and reliable cooling system protect your speakers and amplifiers from overheating

  • The audio amplifier is ideal for multi-room applications or broadcasting system such as restaurants, lounges, bars, pubs, schools and warehouses



Dimensions & Weight

Product Width (in.) 19" Package Width (in.) 21.9"
Product Height (in.) 3.5" Package Height (in.) 7.5"
Product Depth (in.) 15.3" Package Depth (in.) 18.3"
Product Weight (lb.) 22lbs Package Weight (lb.) 24.5Ibs


Warranty/Certifications

Manufacturer Warranty 1 Year
