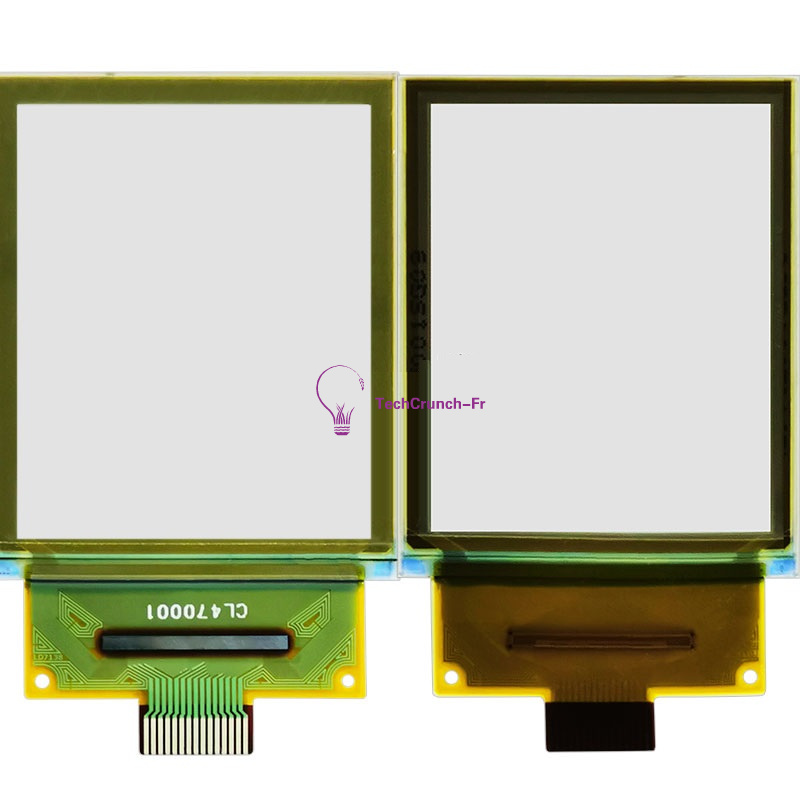

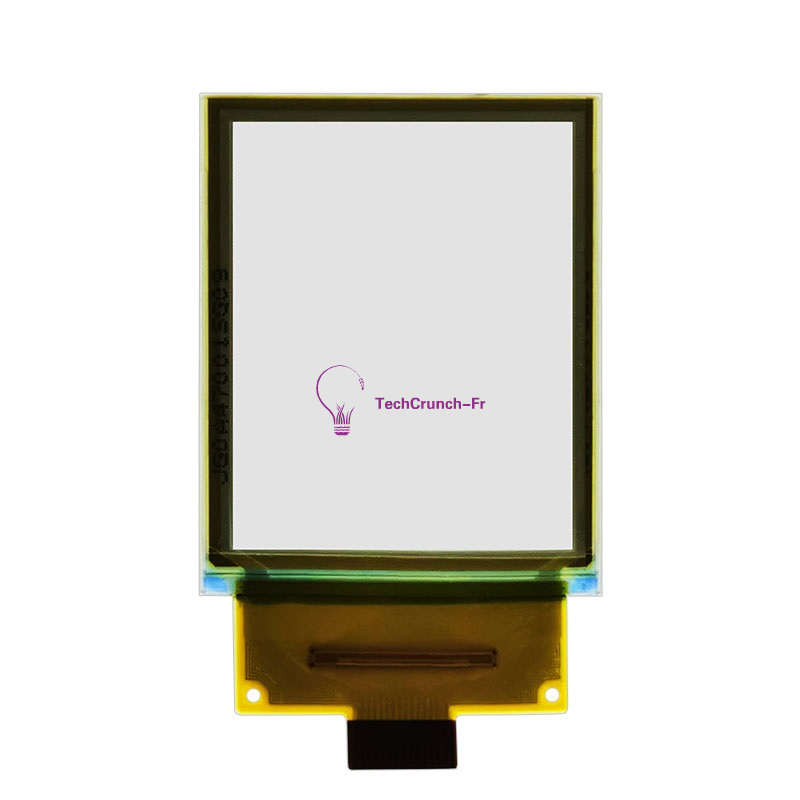

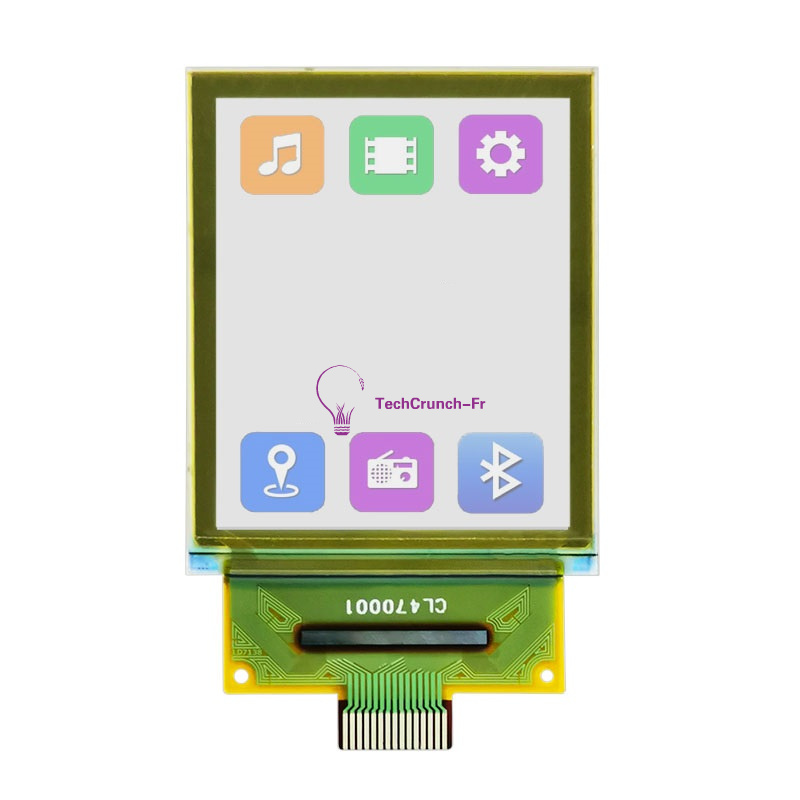

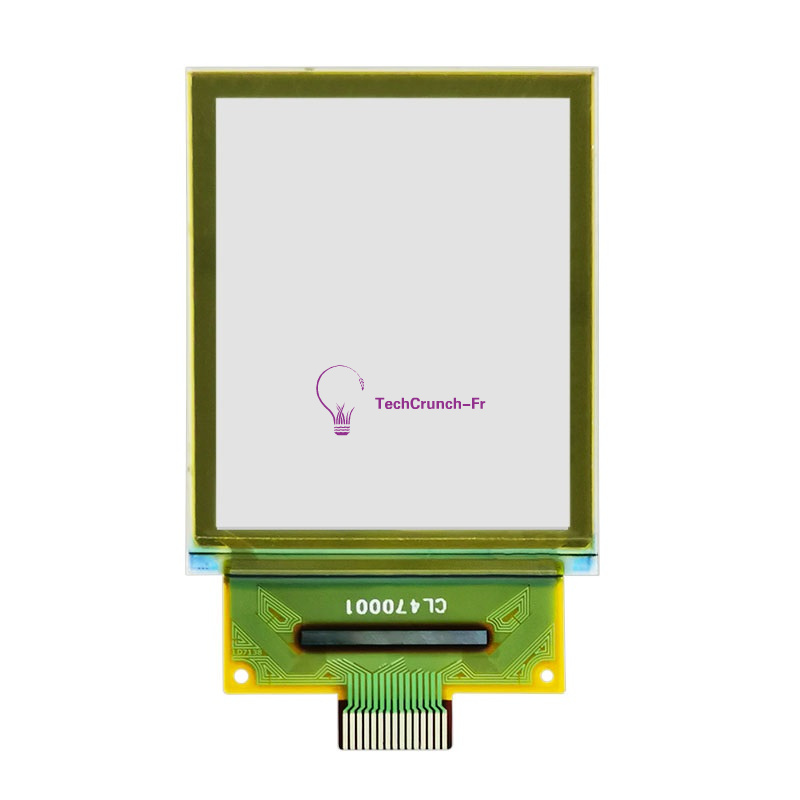

1.5" Color OLED Transparent Screen 128*64 Display SPI LD7318 Driver NEW
Description:
The scientific name of OLED is Organic Light-Emitting Diode. OLED has the characteristics of self-luminescence. It uses a very thin organic material coating and glass substrate. When a current passes through, these organic materials will emit light. Self-luminous material, which makes the OLED screen no longer need a backlight, so it can be made thinner in thickness. Using a surface light source, it is not dazzling, and the spectrum is close to natural light. Moreover, OLED also has the advantages of wide viewing angle, almost infinitely high contrast, low power consumption and extremely high response speed.
Product Parameters:
Product name: OLED display module
Product size: 1.5 inches
Resolution: 128x64
Viewing direction: full viewing angle
Driver chip: LD7318
Interface type: 4-wire SPI interface
Physical size: 29x48.5X1.01(mm)
Display area: 3.78X5.93X2(mm)
Pixel size: 0.0435x0.1855(mm)
Dot spacing: 0.0685x0.2055(mm)
Number of pins: plug 15pin
Working voltage: 2.6-3.3V
Storage temperature: -40~+70°C
Working temperature: -40~+85℃
Display Color: Color (RGB)

Package Included:
1x 1.5 inch Transparent Screen
