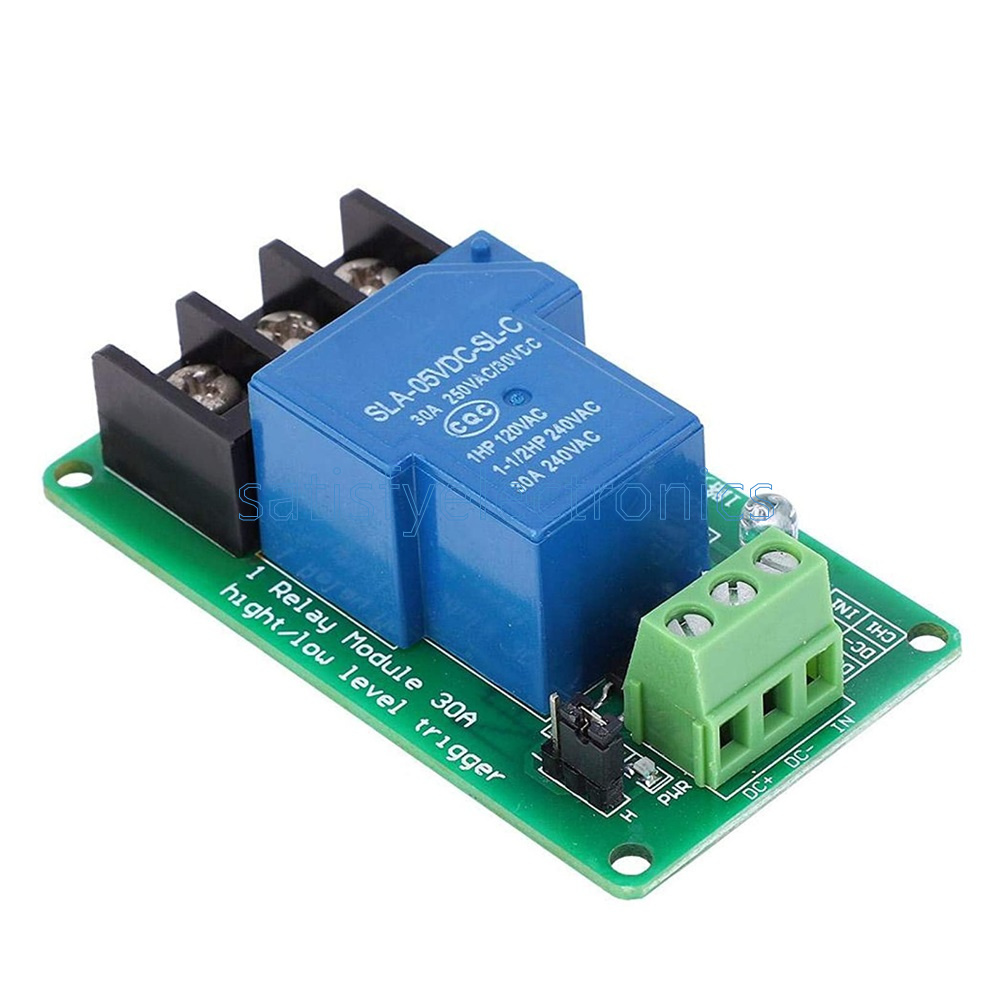

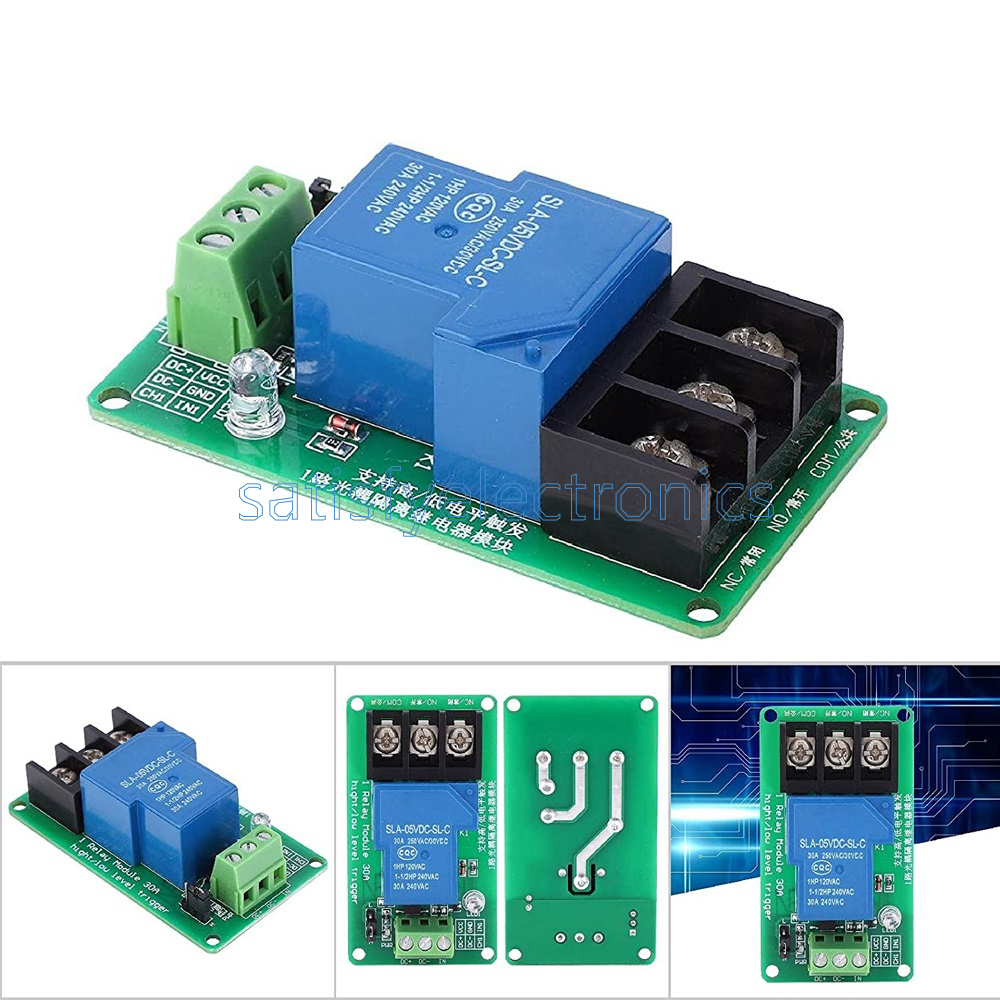

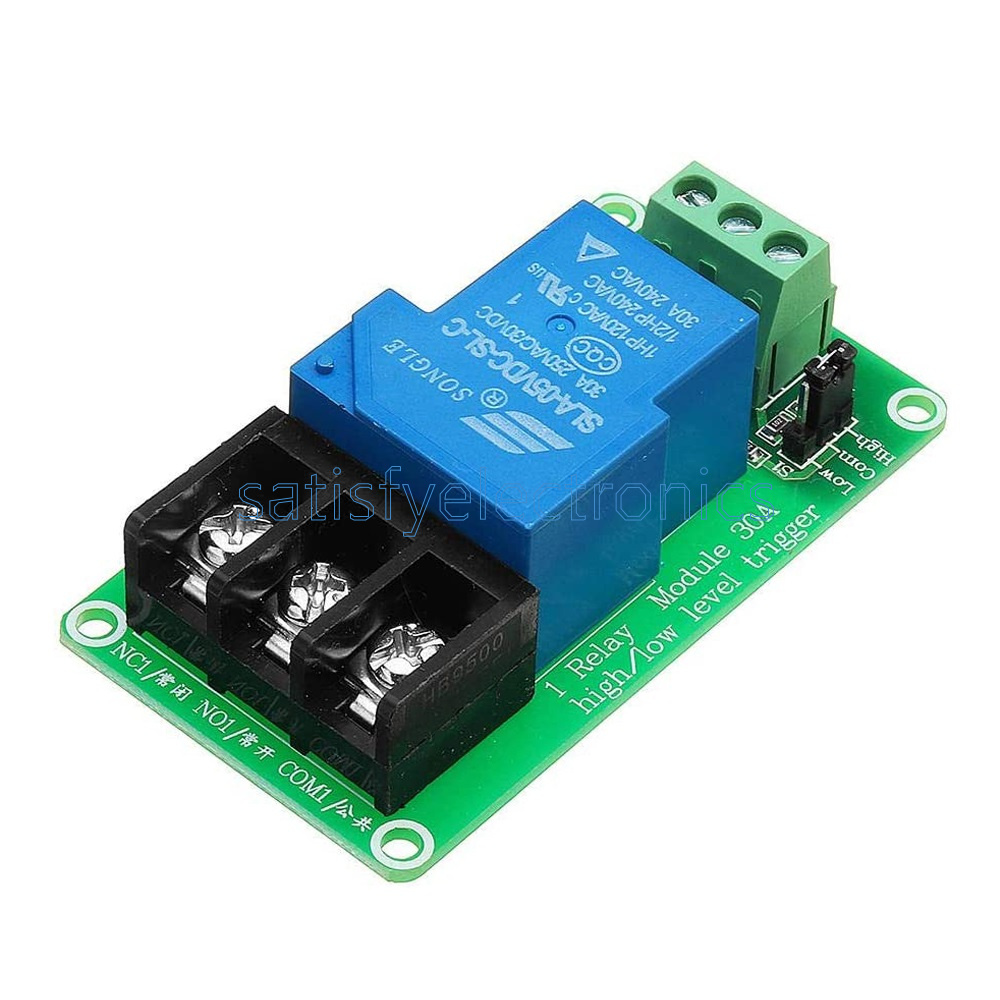

1. the module description:

1, the module uses genuine high quality 30A relay, normally open interface maximum load: AC 250V / 30A, DC 30V / 30A;

2, the use of SMD optocoupler isolation, strong drive capability, stable performance; trigger current 5mA;

3, the module voltage 5V, 12V, 24V to choose from;

4, the module can be set by jumper high or low trigger

5, user-friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient

6, Module Size: 72mm * 40mm * 24mm (L * W * H)

7, product weight: 46g;

8, with four fixed bolt holes, holes 3.1mm, spacing 44.5mm * 27.5mm

2. the technical parameters:

Relay version: 5V

Quiescent current: 5mA

Maximum current: 190mA

Trigger current: 2-4mA

Relay version: 12V

Quiescent current: 5mA

Maximum current: 80mA

Trigger current: 2-4mA

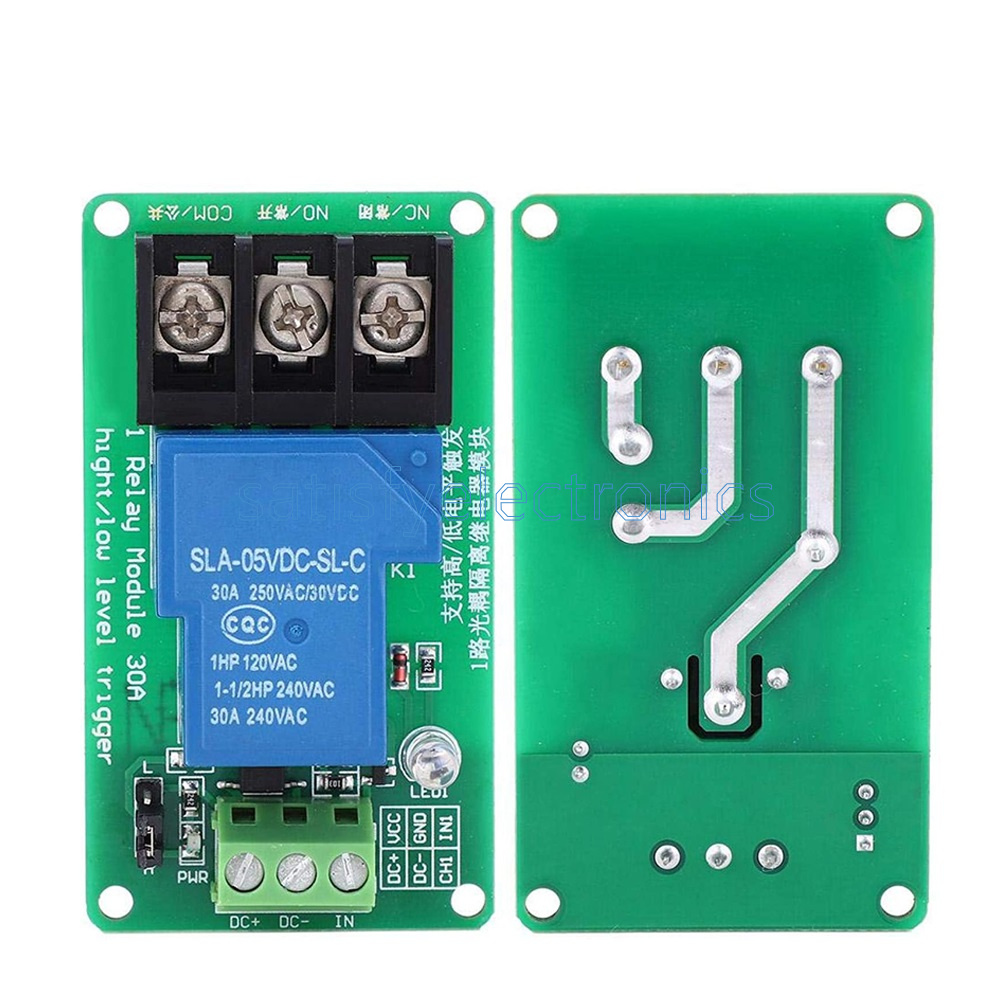

3. the module interface Description:

1.DC +: module DC power supply positive (trigger terminal voltage positive)

2.DC-: module DC power supply negative (trigger terminal voltage negative)

3.IN: signal trigger terminal (the default trigger voltage and power supply the same)

4. High / low level trigger mode selection, as shown, jumper and L-side connection, IN-side low-level trigger, connected with the H-side high trigger

5. NC (NC): normally closed relay

6. Common (COM): Relay Common

7. often open (NO): relay normally open

Package Included: 1pcs
