Transit Auto Front Hub Bearing Assembly Disc Brake Rotors And Semi-Metallic Pads Kit KBB-105334
COMPATIBILITY

This product only fits the following vehicles :

2001-2005Ford Explorer Sport Trac 4WD
2001Ford Explorer Sport 4WD AND Without Pulse Vacuum Hub Locks
2002-2003Ford Explorer Sport 4WD
2003Ford Ranger 4WD AND With 305mm Diameter Front Rotor
2004-2008Ford Ranger 4WD
2009-2011Ford Ranger 4WD AND Round Connector
2005-2010Mazda B4000 4WD AND Round Connector
Your vehicle is not listed?

Search in our store by entering your vehicle year make model and the position you are searching for in the form below.

PRODUCT DESCRIPTION
­

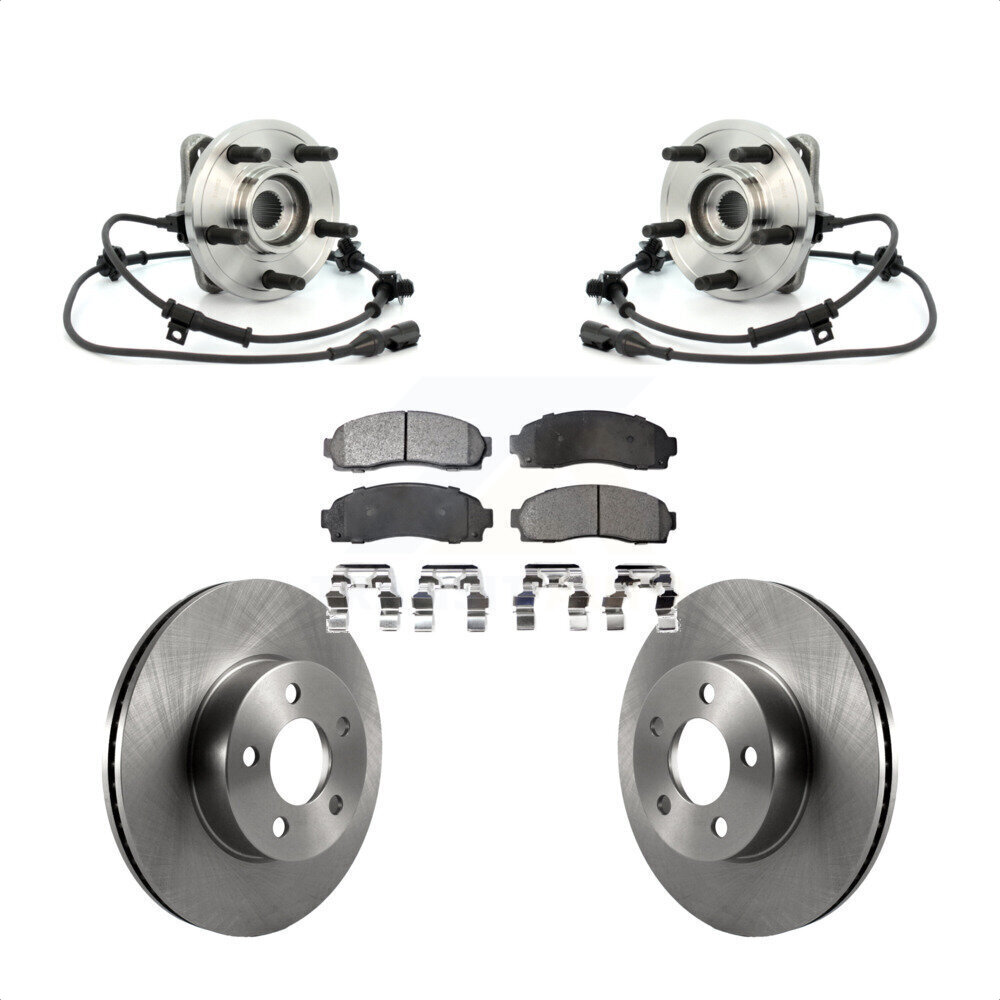

Included (5 pcs)

  • 2 x Front Wheel Bearing and Hub Assembly (Both Sides)
  • 2 x Front Disc Brake Rotor (Both Sides)
  • 1 x Front Semi-Metallic Disc Brake Pad Set (Hardware Included)

Kit variants

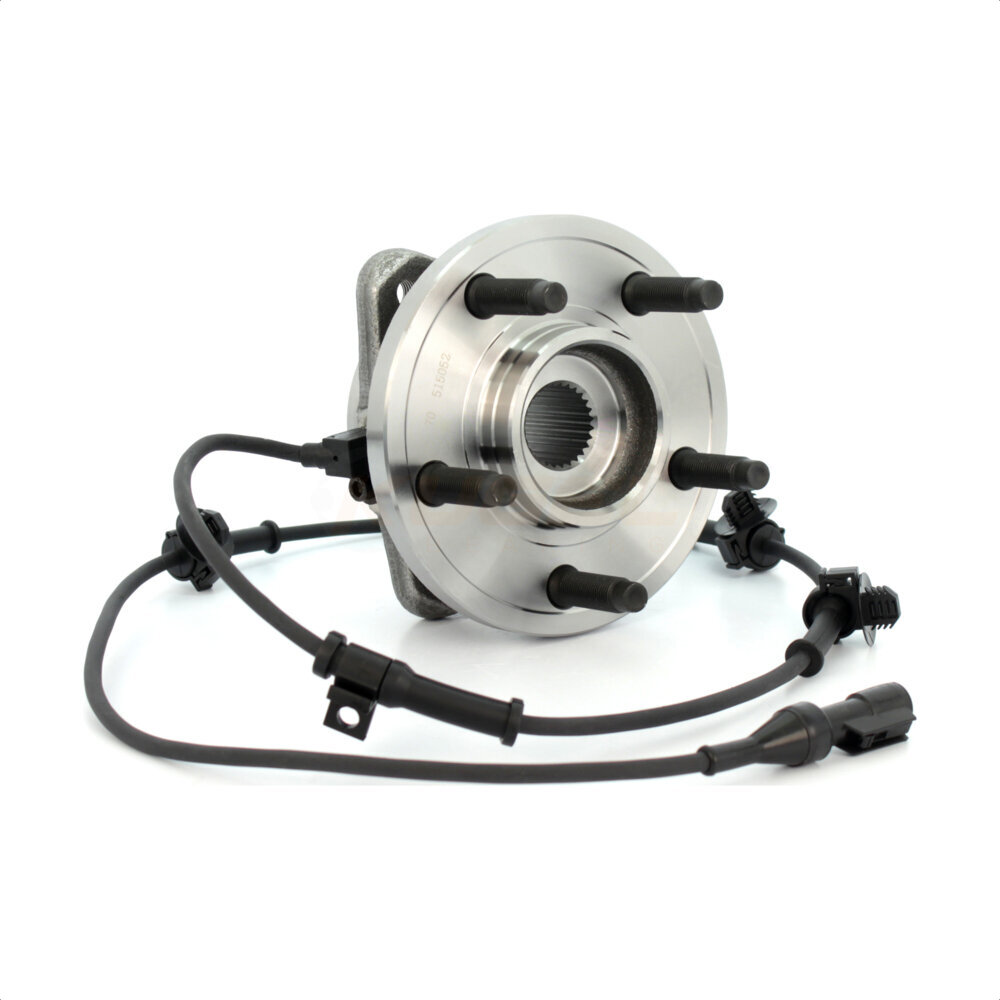

Kugel

  • Core made of High-Carbon AISI 52100 Chromium Alloy Steel features higher wear resistance, fatigue strength and steel hardness
  • Premium quality MolyPro™ NLGI Grade 2 Molybdenum Grease (MoS2) to minimize wear and reduce friction providing longer lasting performance
  • Exclusive multi-lip seals are made with ProSeal™ Nitrile Rubber (NBR) which can successfully function at high delta of temperatures while retaining its flexibility and sealing performance
  • Inner rings are made of Case-Hardened Steel for improved resistance to surface wear and contact fatigue
  • Thickness and metallurgy electronically validated for manufacturing consistency
  • SAE J1714, J2525 and J2535 validated for OEM load-carrying capacity, durability, and performance characteristics
  • Bearing already mounted and secured on the assembly to required OE torque specification for easier and faster installation
  • Coated wheel studs resist corrosion and rust for easier removal and proper torquing
  • Professional-Grade ABS sensors and clips with AccuPro™ technology included (when required by the application)
  • Part Reference Numbers : 1411-45586 WE60766 WE61221 94-48755 S515052 NT515052 WH515003 WH515052 H515003 H515052 515003 515051 515052 BR930345 BR930252 BR930452 SP450200 SP450202 TRB-515052
  • Interchanges: 1411-45586, WE60766, WE61221, 94-48755, S515052, NT515052, WH515003, WH515052, N/A, H515003, H515052, 515003, 515051, 515052, BR930345, BR930252, BR930452, SP450200, SP450202, TRB-515052

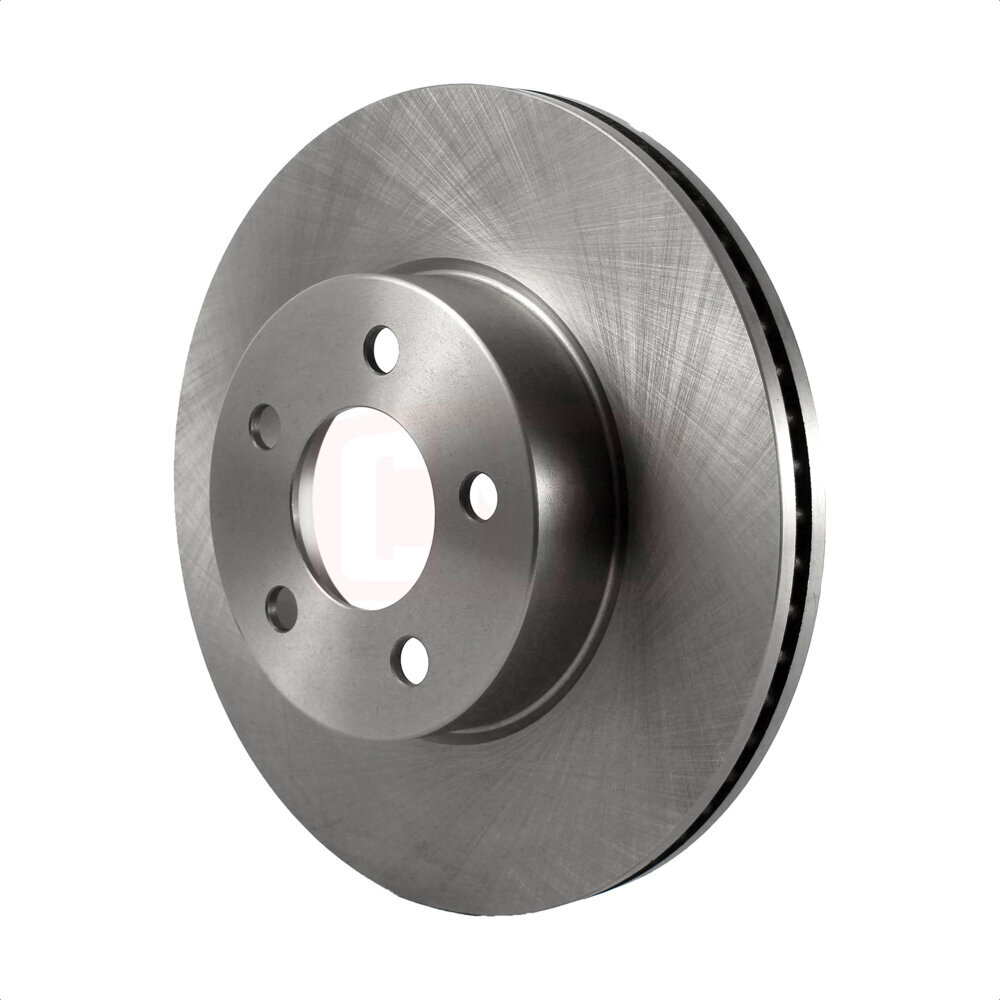

CMX

  • Make sure to buy two (2)! (One for left side and one for right side)
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Cross-Hatched smooth surface to improve the pad's ability to grip the rotor surface, especially during initial brake applications or in wet conditions
  • Double disc ground finish eliminates lateral run-out and DTV (disk thickness variation) issues on the rotor and improves pad-rotor bed-in
  • Tested for maximum tolerance to voluminous amount of constant thermal cycles
  • CNC-Machined to the tightest tolerances to guarantee manufacturing precision and accuracy
  • Thickness and Metallurgy electronically validated for manufacturing consistency
  • Best matched with CMX, TEC, SIM or PPF brake pads
  • Covered with Corrosion Inhibiting Oil (CIO) for transport and storage. Must be cleaned with disc brake cleaner to remove oil before installation
  • Part Reference Numbers : AG54097 CR54097 PR54097 54097 YH145341C YH145341HC YH145341P YH145341 120.65082 BR54097 54180 2054097 ONZ0628 248880027 348880027 748880027 125721 Q54097 680027FZN 680027R 680027 A54097
  • Interchanges: AG54097, CR54097, PR54097, 54097, YH145341C, YH145341HC, YH145341P, YH145341, 120.65082, BR54097, 54180, 2054097, ONZ0628, 248880027, 348880027, 748880027, 125721, Q54097, 680027FZN, 680027R, 680027, A54097

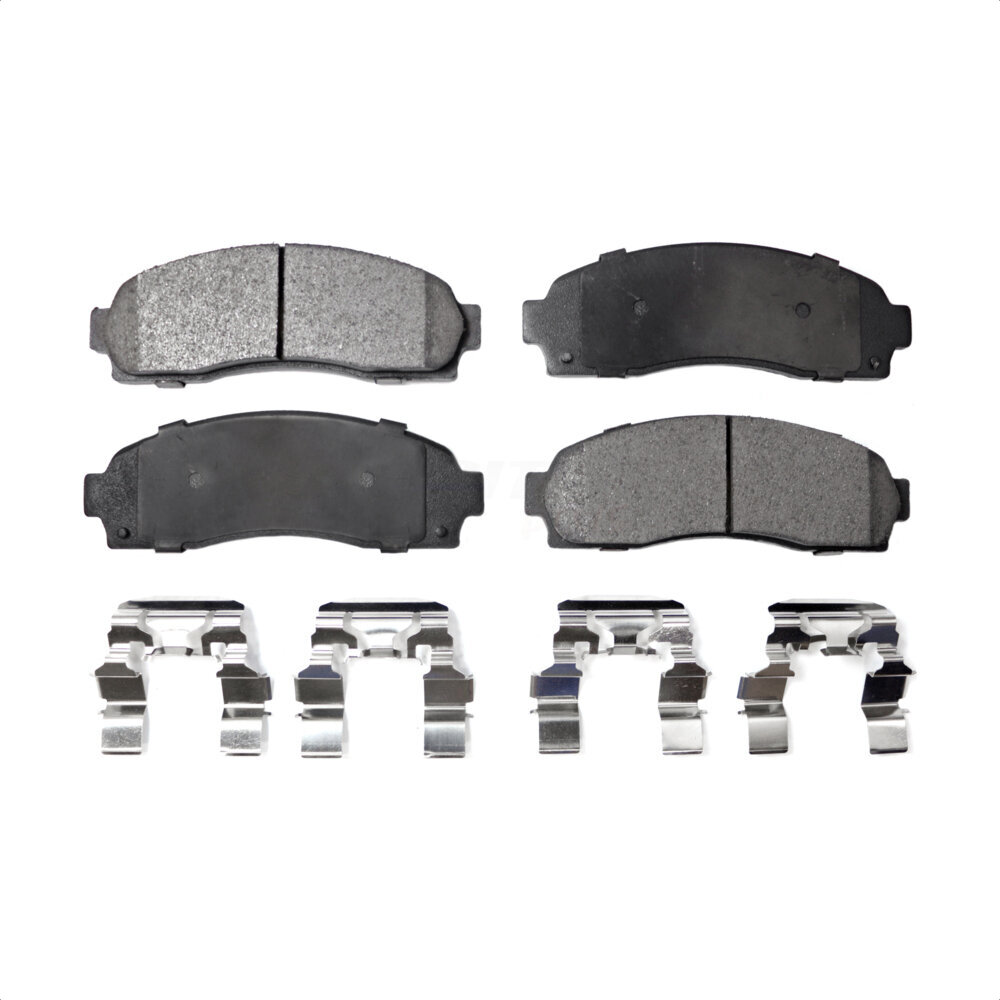

Positive Plus

  • Exclusive PowerGrip™ Semi-Metallic formula provides unmatched braking power (powerful friction, extreme temperature tolerance, aggressive initial bite) while maintaining low dust and noise
  • Fiber-Reinforced Multi-Layer Shim with a rubber core minimize noise, vibration, and harshness for complete quietness
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to improve durability
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Scorched for almost no break-in process required, raised initial cold effectiveness, and enhanced Pad-to-Rotor contact
  • Chamfered for mooth and gradual initial engagement on the rotor surface to prevent edge shifting
  • One-Piece Integral Molding Technology improves the durability of the pads and extends the service life
  • Premium Stainless-Steel hardware included (when required by the application)
  • Manufactured in ISO-certified facilities and 100% asbestos free
  • Part Reference Numbers : 833A 833B D833A D833B 7793 7794 8864 7706 SG7706X SG7794X AD7706 AD7794 FT7706 PF7706M PF7706X PF7794X PF8864M QE7706X QE7794X SS7706X SS7794X UP7706X UP7794X D833 833
  • Interchanges: 833A, 833B, D833A, D833B, 7793, 7794, 8864, 7706, SG7706X, SG7794X, AD7706, AD7794, FT7706, PF7706M, PF7706X, PF7794X, PF8864M, QE7706X, QE7794X, SS7706X, SS7794X, UP7706X, UP7794X, D833, 833
FITMENTS

To obtain this guarantee

Make sure that you vehicle is found in the eBay Motor compability list above or in our compatibility summary.

If you wish further validation, simply copy and paste your vehicle information along with your VIN into the order note. We will double-check it before sending your order.

We assume all responsibility for the fitment information of our products.

SAFETY

Additional information

We follow the guidelines set out by Friction Material Standards Institute (FMSI) to ensure the safety of our customers. This means that if the FMSI says a pad number should have no slot or should not be chamfered based on it's size, we will follow their guidelines. Our customer's safety is our highest priority.

All our products follow the OE specifications: there is no modification needed for installation.

SHIPPING

Please note that we do not deliver to:
Alaska, Puerto Rico, Hawaii, Guam, US Virgin Islands, neither P.O. Boxes, APO, FPO

*3 PM Eastern time. Monday - Friday, order received the weekend will be shipped on Monday
FAQ

Do you need any additional information about my vehicle?

If you see your vehicle in the fitment list, you don't need to send us additional information, the parts will fit your vehicle, we guarantee it. If you are not sure and would like to double check, send us a message with your vehicle information or VIN and our vehicle specialists will assist you.

Will I get a tracking number?

Absolutely, all our shipments come with a tracking number that will be uploaded to the order details once it ships.

How to claim Warranty / Exchange / Return?

For any claim, contact us through eBay and one of our customer service agents will be happy to assist you and give you a RMA (Return Merchandise Authorization) number. Everything that is returned to our warehouse needs a RMA code, so make sure to contact us before sending anything back.

The picture does not match my parts..

The picture in our listing are the actual image of the specified application, unless specified to be a generic image.

RETURNS

Defective on arrival & warranty explained

If you happen to receive defective part, or the part does not fit on your vehicle which is listed in eBay Motor compatibility list above or in our compatibility summary, we will send a replacement the same day.

Lifetime warranty on manufacturer defects only

Our exclusive lifetime warranty cover any manufacturer defect that is not caused by normal wear & tear, damage caused by negligence, lack of maintenance, accident, track racing, improper installation or services. Our warranty does not cover zinc plating, rusting, pitting or cosmetic damages.
