6 Way Blade Fuse Box Block Fuse Box Holder For Car Boat Universal 12V 32V
Description
100% Brand New
The Ideal 6-Circuit Blade Fuse Block for Vehicular and Marine Dc Electrical Systems
This fuse box consolidates branch circuits so you don't have to fuss over the messy tangled wiring associated with in-line fuses.
Storing up to 6 ATC/ATO/ATF blade fuses up to 30A max per circuit, this blade fuse box is perfect for automotive, marine, outdoor and home
applications.

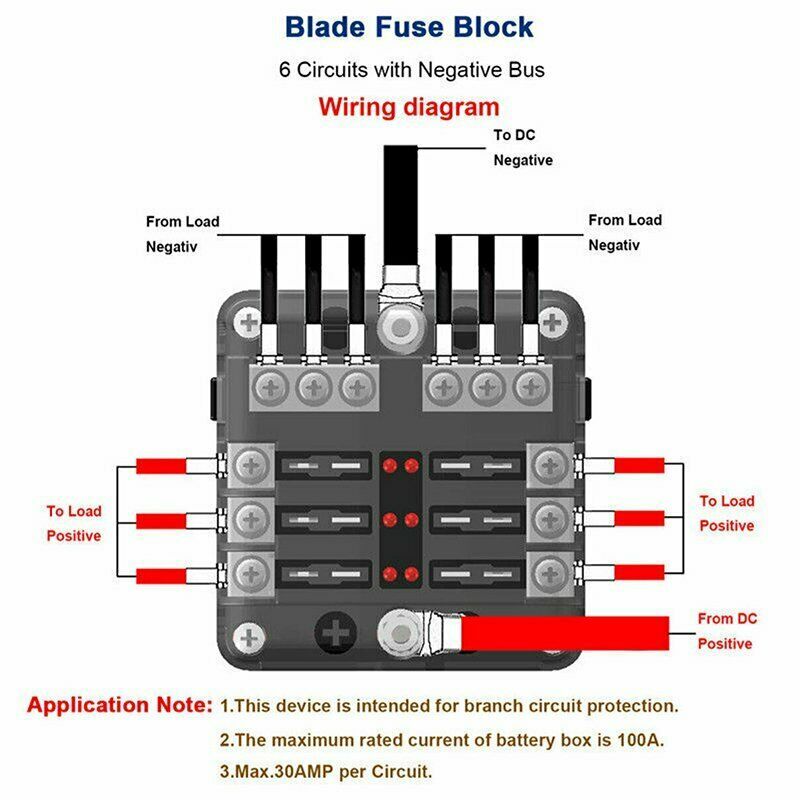

Negative Ground Connections & Dual Positive Power Connections.
Our fuse block has negative ground connections (1x ground input and 6x ground outputs) for superior functionality. Additionally, dual positive
power connections achieve a high maximum operating amperage of 100A.
Stainless steel screws for corrosion protection, recessed mounting holes to prevent shorts, comes with labeling stickers, and a 1” fuse
placement clearance for compatibility with E-T-A Thermal Circuit Breakers.
The fuses will distinguish the strength of current by different color.Different colors represent different currents. [For example: Yellow: 20A
;Blue: 15A ;Red:10A,etc. ]
When ready to use, just need to insert the fuses into corresponding fuses base.Fuse can be choiced based on the current requirements of
electrical appliances.
Application Note:
1. This device is intended for branch circuit protection.
2. The maximum rated current of battery box is 100A.
3. Max. 30AMP per Circuit
***ATC/ ATO Fuses protect your power distribution system***
you need them to prevent damage to your equipment from current overload. The job of an ATC / ATO fuse is to protect any of your
equipment's vital wiring.
Vehicle wiring can be pretty deeply entrenched and integrated into an electrical system making it extremely difficult to locate and replace.
When a current large enough to fry a wire or damage a vital component is drawn through some electrical system in a vehicle, the vehicle's
ATC fuses will burn out first and prevent that current from doing any major damage.
The plastic housing is color coded for easy amperage identification
Can be used in many foreign and domestic vehicles including cars, trucks, rv's, and boats
Our Fuses are available in the following amperage ratings: 5 amp, 10 amp, 15 amp, and 20 amp

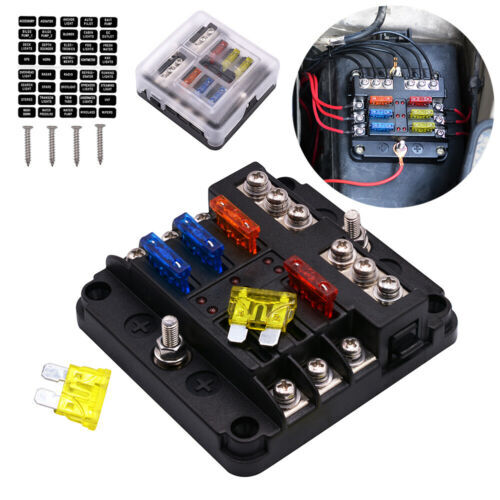

Package Included:
1X 6 Way Fuse Holder
2X Decal Stickers
4X Screws
2X 5 Amp Fuses
2X 10 Amp Fuses
4X 15 Amp Fuses
4X 20 Amp Fuses
