Aviation Plug GX12 2/3/4/5/6 Pin Male Female 12mm Panel Metal Cable Connector
Aviation Plug GX12 2/3/4/5/6 Pin Male Female 12mm Panel Metal Cable Connector


Type: Aviation Plug
Model: GX12 series
Pins: 2/3/4/5/6 Pin
Hole size: 12mm
Connection method: screw connection
Wiring method: welding
Housing Material: Copper
Contact material: silver plated copper
Interruption times: 500 times
Ambient temperature: -50~+70℃
Product Features
Rated voltage: 250V
Rated current: 5A
Contact resistance: the contact resistance of each contact pair is not more than 0.005Ω
Insulation resistance: not less than 1000MΩ under normal conditions, not less than 200MΩ after constant temperature test
Experimental voltage: 50Hz, RMS
Under normal conditions:
2 cores, 3 cores, 4 cores are 1500V
After constant thermal temperature test:
2 cores, 3 cores, 4 cores are 1200V, 5 cores are 1000V
Separation force: The separation force of one foot is 13N, and the total separation force is 15 times the sum of the upper limit of the separation force of one foot.
Temperature rise: at rated load, the contact temperature rise is not greater than the ambient temperature +50 ℃
Life: 500 times of plugging and unplugging, there should be no mechanical and performance damage to existing plugs
Use environment
Relative humidity: up to 98% at +40°C
Atmospheric pressure: up to 4/4kpa
Vibration: Vibration frequency is 10~100Hz, acceleration is 100m/s2
Shock: The frequency is 600~800 times/min, and the acceleration is up to 150m/s2
Centrifugal: acceleration 250m/s2

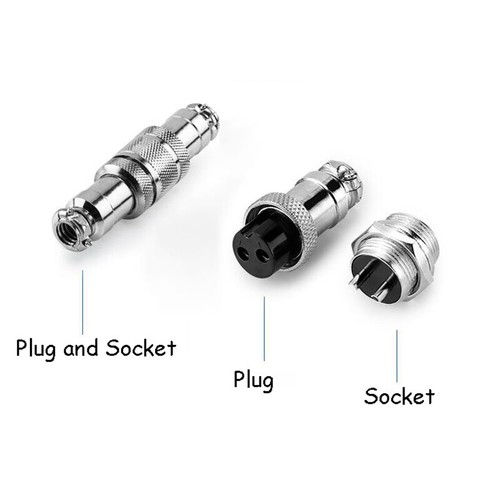

Product assembly: male + female（Socket + Plug）. 500 times of plugging and unplugging will not damage the socket machinery, flame retardant material, high safety and perfect performance.
