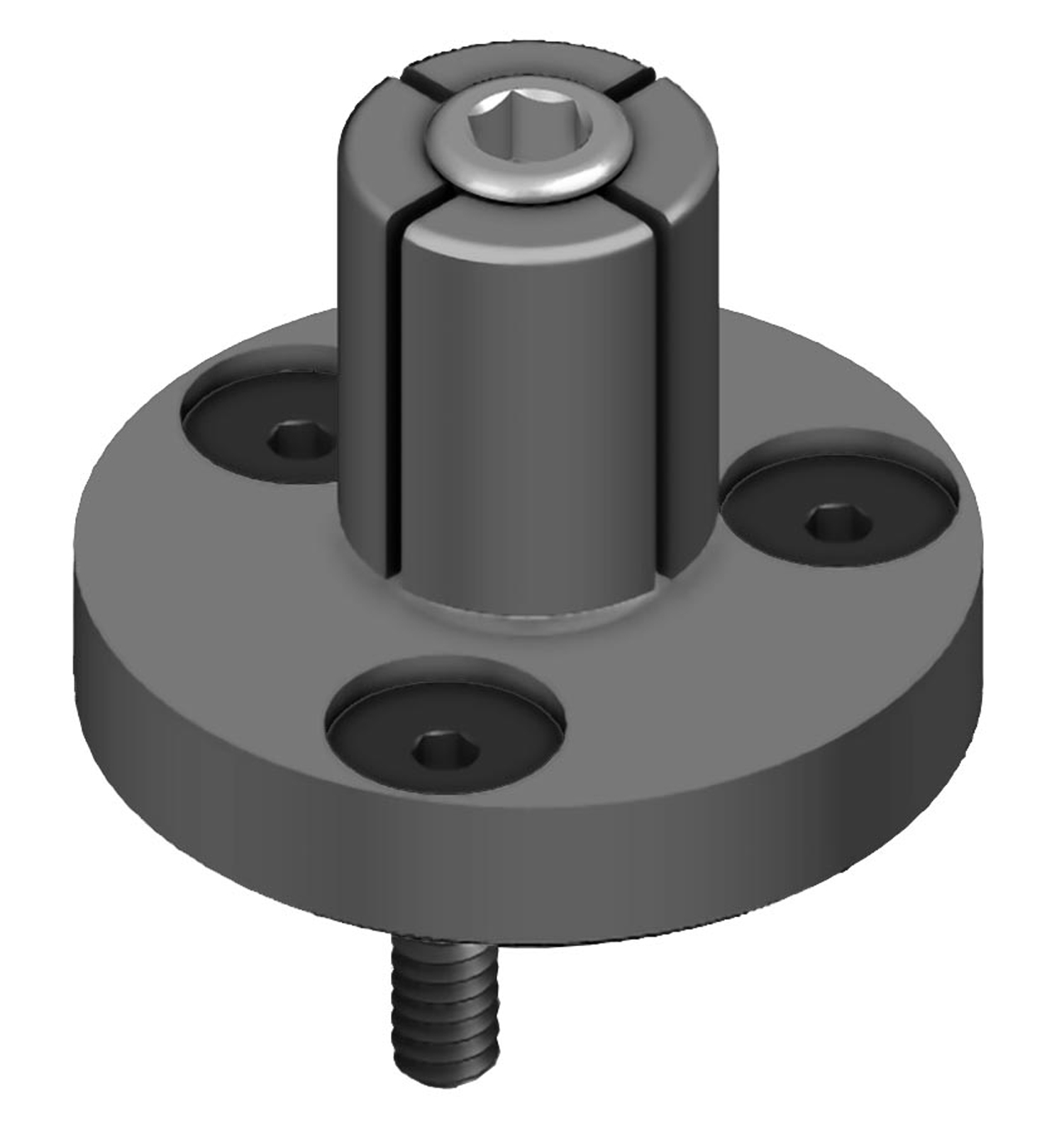

Mitee-Bite Degree #31050: ID Xpansion Degree Clamp Size #0, Machinable: 0.28"Min. Diameter, 0.49"Max. Diameter, 0.59"Mandrel Length.

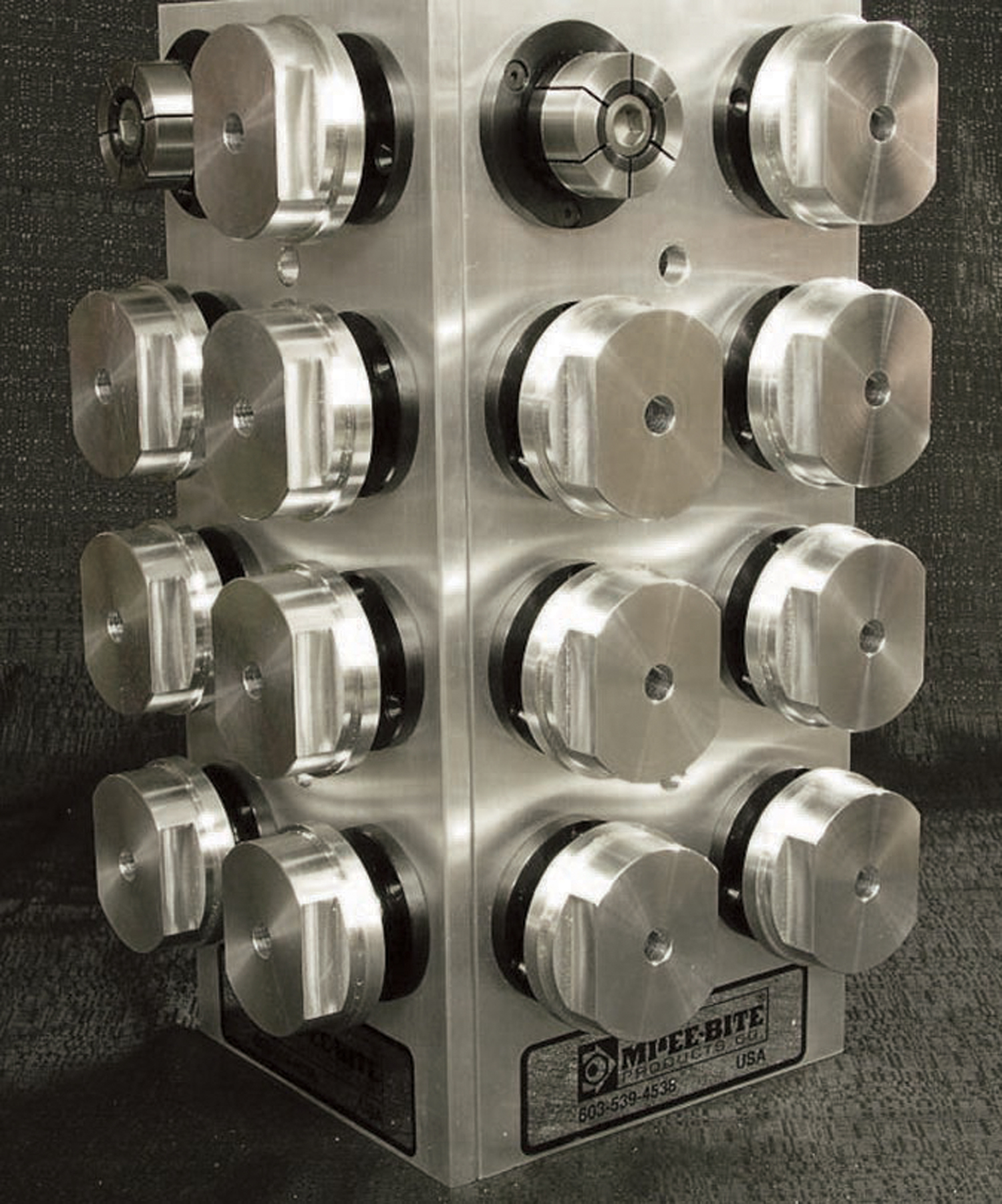

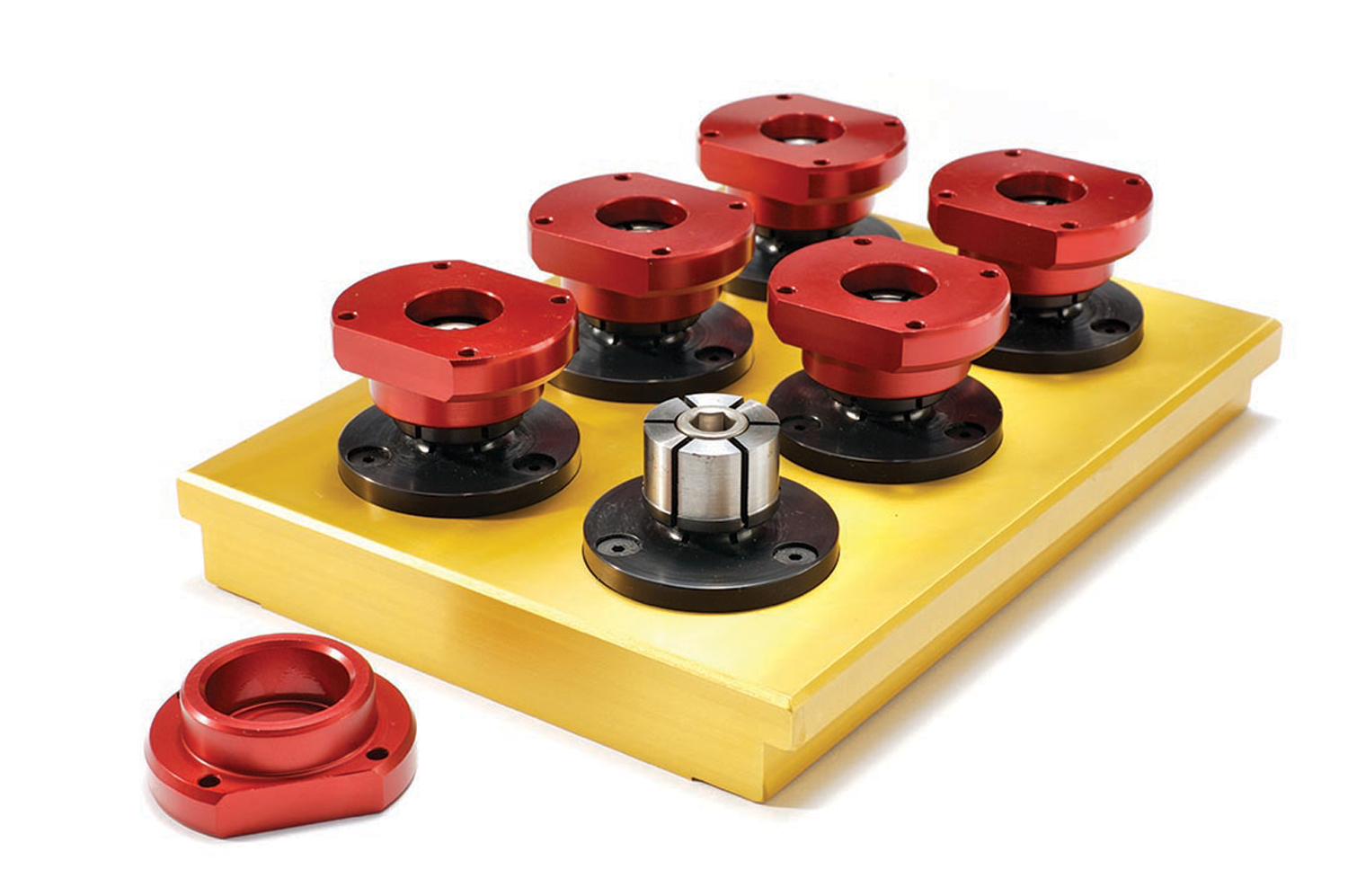

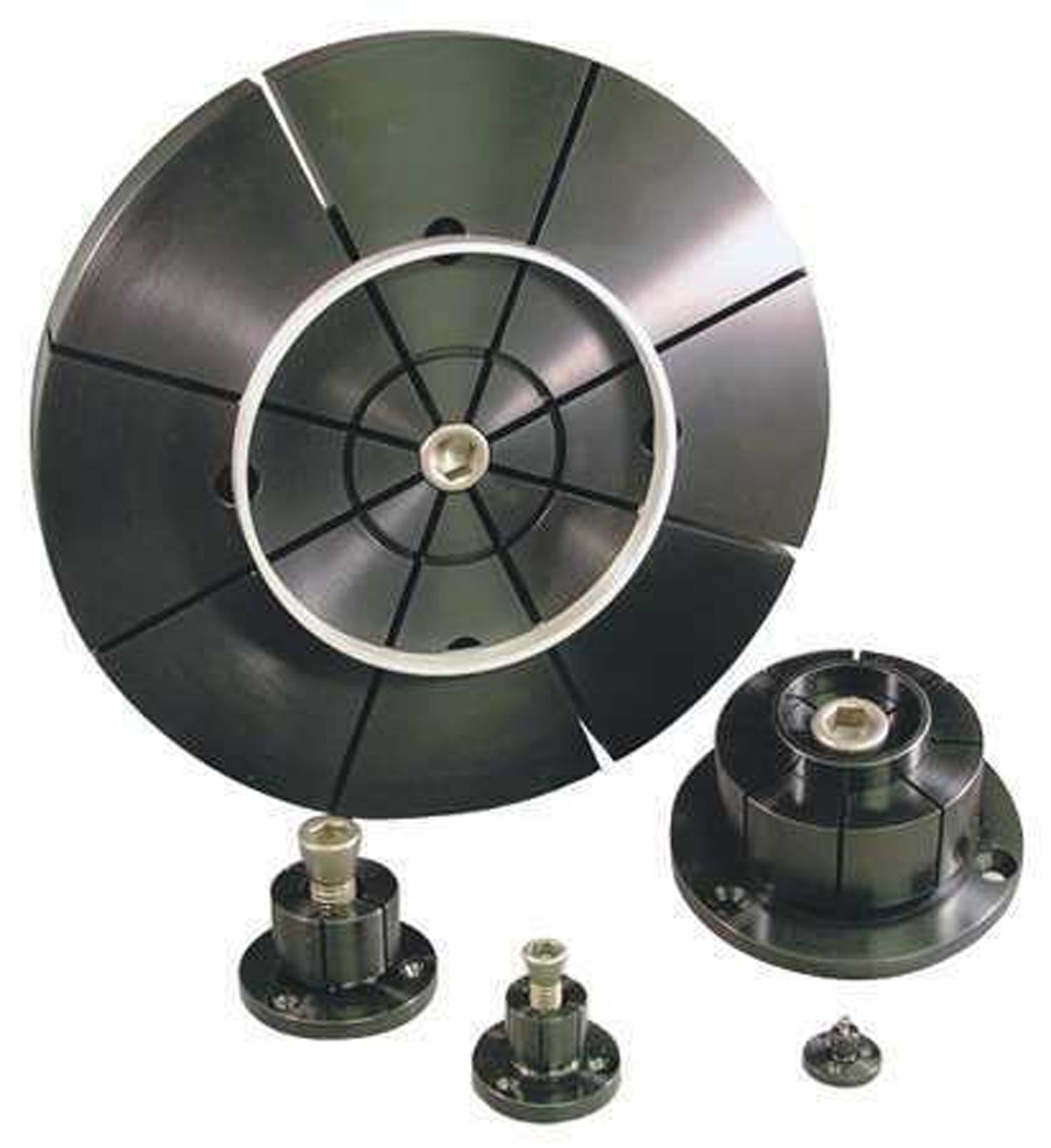

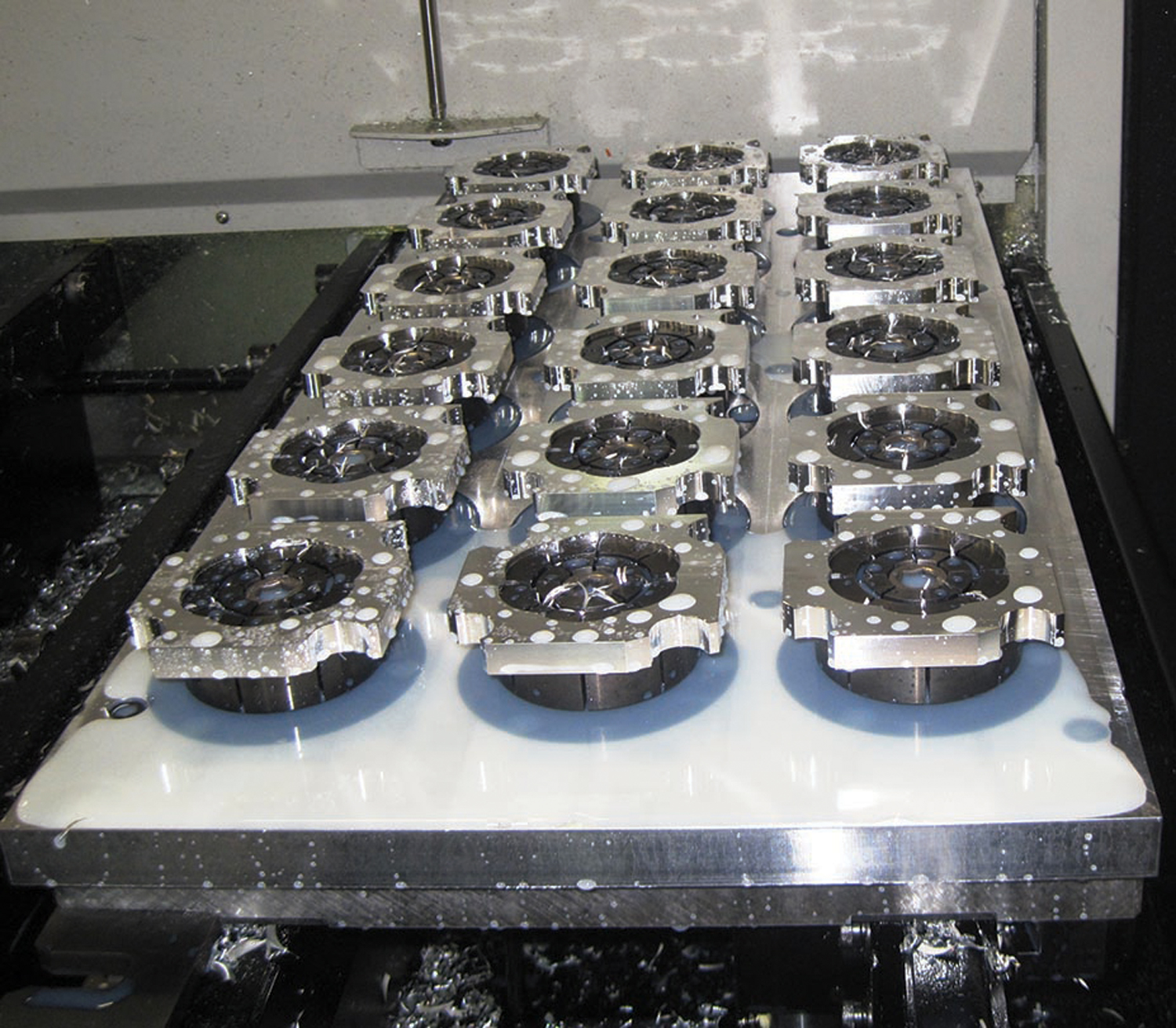

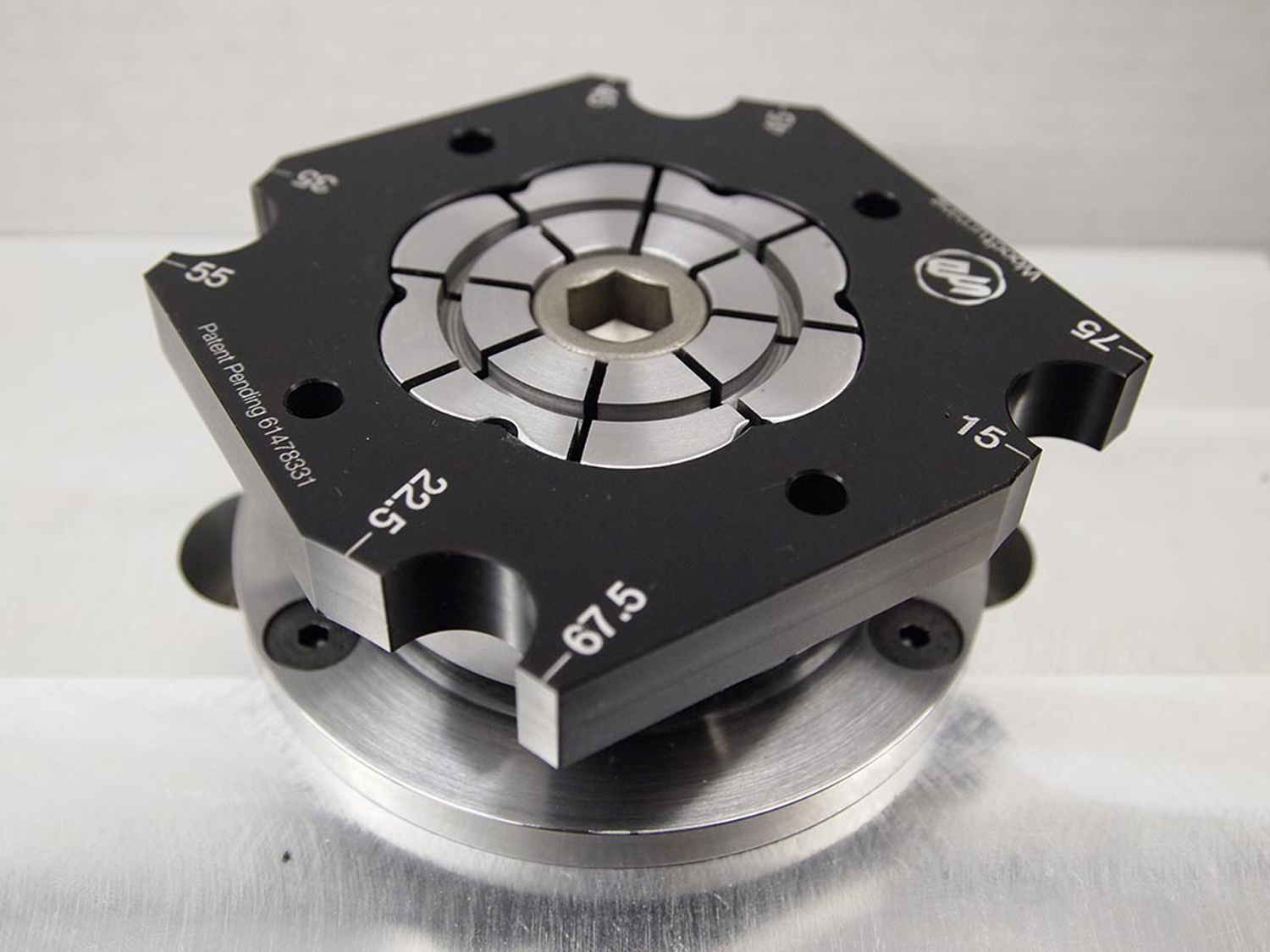

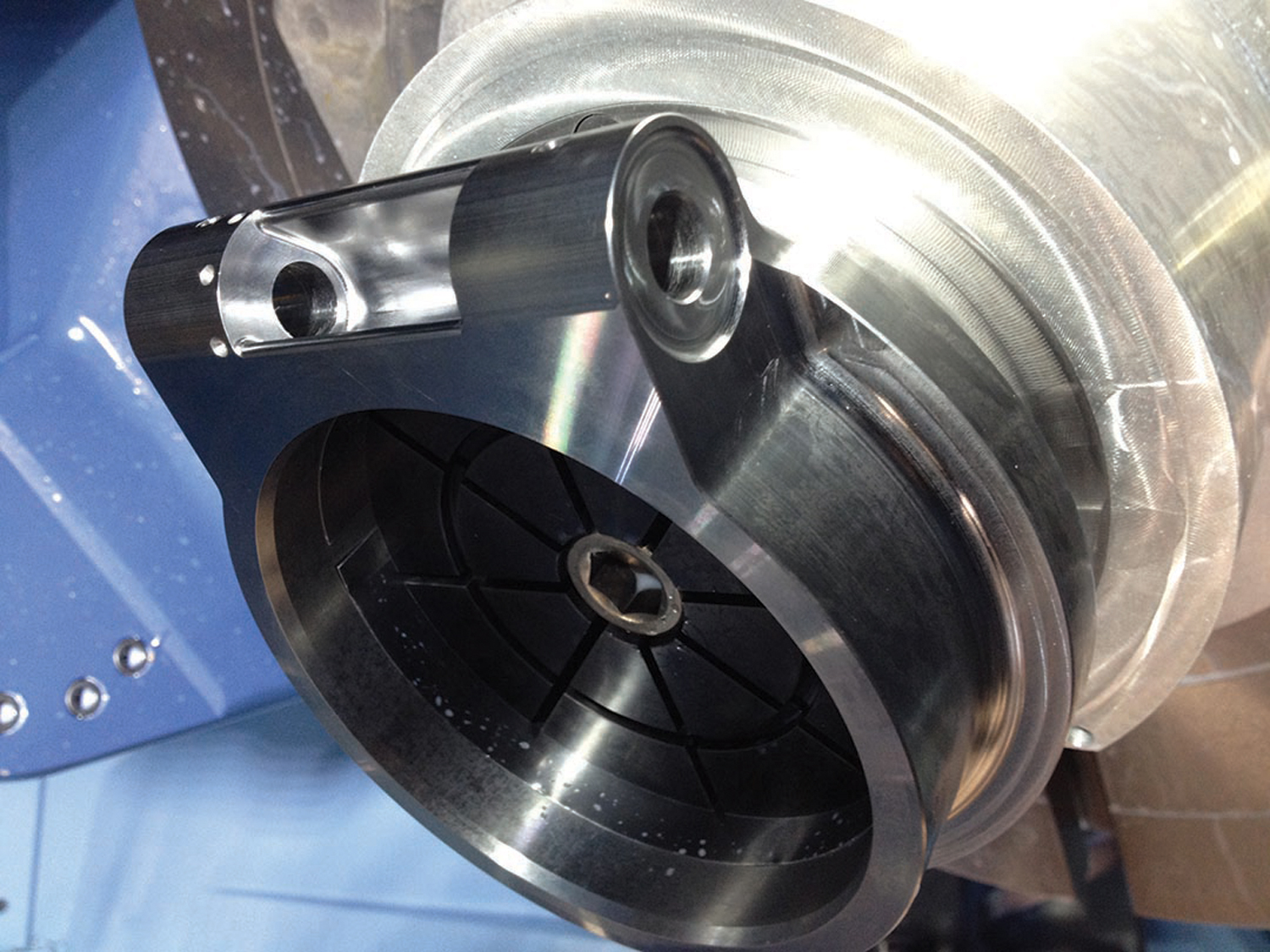

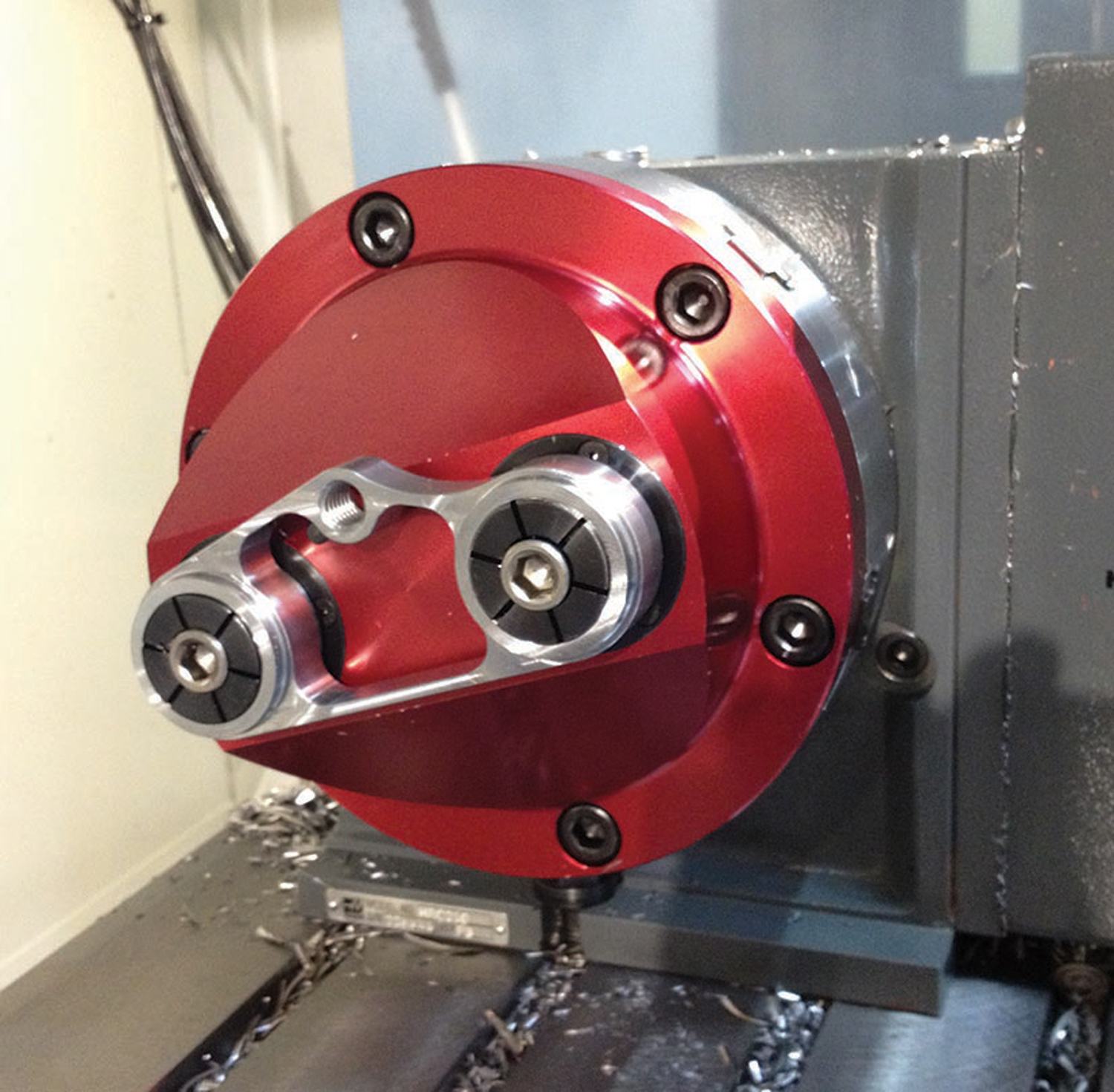

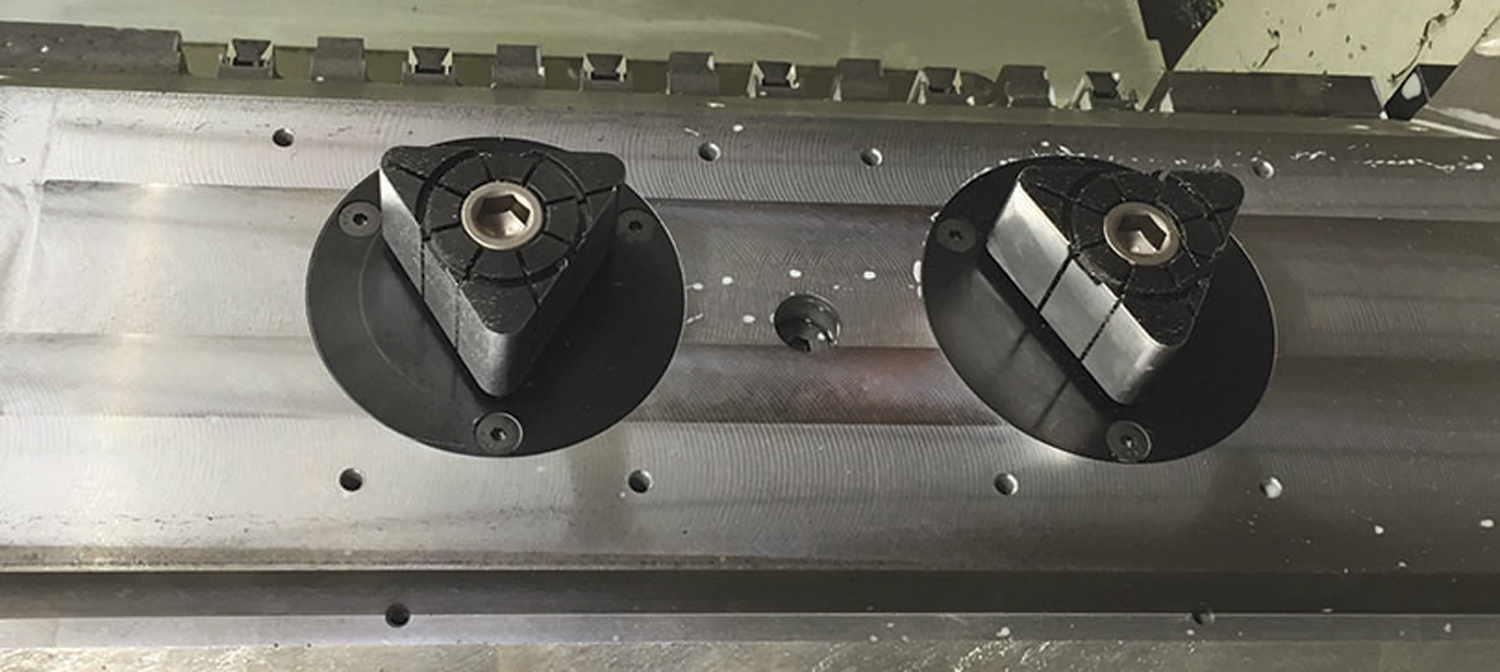

Mitee-Bite Degree ID Xpansion Degree Clamp Size #0, Machinable: 0.28"Min. Diameter, 0.49"Max. Diameter, 0.59"Mandrel Length. 0.28"Min. Diameter,0.49"Max. Diameter,0.59"Mandrel Length. To Install: Drill & Tap (3) 6-32 on .825" Bolt Hole Circle For Included Mounting Screws. Drill & Tap (1) 8-32 On Center Of 1.170" Flange Diameter For Included Tapered Activation Screw. Generates 950 lbf (4,228 N.) Holding Force. The ID Xpansion Degree clamp is the ideal solution to hold parts on an inside diameter for high density machining on vertical or horizontal machining centers. It can also be used as an expanding mandrel on a lathe. These machinable clamps are produced in 12L14 steel with black oxide coating in 12 sizes and can hold internal diameters from under 3/16" to almost 10" (4.1mm to 254mm). #10 manufactured using 7075-T6 aluminum. The flange diameter of the clamp is held to a close tolerance for precision locating in a machined pocket on work cubes and fixture plates. The customer machines the mild steel clamp to match the bore of the part ensuring a proper fit. Often times the clamps can be remachined for different size jobs. The low profile ID Xpansion Degree Clamp can hold several parts in one compact area for secondary operations without any clamping interference. They are quickly tightened with a hex key or torque driver, or can be mated to hydraulic pull cylinders for automation. Mitee-Bite Degree Part #31050

• Low profile
• Ideal for secondary operations on lathe parts
• Easily machined to size on lathe or mill
• Excellent for palletized setups
• Allows more parts per workcube or fixture plates
• Heat-treated and coated screw for long life
• Clamp body made of mild steel for machinability
• Tighten with hex key or hydraulic pull cylinders
• Longer screws available for hydraulic applications.
