2 pair 11.8mm SAE 3/8"(10mm) Elbow 90 Degree Nylon Fuel Line Quick Connect Release Hose
90 Degree Nylon Fuel Line Quick Connect/Disconnect
for Fuel/Gas and other common fluid types

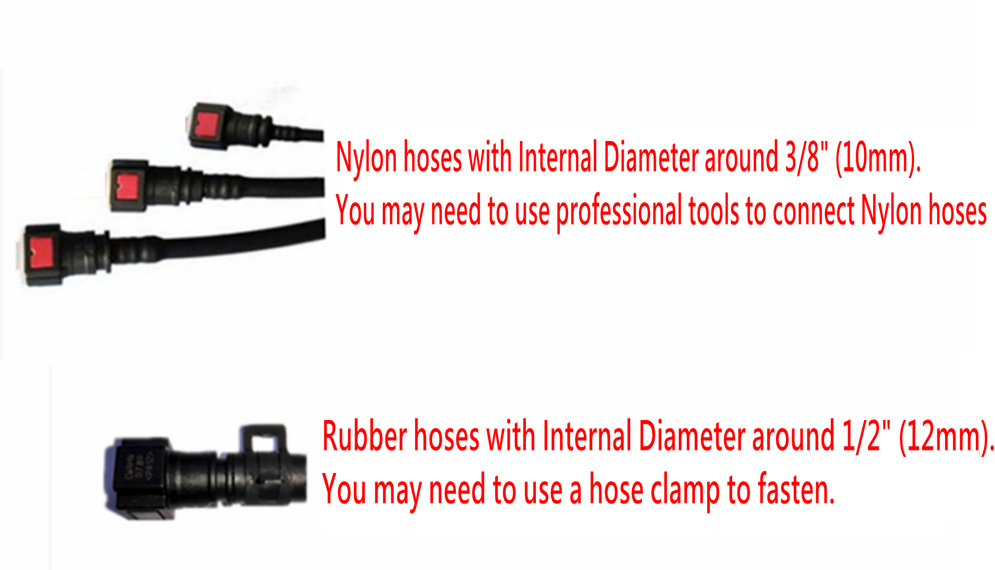

Barb ends connect to ID=3/8" (10mm) Nylon Hose
or ID=1/2" (12mm) Rubber Hose
Specification:
1 Body Material: PA12+30GF
2 O-Ring Material: FKM
3 Max Back Pressure: 500 KPa/5 Bar
4 Temperature: -40C-115C (-40F-239F)
With a large flow, durability, corrosion resistance characteristics. -Easy to install, save time and manpower, solid material
Installation instructions：
Normally, the quick connect is connected to Nylon or Rubber hoses. Refer to the following general description for connection examples.
This listing is 2 pair (2 male+2 female) of high quality fuel line quick connect/disconnect guaranteed for performance. This allows you to quickly connect the fuel lines by pusing-in and disconnect by simply pulling out while pressing the lock buttons. It is made of quality materials compatible with fuel/gas, and other common fluid types. Compliant wth SAE automotive standards. The barbed ends connect to fuel lines or hoses. The quick connector does not have shut off feature. Check out the listing pictures for approximate measurements of the outer diameter of the female and male ends to determine what is best for you.
