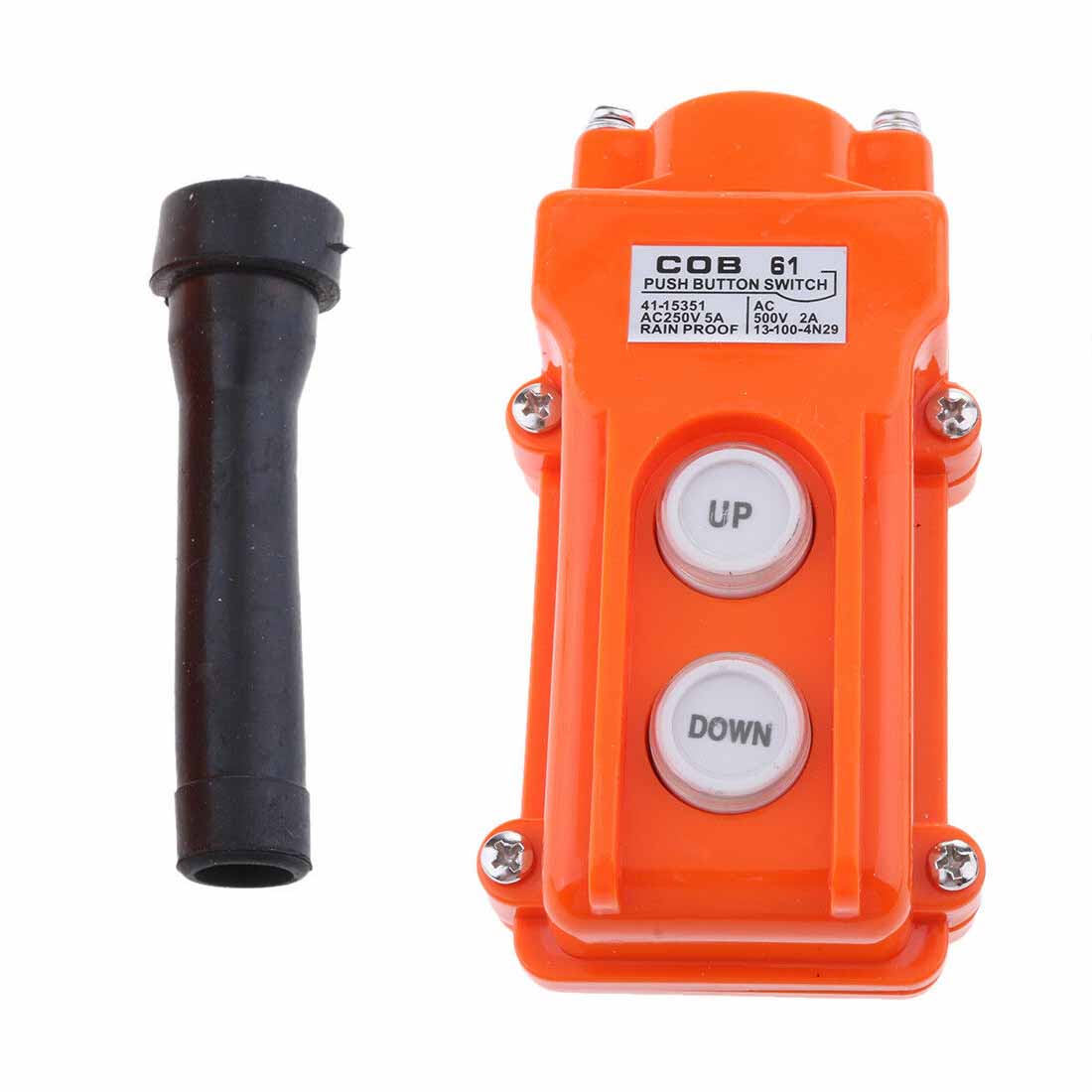

1X COB61 For Hoist And Crane Pendant Control Station Push Button Switch UP-Down
Description:
Product Name : Hoist Pushbutton Switch;
Model No. : COB-61;
Feature : Rainproof Type
Push Buttons : 2
Ways: Up, Down;
Contact Type : Momentary
Housing Material : ABS;
Easy to use and easy to install.
Small size and easy to carry.
Specification:
Material: Plastic
Size: 125x70x50 mm / 4.92x2.75x1.96 inch
Model: COB61
Working Environment Temperature: -20~+55(°C)
Contact Structure: Composite Button
Working Current: 6 (A)
Rated Heating Current: 10 (A)
Contact Resistance: 50 (Ω)
Insulation Resistance: 50 (MΩ)
Waterproof Rating: IP55
Package Includes:
1 Piece Power Switch Button
Note:
Since the size above is measured by hand, the size of the actual item could be slightly different from the size above.
Due to the lighting effects, monitor settings, etc. There could be some slight difference in the color of the pictures and the actual item.
