Straight shank carbide dovetail groove cutter.
Blade material: Carbide YG8
Hardness: 89 Rc
Shank material: H.S.S.
Pack quantity: 1 piece
Advantages and disadvantages of alloy tools:
Advantages: wear resistance far exceeding the high-speed steel cutting tools, and processing of higher hardness of the workpiece.
Disadvantages: Its toughness is lower than high-speed steel,larger vibrations may cause damage to the cutting edge during machining!
WARNING: Maintaining steady conditions during machining and avoiding damaging the inserts.

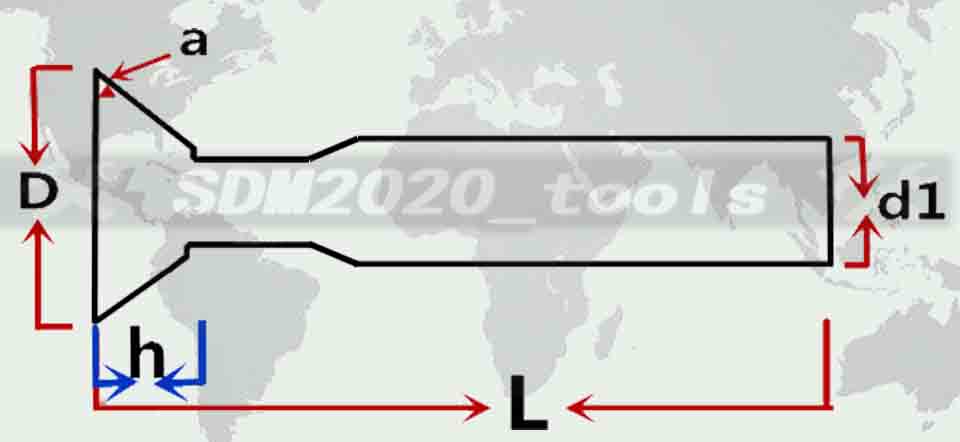

| Blade diameter (D) | Angle (a) | Blade length (h) | Shank diameter (d1) | Overall length (L) | blade QTY |
| 16 | 45° / 55° / 60° | 10 | 70 | 4 | |
| 18 | 45° / 55° / 60° | 12 | 70 | 4 | |
| 20 | 45° / 55° / 60° | 12 | 75 | 4 | |
| 25 | 45° / 55° / 60° | 12 | 80 | 4 | |
| 28 | 45° / 55° / 60° | 80 | 4 | ||
| 30 | 45° / 55° / 60° | 16 | 80 | 6 | |
| 32 | 45° / 55° / 60° | 16 | 100 | 6 | |
| 35 | 45° / 55° / 60° | 16 | 100 | 6 | |
| 36 | 45° / 55° / 60° | 100 | 6 | ||
| 40 | 45° / 55° / 60° | 20 | 102 | 6 | |
| 45 | 45° / 55° / 60° | 20 | 105 | 6 | |
| 50 | 45° / 55° / 60° | 20 | 110 | 6 | |
| 55 | 45° / 55° / 60° | 20 | 110 | 6 | |
| 60 | 45° / 55° / 60° | 20 | 110 | 6 |
