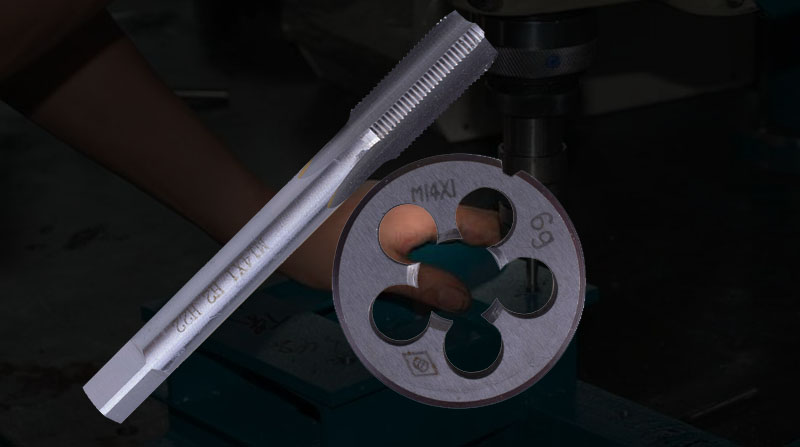

Metric Straight Flute Tap And Die Sets

*100% brand new and high quality
*Made of high quality material, durable and practical to use

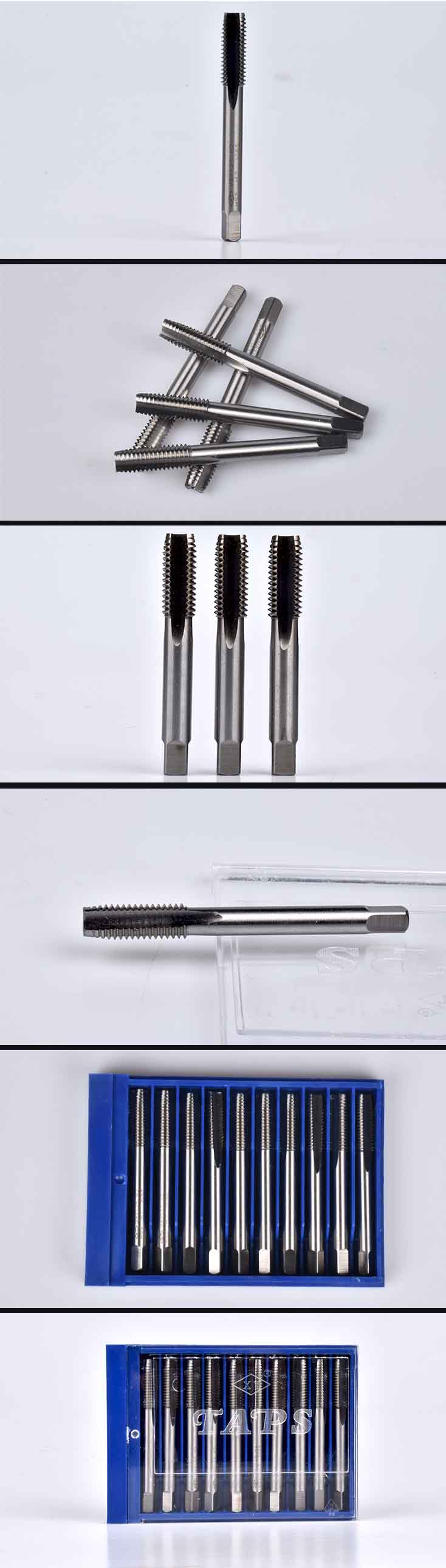

*Tap Material: high speed steel (HSS).

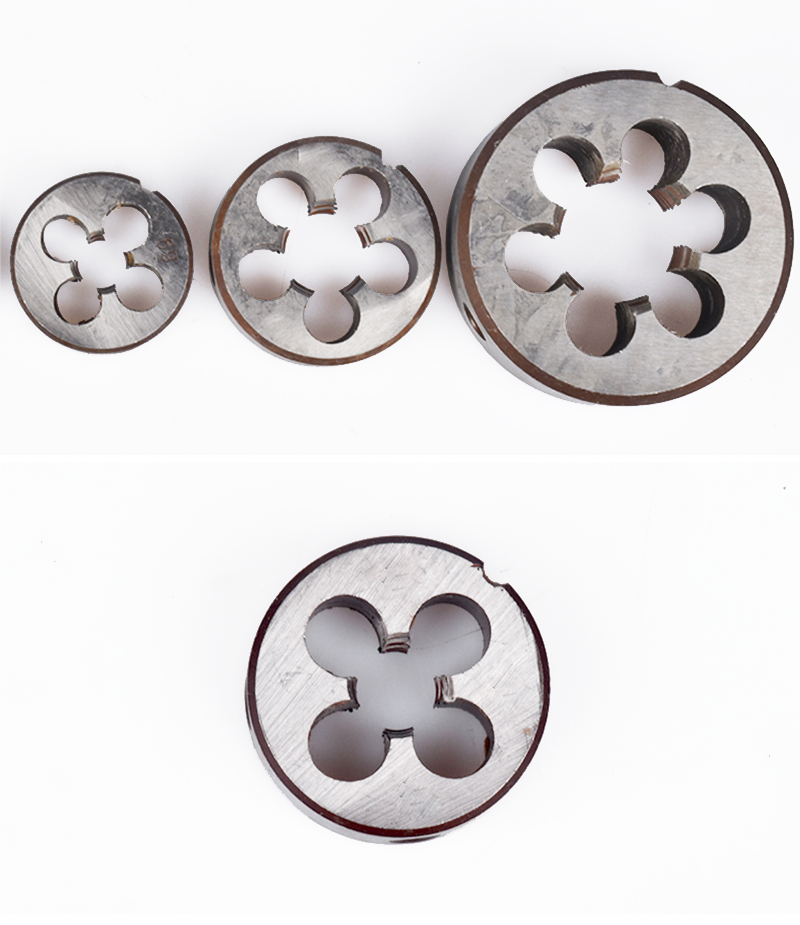

*Die Material: Alloy Tool Steel.
*Size: M20×1.5 mm
*Direction: left hand
*Quantity:1PC tap + 1PC die

INE GRINDING THREAD TEETH WITH SHARP SPECIFICATIONS

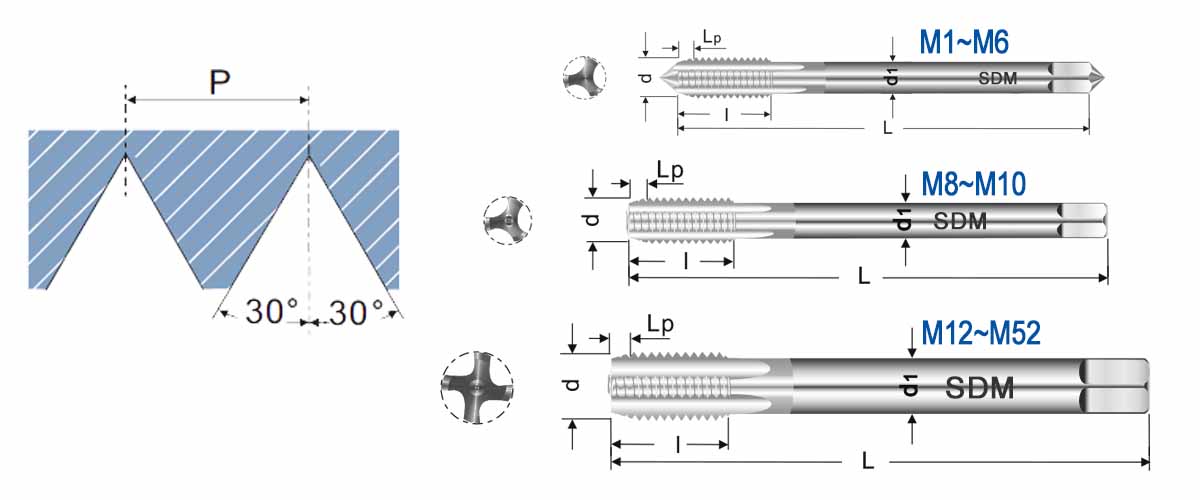

Specifications	pitch (mm)	accuracy	Lp	d (mm)	d1 (mm)	I (mm)	L (mm)	■ (mm)
M3	0.5	2H	3P	3	4	14	40	3.4
M3.5	0.6	2H	3P	3.5	4	14	40	3.4
M4	0.7	2H	3P	4	4	16	45	3.4
M4.5	0.75	2H	3P	4.5	4.5	16	45	3.4
M5	0.8	2H	3P	5	5	18	50	4.3
M6	1	2H	3P	6	4.8	20	55	4.3
M7	1	2H	3P	7	5.6	19	66	4.5
M8	1.25	2H	3P	8	6.3	22	72	5
M9	1.25	2H	3P	9	7.1	22	72	5.6
M10	1.5	2H	3P	10	8	24	80	6.3
M11	1.5	2H	3P	11	8	25	85	6.3
M12	1.75	2H	3P	12	9	29	89	7.1
M14	2	2H	3P	14	11.2	30	95	9
M15x1.5	1.5	2H	3P	15	11.2	30	95	9
M16	2	2H	3P	16	12.5	32	102	10
M17x1.5	1.5	2H	3P	17	12.5	32	102	10
M18	2.5	2H	3P	18	14	37	112	11.2
M20	2.5	2H	3P	20	14	37	112	112.
M22	2.5	2H	3P	22	16	38	118	12.5
M24	3	2H	3P	24	18	45	130	14
M27	3	2H	3P	27	20	45	135	16
M30	3.5	2H	3P	30	20	48	138	16
M33	3.5	2H	3P	33	22.4	51	151	18
M36	4	2H	3P	36	25	57	162	20
M39	4	2H	3P	39	28	60	170	22.4
M42	4.5	2H	3P	42	28	60	170	22.4
M45	4.5	2H	3P	45	31.5	67	187	25
M48	5	2H	3P	48	31.5	67	187	25
M52	5	2H	3P	52	35.5	70	200	28

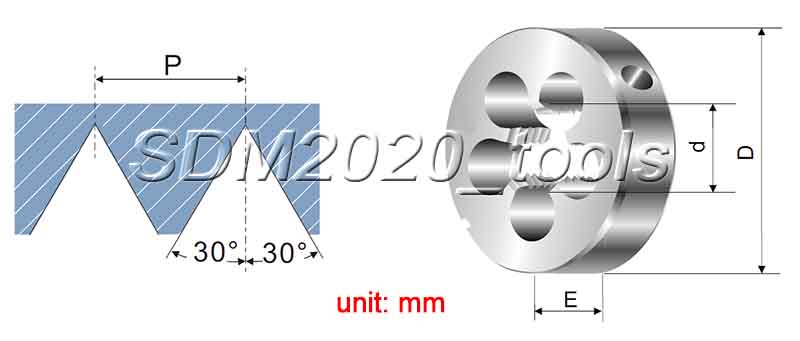

Type	pitch (mm)	d (mm)	D (mm)	E (mm)	Type	pitch (mm)	d (mm)	D (mm)	E (mm)
M3	0.5	3	20	5	M16	2	16	45	14
M3.5	0.6	3.5	20	5	M17x1.5	1.5	17	45
M4	0.7	4	20	5	M18	2.5	18	45	18
M4.5	0.75	4.5	20	7	M20	2.5	20	45	18
M5	0.8	5	20	7	M22	2.5	22	55	22
M6	1	6	20	7	M24	3	24	55	22
M7	1	7	25	7	M27	3	27	65	25
M8	1.25	8	25	9	M30	3.5	30	65	25
M9	1.25	9	25	9	M33	3.5	33	65	25
M10	1.5	10	30	11	M36	4	36	65	25
M11	1.5	11	30	11	M39	4	39	75	30
M12	1.75	12	38	14	M42	4.5	42	75	30
M14	2	14	38	14	M45	4.5	45	90	36
M15x1.5	1.5	15			M48	5	48	31.5	67
					M52	5	52	35.5	70
