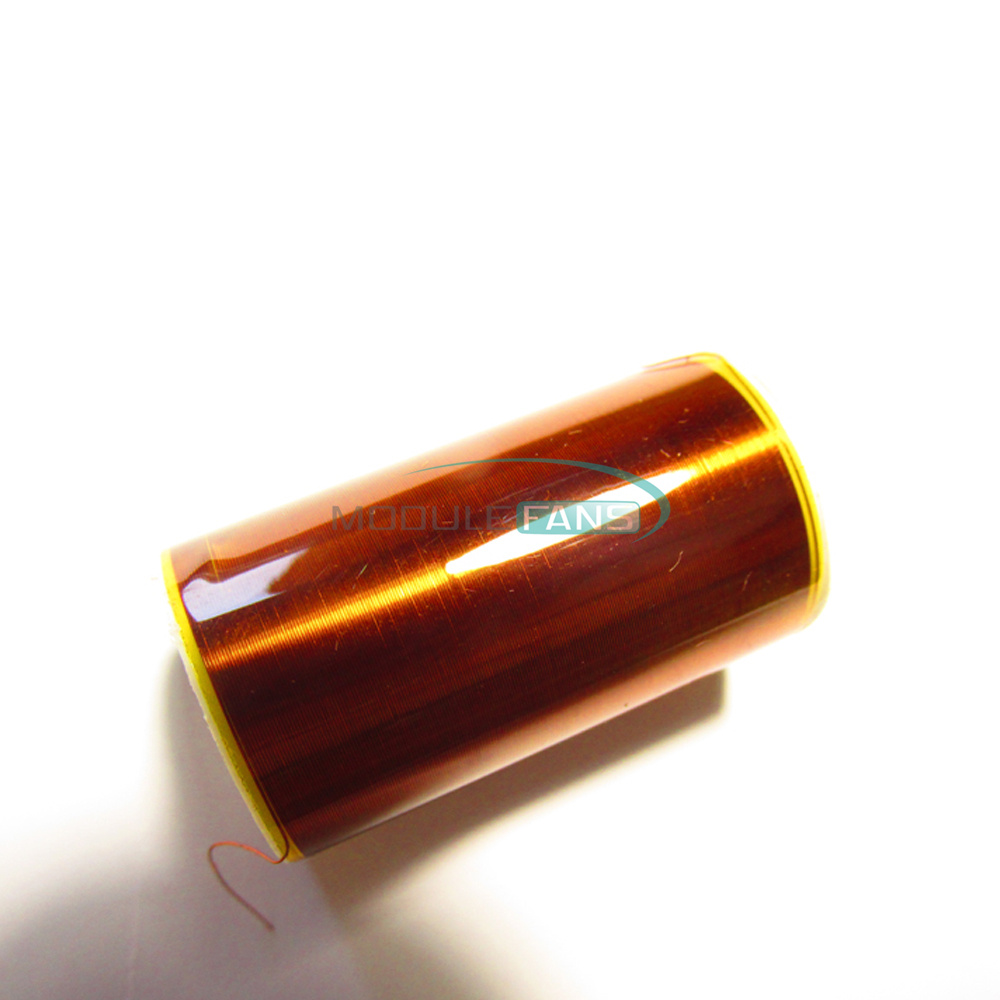

Secondary coil parameters:
Diameter of enameled wire: 0.13 mm (with paint 0.15 mm)
Frame material: PVC pipe
Frame outer diameter: 2 cm
Frame height: about 4 cm
Number of laps: 200 laps
Winding direction: clockwise from bottom to top

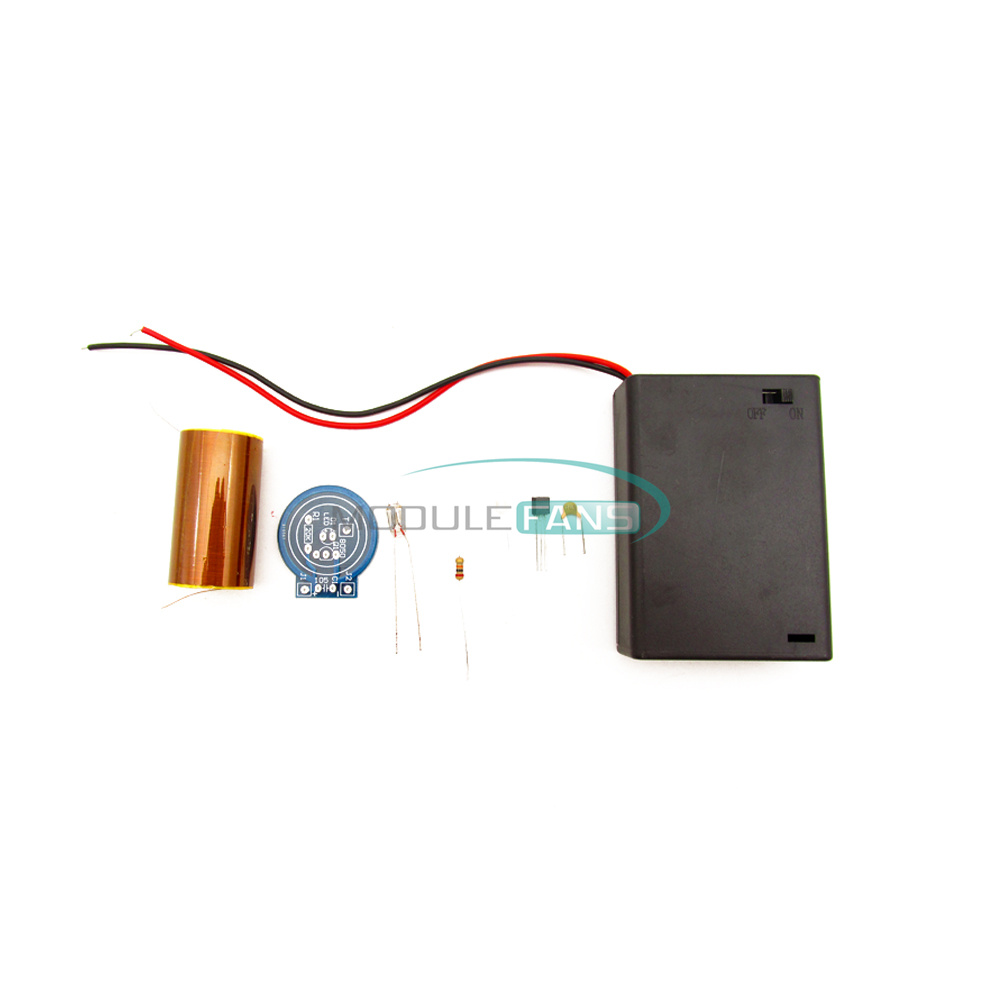

Package Included:

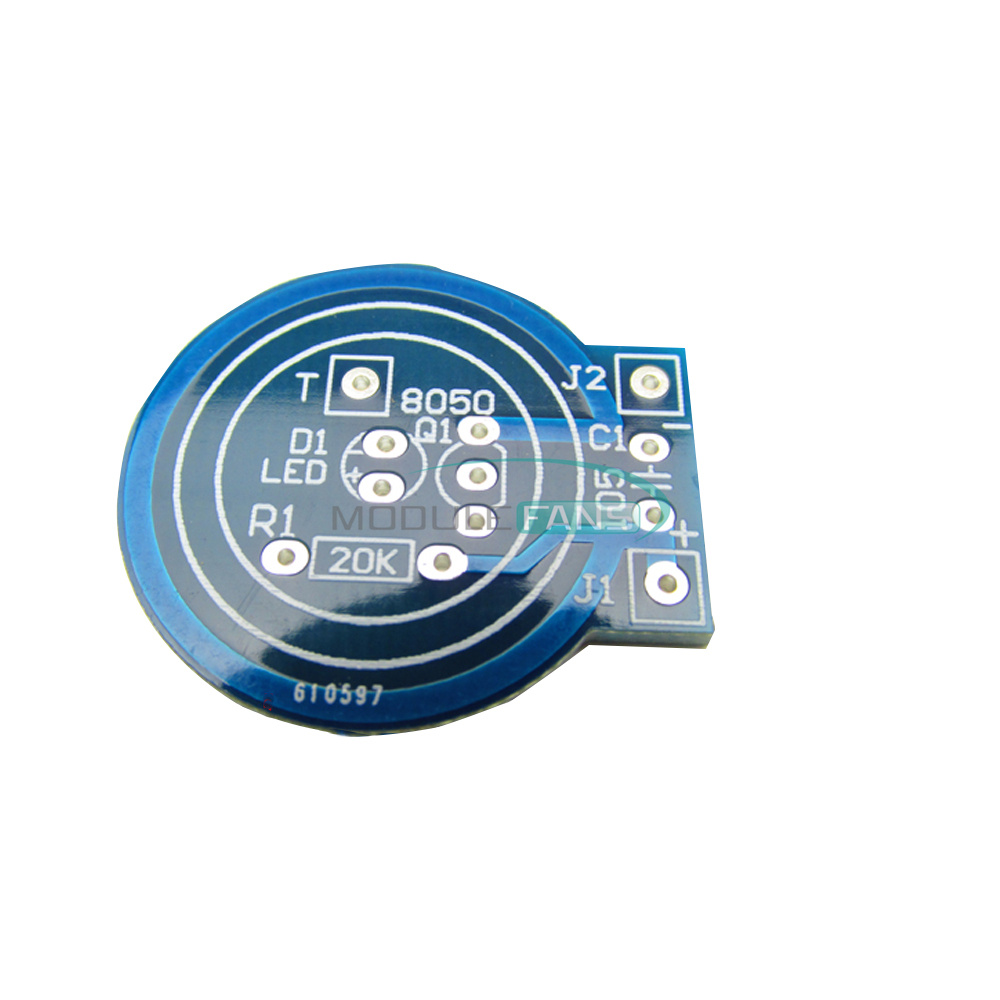

PCB board X1
Secondary coil X 1

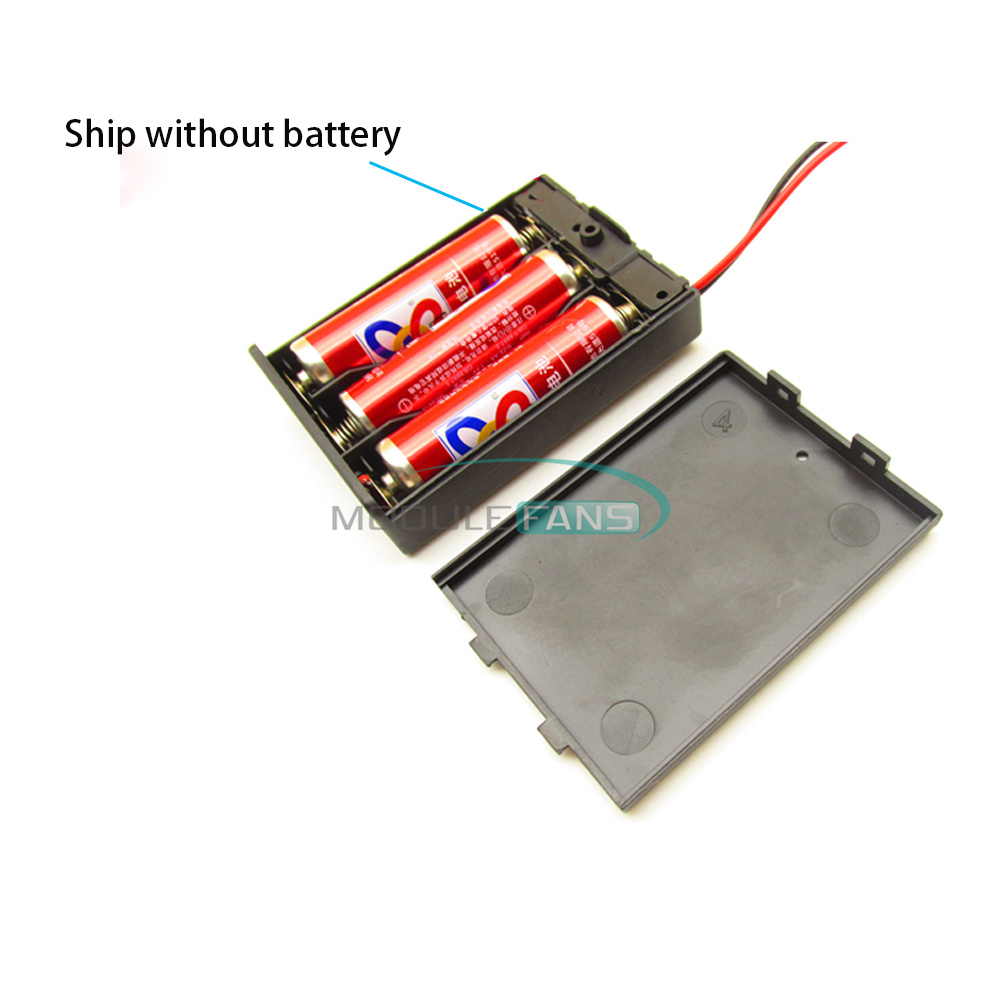

No. 5, 3-section battery box with switch X 1
Neon bulb X1
105 monolithic capacitor X 1
8050 transistor X 1
20K resistor X1
3MM LED White Hair Blue X 1

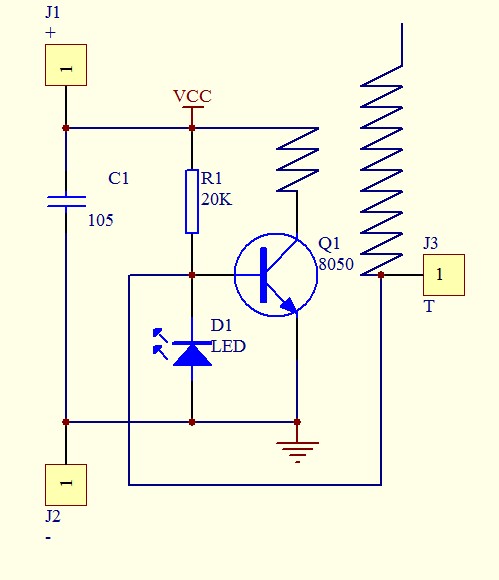

Schematic diagram:
Battery Version Small Tesla Welding Steps:

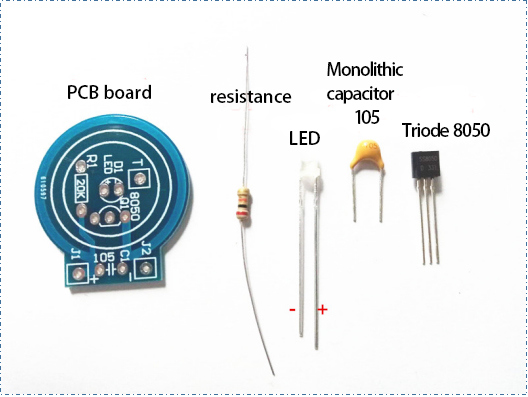

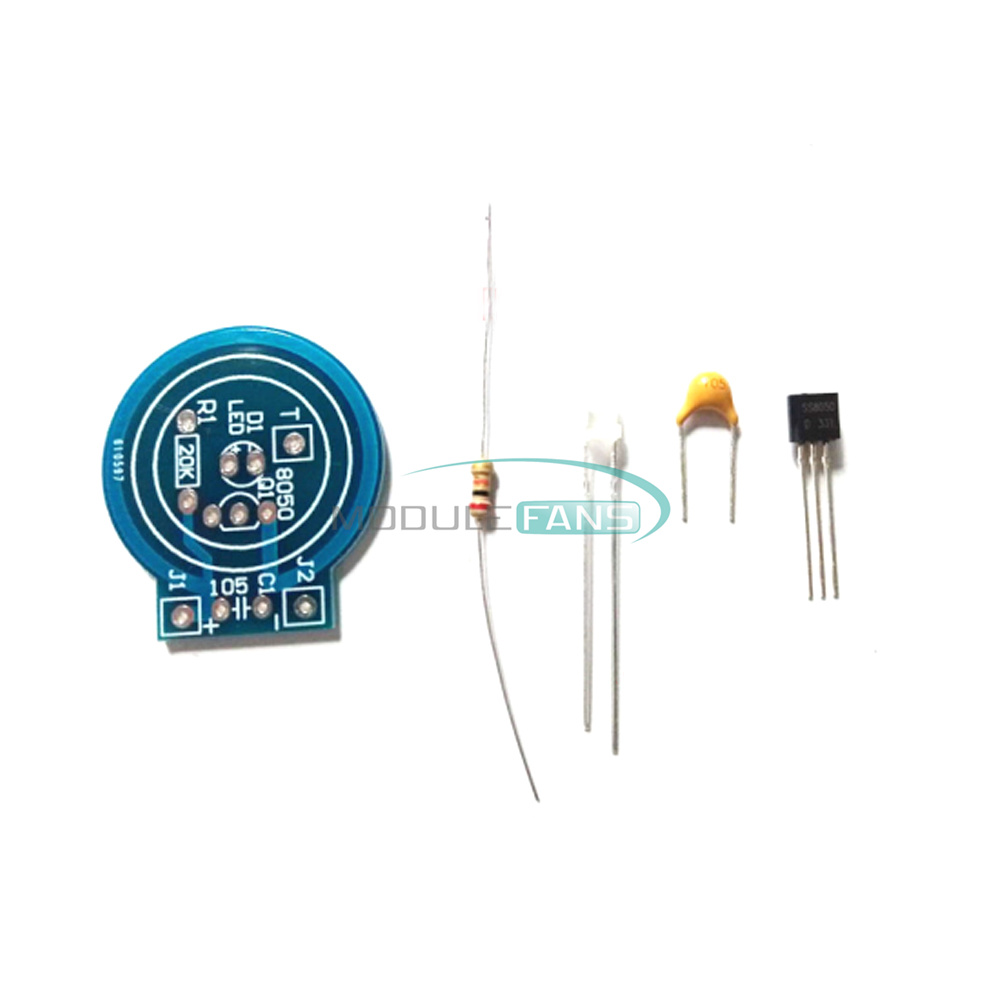

1. Know the components

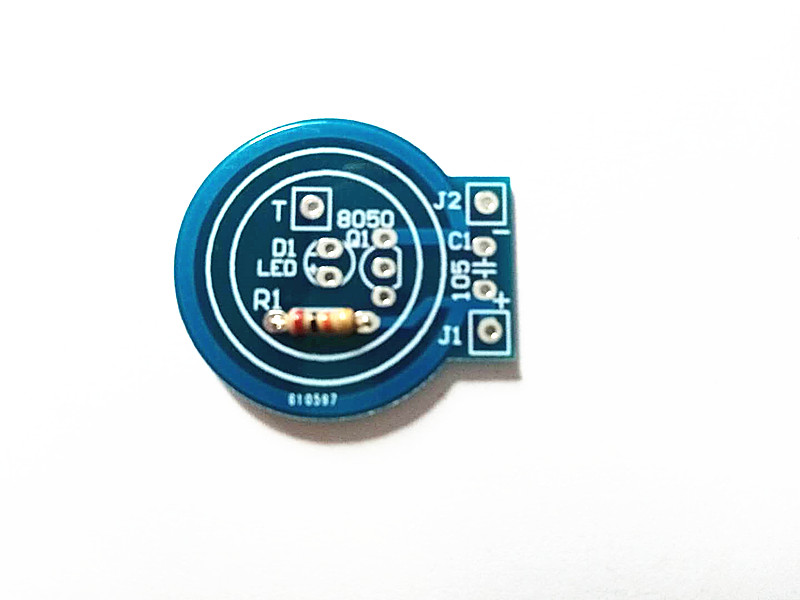

2、The shortest component to be welded: resistance

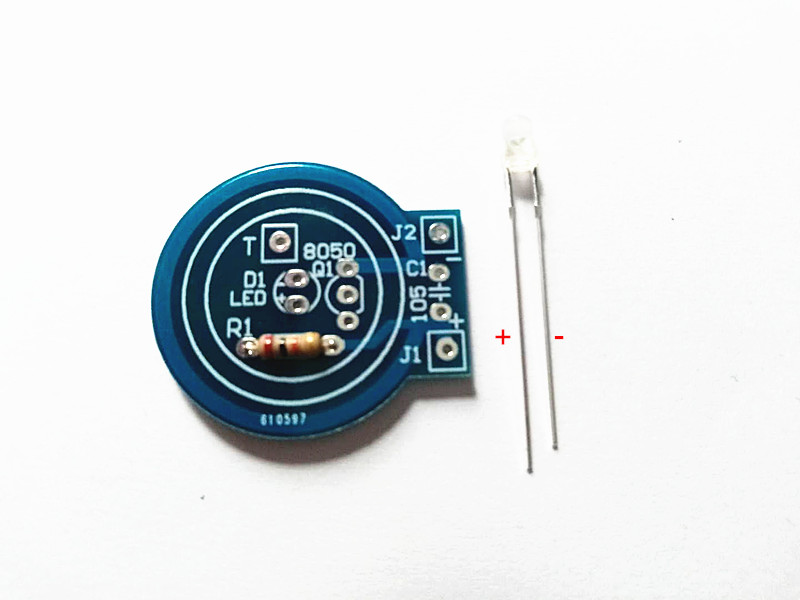

3、For welding LED lights, the long leg is the positive pole and the short leg is the negative pole

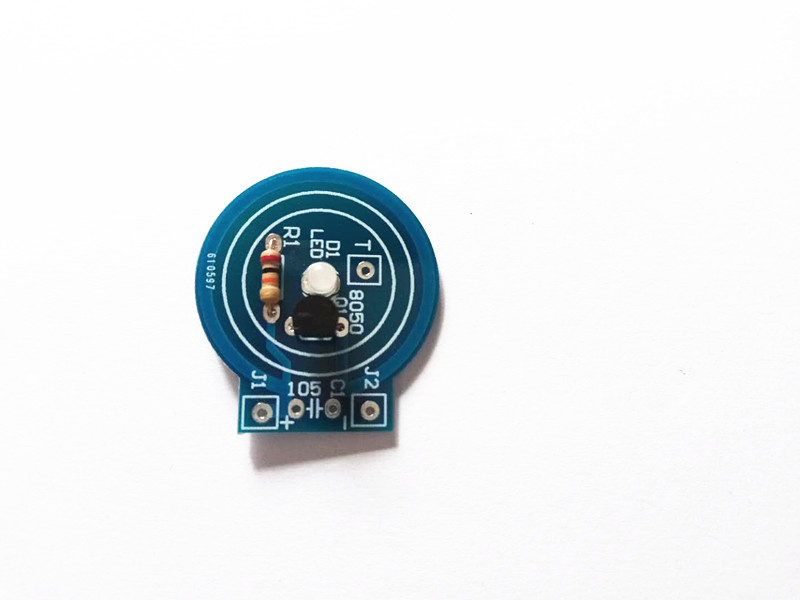

4. Weld the triode 8050, pay attention to the silk screen on the kanban, flat to flat

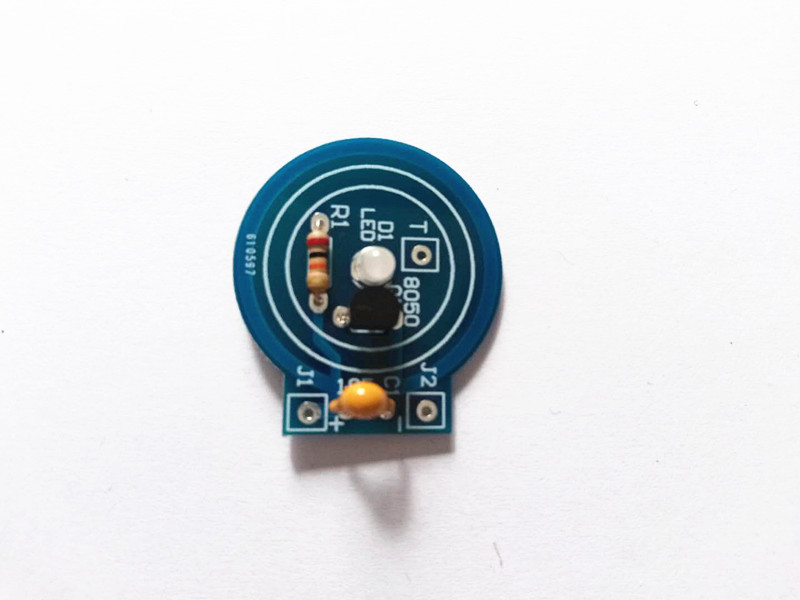

5.Welding monolithic capacitor 105, no polarity

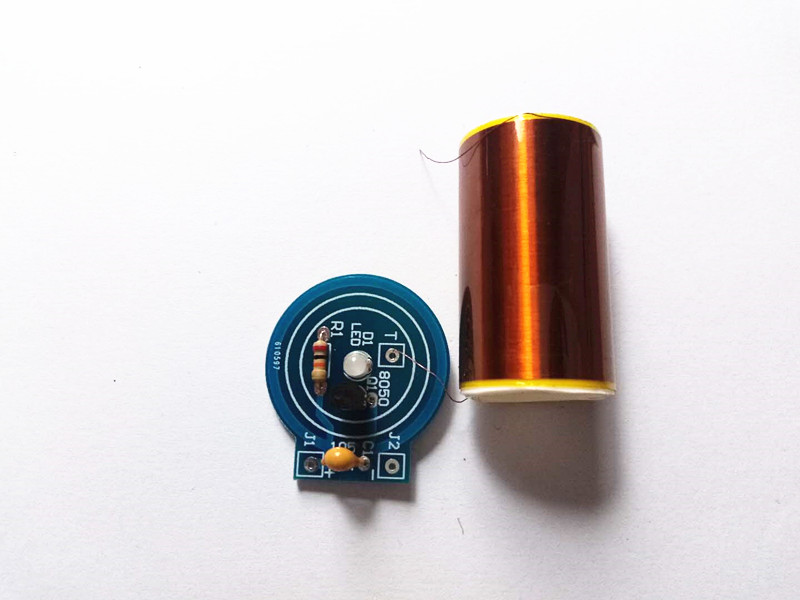

6.Deal with the secondary coil The primary coil is integrated on the PCB board, no soldering is required, only the secondary coil is soldered.

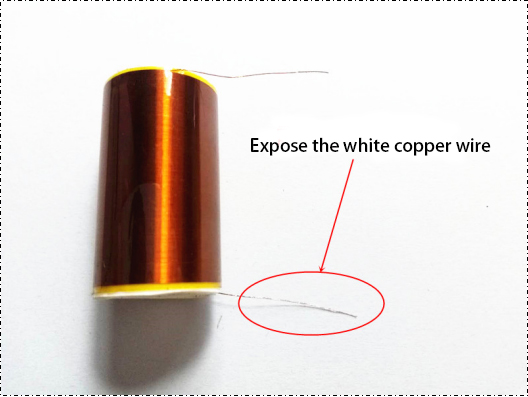

The secondary coil is led out by two copper wires, scrape off the insulating paint on one end of the copper wire to expose the white copper wire. (If you find the end of the secondary coil PVC pipe with less white space, scrape the end with less white space. If the two ends are almost white or there is no white space, just pick one end of copper wire and scrape) The wire can not come out for a long time. Otherwise the coil will be useless! Be careful not to burn it with fire, it is best to scrape with a blade, gently scrape, do not scrape off, and do not pull out too long!

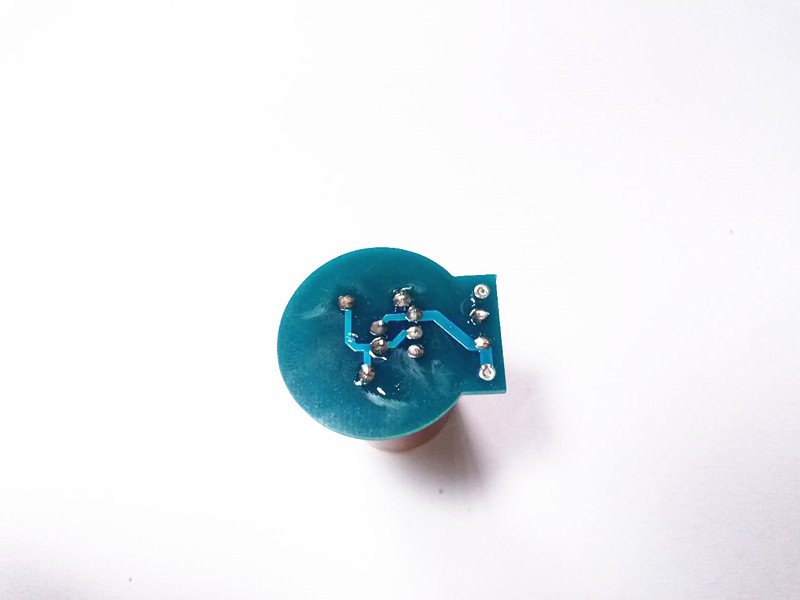

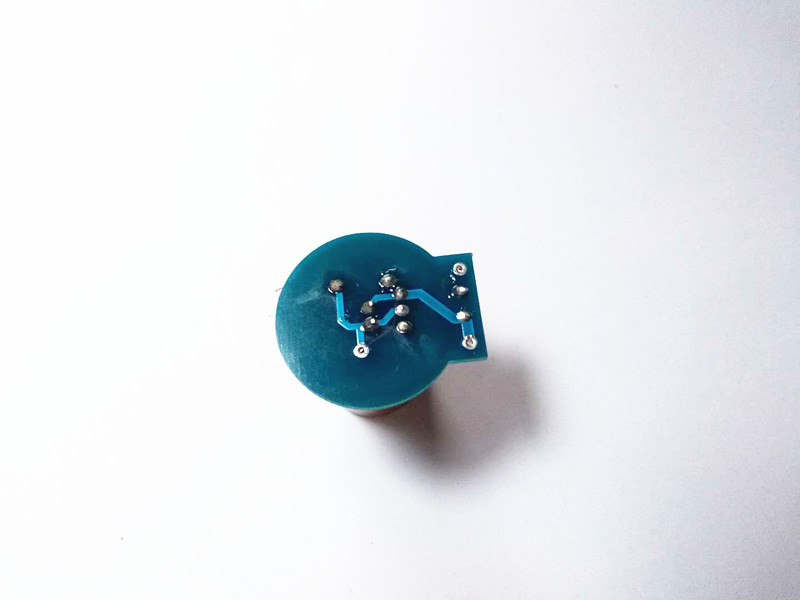

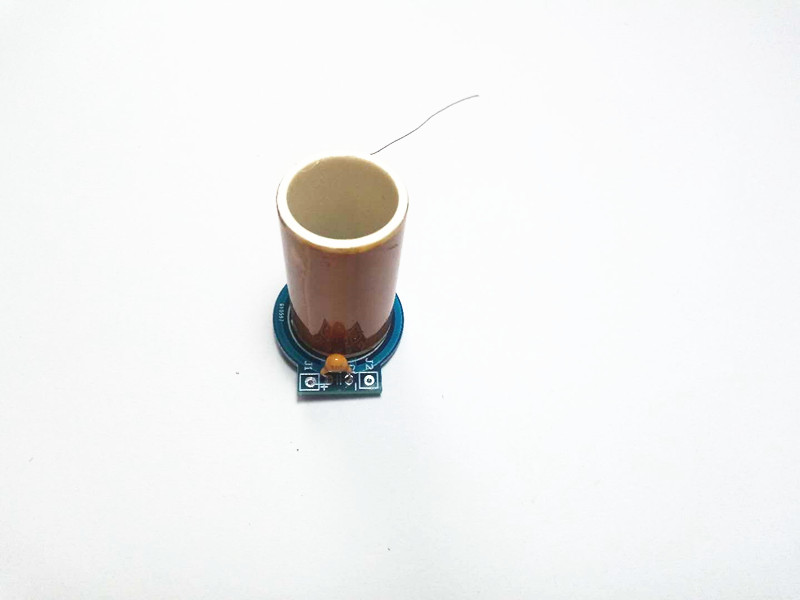

7.To solder the secondary coil, insert the scraped end of the secondary coil into the T hole of the PCB board, and then solder it.

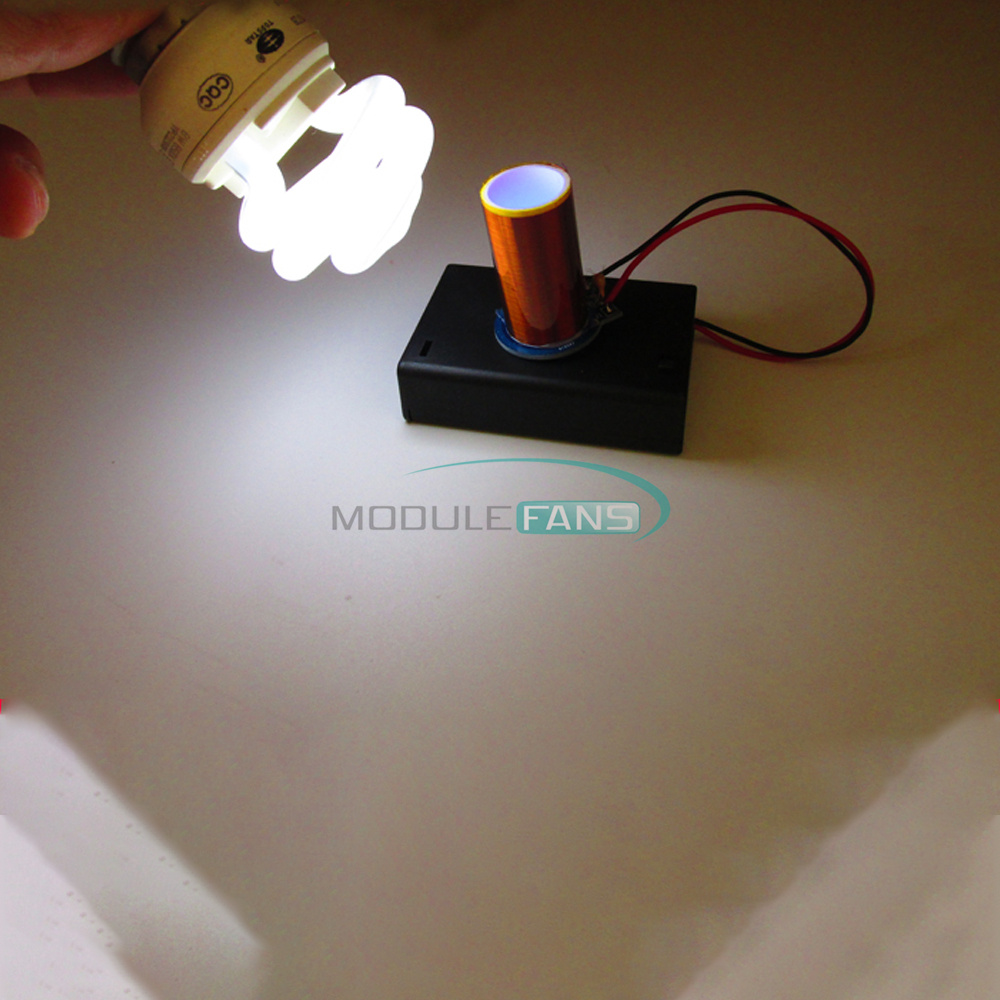

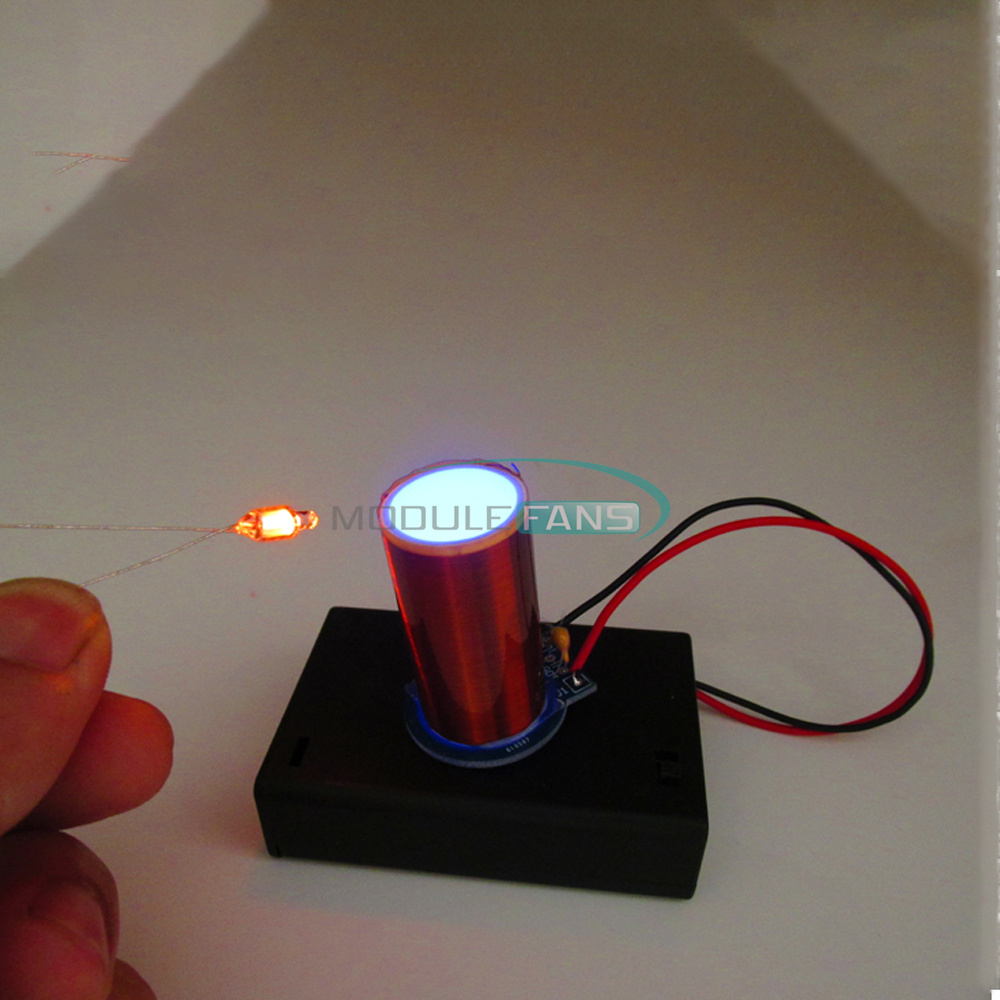

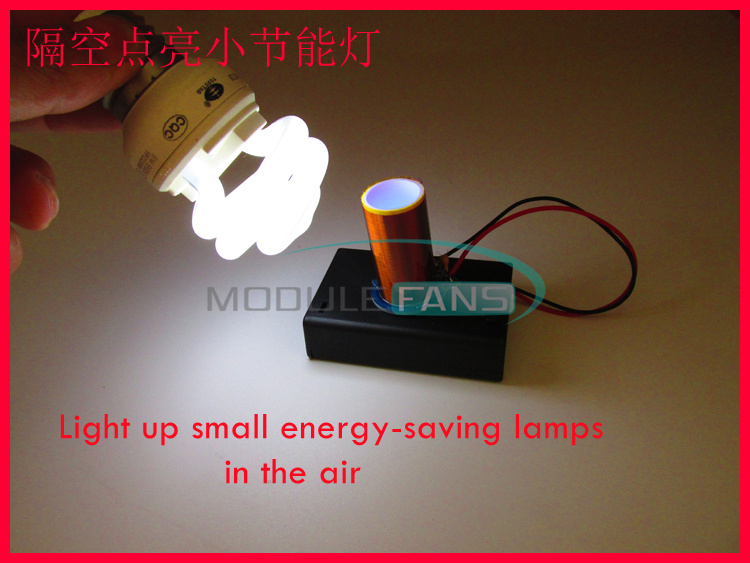

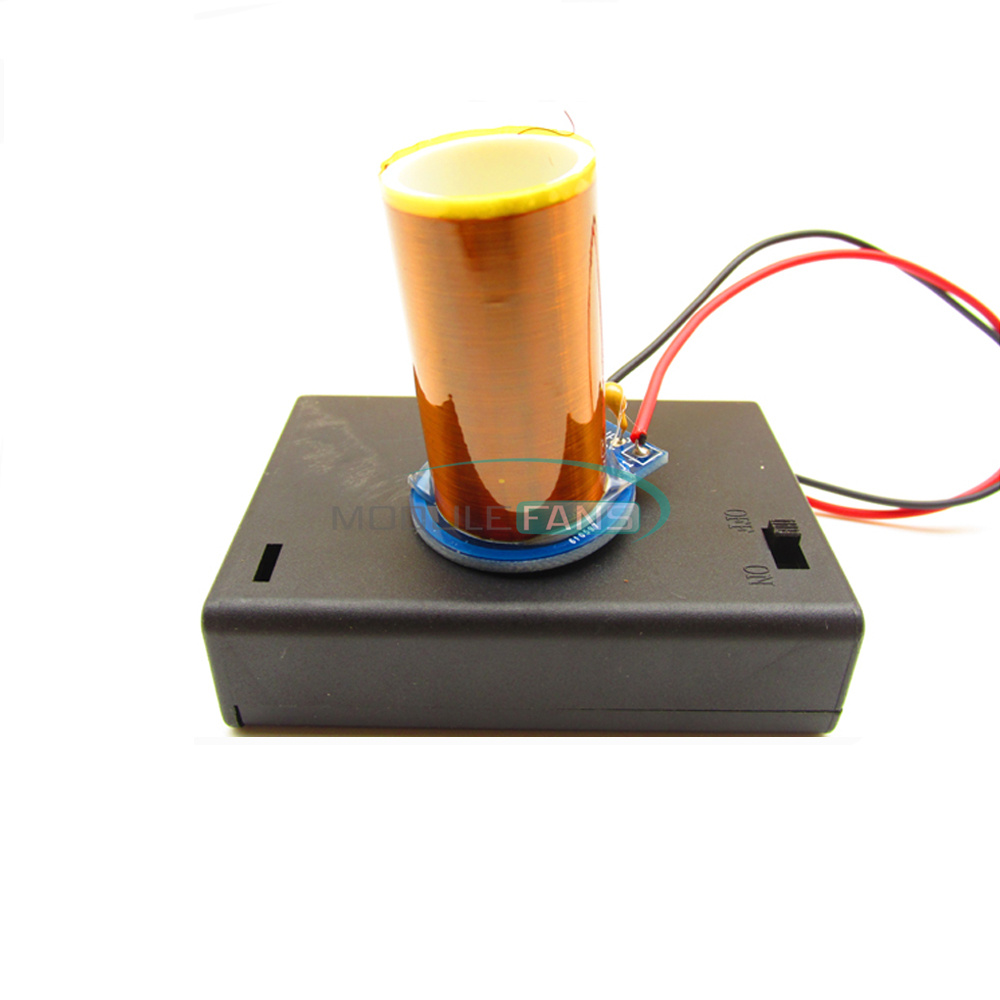

8. Weld the battery box and test After the secondary coil is welded, weld the battery box on. The red wire is welded to the positive electrode and the black wire is welded to the negative electrode. After welding, install the battery and test it. The LED light on the board is on, and the neon bulb light is close to it. You can also use an energy-saving lamp to close the test. It is about 3W to 5W. If it can also be bright, the welding is successful.
9. Fixed coil After the test is successful, the secondary coil can be fixed with glue. It can be supplied with double-sided tape, glue gun, or 502 glue. When fixing, be careful not to break the lead of the secondary coil!
10. This product has simple components, easy welding, and safe battery power supply. It is Tesla's entry-level kit. I wish you all successful welding!
