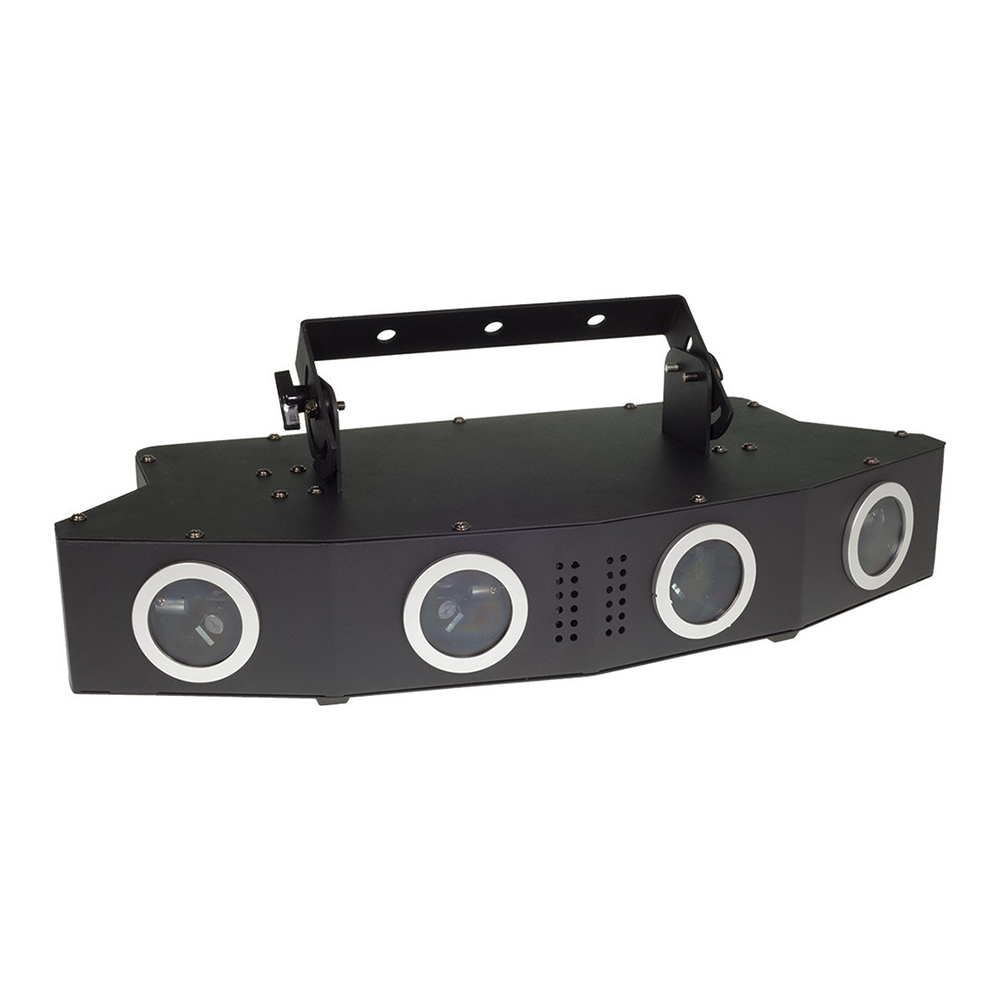

Laserworld EL-900RGB 4 Lense Laser Lighting Effect DJ Disco Club

Product Description

Description
The Laserworld EL-900RGB is a complete show in one device. It has been designed to especially meet the demands of mobile DJs and smaller nightclubs to fill the whole room and overcome the limits of rather narrow scan angles. The Laserworld EL-900RGB is an RGB show laser system with a total overall output power of up to 900mW and fast high-speed step motors with up to 3-8 kpps. It has four beam apertures with an individual pair of step motors.

Many of the built-in patterns have been programmed in a way that the four lzr outlets play well together and fill the whole room, like a multi unit lzr show. The curved shape of the unit allows for a very large horizontal deflection angle, so the lzr can cover the whole room.

The Laserworld EL-900RGB can be run in sound-to-light, stand alone or DMX mode, and can also be synced with other units in master-slave operation. It can display many different colors, including white!

The red diode module with a wavelength of 650nm, the green DPSS module with a wavelength of 532nm and the royal-blue module with a wavelength of 450nm ensure beautiful colors and bright beams. The beam has ca. 3 mm diameter at aperture and a divergence of about 2 mrad. About ca. 50 (layers, tunnels, fences, waves, etc.) are included. Many of them do not output all the same way on all four lzr outlets, but some of the x-axis mirrored or modified in a way, that the lzr display looks nice and homogenous.

For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be altered

Specifications
Total Power 900 mW
Guaranteed Power 800 mW
Power Red 400 mW / 650 nm
Power Green 150 mW / 532 nm
Power Blue 350 mW / 450 nm

Beam Specifications ca. 3 mm / 2 mrad

Scanner high-speed step motors with up to 3-8 kpps

Max. Scan Angle 110°

Lzr Source Diode, DPSS Laser

Operation Modes sound-to-light, stand-alone, DMX, master-slave

Basic Patterns ca. 50 (layers, tunnels, fences, waves, etc.)

Accessories power cable, manual, interlock, key

Power Supply 85 V - 250 V AC

Dimensions

530 x 240 x 90mm

Weight

5.5 kg

Laserworld EL-900RGB 4 Lense Laser Lighting Effect DJ Disco Club
