AFU 600 2004877
Two User Airline filter unit (3 stage) cw frame and two CEJN outlet couplings for 600l/min+ filtered airflow
The Scott AFU 600 compressed-air filter unit is designed to offer an economical way of ensuring compressed air is of breathable quality and to deliver this clean air to two users of Scott airline equipment. The unit is free-standing but can be wall-mounted if necessary, and contains a particulate filter to remove airborne dust and oil.
• Compressed-air filter unit for use as part of an airline respirator system
• Designed to supply two users
• Can filter over 600L/min at inlet pressure over 4 bar
• Effective two-stage filtration of particulates including dust and oil
• Charcoal element removes nuisance odours
• Alerts user if pre-filter is clogged with flashing light
• Auto-drain prevents build-up of oil and water
• Lightweight, robust carry frame can be easily detached for mounting on a wall
• Easily replaceable filter element without need for tools
• Fitted with replaceable CEJN outlet coupling
• Designed to supply two users
• Can filter over 600L/min at inlet pressure over 4 bar
• Effective two-stage filtration of particulates including dust and oil
• Charcoal element removes nuisance odours
• Alerts user if pre-filter is clogged with flashing light
• Auto-drain prevents build-up of oil and water
• Lightweight, robust carry frame can be easily detached for mounting on a wall
• Easily replaceable filter element without need for tools
• Fitted with replaceable CEJN outlet coupling
TECHNICAL DATA
Recommended temperature range 0-40ºC
Normal inlet pressure range 5-8 bar
Maximum recommended operating pressure 10 bar
Remaining oil content less than 0.003mg/m3 at 21ºC
Particle removal 0.01µm
Inlet connection 1/2” BSP parallel female thread
Outlet connection(s) as above, fitted with replaceable CEJN
pattern self sealing socket coupling(s)
This unit has the capacity
to supply air flows to the
latest recommendations
for Breathing Apparatus
and will assist in ensuring
air quality can meet
EN12021 and BS4275:1997
requirements. This is,
however, not suitable
where there may be Carbon
monoxide or Carbon
dioxide in the air supply.

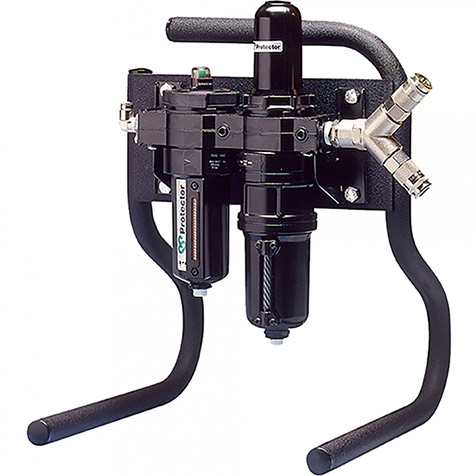

image above is for reference purpose only
These products do not guarantee breathing quality air. They do not filter Carbon monoxide, Carbon dioxide or other toxic gases. Always sight the compressor intake in a clean air zone and ensure the compressor is well maintained. It is a requirement to carry out regular checks of air quality, recommended at least monthly, to ensure air conforms to EN12021. Always replace elements at least yearly or sooner if indicated by air quality checks. Do not use for fluids other than ambient air. Always check the air flow requirements of the Breathing Apparatus before using.
