NOTE：
1st: The reduction ratio
1 stage reducer ratio including: 3:1,4:1,5:1,7:1,10:1 .
2 stage reducer ratio including: 15:1,20:1,25:1,30:1,40:1 ,50:1,70:1,100:1

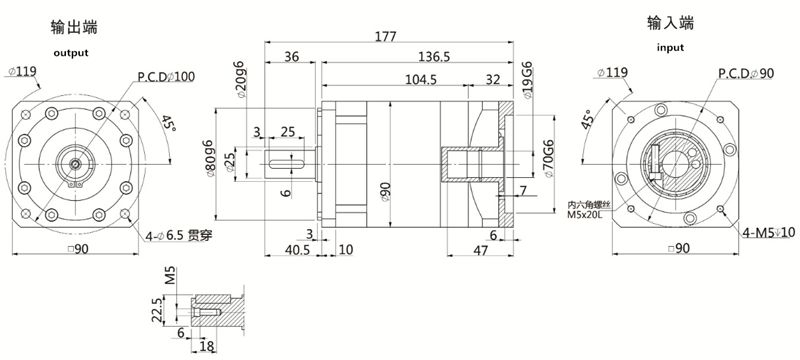

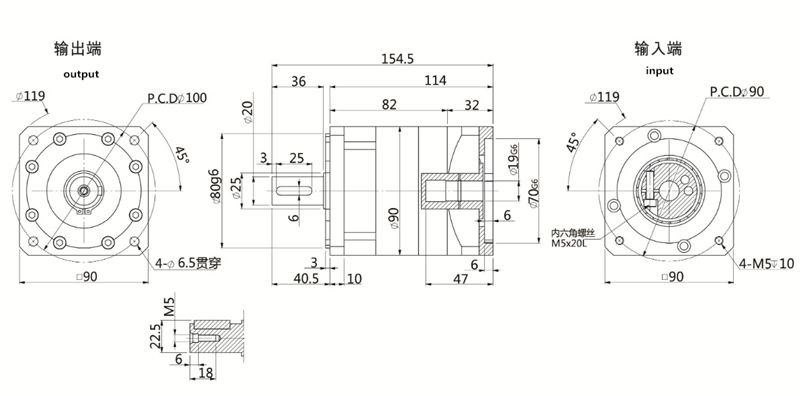

2nd:We will ship the planetary reducer as the standard dimension as follows:
Frame | Shaft diameter | Rabbet | diagonal Screw hole distance |
90mm | 19mm | 70mm | 90mm |
3rd: If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.
Here is the parameters of the planetary reducer:
