High Precision Helical planetary reducer gearbox 1 stage ratio for Delta 100mm frame AC servo motor input shaft 22mm
the matched Delta servo motor models as following:

ECMA-C21010RS,ECMA-C11010RS,ECMA-C21020RS,ECMA-C11020RS

ECMA-C21010SS,ECMA-C11010SS,ECMA-C21020SS and ECMA-C11020SS

PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER：

1^st:Reduction Ratio .you ordered 1 stage ratio

The reduction ratio of the planetary reducer including 1 stage reducer ratio: 3:1,4:1,5:1,7:1,10:1 .

please select one you need.

2^nd:Input Size

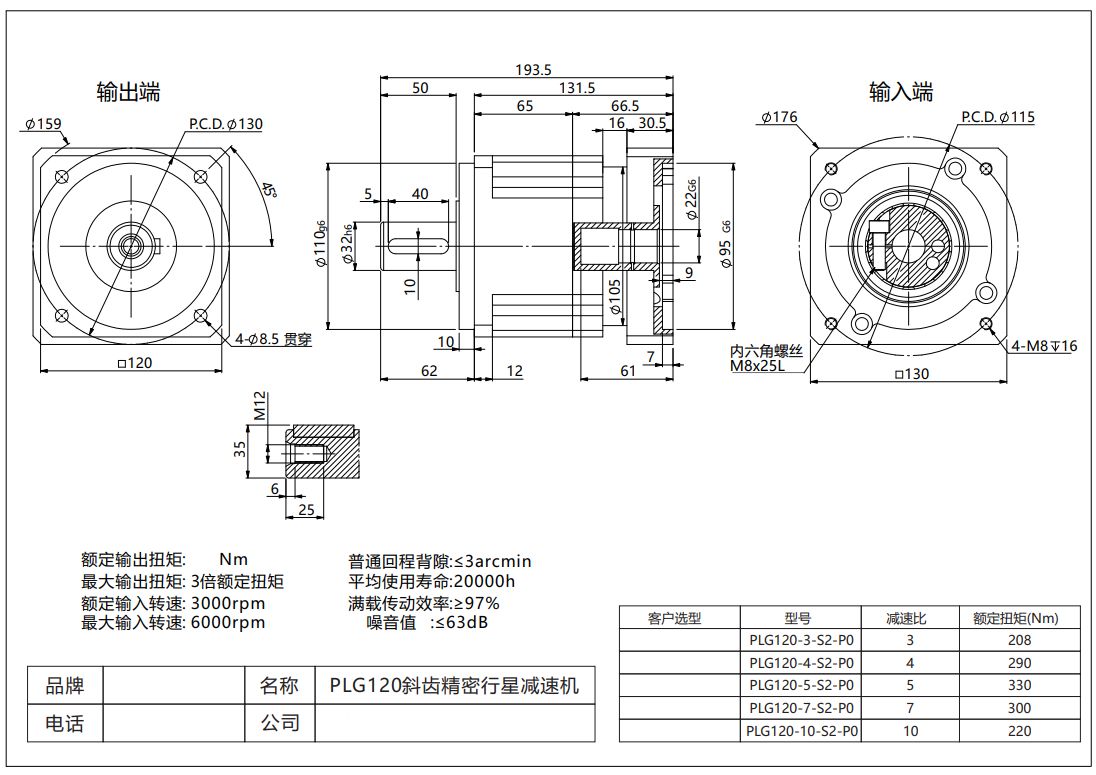

We will ship the planetary reducer as the standard dimension as follows:

If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.

3^rd:Parameters
