433MHz RF Power Amplifier 5W Power Amplifier

1. Product use

The broadband RF Small power amplifier is suitable for all kinds of 380-450mhz transmission, such as wireless remote control, walkie talkie and so on. When input 0.1W, output 5 0W@7.2V The amplifier is equipped with heat sink, which can work stably for a long time.

2. Technical parameters

1) Working frequency: 380 -- 450MHz

2) Input power: 0.1W (20dbm)

3) Maximum output: 2.5W (34dbm) 5.0V power supply

5.0w (37dbm) 7.2V power supply

8.0W (39dbm) 10.0v power supply (not recommended)

4) Working voltage: 5-7.2v (DC)

5) Working current: 1 -- 2A (determined by output power)

6) RF connector: Standard SMA female

7) Overall dimension: 70.5 * 82.5 * 24.5mm (L * w * h)

8) Product weight: 88g (shell oxidation treatment)

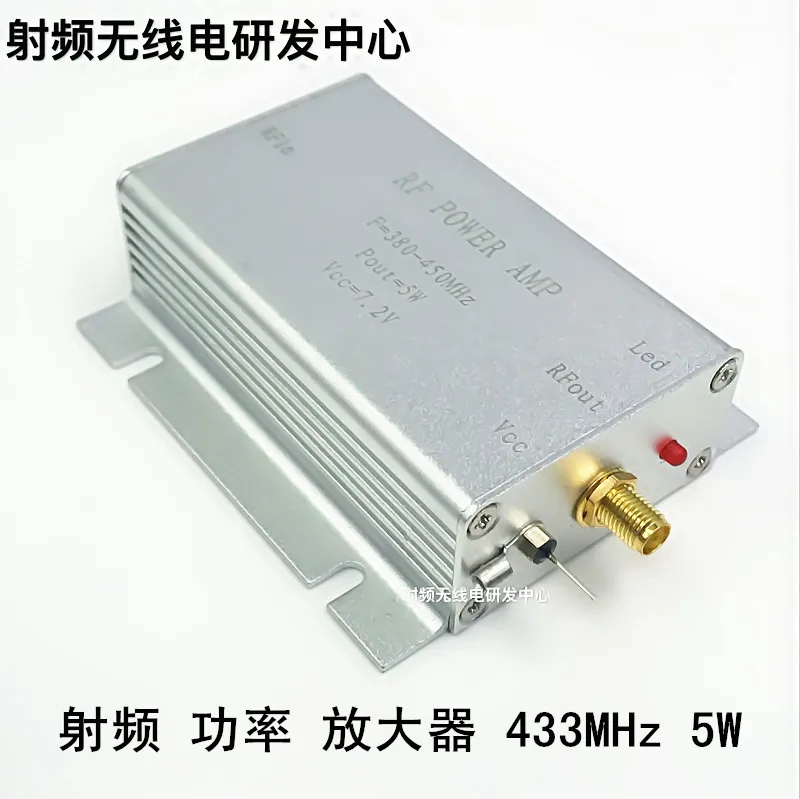

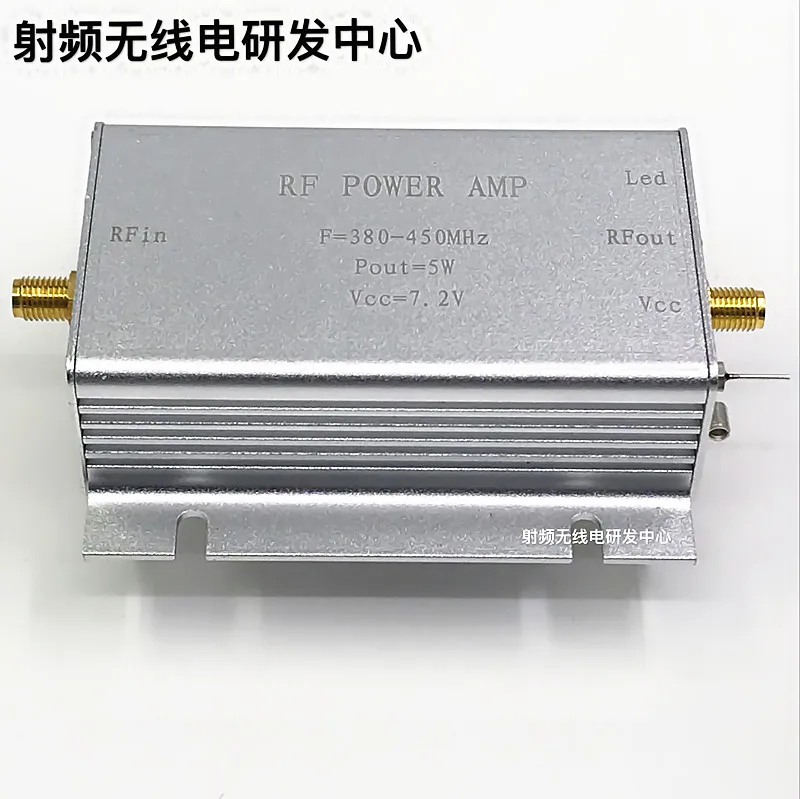

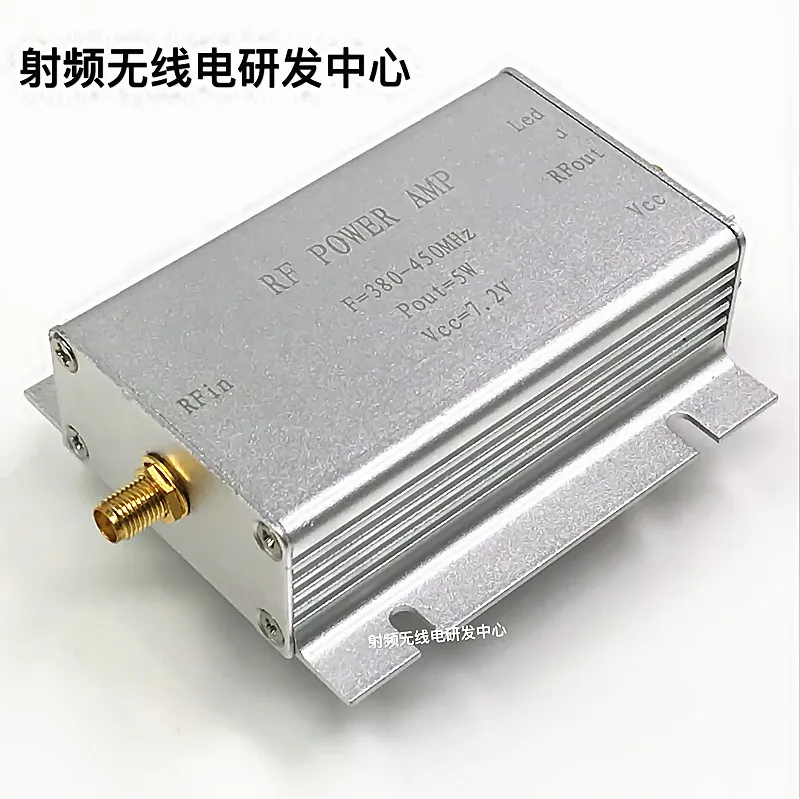

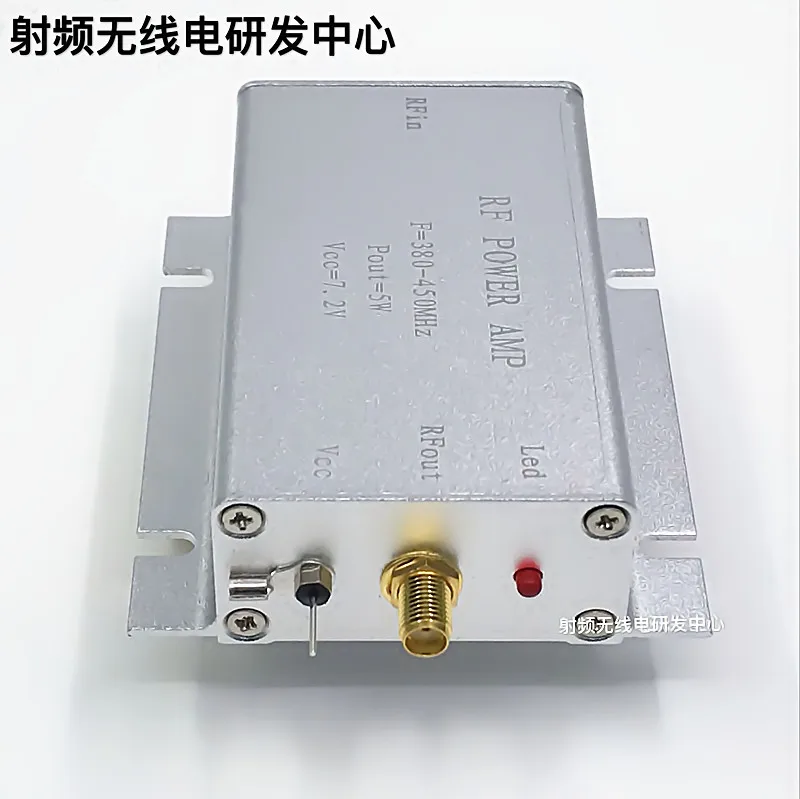

3. Product pictures
