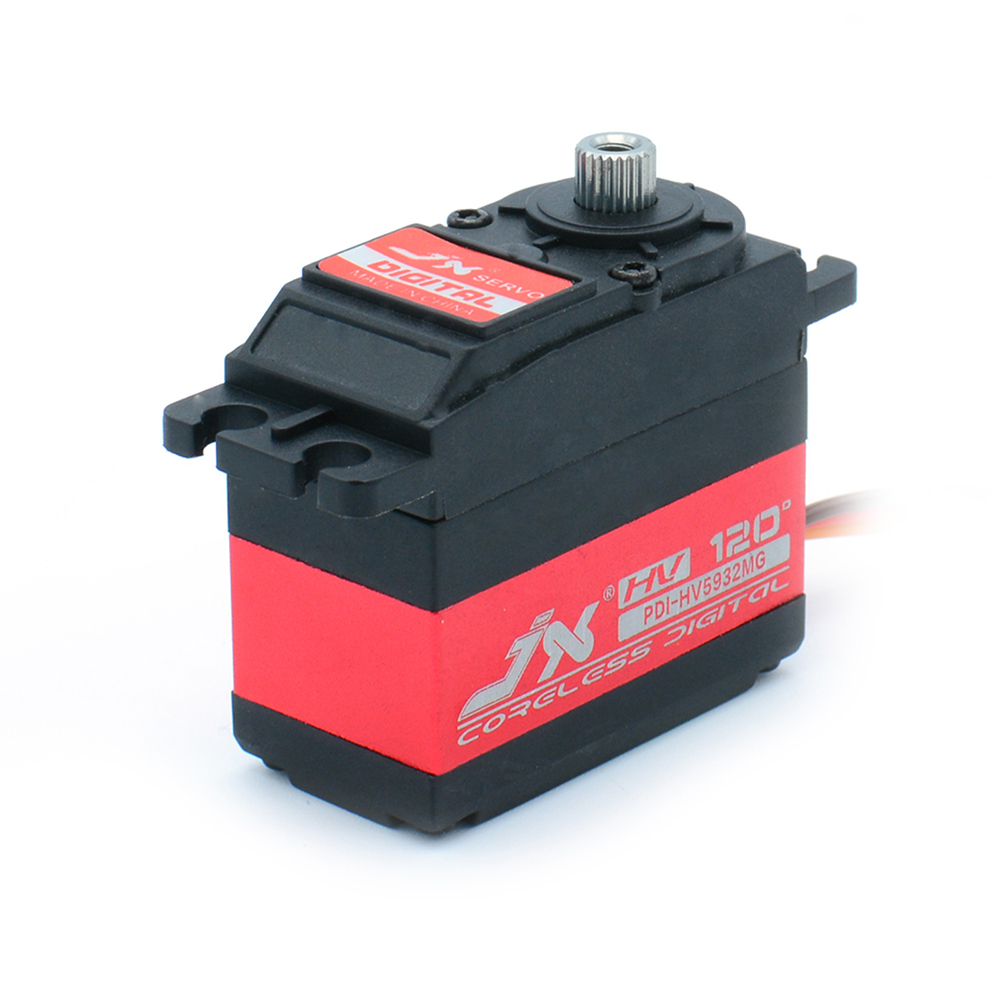

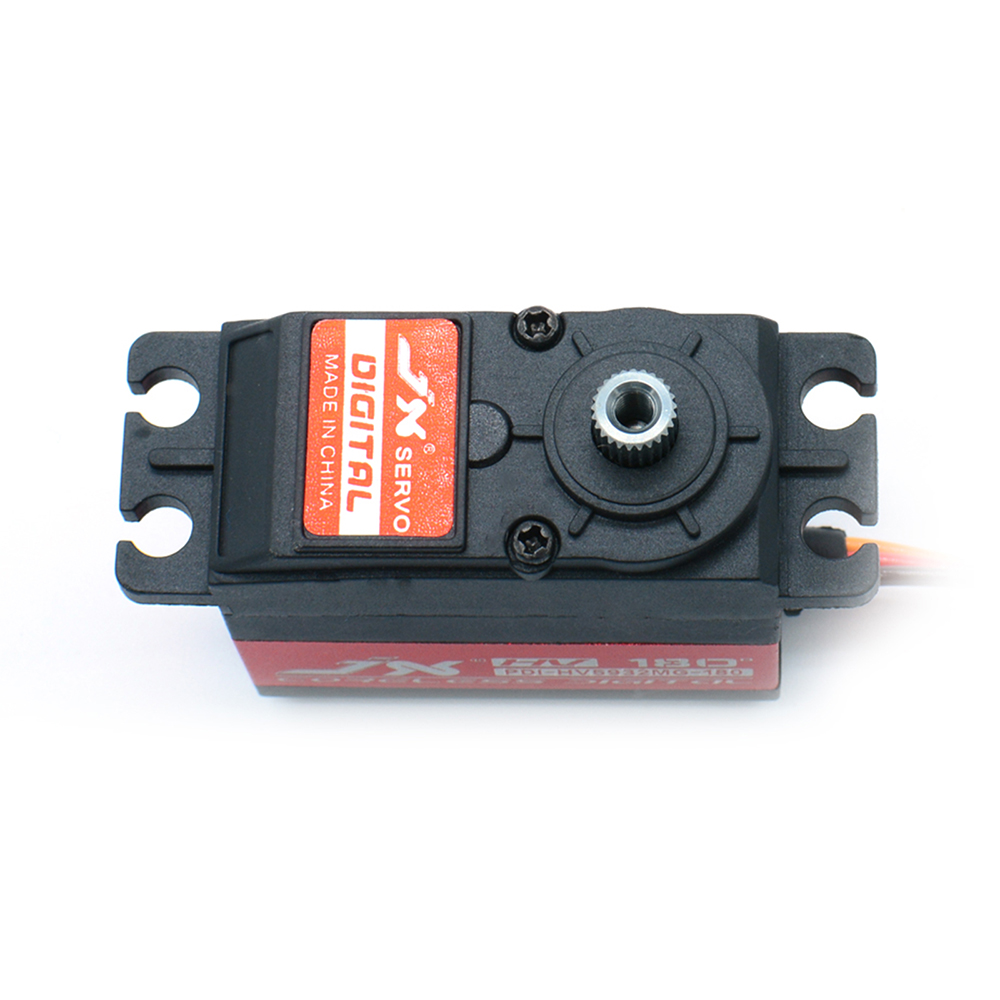

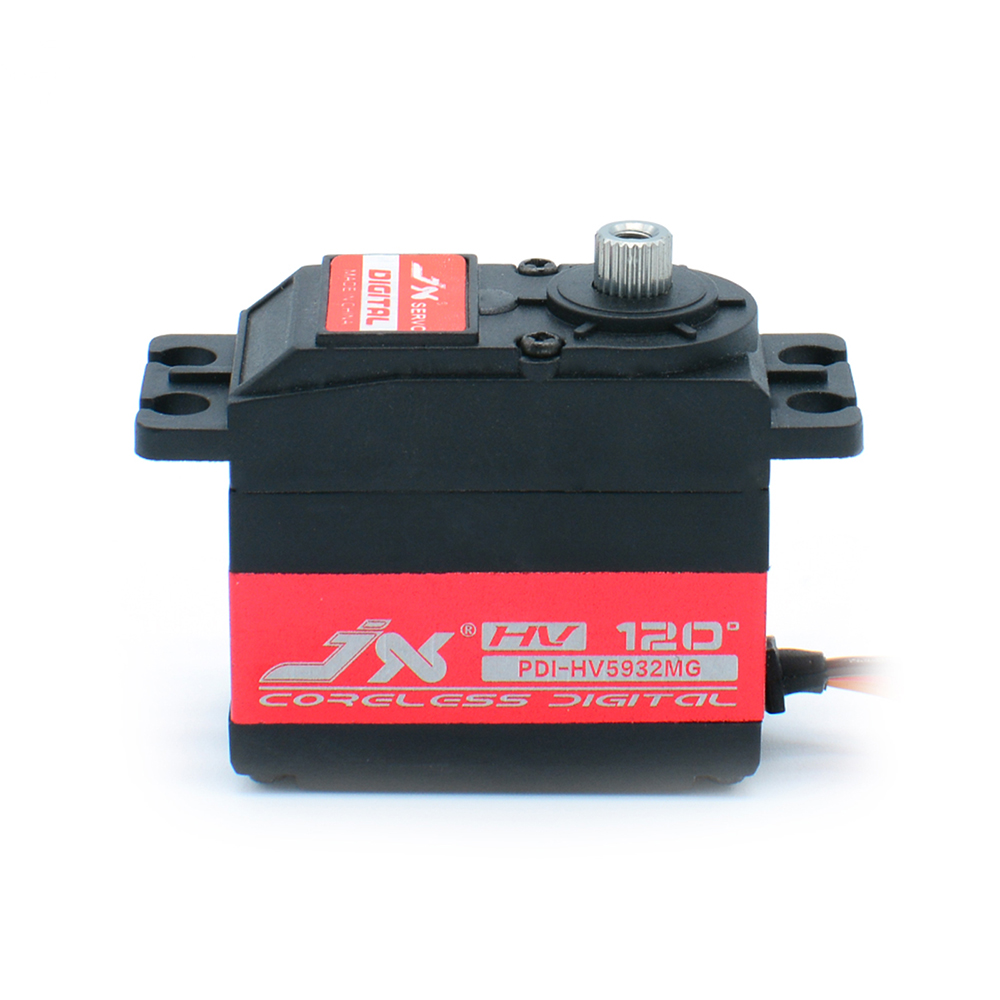

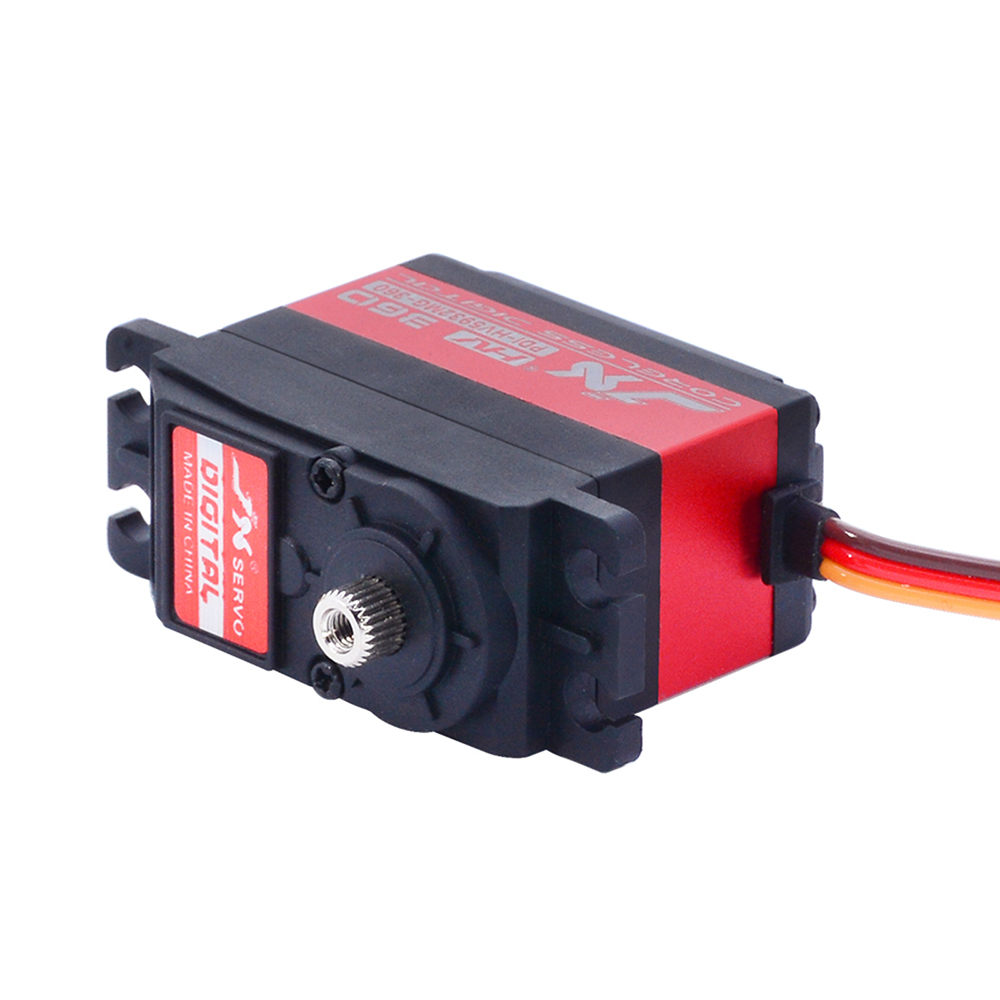

JX Servo PDI-HV5932MG 32KG Large Torque High Precision Metal Gear Standrd Digital Coreless Servo For RC Car Robot Plane RC Model DIY
Features:
-- High performance digital high voltage coreless standard servo.-- High-precision Taiwan-made aluminium gears with hard anodizing.
-- Dual ball bearings.
-- CNC aluminium middle hull.
Descriptions:
JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.
Specifications:
Brand:JX Servo

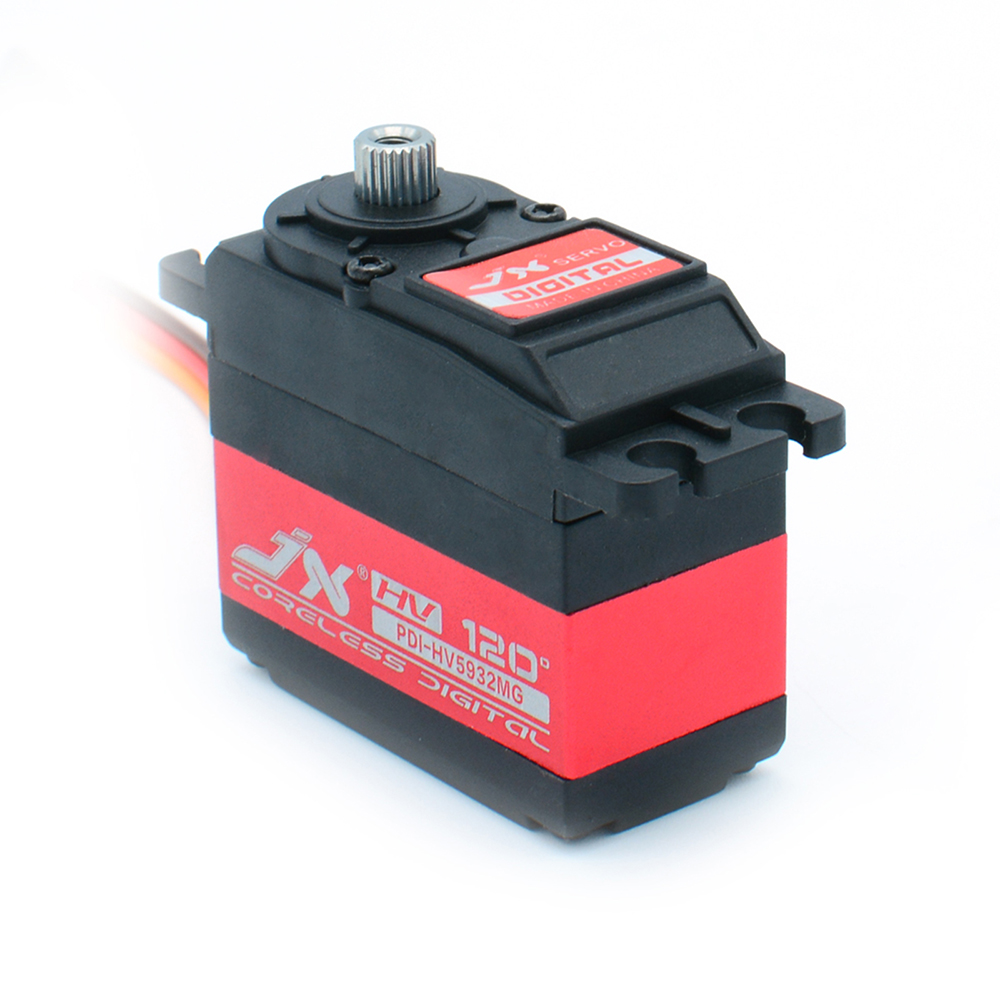

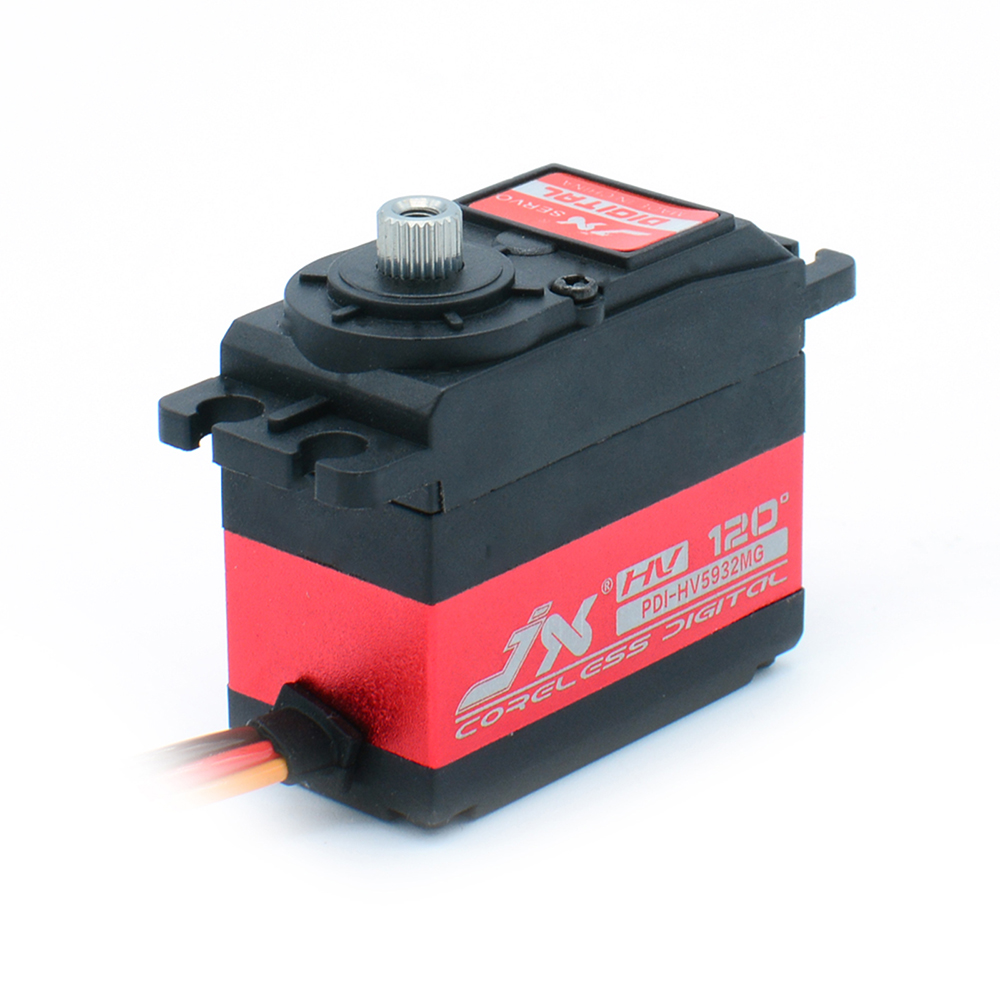

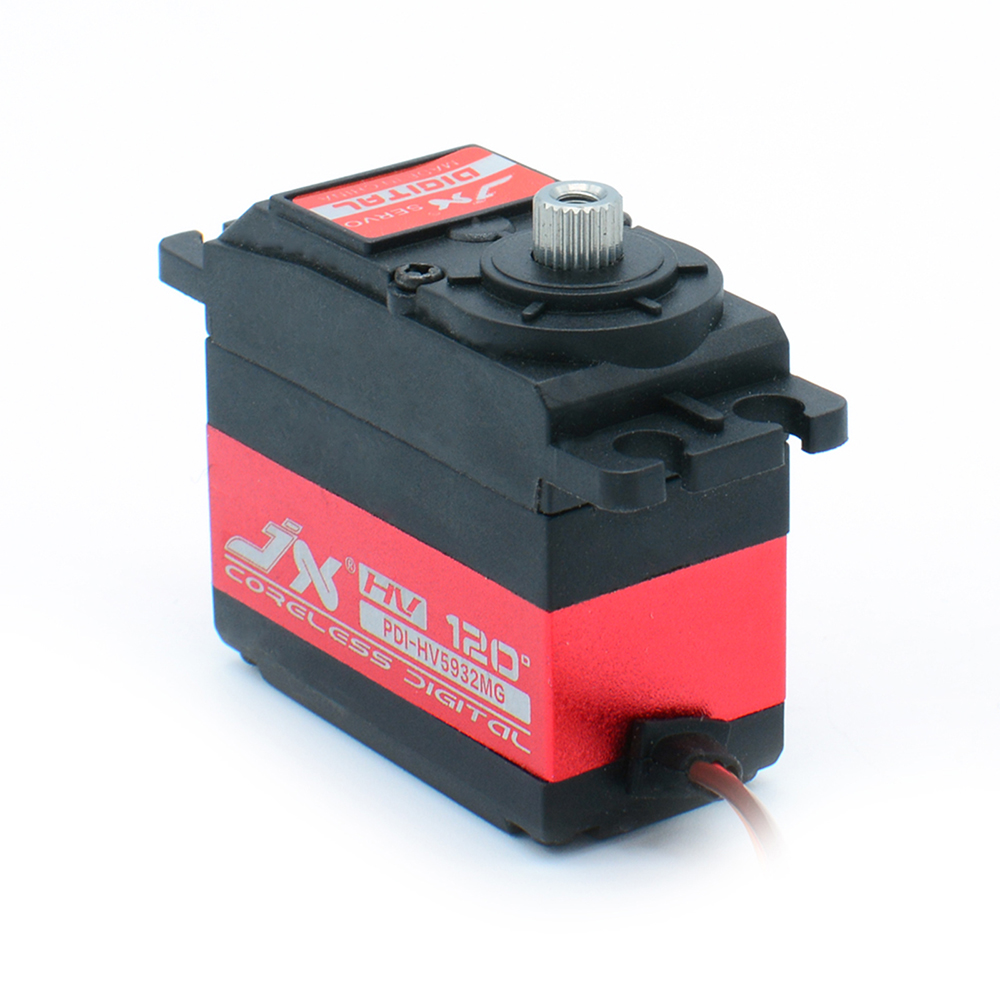

Item:PDI-HV5932MG digital Servo
Dead band: 1μs 1520μs / 330hz
Motor: coreless motor
Voltage:6.0V-8.4V
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°

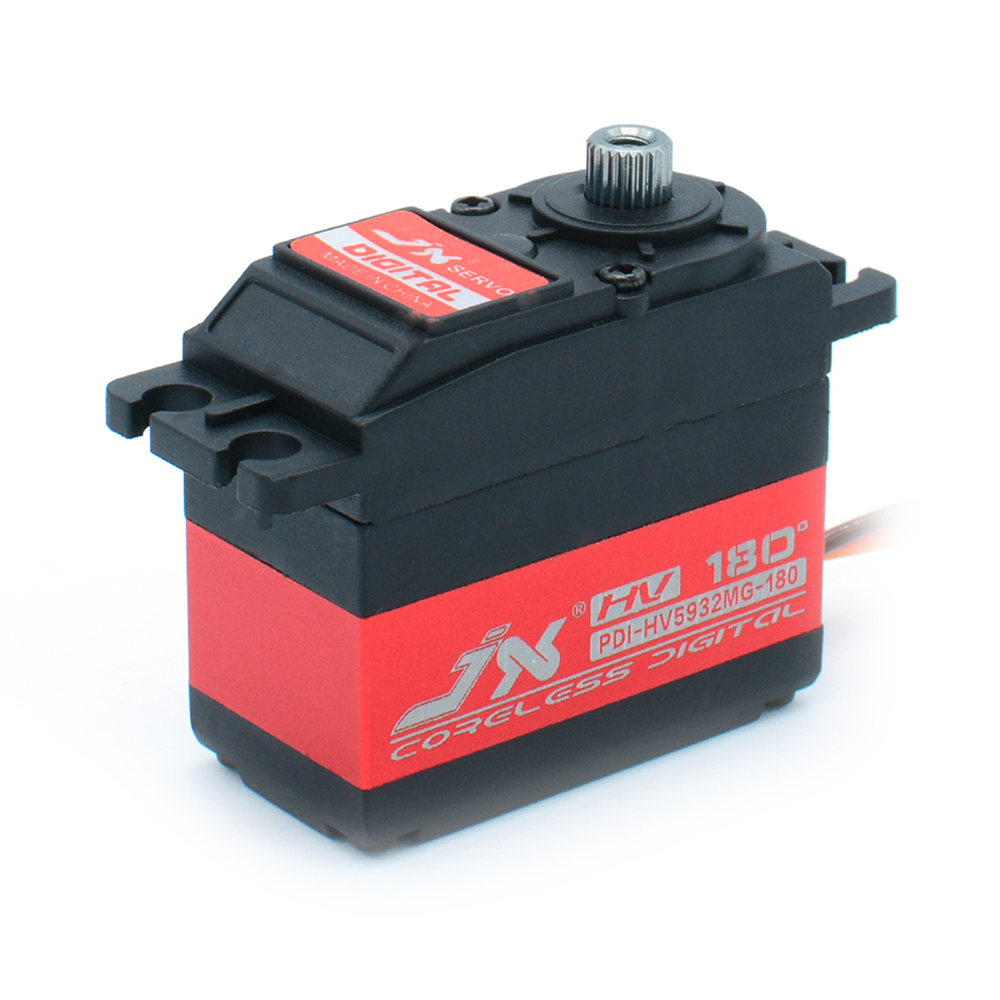

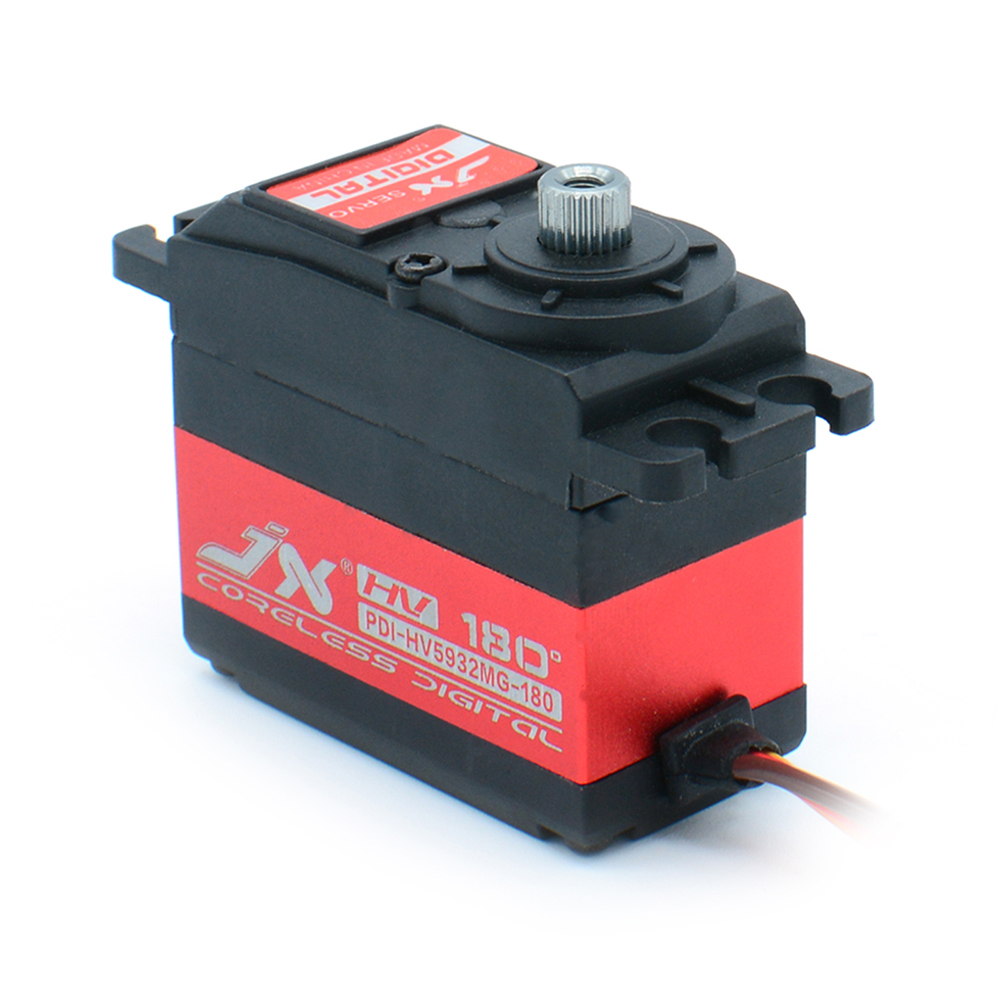

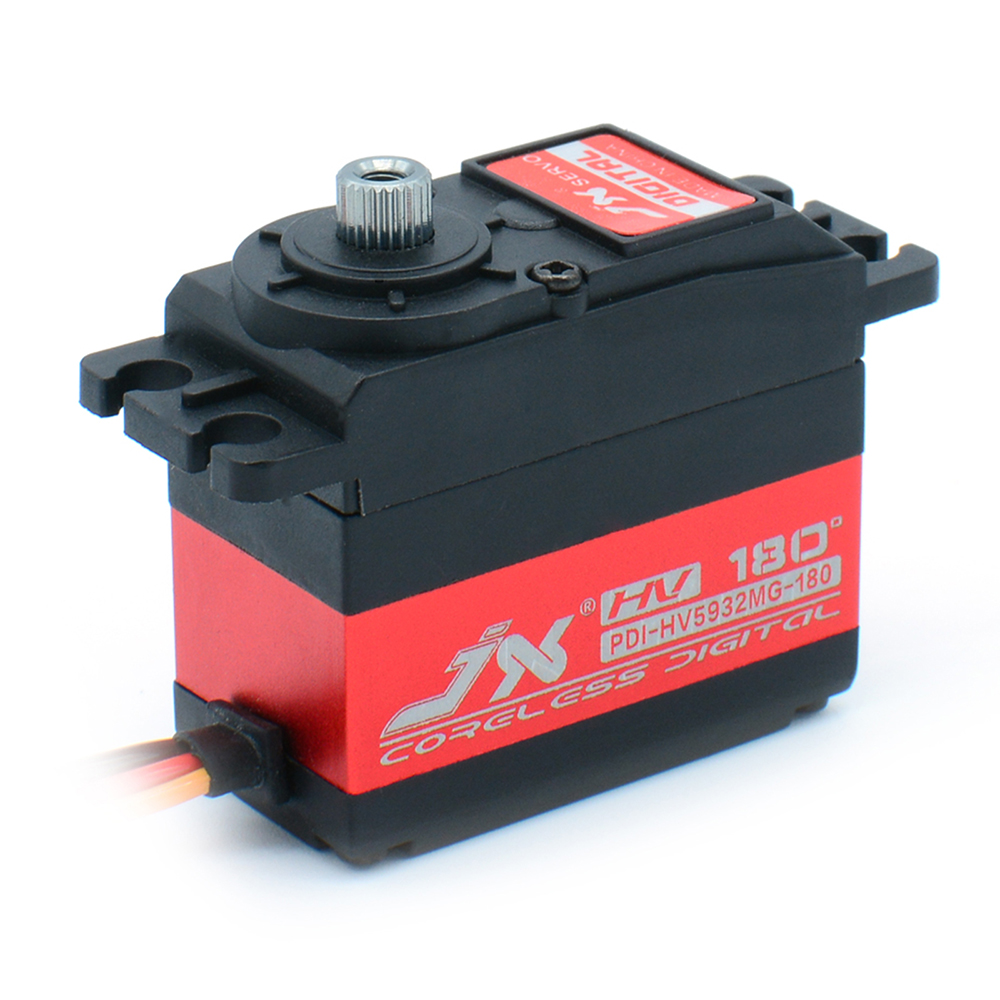

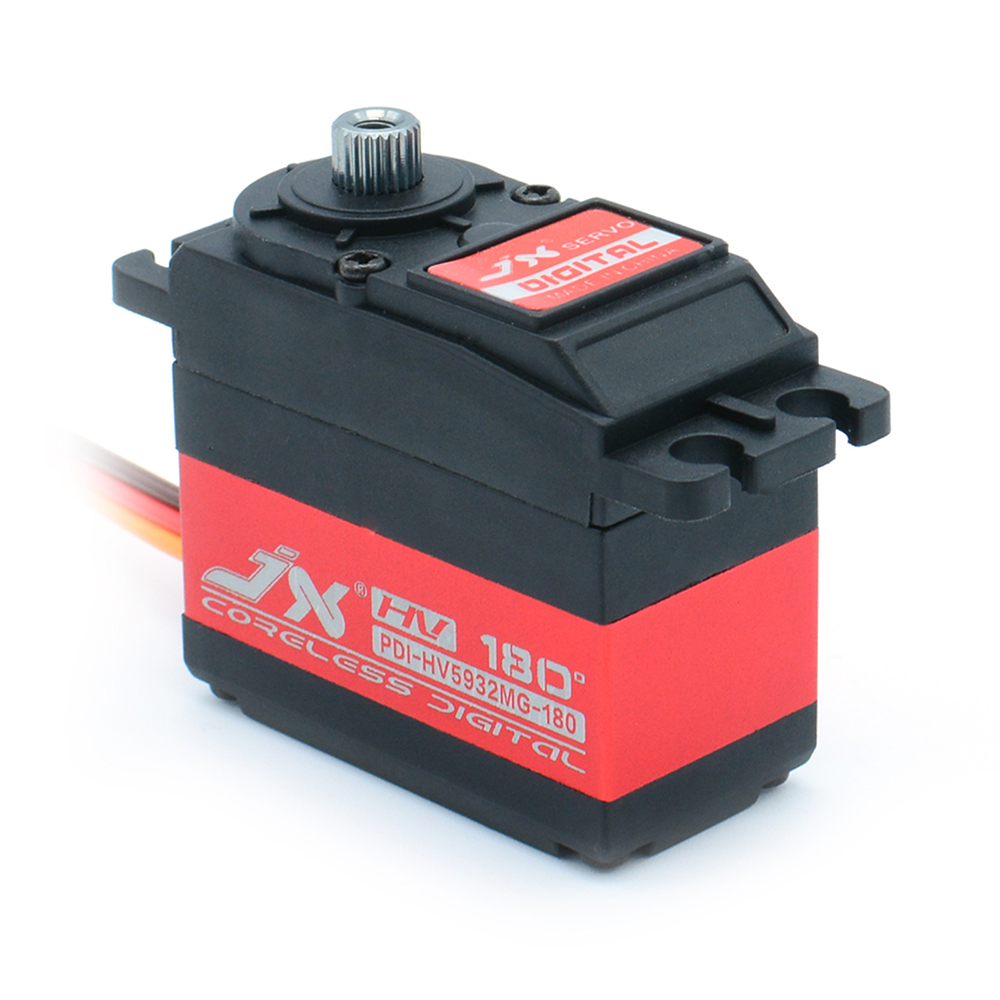

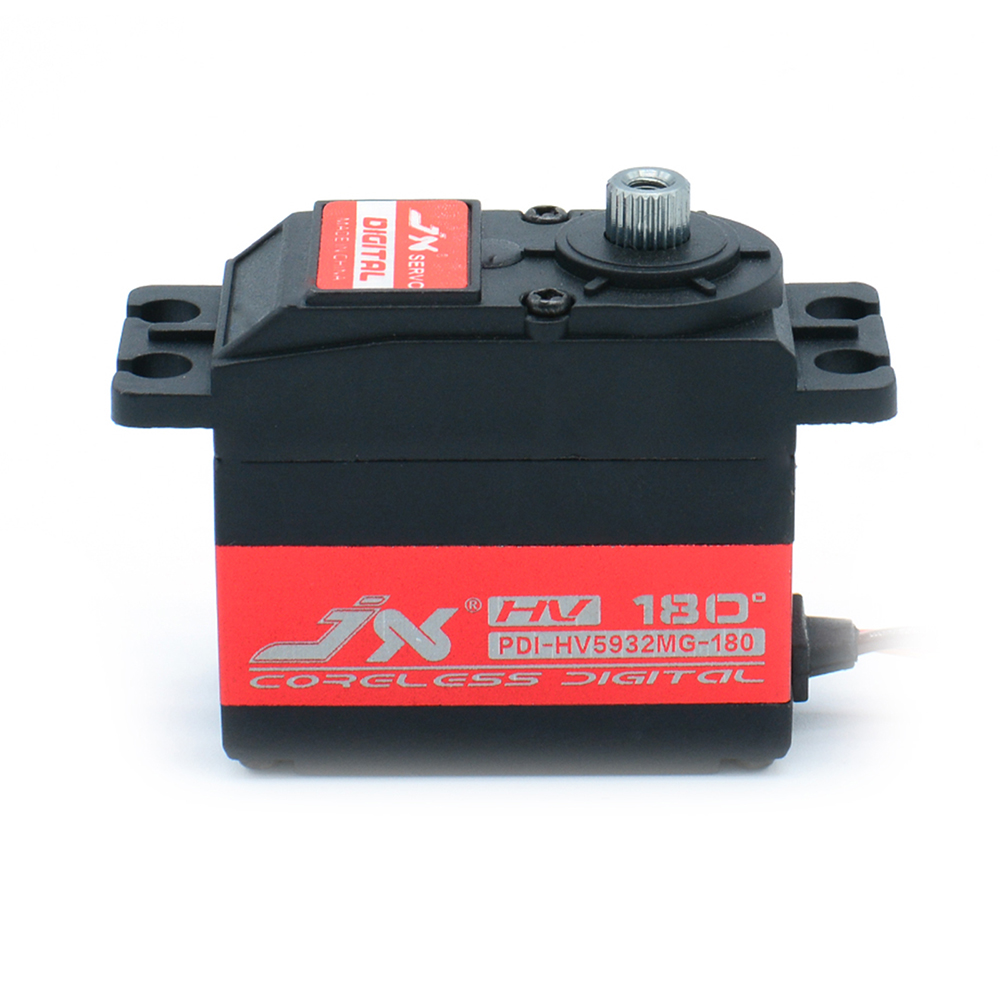

Item:PDI-HV5932MG-180 digital Servo

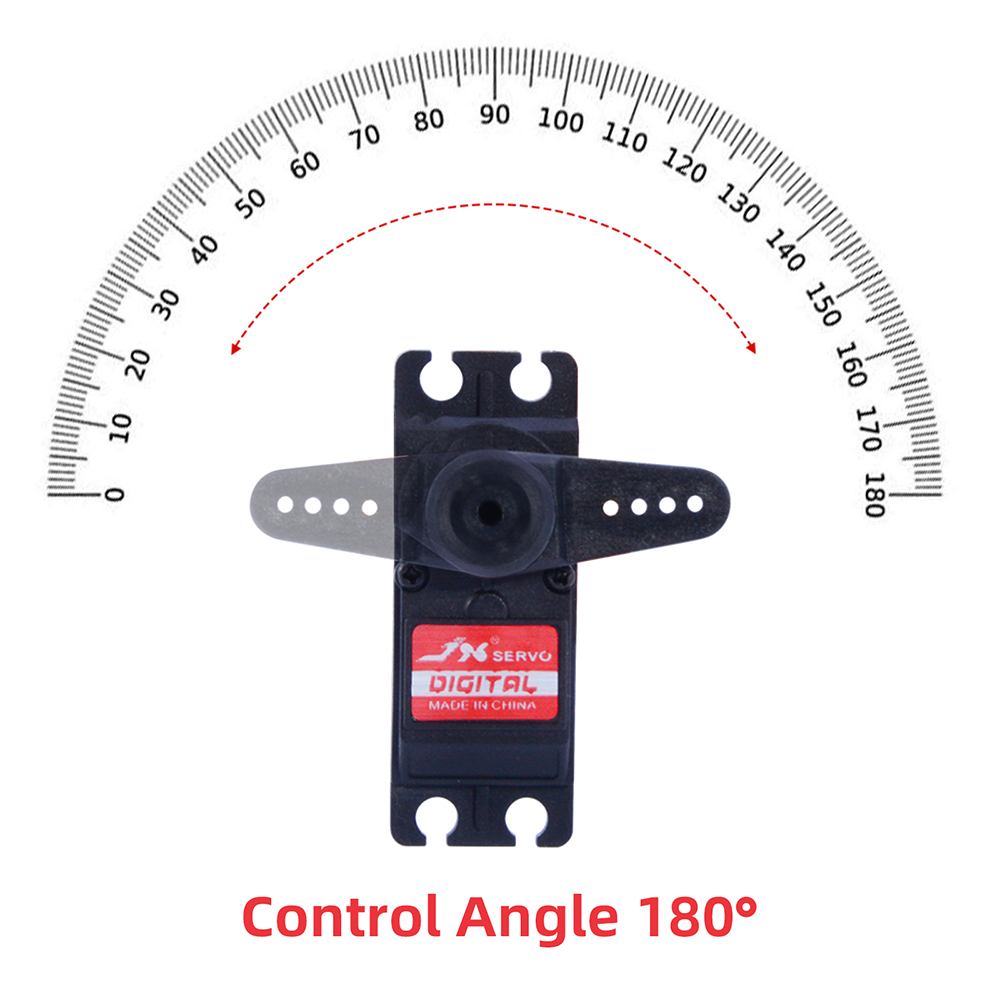

Max Angle:180°
Pulse width:500-2500μs=180°
Dead band: 1μs 1520μs / 330hz
Max PW:500-2500us
Actual Angle: 172±2°
Motor: coreless motor
Voltage:6.0V-8.4V
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°

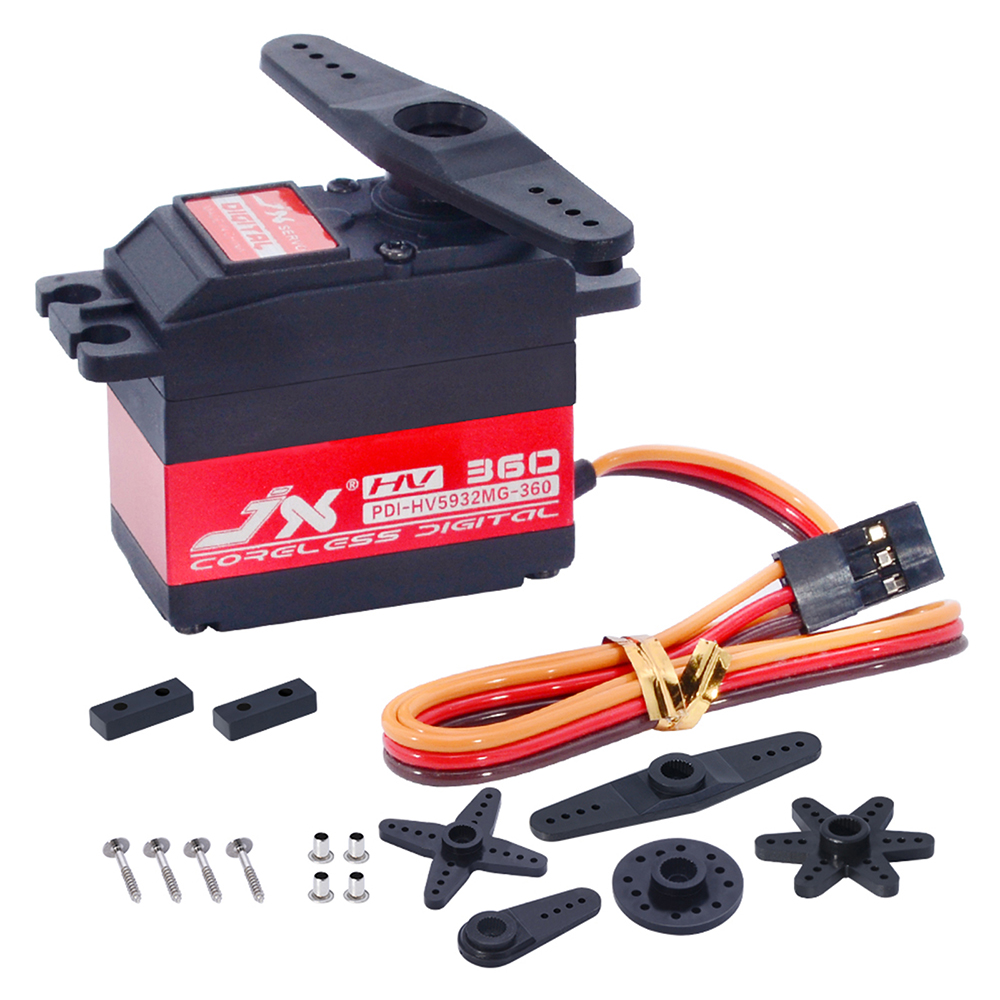

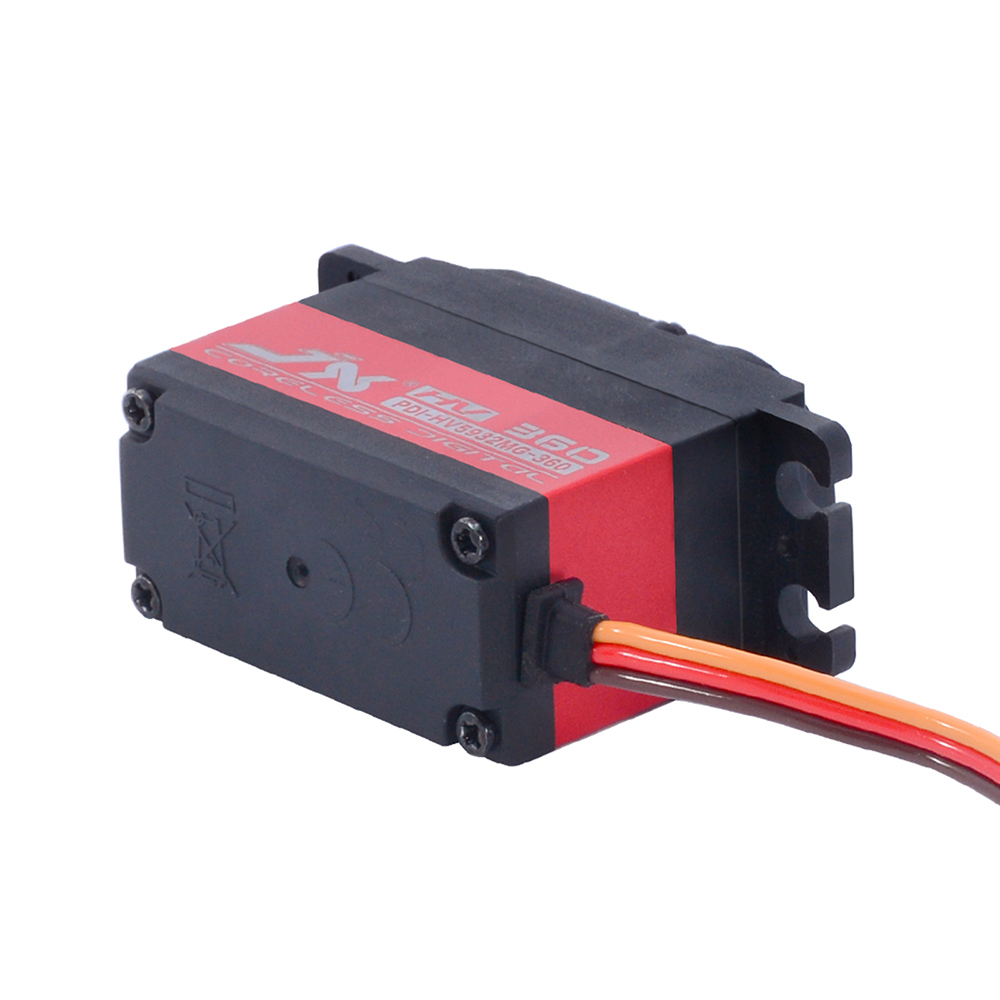

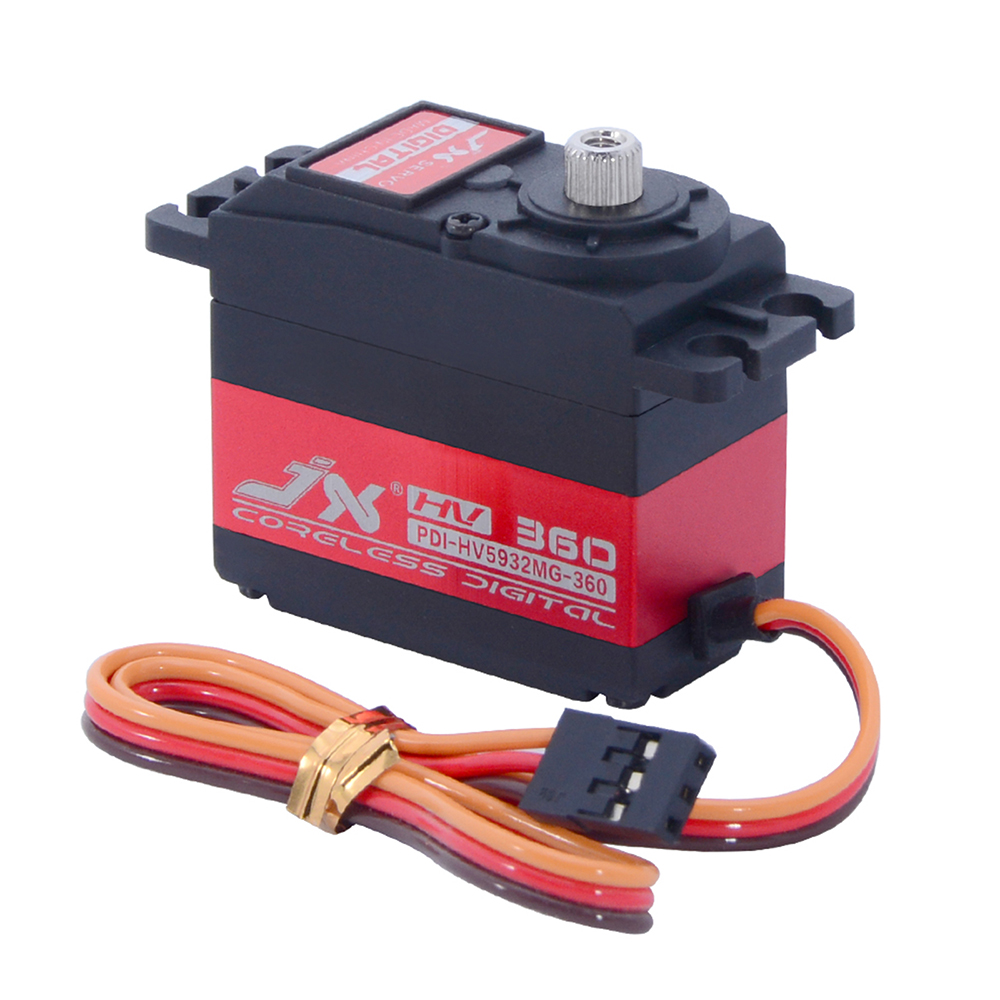

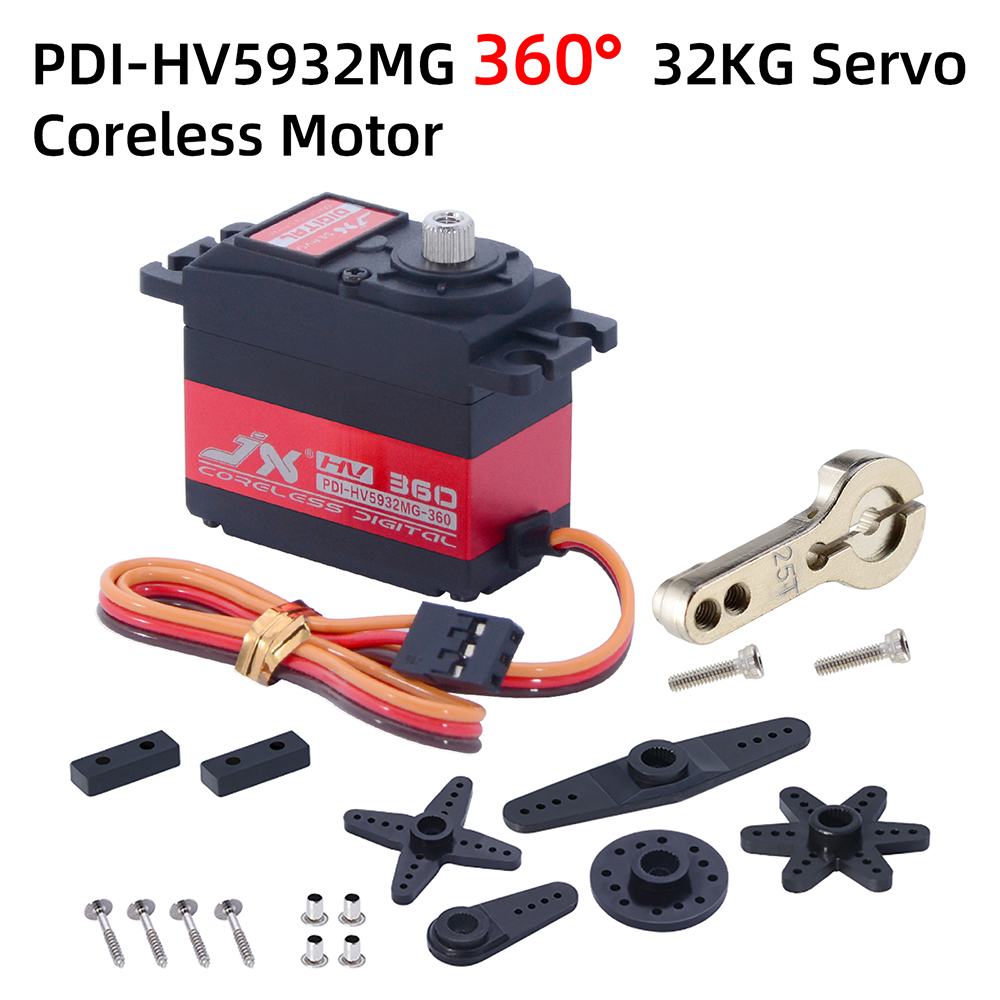

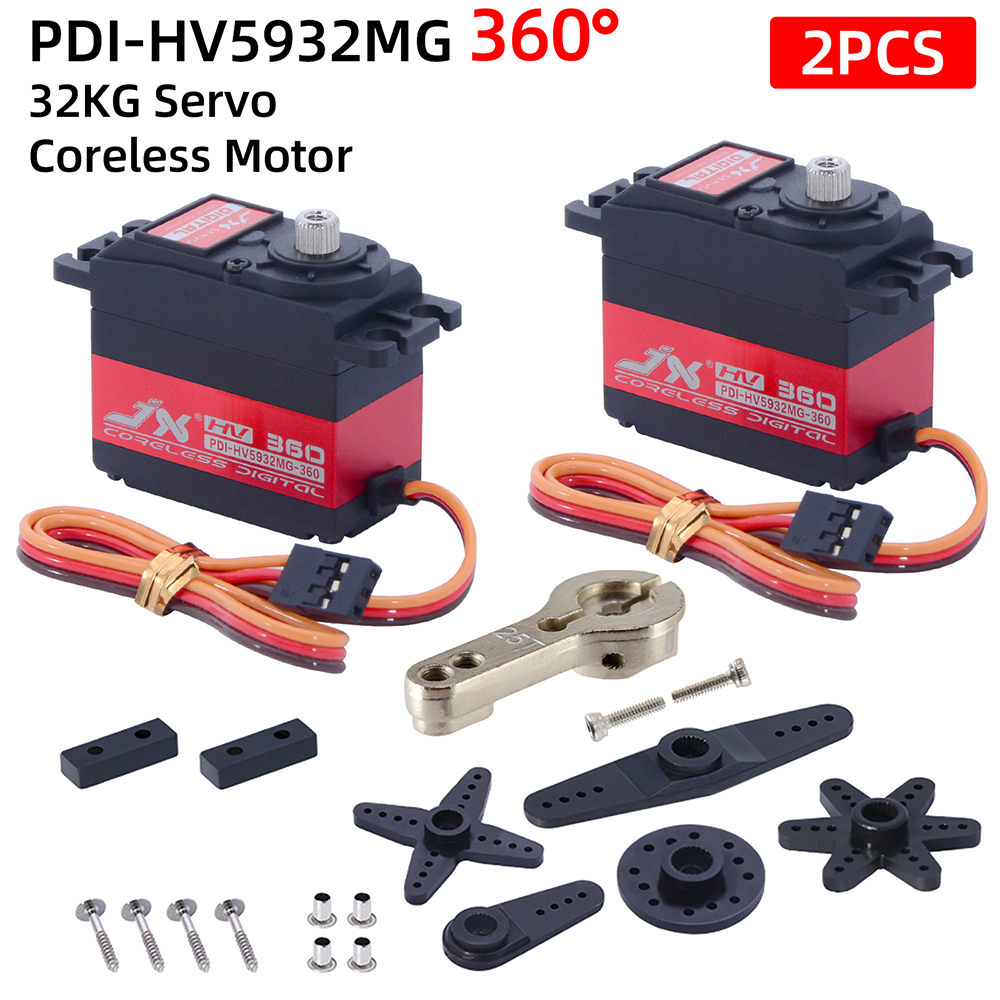

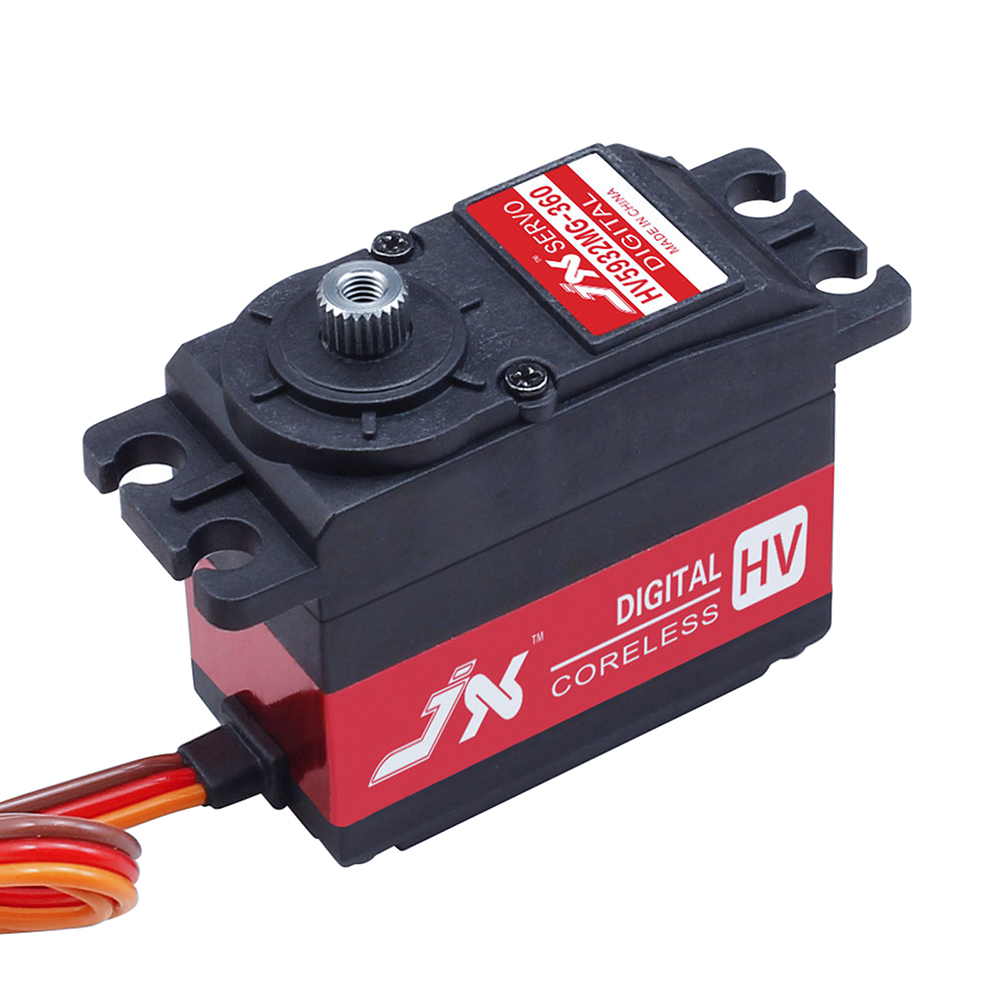

Item:PDI-HV5932MG-360 digital Servo

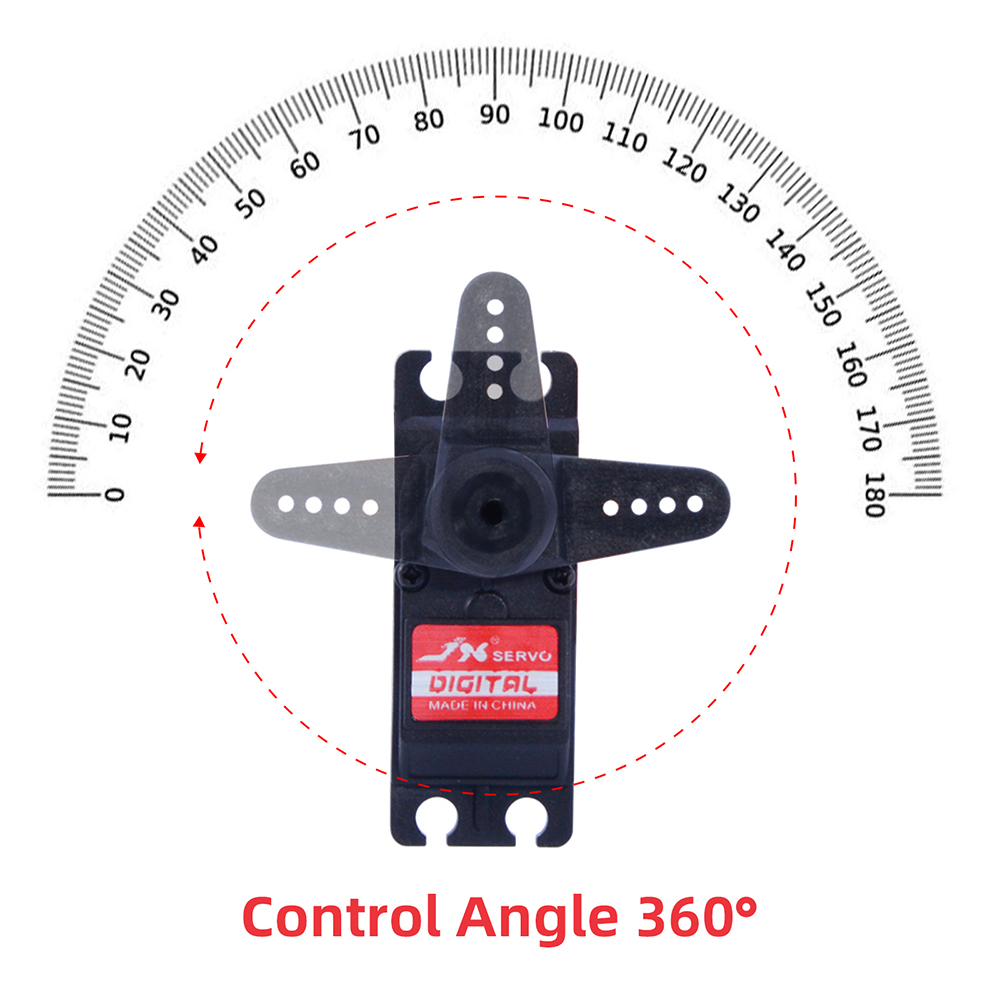

Angle: 360°Continuous rotation
Pulse width: 500-2500μsDead band: 2μs 1520μs / 330hz
Voltage:6.0V-8.4V
Operating Speed (6.0V): 73T/Mins
Operating Speed (8.4V): 102T/Mins
Stall Torque (6.0V): 25.2 kg.cm
Stall Torque (8.4V): 32.3 kg.cm
Weight: 59.3g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

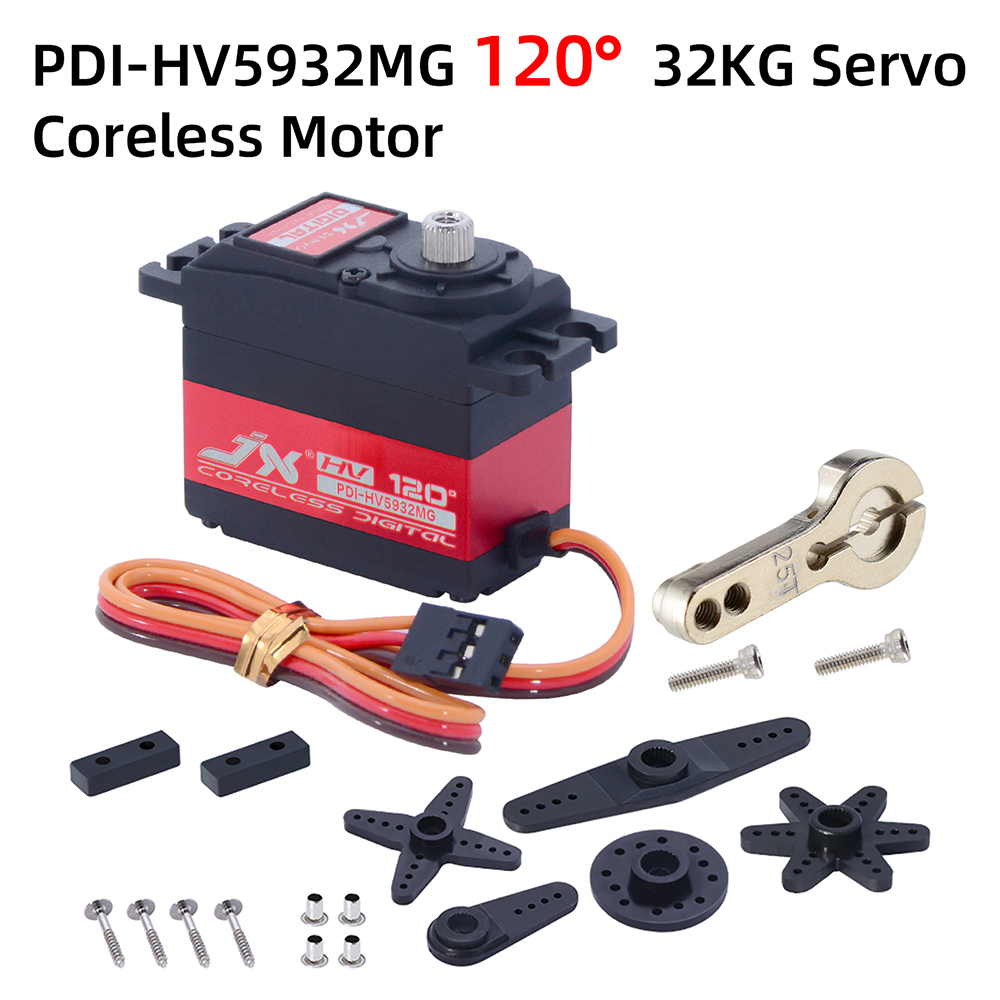

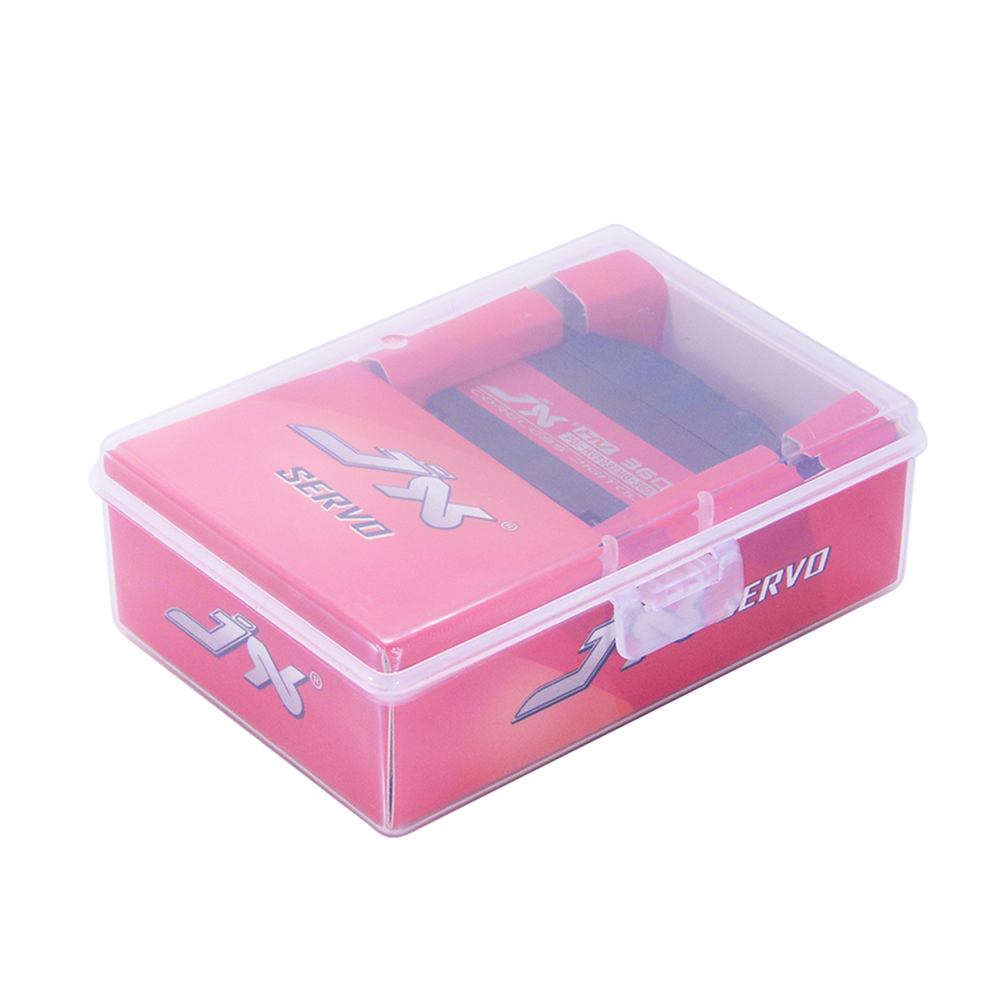

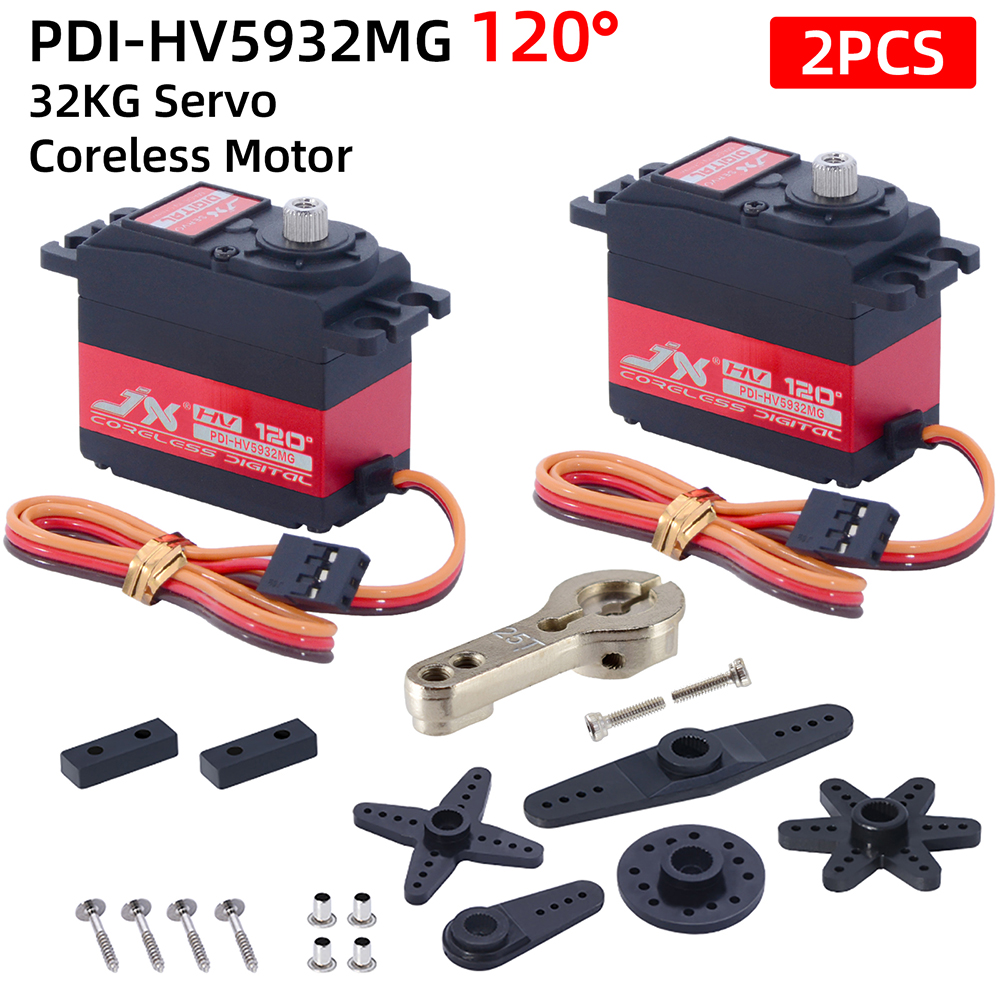

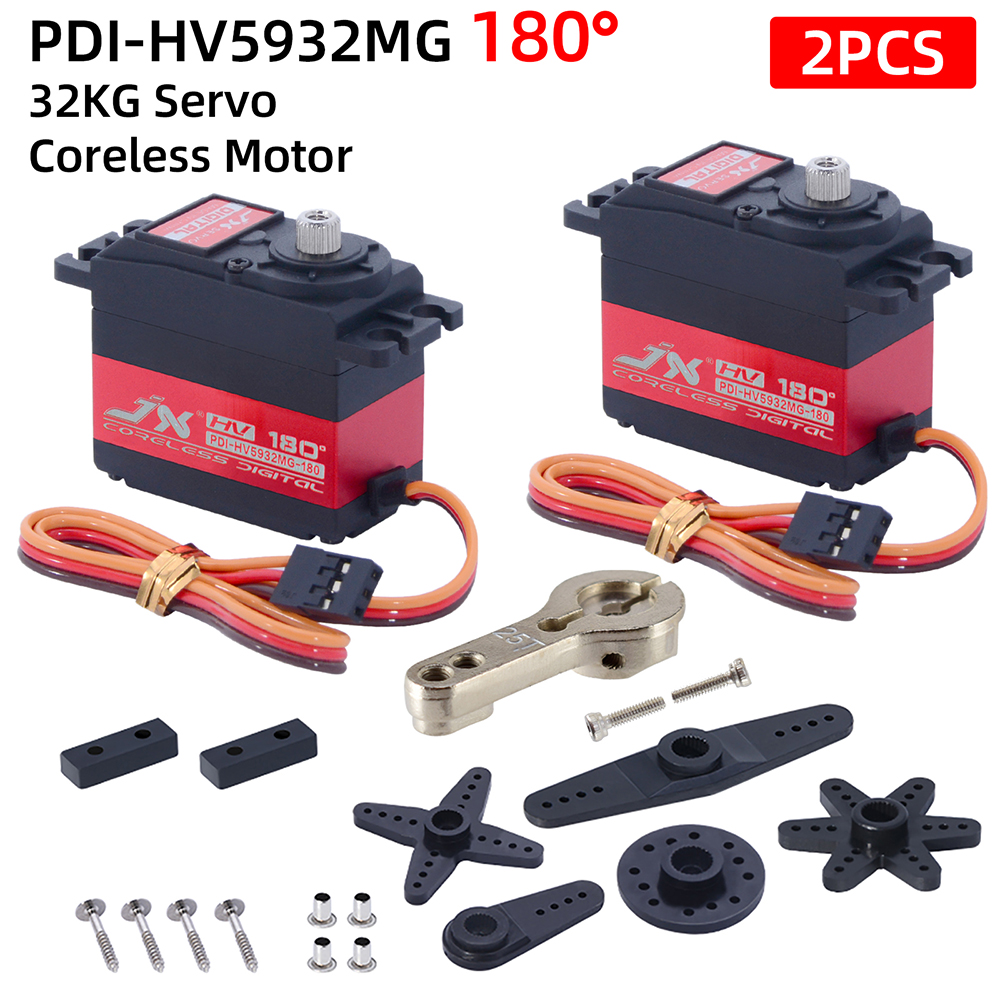

Package Included:
1 x PDI-HV5932MG Metal Gear Servo
1 x Fittings Set
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
