REX-C100 PID Temperature Controller+K Thermocouple 0-400℃+40A Solid State Relay
Items Description
Features
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Power : AC 100-220V 50/60HZ
Process value (PV), Setting value (SV)
Output, and self-tuning can be indicated by:LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
PID Temperature Controller Detective temperature rang: 0 to 900℃
(Probe sensor temperature range 0 to 400℃)
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Insulation resistance: Power Consumption < 10 VA
Service environment: 0~50℃
Environment with no corrosive gas: 30~85% RH
Max.40A SSR
Output Current: 40A
Input Voltage: DC 3-32V
Output Voltage: 24-380V AC
Output Voltage Range: Standard Type
Please Note:
PID Temperature Controller detective temperature range is 0 to 999℃, but temperature range of probe sensor we delivered is 0 to 400℃.

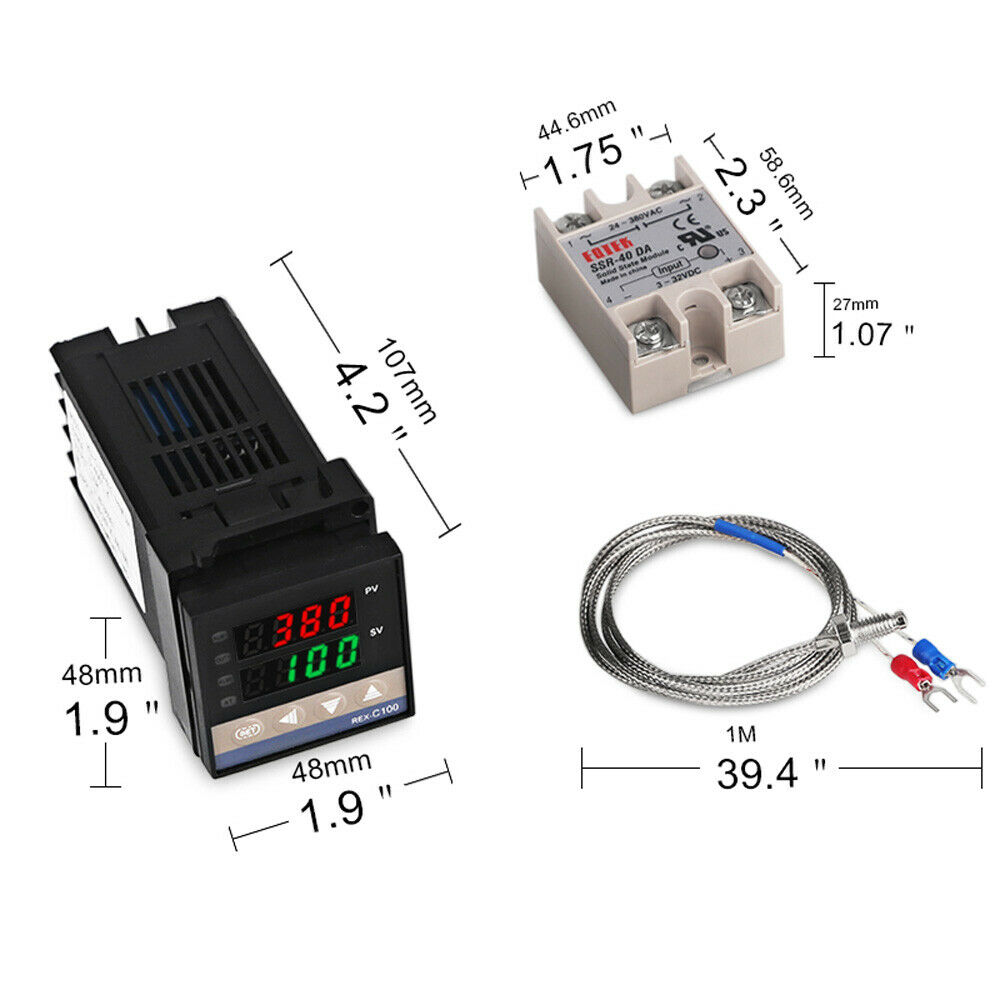

Package Included：

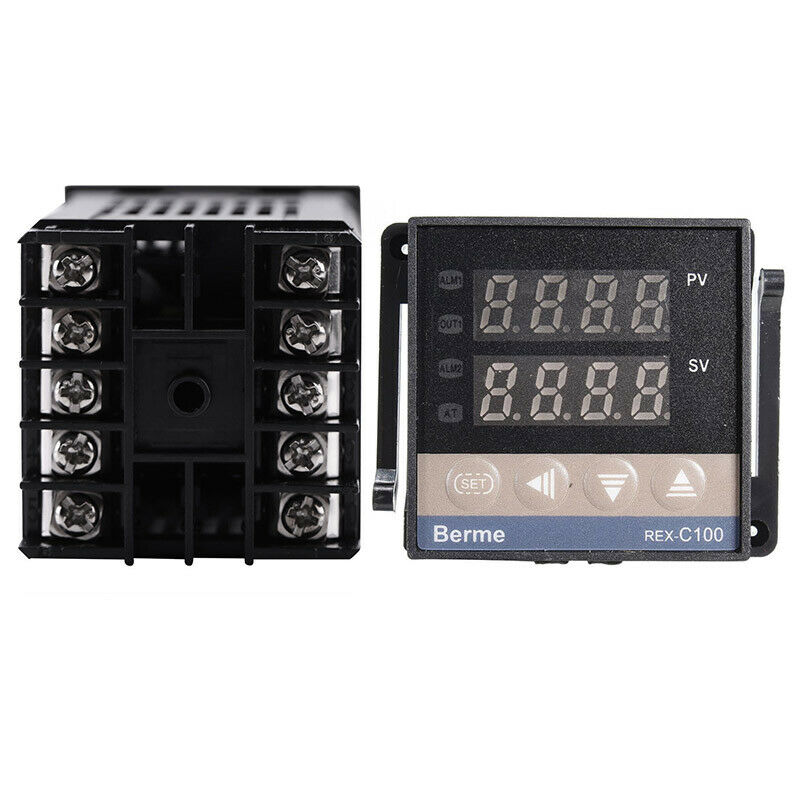

1 x PID Temperature Controller
1 x1M K Type Probe Sensor
1 x Max.40A SSR
