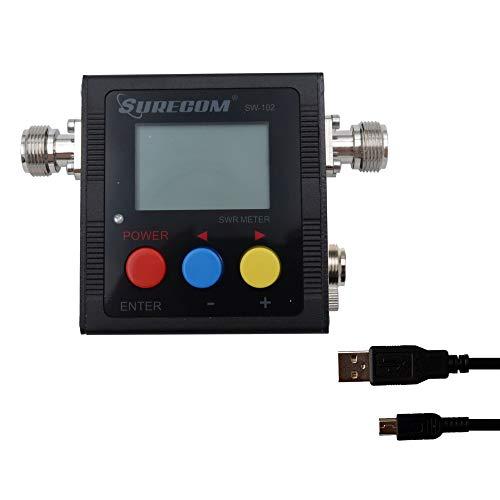

Gam3Gear Surecom SW-102S SO239 Connector Digital VHF UHF 125-525Mhz Power & SWR
Features:
  • VSWR. Forward and reflected power direct digital readout, without any calibration. NOTE: DOES NOT compatible with Digital Radio
  • Maximum measurable power range up to 120W.
  • Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
  • Build in Frequency counter . Interface (in and out ): SO239.

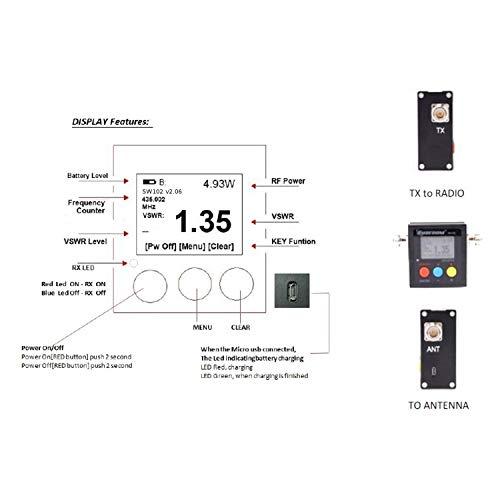

Description: Warning: DOES NOT compatible with Digital Radio Model: SW-102S Features: 1 VSWR. Forward and reflected power direct digital readout, without any calibration. 2. Maximum measurable power range up to 120W. 3 low insertion loss (0.3 decibels or less) structure allows it to be permanently connected. in Frequency counter . 5. All Funtion display ( Frequency,Power , SWR,FW,RW,Battery Level) Specifications: Frequency range: 1025 - 525MHz Measurable power range: 1 - 120W(+-0.5%) Input Frequency counter (min 0.5 W input) Maximum power: 120W Impedance: 50Ω Size: W 76 X H 77 X D35 mm. Weight: < 220 grams Battery : Li-ion Rechargeable Battery Interface: SO239 Interface MAX. Power in: 120 W (Measurable power,Radio must be ANALOG) : ~19.9 Frequency Ranger: COVER : 100MHz~520MHz Insertion Loss: < (VHF) , < (UHF) Temperature: 0℃~60℃ Frequency counter: Yes ( TX input must be minimum + - 0.5%) Battery Voltage Display: Yes Battery Build-in: 900MAH (14500 Li-ion Rechargeable) Auto Power Off: 1-9 mins Size: 66*68*37 (mm) Charger in: 5V (micro usb) Backlight: AUTO OFF 1-9 mins Interface (in and out ): SO239 Weight: 220g (include battery)
