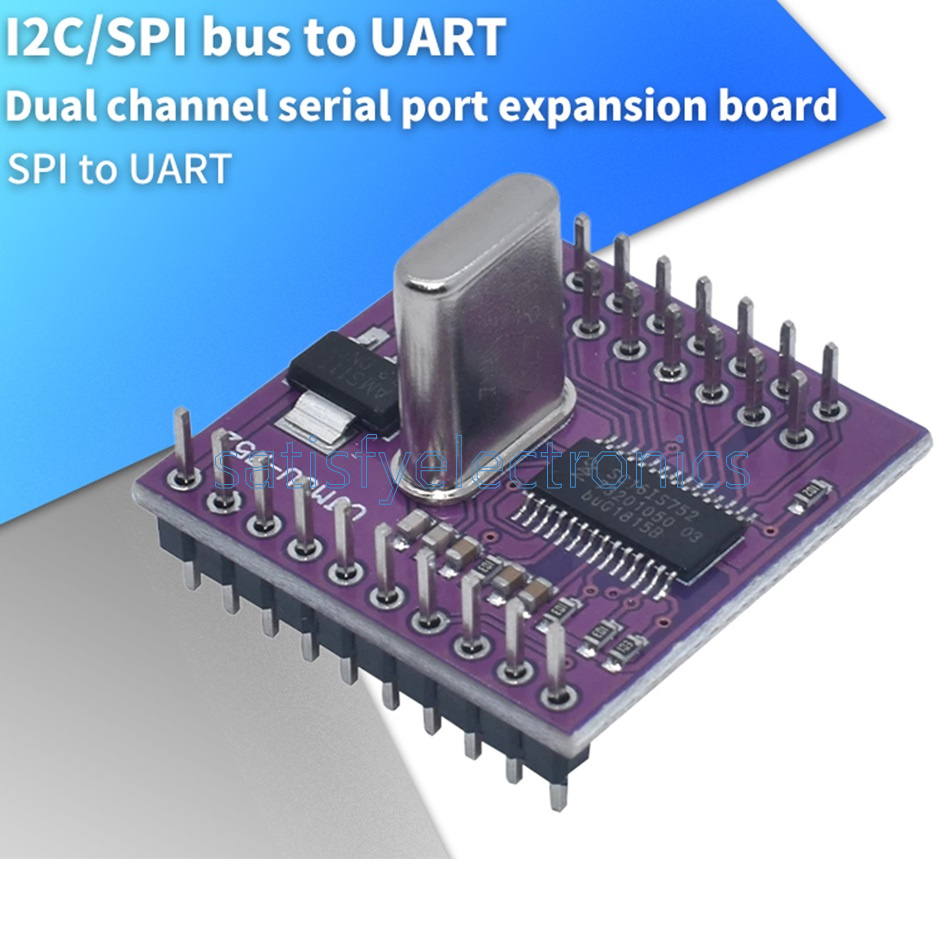

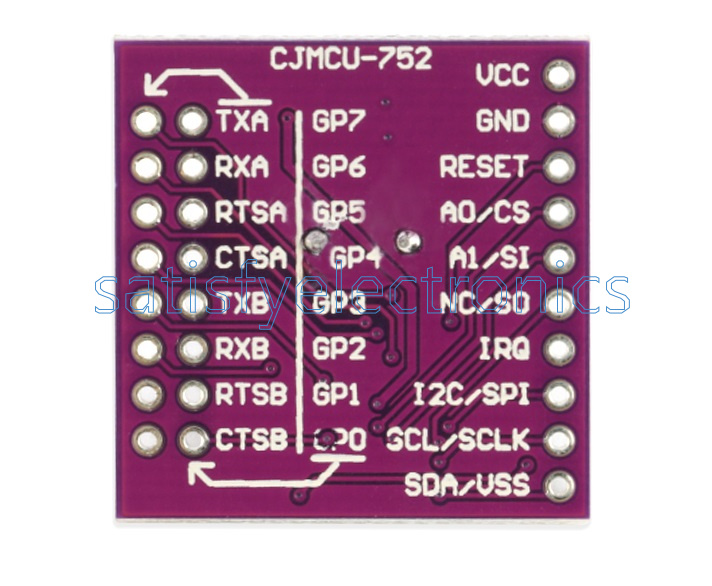

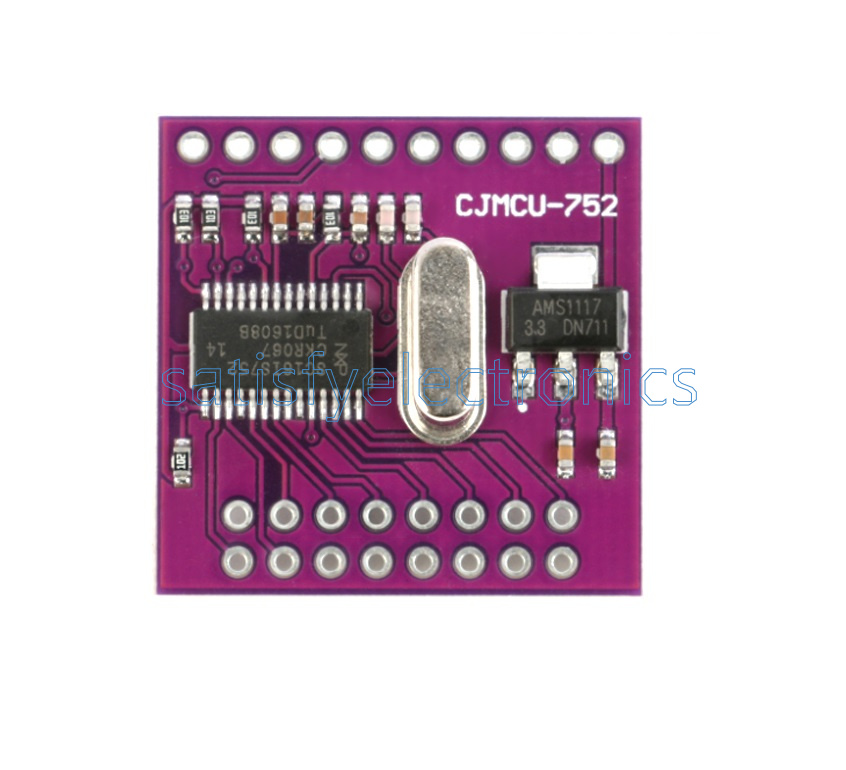

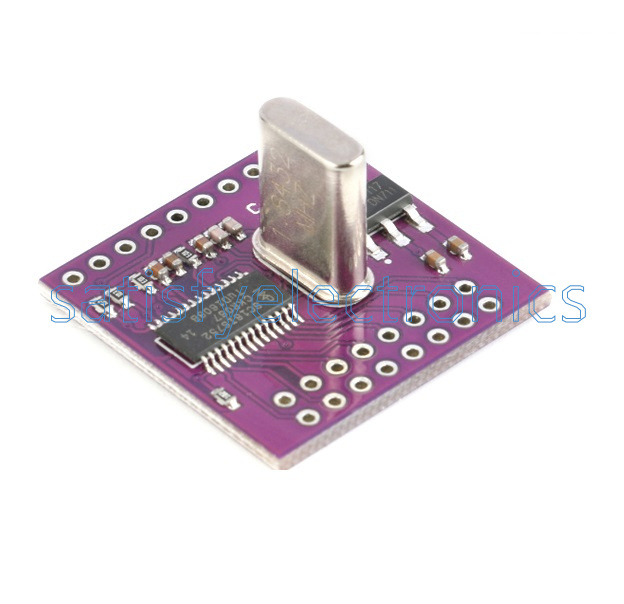

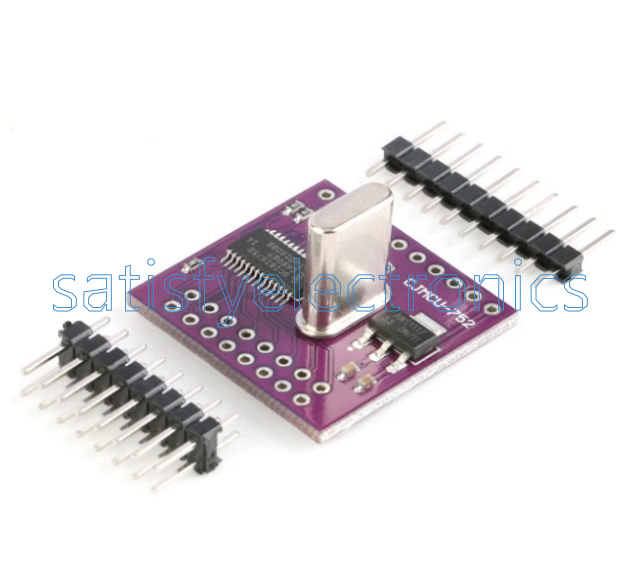

1PCS SC16IS752 I2C/SPI bus interface to dual channel UART conversion module

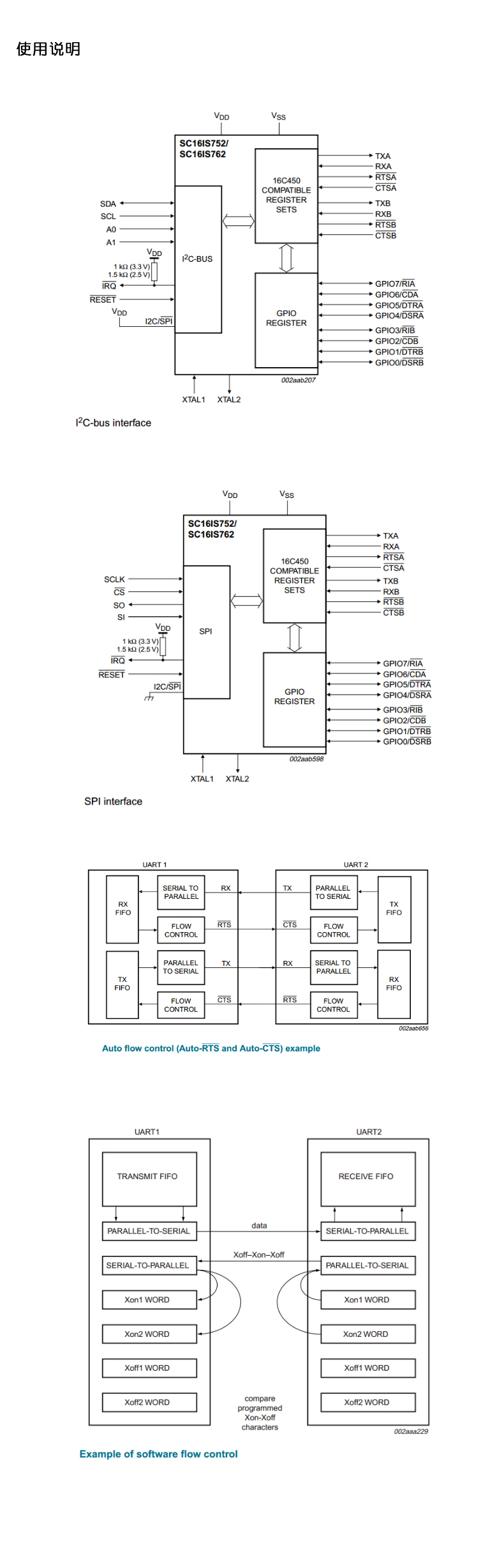

Product Features
The SC16IS752 is an I2C bus/SPI bus interface that connects to a dual-channel, high-performance UART, providing data rates up to 5 Mbit/s, low operating and sleep currents, and eight additional programmable I/O pins for the application. Seamless protocol conversion from I2C bus/SPI to RS-232/RS-485, and fully bidirectional. The SC16IS752 only supports SPI clock speeds of 4 Mbit/s and it supports IrDA SIR up to 1.152 Mbit/s. The internal register set is backward compatible with the widely used and popular 16C450. Supports automatic hardware and software flow control, automatic RS-485 support, and software reset. Allows the software to reset the UART at any time, independent of the hardware reset signal.

Product Parameters

  • Dual Full-Duplex UART

  • Optional I2C bus or SPI interface

  • 3.3 V or 2.5 V operation

  • Industrial temperature range: -40 °C to +95 °C

  • Fully compatible with industry standard 16C450 and equivalent

  • Baud rate up to 5 Mbit/s in 16× clock mode

  • Automatic hardware flow control using RTS/CTS

  • Automatic RS-485 support (automatic slave address detection)

  • Up to eight programmable I/O pins

  • RS-485 driver direction control via RTS signal

  • RS-485 driver direction control reversal

  • SC16IS762 supports IrDA SIR up to 1.152 kbit/s

  • Software reset

  • Enable/disable transmitters and receivers independently of each other

  • Programmable special character detection, fully programmable character format

  • 5-bit, 6-bit, 7-bit or 8-bit characters, even, odd or no parity, 1, 11⁄2 or 2 stop bits

  • Line stop generation and detection

  • Internal loopback mode

  • Sleep current below 3.3 μ at 3.3 V

  • 5 V tolerance input

  • Built-in IrDA encoder and decoder support IrDA SIR up to 115.2 kbit/s

  • Automatic software flow control with programmable Xon/Xoff characters, single or two Xon/Xoff characters

  • 64-byte FIFO (transmitter and receiver), receive and transmit FIFO levels


SPI Bus Function

  • SC16IS752 supports SPI clock speeds of up to 4 Mbit/s

  • Slave mode only

  • SPI mode 0

  • Small board size: 27.2mm*26.4mm*15.5mm


I2C Bus Function

  • Noise filter on SCL/SDA input

  • 400 kbit/s (fastest)

  • Compatible with I2C bus fast mode

  • Only slave mode
