Rough idle, low power, high MPG, not flexible acceleration, too long of a cranking
time with a hot engine.......you probably have a damaged fuel distributor diaphragm (even the smallest one) or an internal leak in the fuel
distributor, or both. This is probably because of modern fuel additives & the introduction of ethanol into fuel.
|
 New technology allows us to maintain not only absolute precision in manufacturing the diaphragm, but also handling the cutting corners in a way that the edges of the nylon mesh inside the diaphragm become thermally connected to the base layers of the diaphragm.
The result is exceptional strength and durability while maintaining the original elasticity of the diaphragm. |

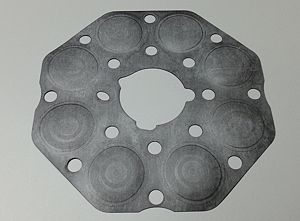

Improved Diaphragm for a eight cylinder alloy Bosch KE-Jetronic Fuel Distributor
After manufacturing the diaphragm (as the penultimate step before installing) with our special equipment the diaphragm is applied to the recess of the ceramic valves. This facilitates the assembly process and eliminates the possibility of rupturing the diaphragm due to improper installation of these valves.
|
This diaphragm is suitable for the following Bosch Fuel distributors numbers:
| 0438101015 |
| Mercedes-Benz |
Model | Chassis | Years | Engine |
| 500 SL | R129 | 03/1989 - 08/1992 | M119.960 |
| 560 SEC | W126 | 10/1985 - 08/1987 | M117.968 |
| 0438101016 |
| Mercedes-Benz |
Model | Chassis | Years | Engine |
| 500 SL | R129 | 03/1989 - 08/1992 | M119.960 |
| 560 SEC | W126 | 10/1985 - 08/1987 | M117.968 |
| 0438101017 |
| Mercedes-Benz |
Model | Chassis | Years | Engine |
| 300 GE | W463 | 08/1990 - 08/1993 | M103.987 |
| 420 SE, SEL | W126 | 09/1985 - 06/1991 | M116.965 |
| 420 SEC | W126 | 10/1985 - 06/1991 | M116.965 |
| 420 SL Roadster | R107 | 01/1986 - 08/1989 | M116.964 |
| 500 GE AMG | W463 | 03/1993 - 09/2001 | M117.965 |
| 500 SE, SEL | W126 | 09/1985 - 06/1991 | M117.965 |
| 500 SEC | W126 | 09/1985 - 06/1991 | M117.965 |
| 500 SL Roadster | R107 | 01/1986 - 08/1989 | M117.964 |
| 560 SEC | W126 | 10/1985 - 06/1991 | M117.968 |
| 560 SEL | W126 | 10/1985 - 06/1991 | M117.968 |
| 560 SL Roadster | R107 | 09/1985 - 08/1989 | M117.967 |
| G 300 | W463 | 09/1993 - 10/1994 | M103.987 |
| 0438101018 |
| Mercedes-Benz |
Model | Chassis | Years | Engine |
| 420 SE, SEL | W126 | 09/1985 - 06/1991 | M116.965 |
| 420 SEC | W126 | 10/1985 - 06/1991 | M116.965 |
| 420 SL Roadster | R107 | 01/1986 - 08/1989 | M116.964 |
| 500 SE, SEL | W126 | 09/1985 - 06/1991 | M117.965 |
| 500 SEC | W126 | 09/1985 - 06/1991 | M117.965 |
| 500 SL Roadster | R107 | 01/1986 - 08/1989 | M117.964 |
| 560 SEC | W126 | 10/1985 - 06/1991 | M117.968 |
| 560 SEL | W126 | 10/1985 - 06/1991 | M117.968 |
| 560 SL Roadster | R107 | 09/1985 - 08/1989 | M117.967 |
| 0438101032 |
| Bentley |
Model | Engine | Years | Market |
| Mulsanne 6.8 Turbo | V8 | 10/1986-05/1990 | EU |
| 0438101033 |
| Ferrari |
Model | Liters | Years | Engine |
| Mondail 8 | 3.2 | 01/1988-12/1988 | F105.P.. Kat. |
| Lancia |
Type | Model | Years | Engine |
| Thema 8.32 | 104 | 12/1987-12/1990 | F105 L.046 Kat |
| Thema 8.32 | 104 | 06/1986-12/1989 | F105 L |
| 0438101040 |
| Bentley |
Model | RB key | Years | Engine |
| Turbo R 6.8 | BEY 16 | 11/1991 - 03/1993 | V8 (OHV) |
| Turbo R 6.8 | BEY 15 | 11/1991 - 03/1993 | V8 (OHV Kat) |
| Rolls-Royce |
Model | RB key | Years | Engine |
| Corniche | ROL 44 | 01/1989 - 03/1993 | OHV V8 |
| Corniche II 6.7 | ROL 39 | 07/1989 - 03/1993 | OHV V8 |
| Silver Spirit | ROL 40 | 07/1989 - 03/1993 | OHV V8 (USA) |
| Silver Spirit | ROL 43 | 07/1989 - 03/1993 | OHV V8 (EU) |
| Silver Spur | ROL 41 | 07/1989 - 03/1993 | OHV V8 (CDN, USA) |
Before ordering, please check your fuel distributor part number. It is located on a small metal plate on the
distributor and must be 0-438-10X-XXX
If you have a fuel distributor made by Bosch with a number that is not mentioned above, you may contact us by email, and we can provide you with a kit designed for your vehicle.
A list of all the repair kits available now can be seen here.
!
|
| Instructions on how to replace this diaphragm are not included with your purchase.
When you make a purchase - in the package slip of your order, we provide the email address of our support group. To obtain repair instructions for a Bosch Fuel Distributor using a repair kit, please contact the APM customer service. If you have any difficulty with using our product, or have any kind of questions related to technical data or setting procedure support group of the APM certainly will help you. |
|
 |
Shipping and handling:
If we receive payment before 2.00PM PST - order will be shipped out on the same day.
The payment cleared after 2.00PM PST - order will be shipped out on the next business day.
Delivery times may vary depending on your location.
Tracking numbers will be automatically posted after shipping.
International:
We ship our parts worldwide as long as they are not prohibited in your country. Buyers are responsible for all costs associated with
international shipping including all customs, broker, and other fees. |
