adastra UA60 Compact 5ch 100V MixerAmp

Product Description

Description

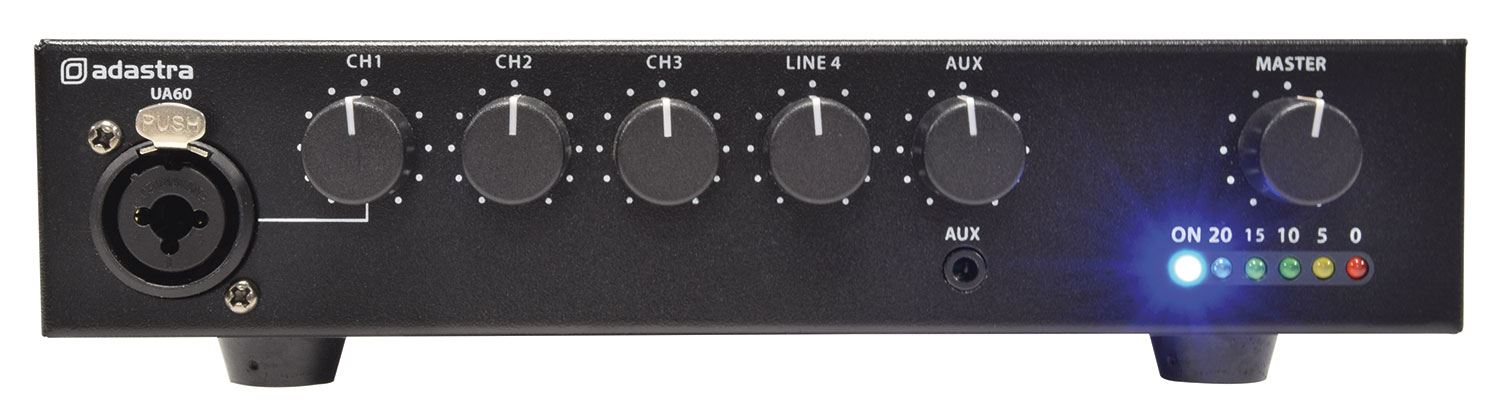

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

Features
24V fire alarm mute contacts
Supplied with hardware for rack-mounting 2 units
5 input channels
100V line or 8 Ohms operation

Specifications
Power supply170-264Vac, 50Hz (IEC)
Amplifier : constructionClass D + transformer output
InputsMic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Line output2 x RCA (mono)
Speaker outputEuroblock terminals: 100V / 8 Ohms / Com
Mute24V relay contacts
THD<0.4% @ 1kHz
Input impedance1k Ohms (mic/line)
Input sensitivity-10dB (line), -45dB (mic)
SNR80dB (line), 75dB (mic)
Frequency response100Hz - 18kHz

adastra UA60 Compact 5ch 100V MixerAmp
