Features:
2.High performance programmable digital brushless standard servo.
3.High-precision Taiwan-made steel gears with hard anodizing.
4.Full CNC aluminium Shell structure.
5.Dual ball bearings.
Descriptions:

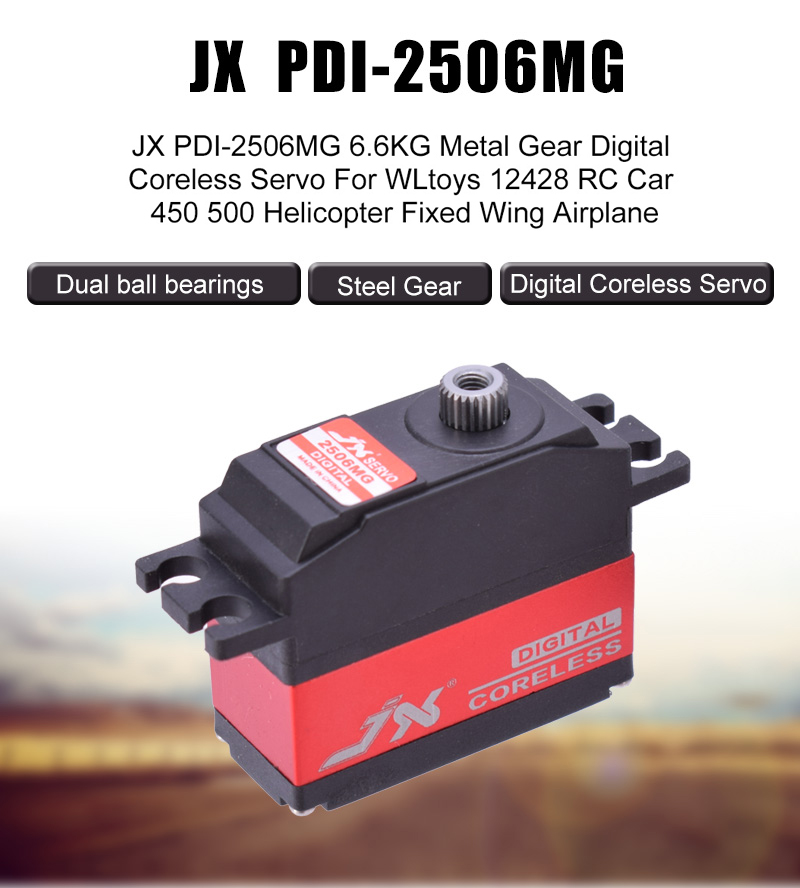

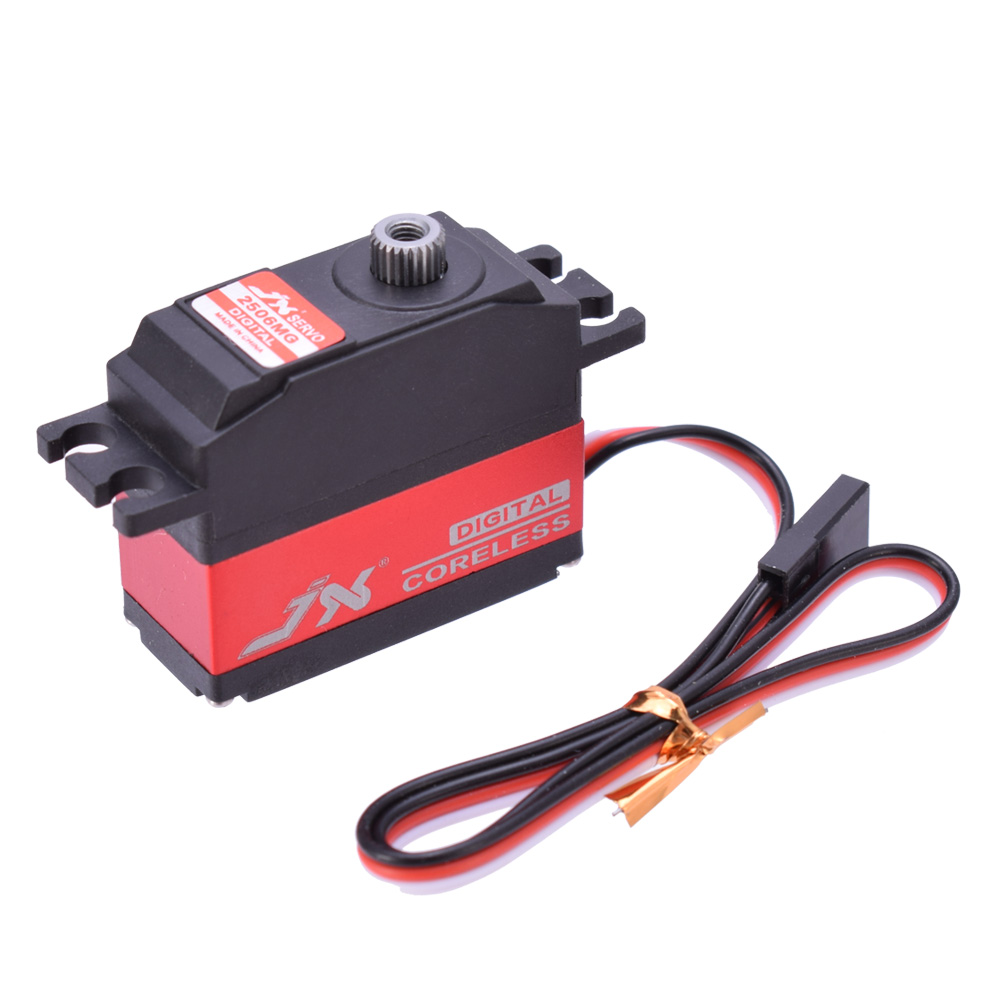

JX PDI-2506MG 6.6KG Metal Gear Digital Coreless Servo For WLtoys 12428 RC Car 450 500 Helicopter Fixed Wing Airplane.
Brand name: JX
Model:PDI-2506MG
Dead band: 1μs
Working frequence: 1520μs / 330hzMotor: coreless motor
Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6V): 0.09 sec/60°
Stall Torque (4.8V): 5.3kg.cm
Stall Torque (6V): 6.6kg.cm

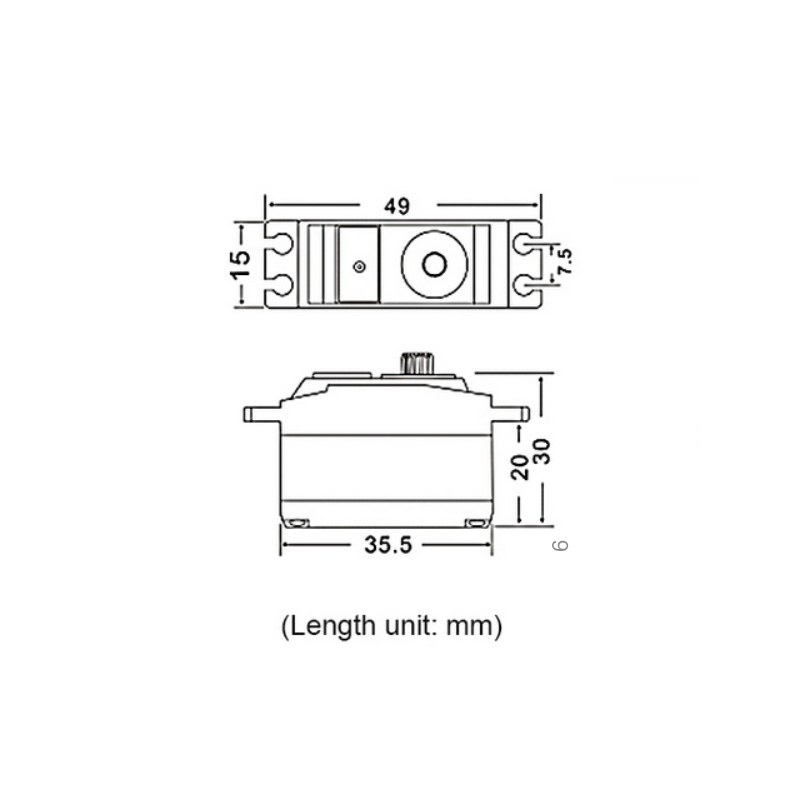

Dimensions: 36X15X32.4 mm/1.42X0.59X1.28in
Connector Wire Length: JR 180 mm (7.09in)
Bearing: 2BB
Weight: 26.32 g (0.93oz)
Package information:
Package size: 6.5*4.8*4cm
Package weight: 45g
Brand gift box package
Note:
There could be a few deviations due to manual measurement.
