STLF-15GA-PAIR

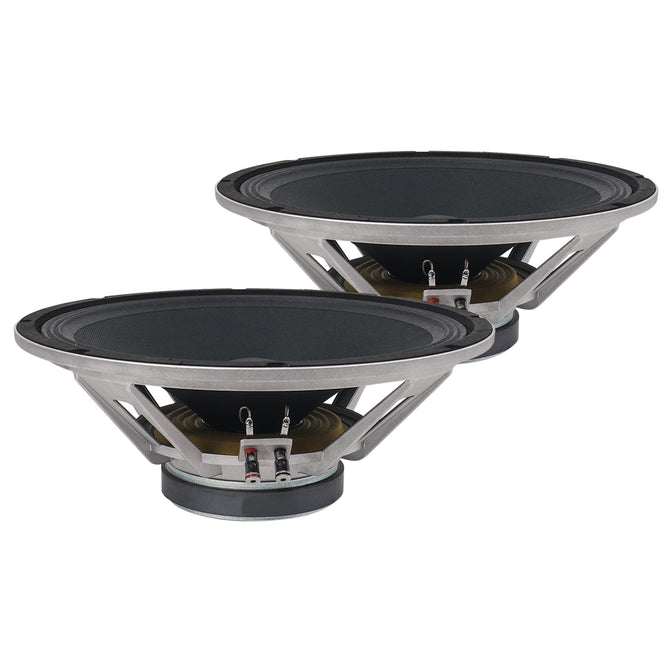

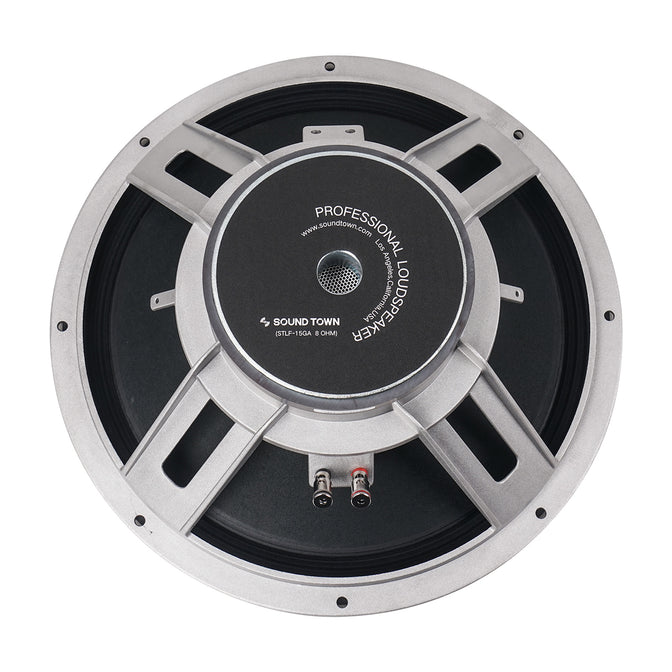

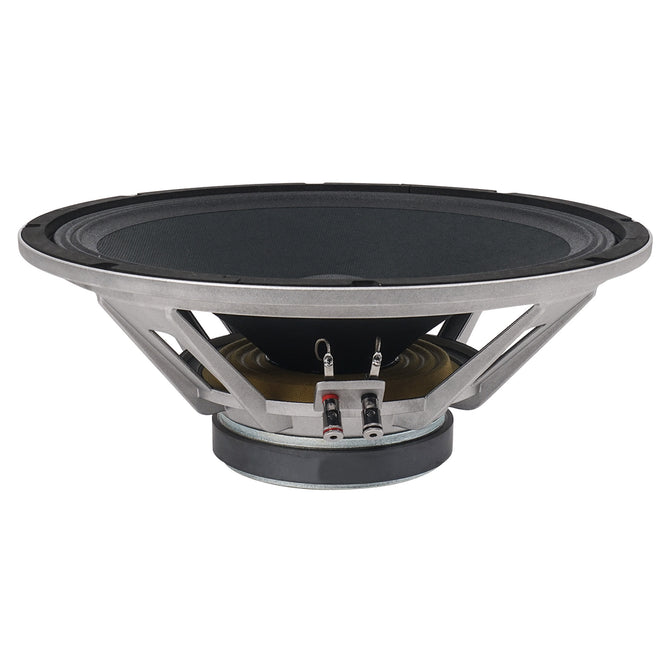

Sound Town 2-Pack 15" 300W Cast Aluminum Frame Woofer w/ 3" Voice Coil, Replacement Woofer for PA/DJ Speaker, Bass Guitar Cabinets




The Sound Town STLF-15GA is a 15" universal replacement woofer for PA/DJ speakers and bass guitar cabinets; it is compatible with the Sound Town PA speakers and speakers of other brands which need a 15" low-frequency driver. The woofer comes with 8-ohm impedance and has a frequency range of 45 Hz - 3.5 kHz. It is built in a cast aluminum chassis and has a paper cone with cloth edge. With 300W RMS, 600W peak power handling capability, the STLF-15GA delivers massive and deep bass and makes a great replacement woofer for your 15-inch PA speakers or bass guitar cabinets.


Features

  • 15" cast aluminum frame.

  • 300W RMS, 600W peak power handling at 8-ohm.

  • 45 Hz - 3.5 kHz frequency response.

  • 3" voice coil and one 120 oz. magnet produces super sound.

  • Available in single (STLF-15GA) or pair (STLF-15GA-PAIR).



Specifications
Model STLF-15GA Resonance 45Hz
Nominal Basket Diameter 15" Frequency Response 45Hz - 3.5KHz
Nominal Impedance 8Ω Sensitivity 94±3dB
Power Rating 300W RMS Magnet Weight 50oz
Peak Power 600W Peak Voice Coil Diameter 3" VC


Thiele & Small Parameters

Resonant Frequency (fs) 45Hz Compliance Equivalent Volume (Vas) 154 liters
DC Resistance (Re) 6.3Ω Mechanical Compliance of Suspension (Cms) 0.145 mm/N
Mechanical Q (Qms) 4.32 BL Product (BL) 14.38 Tm
Electromagnetic Q (Qes) 0.717 Diaphragm Mass Inc. Airload (MMs) 88.53 g
Total Q (Qts) 0.615 Surface Area of Cone (Sd) 865.8 cm2


Mounting Information

Efficiency Bandwidth 63 Baffle Hole Diameter 13.70", 348mm
Sealed 394.8 liters / 13.94 cu.ft. Installation Position Diameter 14.65", 372mm
Vented 496.8 liters / 17.54 cu.ft. Mounting Holes Diameter 8-0.276", 7mm
Overall Diameter 15.28", 388mm Net Weight 10.12lbs, 4.6kg
Depth 5.98", 152mm -- --


Materials of Construction

Coil Construction Round copper Cone Composition Paper cone
Coil Former Aluminum Cone Edge Composition Cloth edge
Magnet Composition Ferrite Dust Cap Composition Paper cap
Basket Materials Die Cast Aluminum -- --


Dimensions & Weight

Product Width (in.) ∅15.28" Package Width (in.) 18.30"
Product Height (in.) 5.98" Package Height (in.) 7.60"
Product Depth (in.) --" Package Depth (in.) 16.30"
Product Weight (lb.) 10.12 lbs Package Weight (lb.) 13.00 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year
