Model: 1969 small class

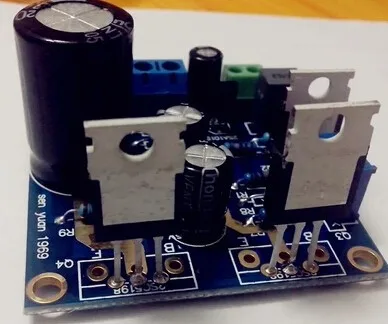

Power tube type: TIP41C

The output power of 5W for each channel;

Power consumption: 20W each channel

Power supply: single DC 12-30V

Static current: before delivery in standard 25 volt DC down to 0. 8-0. 9A

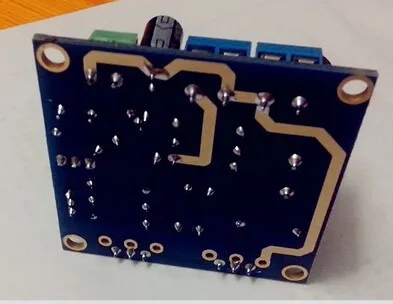

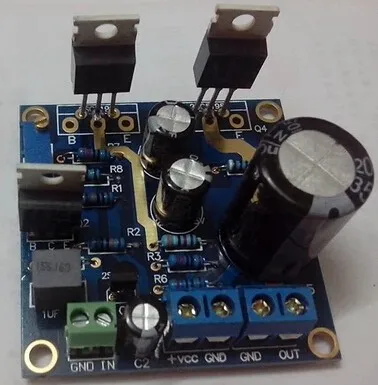

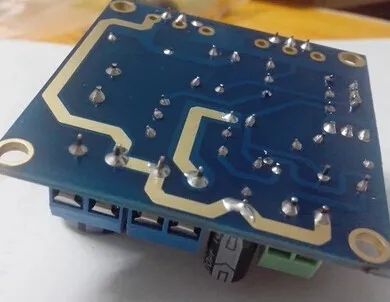

Board size: 5*5cm

Thickness: 1.6mm

Glass fiber board Sided Design

The use of the material board;

Resistance: all 5 color ring precision metal film resistors

Adjustable resistor; sealed multi circle adjustable resistor

The input capacitor: is Fala the non-polar capacitor

High quality electrolytic: Changhong electrolysis
