Specification:

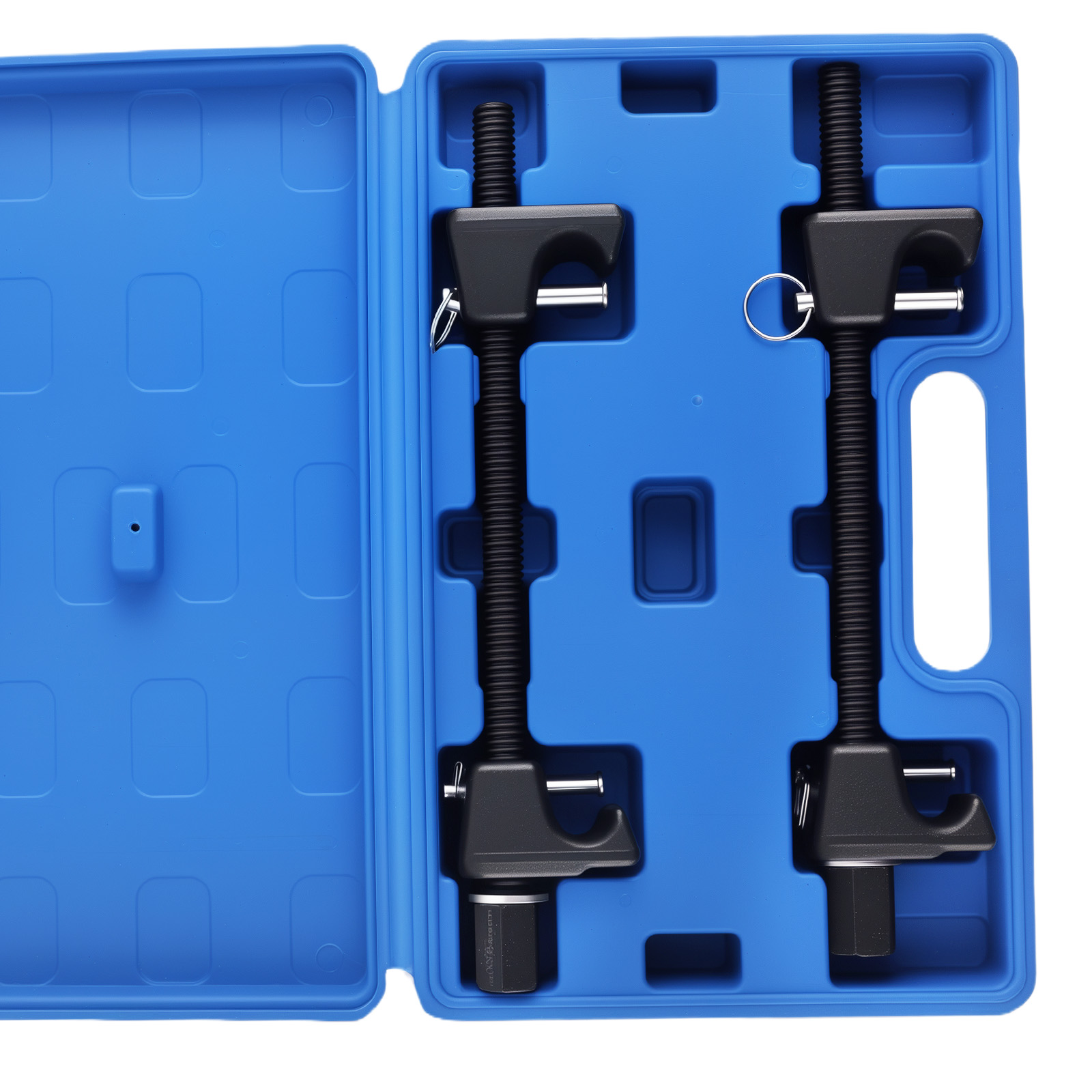

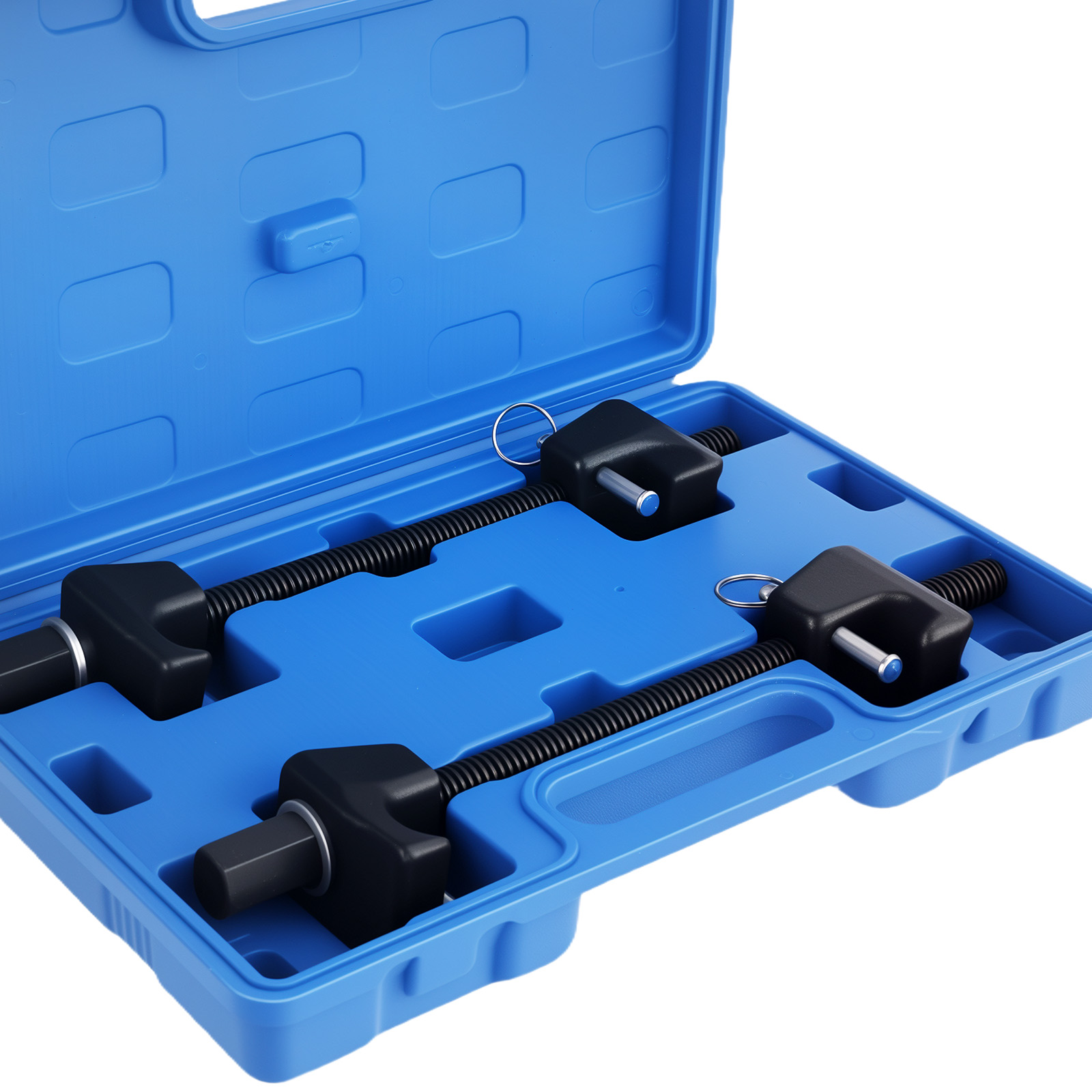

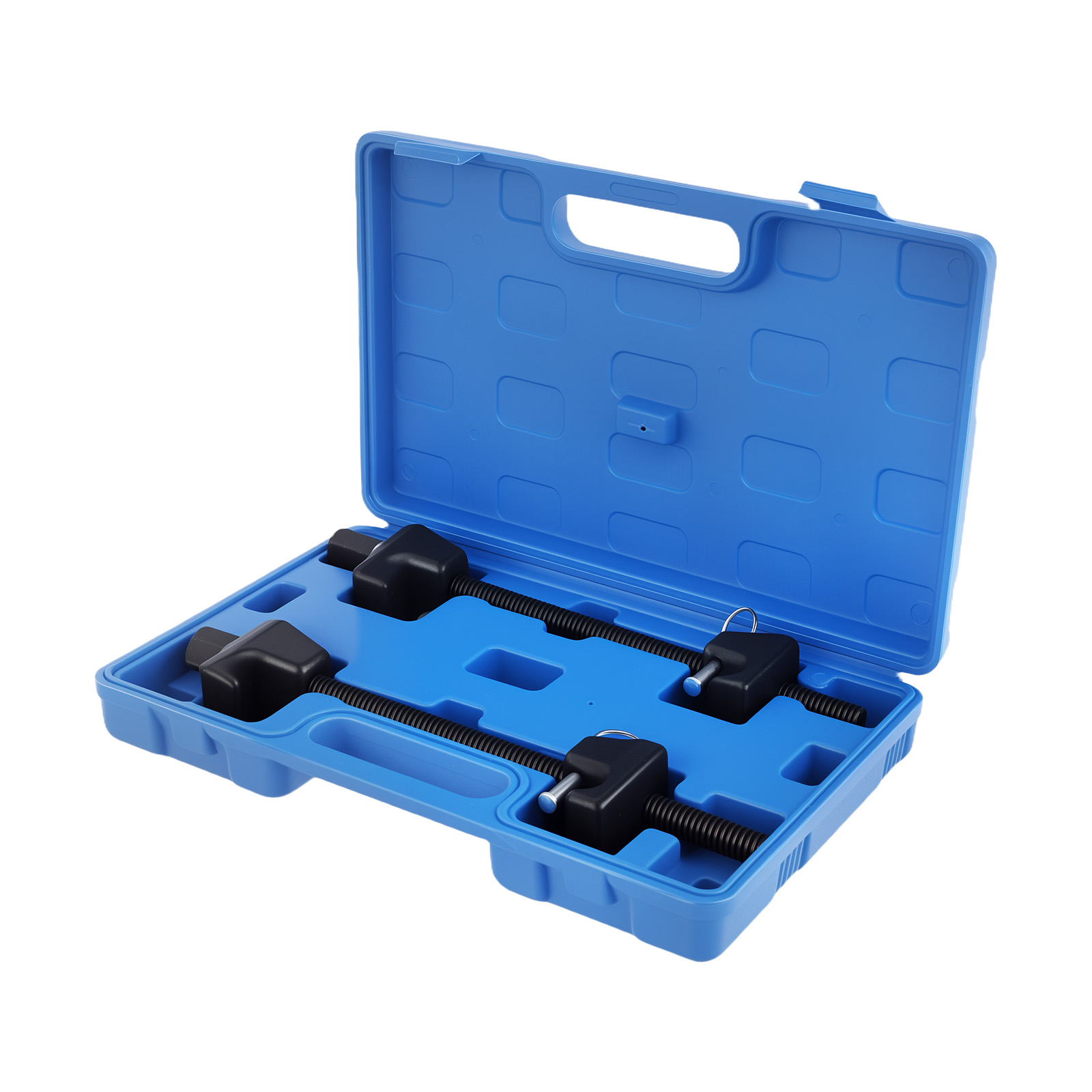

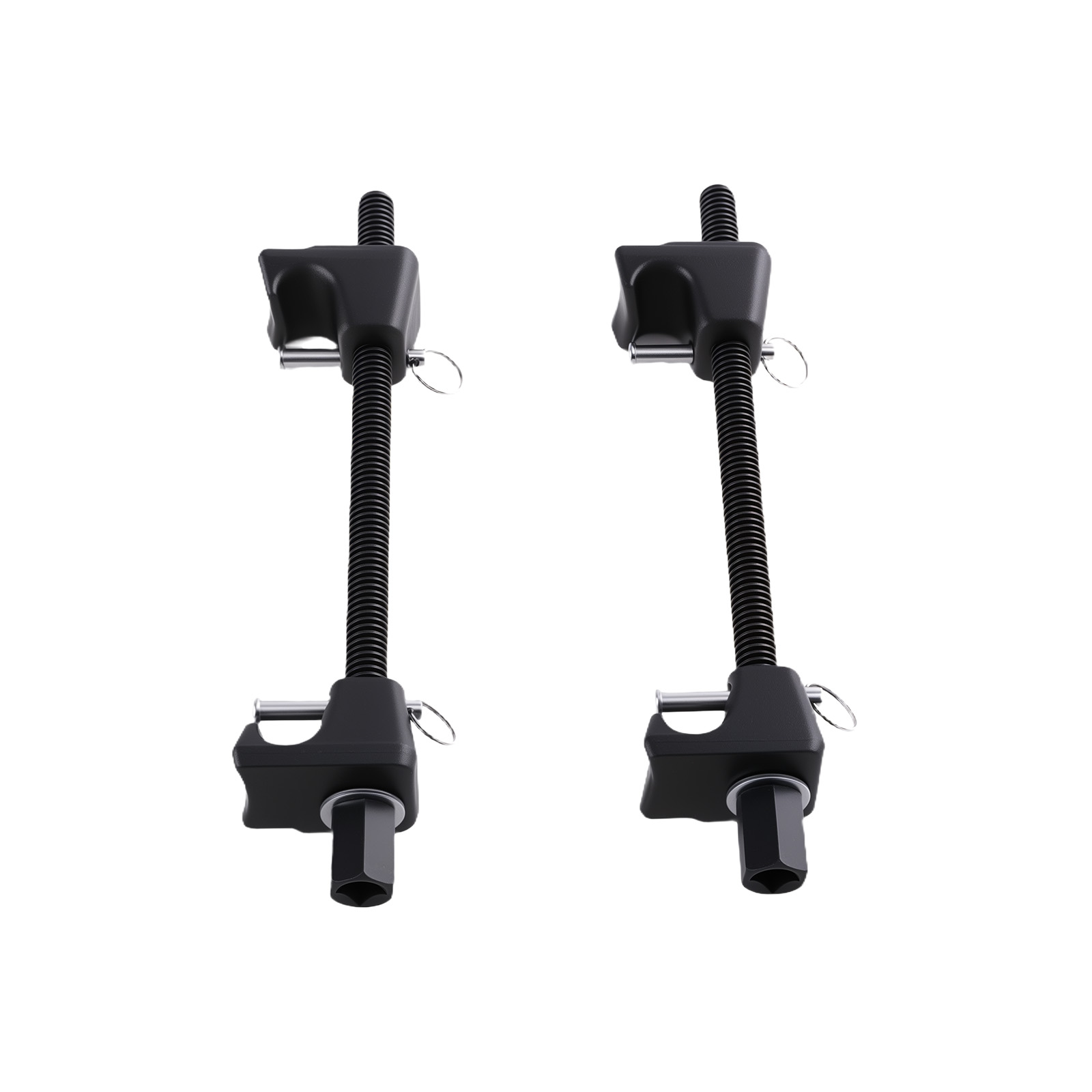

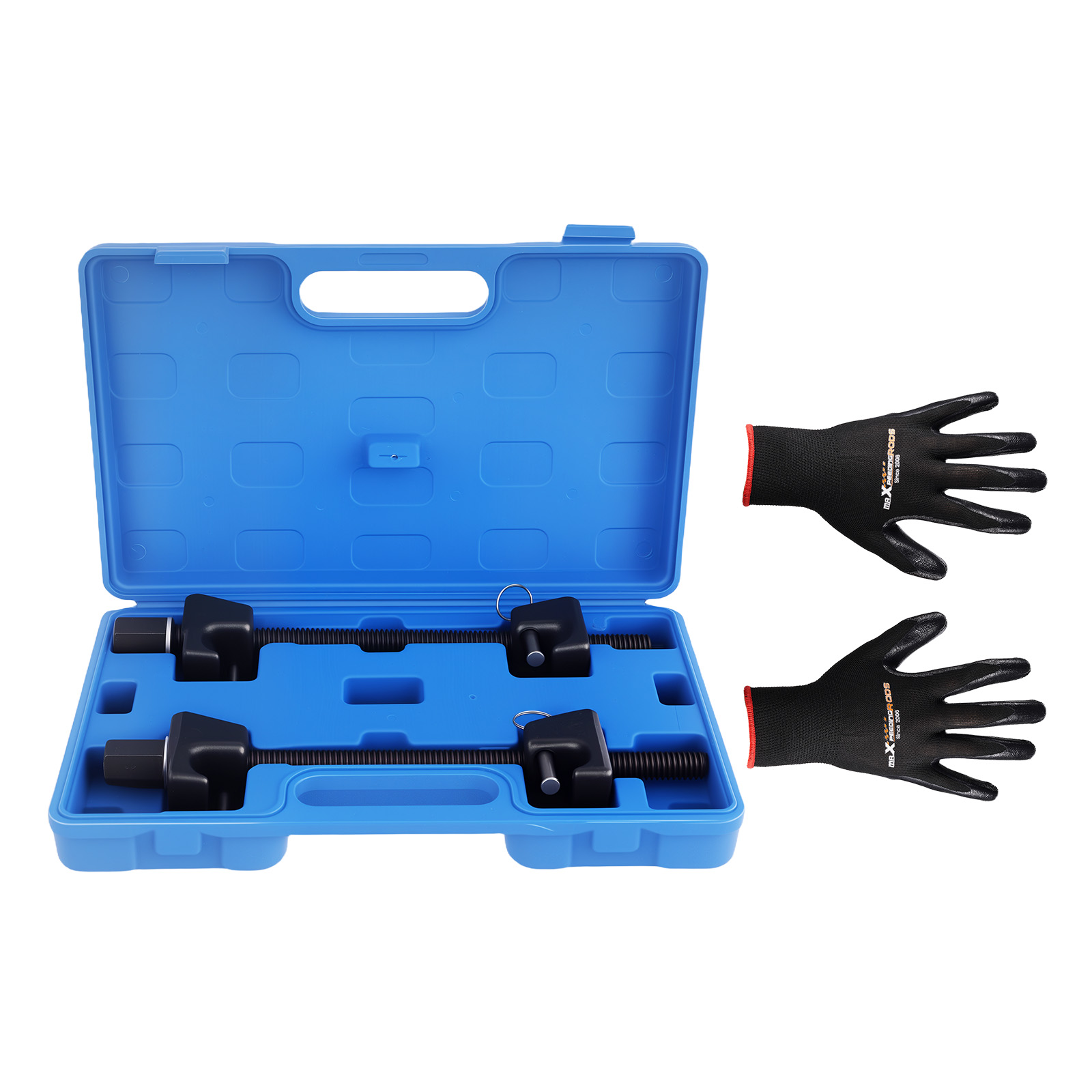

2 pieces  Struts Spring Compressor 300mm

Max. Clamping distance: 260 mm

Built-in safety pins

Drop forged steel and Heat treated

This item is specially designed for MacPherson strut springs.
Ideal for replacing shock absorbers and spring sets or repairing bent struts and damaged spindles

Details:

• 1. Lubricate both main shafts with oil
• 2. Align the hooks with the safety pins backed off so the hooks will fit over the spring
• 3. Position both set of hooks 180° a part, opposite each other
• 4. Push safety pins in the lock position on hooks
• 5. Using a 3/4"or 19mm socket and ratchet turn the main shaft compressing the strut spring enough to safely remove the fastener nut holding the cartridge
