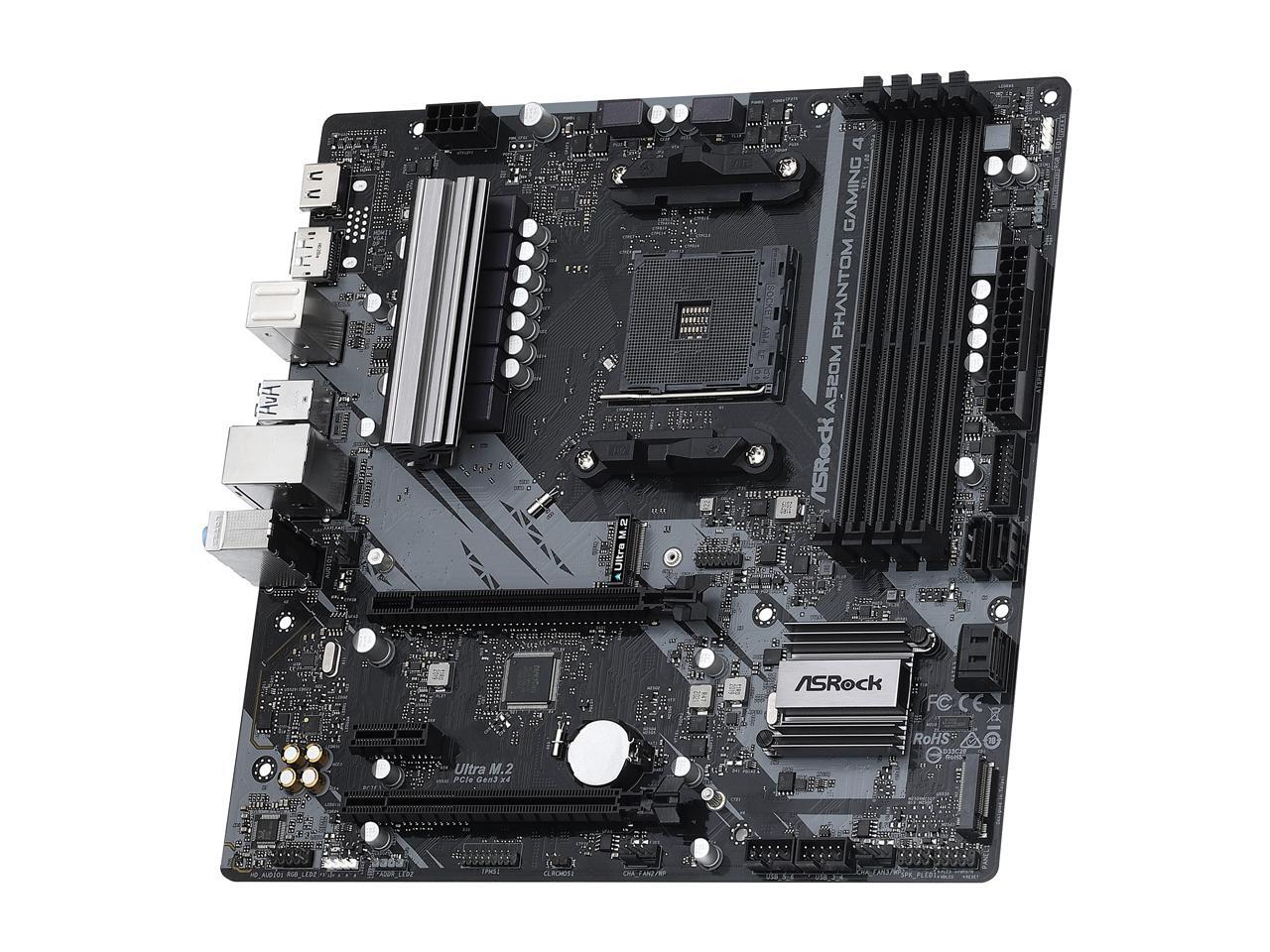

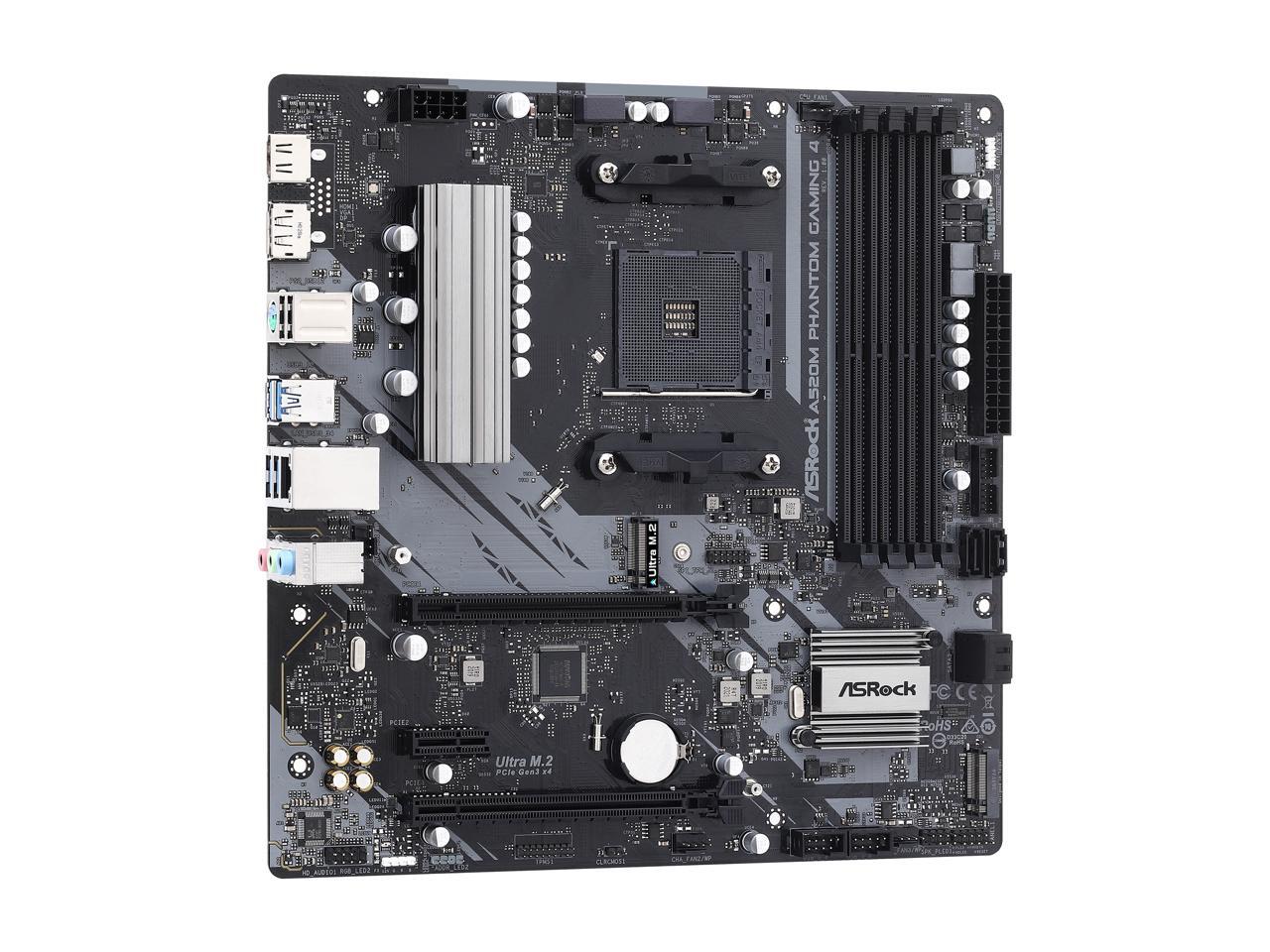

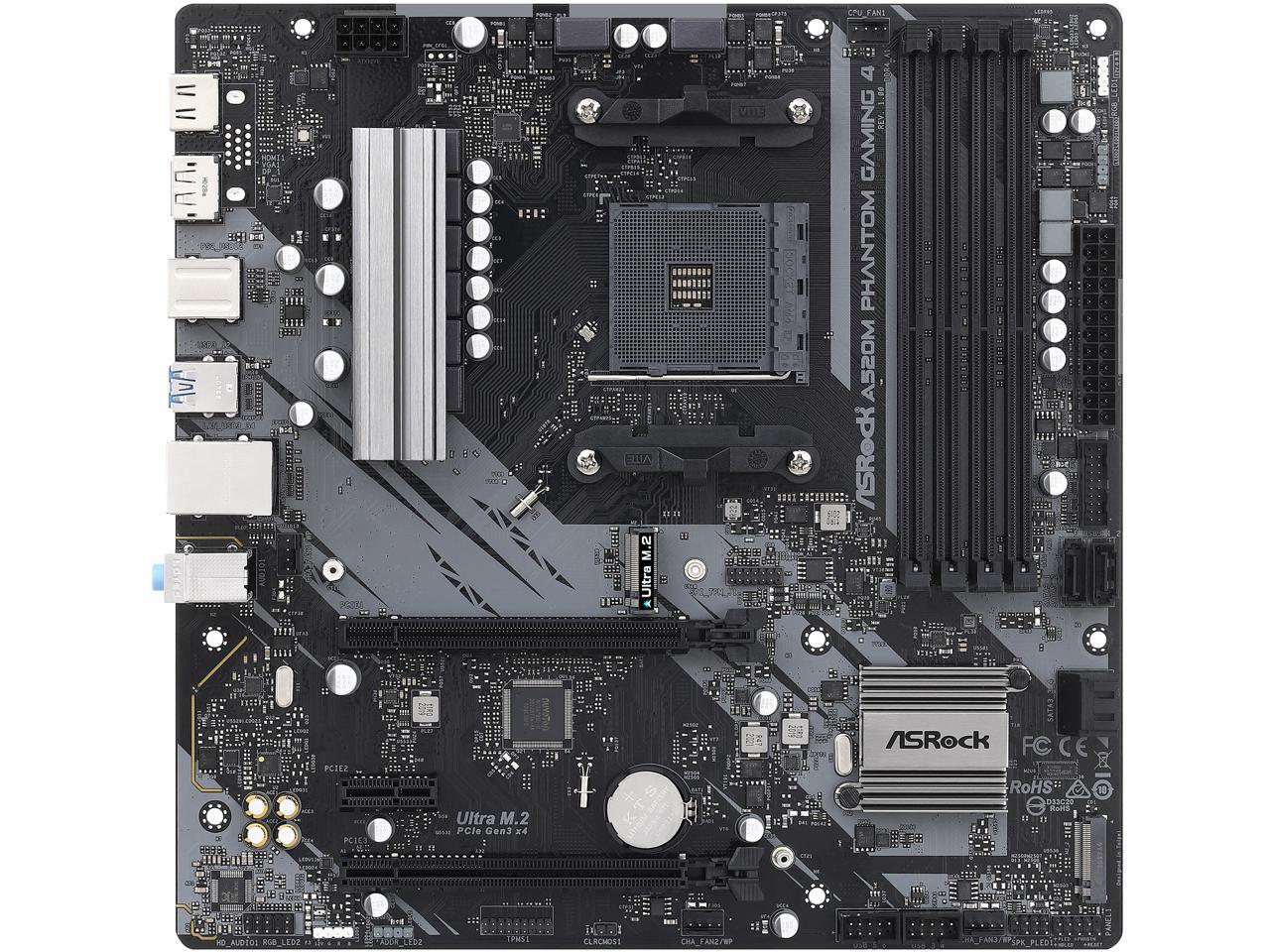

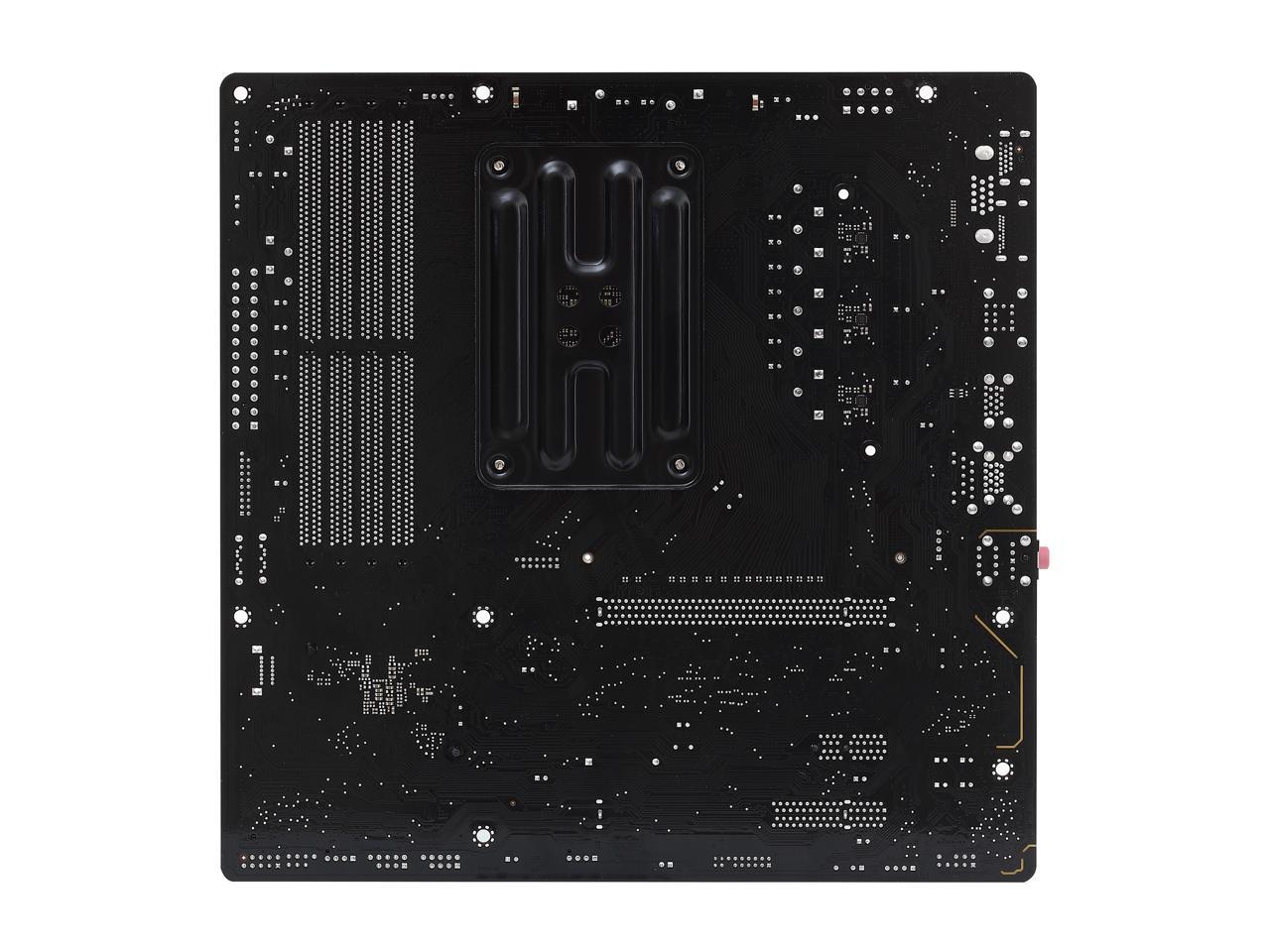

ASRock A520M PHANTOM GAMING 4 AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard IMPORTANT : Limit 5 per customer!

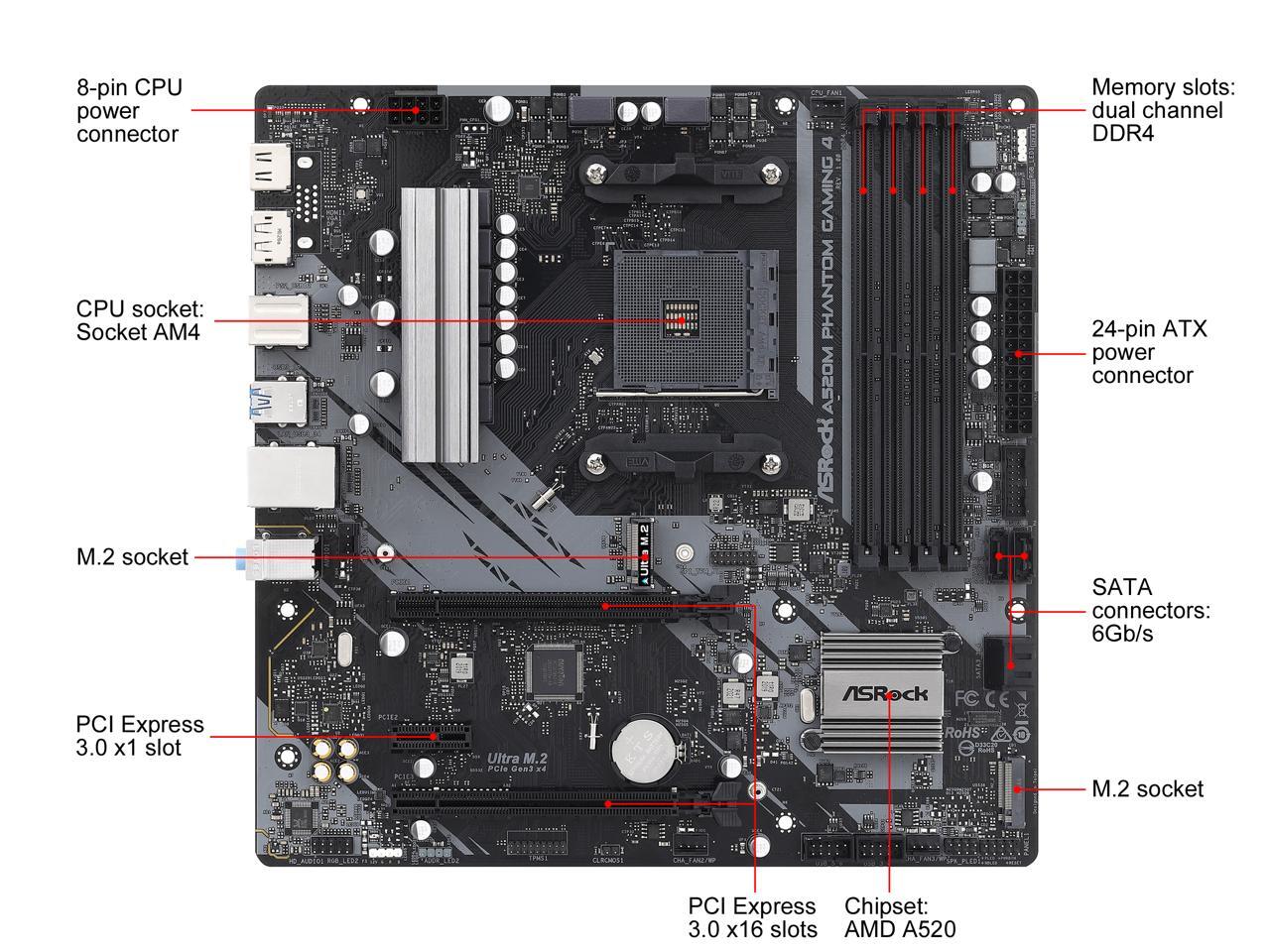

Learn more about ASRock A520M PHANTOM GAMING 4 Model Brand ASRock Model A520M PHANTOM GAMING 4 Supported CPU CPU Socket Type AM4 CPU Type Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors ** Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. Chipsets Chipset AMD A520 Memory Number of Memory Slots 4×288pin Memory Standard AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory** Please refer to Memory Support List on ASRock's website for more information. (https://www.asrock.com/) Maximum Memory Supported 128GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2 mode)** Supports NVMe SSD as boot disks PCI Express x1 1 x PCI Express 3.0 x1 Slot Storage Devices SATA 6Gb/s 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug** M2_2 and SATA3_3_4 share lanes. If either one of them is in use, the other one will be disabled. M.2 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s)**1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s)**** Supports NVMe SSD as boot disks** Supports ASRock U.2 Kit SATA RAID 0/1/10 Onboard Video Onboard Video Chipset Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU** Actual support may vary by CPUDirectX 12, Pixel Shader 5.0Shared memory default 2GB. Max Shared memory supports up to 16GB.* The Max shared memory 16GB requires 32GB system memory installed.Dual graphics output options: HDMI and DisplayPort 1.4Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60HzSupports DisplayPort 1.4 with max. resolution up to 5K (5120x2880) @ 120HzSupports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)Supports HDR (High Dynamic Range) with HDMI 2.1Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 PortsSupports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 PortsSupports Microsoft PlayReady Onboard Audio Audio Chipset Realtek 887/897 Audio Codec Audio Channels 7.1 ChannelsSupports Surge Protection Onboard LAN LAN Chipset Realtek RTL8111H Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.44 x USB 3.2 Gen1 Ports (Supports ESD Protection)2 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Connectors Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Other Connectors 1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers* Support in total up to 12V/3A, 36W LED Strip.2 x Addressable LED Headers* Support in total up to 5V/3A, 15W LED Strip.1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.* CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.1 x Front Panel Audio Connector Physical Spec Form Factor Micro ATX LED Lighting RGB Dimensions (W x L) 9.6" x 9.6" Power Pin 1 x 24-pin ATX Power Connector1 x 8-pin 12V Power Connector Features Features Unique Feature:ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Ultra M.2 (PCIe Gen3x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS Feature:- 256MB AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustmentSupport CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarSoftware and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LAN* These utilities can be downloaded from ASRock Live Update & APP Shop.UEFI- ASRock Full HD UEFI- ASRock Instant FlashHardware Monitor:- Temperature Sensing: CPU, Chassis/Water Pump Fans- Fan Tachometer: CPU, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8VOS:- Microsoft Windows 10 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) Packaging Package Contents Accessories:- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets
